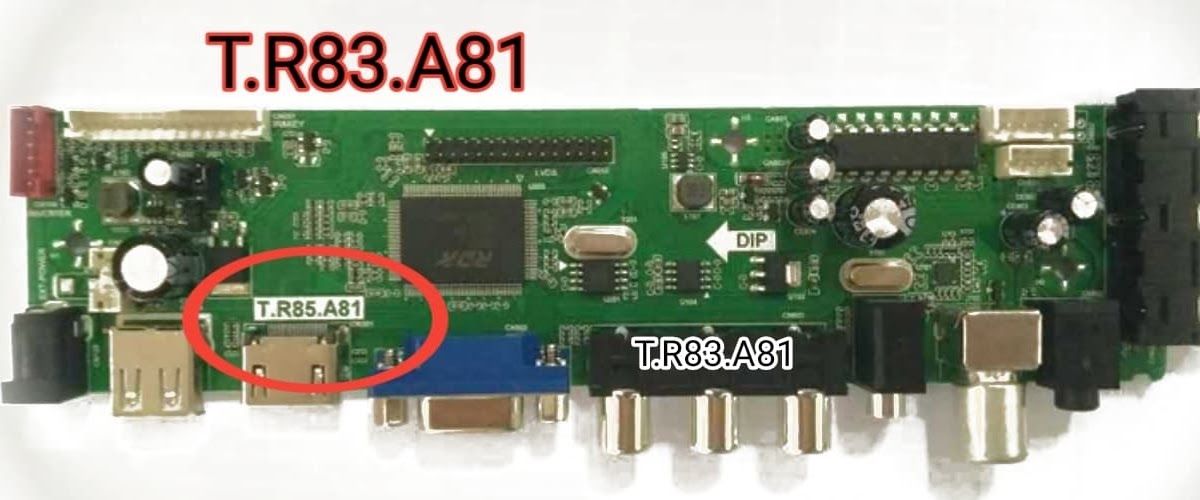

Analysis and Steps for Programming the T.R83.A81 Board with RT809F Programmer
1. Identify the SPI Flash Chip: - Locate the SPI Flash on the T.R83.A81 board. Typically, it will be a small 8-pin integrated circuit (IC). Models can vary, but common chips include Winbond, Macronix, or similar.
2. Read the Datasheet: - Obtain the datasheet for the specific SPI Flash chip you are working with. This document will provide crucial information such as pin configuration, voltage requirements, and instruction sets.
3. RT809F Programmer Setup: - Install Software: Ensure the RT809F software is installed correctly on your PC. - Connect RT809F: Connect the RT809F programmer to your PC via USB.
4. Connecting the SPI Flash to RT809F: - Identify Pins: Refer to the SPI Flash chip’s datasheet to identify the VCC (power), GND (ground), MISO (Master In Slave Out), MOSI (Master Out Slave In), SCK (Serial Clock), and CS (Chip Select) pins. - Wiring: Use SOIC8 clip or adapter for connecting the programmer to the SPI Flash directly on the board or desolder the chip and place it in the programmer’s socket. - Important Pins: - Pin 1: Chip Select (CS) - Pin 2: Master Out Slave In (MOSI) - Pin 3: VCC (Power) - Pin 4: Ground (GND) - Pin 5: Master In Slave Out (MISO) - Pin 6: Serial Clock (SCK) - Pin 7 and 8: May vary depending on the chip\
5. Programming Process: - Launch RT809F Software: Open the software interface on your PC. - Select Chip Model: Choose the correct model number for the SPI Flash chip from the list in the software. - Read Existing Data: Before programming, read and save the current data from the chip as a backup. - Load New Firmware: Load the new firmware file into the RT809F software. - Erase (if necessary): Some chips may require an erase operation before programming. - Write Data: Initiate the write process to program the new firmware onto the SPI Flash chip. - Verify: After writing, verify the written data to ensure the process completed successfully.
6. Reassembly and Testing: - If you desoldered the chip, re-solder it back onto the T.R83.A81 board ensuring proper orientation. - Reassemble the LCD screen and main unit. - Power on the unit to verify the new firmware is operating correctly.
Additional Points and Troubleshooting: - Voltage Matching: Ensure the voltage required by the SPI Flash chip matches what the RT809F programmer provides. Most chips operate at either 3.3V or 1.8V. - Pin Contacts: Ensure all SOIC8 clip or adapter pins make good contact with the SPI Flash chip. - Backup: Always maintain a backup of the original firmware in case the new firmware does not work appropriately. - Firmware Source: Verify that the new firmware file is not corrupted and is from a reliable source.
If you encounter any issues during the process, providing specific error messages or symptoms will assist in further troubleshooting.
