How to Calculate Impedance for Quad Pack (4 Traces) on Flex or Rigid PCB Without Reference Plane

15 1

ADVERTISEMENT

Reply | New topic

#1 21683287 02 Oct 2019 00:19

kim Baughman kim Baughman

Anonymous
Post #1
21683287 02 Oct 2019 00:19

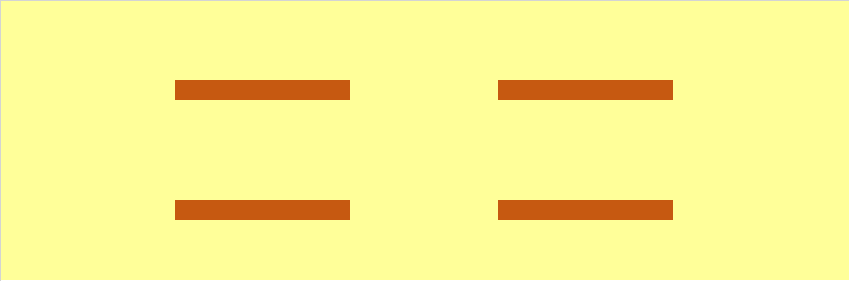

I have a flex board with 4 traces. 2 traces on top and 2 traces on bottom that go directly over each other. no reference plane. It is almost like a broadside differential and differential pair together, so basically there is a quad pack of traces. how to a calculate the impedance for that. what calculations can i do and then how to modify for this situation.

Attachments:

forums-special.png Download (5.28 KB)
ADVERTISEMENT
#2 21683288 02 Oct 2019 12:15

Maurizio Di Paolo Emilio Maurizio Di Paolo E...

Anonymous

Post #2
21683288 02 Oct 2019 12:15

Perhaps this could be useful for you https://www.eeweb.com/tools/microstrip-impedance
