Hi, is there anyone who can help me/guide me to solve the problem? Even if you could recommend me any teacher, senior, book, or paper, it would be of great help to me. I have come up with a dummy solution, but I am pretty sure it's not that accurate (I can show you my answer). I really appreciate guidance in any form. Thanks for taking the time to read this post!

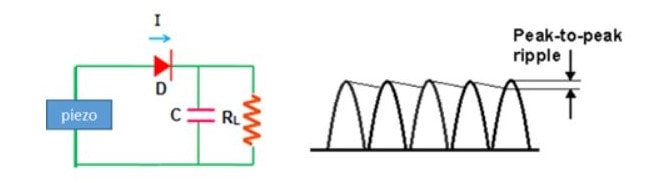

Suppose there is a piezoelectric crystal 4um * 4 um, thickness 500 nm, with dielectric constant of 10. There are metal electrodes at the top and bottom of the crystal. Suppose ultrasonic waves are applied at a frequency of 1 GHz and ac voltage with peak of 0.3 V is generated across the electrodes. Now suppose a diode and capacitor is connected to the electrodes to create a halfwave rectifier and voltage smoothing circuit.
i> Design (materials, structure, doping etc) the diode and capacitor to obtain best rectification/smoothing, lowering peak-to-peak ripples with the constraints that the area of diode and capacitor should be less than 4um by 4um and thickness less than 500nm.
ii> Design the layout of the circuit (how fabricated structure will look) with the on-chip piezoelectric
iii>Extract the equivalent capacitance across the metal electrodes of the piezoelectric crystal considering all parasitic capacitances. Show all parasitic capacitances in the diagram.
Suppose there is a piezoelectric crystal 4um * 4 um, thickness 500 nm, with dielectric constant of 10. There are metal electrodes at the top and bottom of the crystal. Suppose ultrasonic waves are applied at a frequency of 1 GHz and ac voltage with peak of 0.3 V is generated across the electrodes. Now suppose a diode and capacitor is connected to the electrodes to create a halfwave rectifier and voltage smoothing circuit.
i> Design (materials, structure, doping etc) the diode and capacitor to obtain best rectification/smoothing, lowering peak-to-peak ripples with the constraints that the area of diode and capacitor should be less than 4um by 4um and thickness less than 500nm.
ii> Design the layout of the circuit (how fabricated structure will look) with the on-chip piezoelectric
iii>Extract the equivalent capacitance across the metal electrodes of the piezoelectric crystal considering all parasitic capacitances. Show all parasitic capacitances in the diagram.
