Seeking Service Manual or Schematics for TCL 32DS520F Smart TV with TPD.NT72563.PB773 Board

passus00 7701 10
Best answers

Where can I find the service manual or schematic for a TCL 32DS520F TV with a TPD.NT72563.PB773 board to identify a blown resistor value?

A possible schematic for the TPD.NT72563.PB773 board is the Scribd diagram link [#21562597], and one reply states the blown resistor value is "300" [#20875607] Another TCL schematic link for chassis NT63E-LA may also be related [#20849172]
AI summary based on the discussion. May contain errors.
ADVERTISEMENT
Report a violation of the law
Reply | New topic
  • #1 20811782
    passus00
    Level 8  
    Posts: 3

    Hi,
    Does anyone have a service manual for this TV?
    It is a smart TV with the board "TPD.NT72563.PB773".

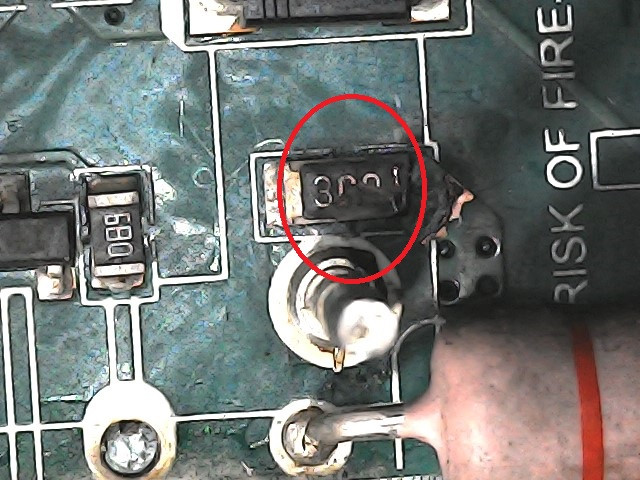

    I need the service manual or schematics because I have a blown resistor that I can't determine the value of.
    Many thanks.
    Attachments:
    • Seeking Service Manual or Schematics for TCL 32DS520F Smart TV with TPD.NT72563.PB773 Board Resistor TCL.jpg (110.41 KB) You must be logged in to download this attachment.
  • ADVERTISEMENT
  • ADVERTISEMENT
  • Helpful post
    #3 20875607
    Pwn3r
    Level 10  
    Posts: 7
    Help: 1
    Rate: 1

    It's 300.

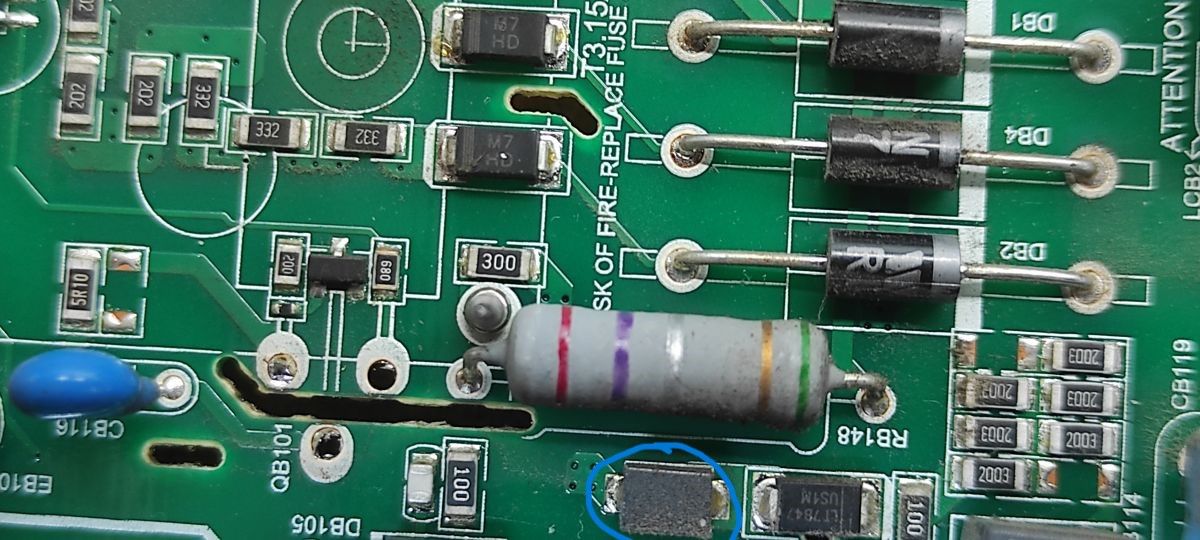

    Close-up of a circuit board with various electronic components.
  • #4 20934598
    ennesimo84
    Level 1  
    Posts: 1
    Please, I need value of this resistance (rb148)
  • #5 20935326
    Aquario_blue
    Level 19  
    Posts: 277
    Help: 41
    Rate: 155
    0,27R 2w
  • ADVERTISEMENT
  • #6 21310891
    drumow
    Level 1  
    Posts: 1
    Hi can you tell me the value of the marked diode in blue please Circuit board with a diode marked in blue.
  • #8 21562417
    bekier
    Level 19  
    Posts: 481
    Help: 18
    Rate: 60

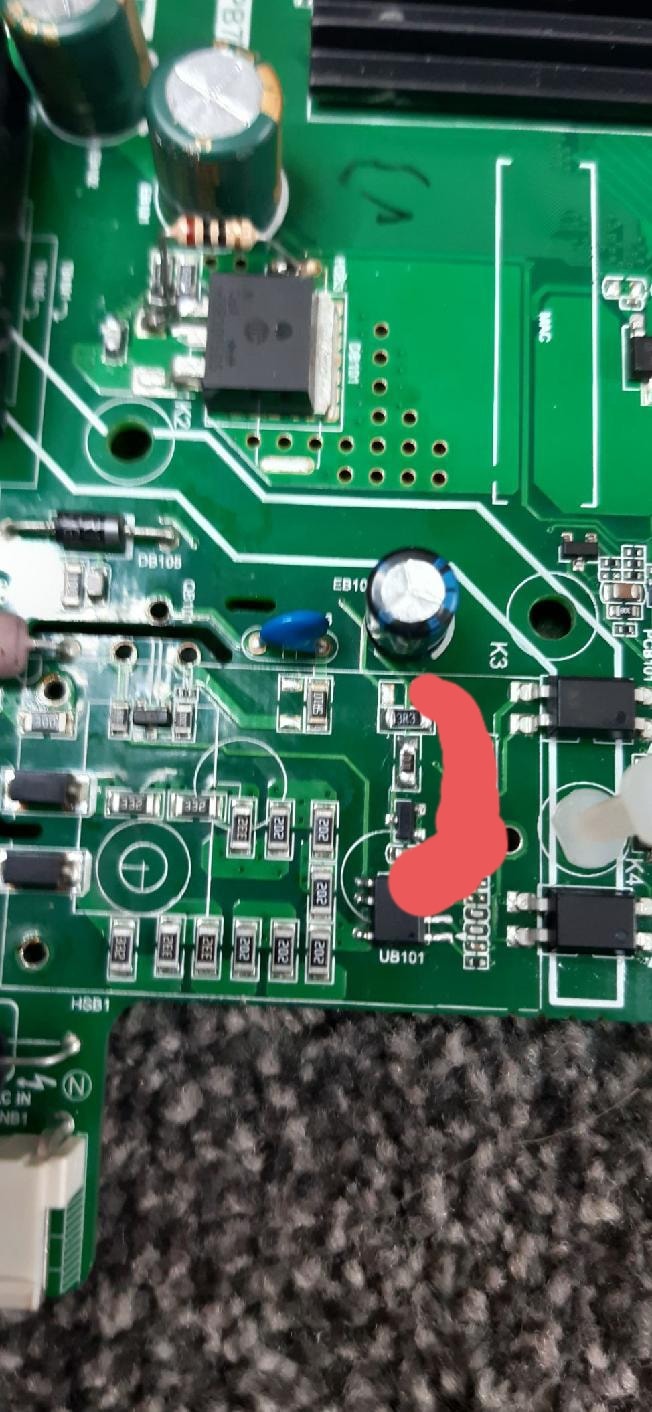

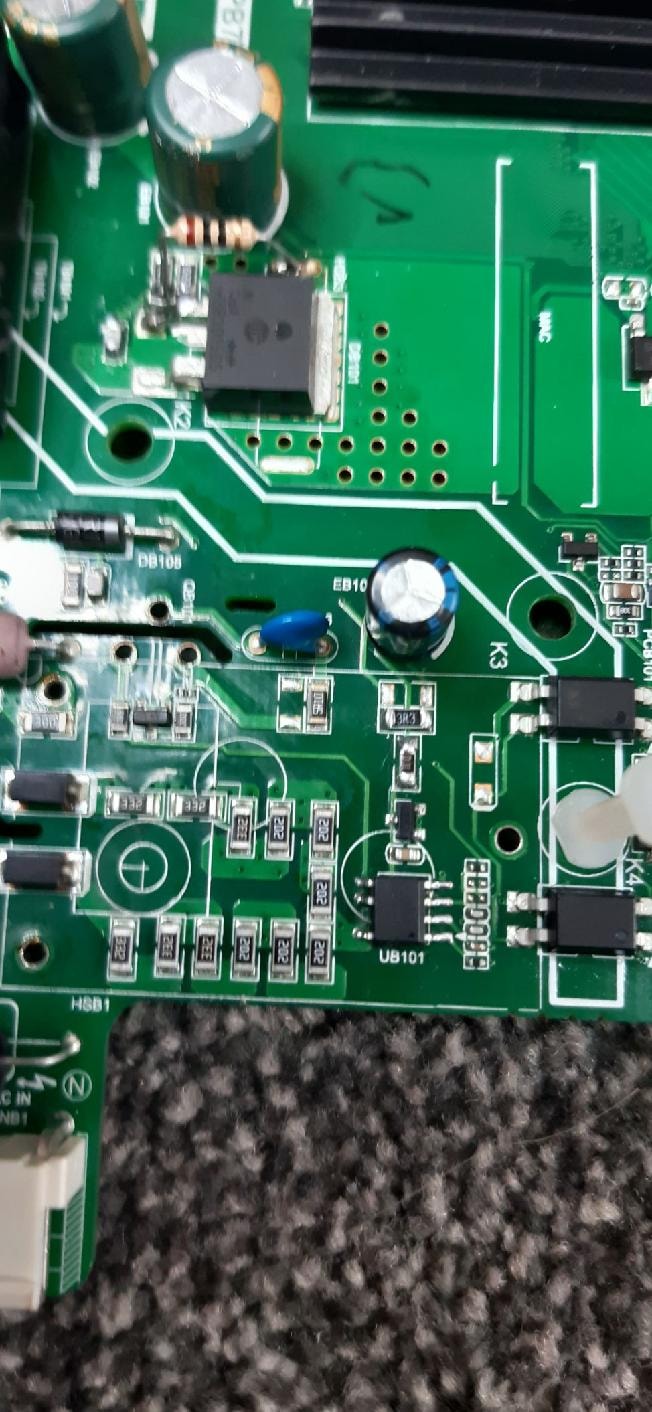

    I need the values of the burnt 3 components in such a TV. I cannot find a schematic diagram.
    Here the inserted 3,3 ohm resistor is wrong.
    In the pictures the heatsink has been removed.
    Maybe someone can see on such a board or where I can find a schematic.

    Grzes
    Attachments:
    • Seeking Service Manual or Schematics for TCL 32DS520F Smart TV with TPD.NT72563.PB773 Board TCL2.jpg (199.12 KB) You must be logged in to download this attachment.
    • Seeking Service Manual or Schematics for TCL 32DS520F Smart TV with TPD.NT72563.PB773 Board TCL.jpeg (142.37 KB) You must be logged in to download this attachment.
  • #10 21714111
    imtiaz_2007
    Level 10  
    Posts: 8
    Rate: 9
    tpd nt72563 pb773 nt63p firmware USB
    help me sir
  • ADVERTISEMENT
  • #11 21716058
    querij
    Level 21  
    Posts: 375
    Help: 42
    Rate: 226
    Model?
Reply | New topic
Report a violation of the law

Topic summary

✨ Discussion about finding a service manual or schematic for a TCL 32DS520F smart TV using board TPD.NT72563.PB773 to identify the value of a blown resistor and other burnt components. A schematic link for the NT63E/TPD-NT72563-PB773 chassis is shared, and component values are suggested in replies, including a 300 ohm resistor, RB148 as 0.27 ohm 2W, and a 3.3 ohm resistor noted as incorrect in one repair attempt. Later messages ask for the value of a marked diode and for firmware/USB help for the same board.
