LG TM120 V14 Control Board Cable Identification for HDMI Conversion

57 6

#1 21681698 30 Jan 2019 18:51

Steve DD Steve DD

Anonymous
Post #1
21681698 30 Jan 2019 18:51

Hi,

Firstly I am extremely sorry if I have posted this in the wrong forum.

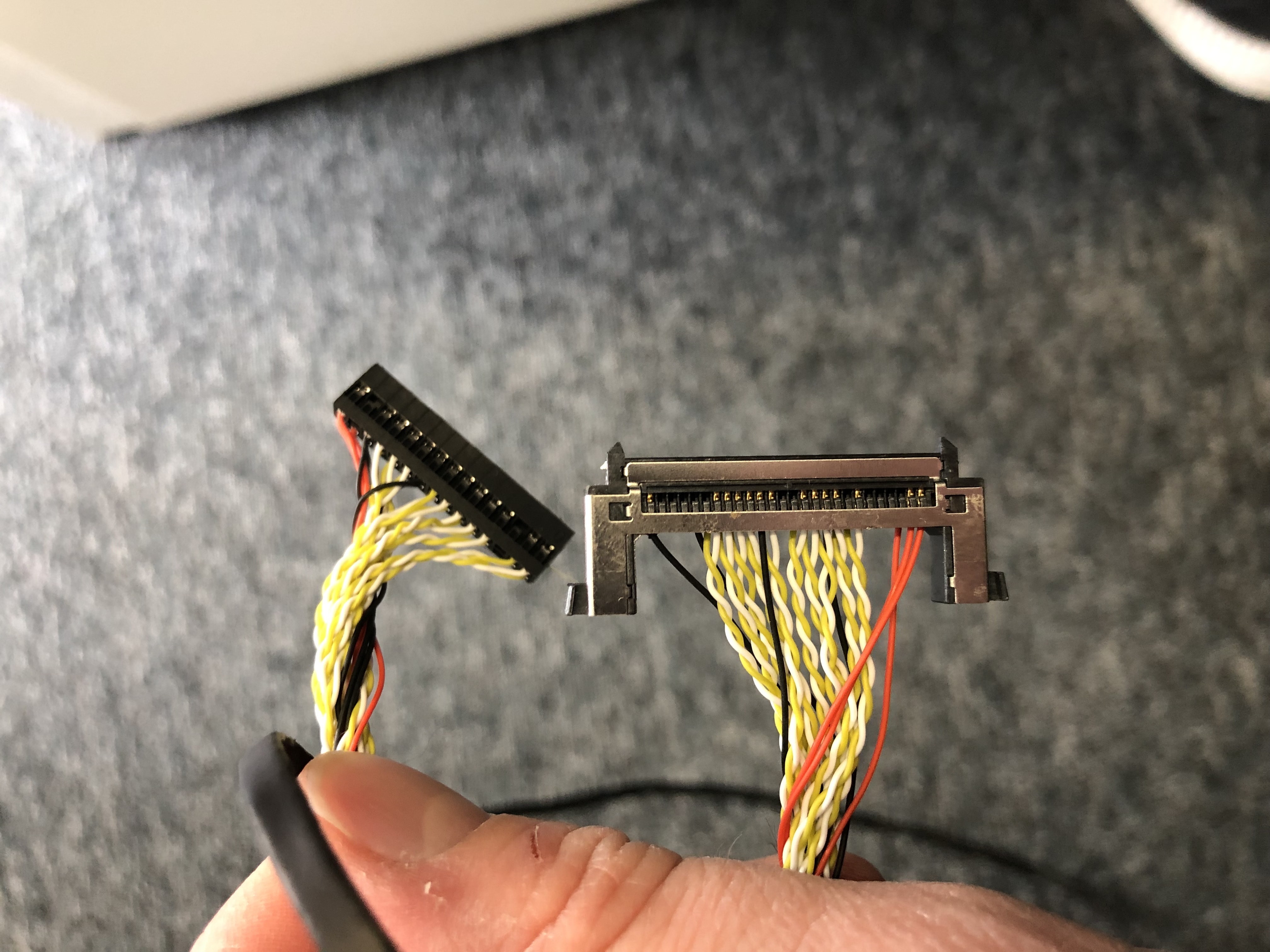

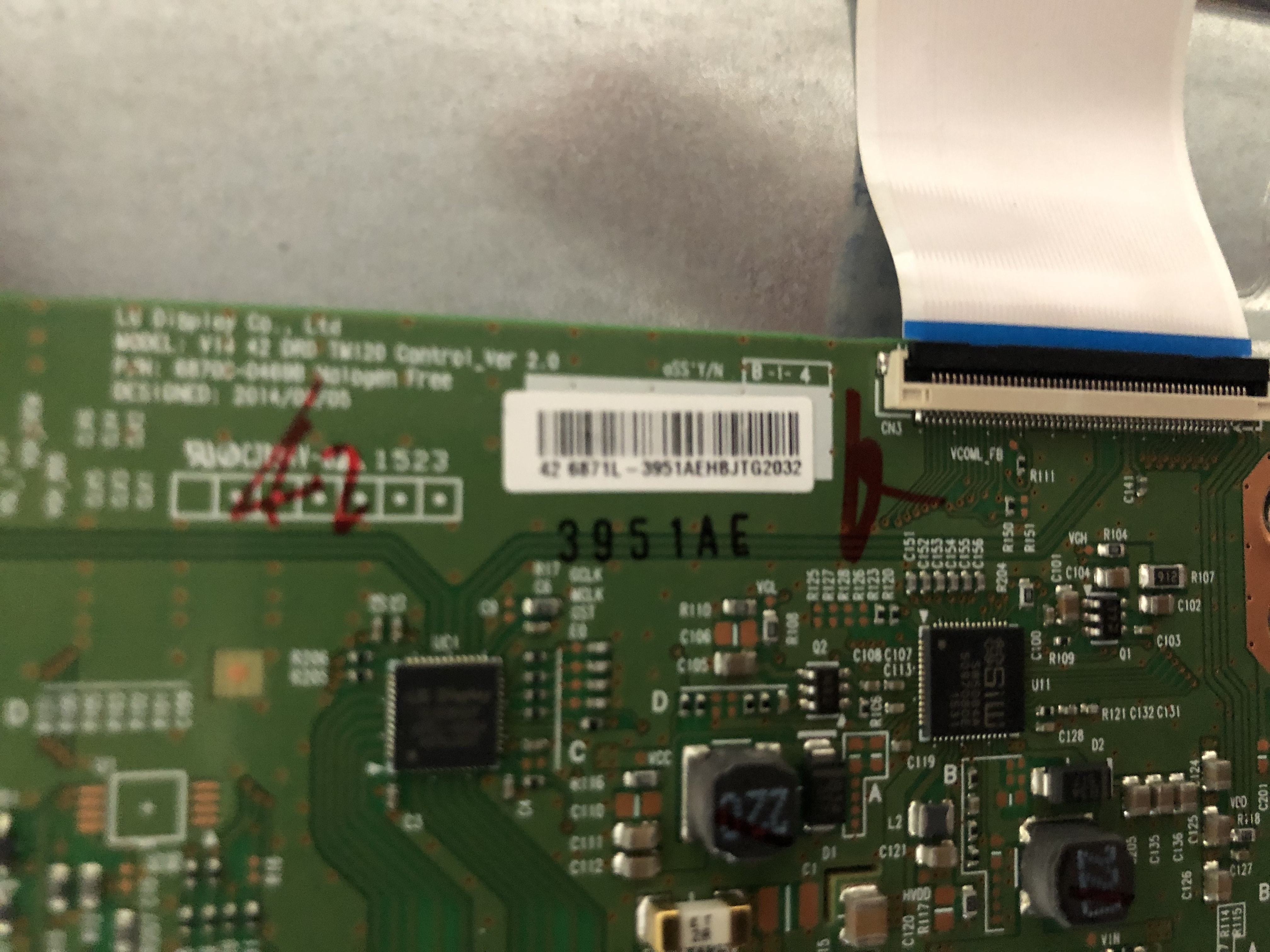

I am looking to identify the following cable that comes from my LG TM120 control board for my HD TV. The version of the control board is V14.
The board has two ribbons coming in and then the cable below coming out. Can anyone help identify this port/cable as I would like to convert to an HDMI port.

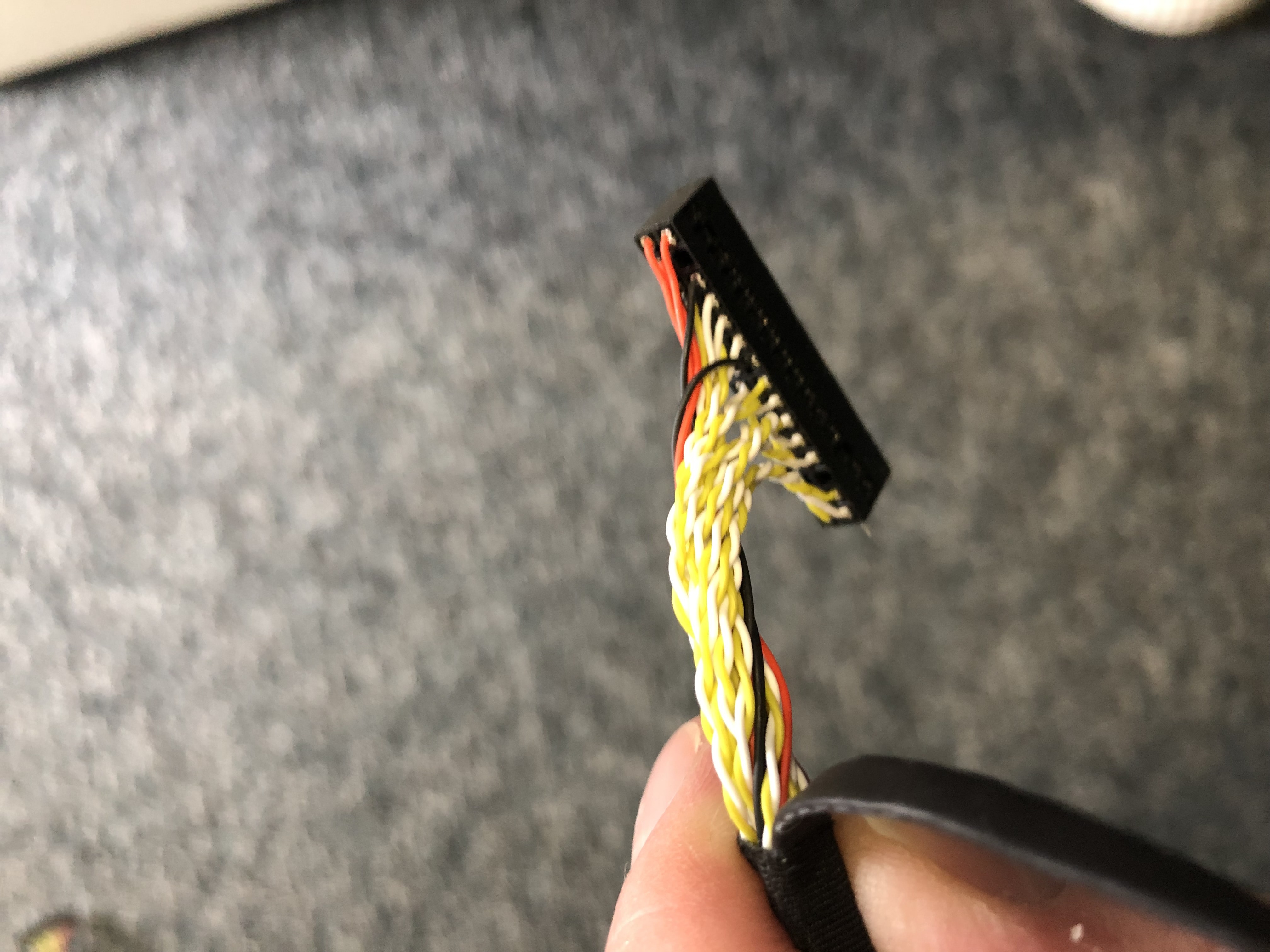

The black end is the one that goes into our board. And the silver the one that plugs into the control board from the TV.
Images attached.

Regards,

Steve

Attachments:

forums-ffea535a-fff2-457d-b7c8-1c67a1bf6002.jpeg Download (2.94 MB)

forums-eed2dfdf-3a9b-4c09-95ae-9b296c78f802.jpeg Download (2.34 MB)

forums-e5fcc699-de3c-43d5-85a4-2f97aedd8eea.jpeg Download (2.52 MB)
ADVERTISEMENT
#2 21681699 31 Jan 2019 03:03

David Ashton David Ashton

Anonymous

Post #2
21681699 31 Jan 2019 03:03

Steve, big ask. You'd really need the schematic (circuit diagram) of the TV to do this. And they are almost impossible to get these days, if a TV goes wrong it gets chucked, not fixed....If it is an HDMI port already, you could maybe do something, If it is something else, no way.All those twisted pairs indicate that it's something with multiple data channels. Maybe....If you're really keen you could look up the datasheets for the chips used on the board, and poke around with a meter to get an idea which wire goes where. But by the looks of that board, it would be a huge job.
ADVERTISEMENT
#3 21681700 31 Jan 2019 04:02

Steve DD Steve DD

Anonymous

Post #3
21681700 31 Jan 2019 04:02

Thanks David, it is prt of a digital advertising screen the panel works well but goes into an Android board. I was hoping to convert to a hdmi so I could use a different input.
Could I try converting it to HDMI (on the chance that is what it is)?Steve
ADVERTISEMENT
#4 21681701 31 Jan 2019 04:42

Rick Curl Rick Curl

Anonymous

Post #4
21681701 31 Jan 2019 04:42

Hi Steve-What inputs does the TV have? What is the model number of the TV?. Chances are slim, but I may be able to find some information.-Rick
ADVERTISEMENT
#5 21681702 06 Feb 2019 14:22

Steve DD Steve DD

Anonymous

Post #5
21681702 06 Feb 2019 14:22

Hi sorry for the delay, I do not know the model of the TV as it oa only the panel in the back of the unit. I have taken the Android board off and the pattern on the bottom of the board is like the picture. Does this help? I am not sure if the picture will show clear
#6 21681703 06 Feb 2019 15:26

Steve DD Steve DD

Anonymous

Post #6
21681703 06 Feb 2019 15:26

I have taken another photo of the Android board this cable goes into. Hoping looking this side may help? I have also made a table of the colour cable going into each of those pins.
#7 21681704 06 Feb 2019 16:50

Steve DD Steve DD

Anonymous

Post #7
21681704 06 Feb 2019 16:50

Just found this image on the web, it look like it is a Dual LVDS output
