Hi,

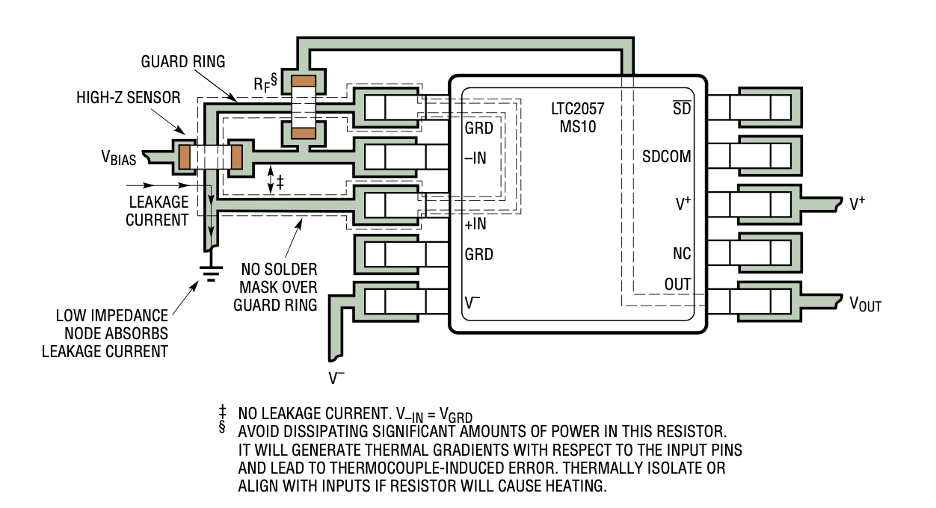

I'm using some Linear LTC2057HV op amps in a project and want to minimize leakage currents. The datasheet suggests putting a pcb guard ring linking one of the ground pins and the inverting input in an interesting manner. I'll attach a picture and the full datasheet.
My question is, should I also connect the ground pins directly to the ground of my dual rail power supply, or does that defeat the purpose of linking one to the inverting input in the first place? In which case, should I simply leave the second ground pin floating?
Since I'm using these as non inverting amplifiers, I would generally connect the ground pin directly to my power supply ground, but since I'm trying to get as little offset voltage as possible from these, I'm wondering if this alternative is better or would work at all before I prototype it.
Any guidance you have would be greatly appreciated.
Best,Mike
