How can I determine a resistor's wattage rating from its resistance, tolerance, and physical size?

You usually cannot determine a resistor’s wattage from resistance and tolerance alone; the power rating is specified by the manufacturer and can differ even for parts with the same dimensions, especially between old and modern resistors [#18884801][#1486023] The safest approach is to look it up in the catalog/datasheet, or if that is unavailable, compare the body size and shape with known resistors and choose the next larger wattage rating [#1486023][#1486048] One reply gave rough modern examples: about 2.3 mm diameter ≈ 0.125 W, 3.6 mm ≈ 0.25 W, and 4.5 mm ≈ 0.5 W, but age and construction can change this a lot [#1486048][#18884801] Also remember that rated power depends on temperature: a resistor may be rated for its full power only at around 70 °C ambient, and the allowable power drops at higher temperatures [#18885703]
Generated by the language model.
ADVERTISEMENT
Treść została przetłumaczona polish » english Zobacz oryginalną wersję tematu
Report a violation of the law
Reply | New topic
  • #1 1485936
    Kondrax
    Level 18  
    Posts: 350
    Help: 3
    Rate: 10
    How to check how much watt is a resistor? On the barcode, they only give resistance and tolerance, and how to check whether it is, for example, 1W or 2W or more, I noticed that the size of the resistor does matter, but how big is how much Watt?
  • ADVERTISEMENT
  • #2 1486023
    Paweł Es.
    VIP Meritorious for electroda.pl  
    Posts: 6981
    Help: 1236
    Rate: 690
    There is no simple dependency. You can try, for example, by comparing with other resistors of known power and, just in case, take the next larger value from the power series.
  • ADVERTISEMENT
  • #3 1486048
    w1m
    Level 14  
    Posts: 88
    Help: 5
    Rate: 13
    Measurement of the diameter gives a full picture, however, it is dependent on the age of the resistor very old resistors, although they are large, have low power

    If it is about more modern ones, I had only these at hand, about 2.3mm, 0.125W, 3.6mm, 0.25W, 4.5mm, 0.5W
  • #4 1486093
    boomerang
    Level 19  
    Posts: 259
    Help: 26
    Rate: 11
    I propose an experiment.
    Adjustable voltage power supply, increasing the voltage until the long-term operation does not cause a significant increase in temperature. Then, from the basic formulas, calculate the power released and adopt a little lower values for operation.
  • #5 1486153
    Kondrax
    Level 18  
    Posts: 350
    Help: 3
    Rate: 10
    I did not think that there is an easier way, but I see, to be sure, it is better to go to the store and buy a new one, how to look for old resistors, and I asked for watts after doing a JIG to a speaker workshop and there it is very important how much watt has.

    Added after 1 [minutes]:

    And tell me how it is with watts when connected in series or in parallel because I did not find it in the electrical engineering book.
  • #6 1486161
    szymon188
    Level 22  
    Posts: 519
    Help: 50
    Rate: 39
    If you give a resistor too strong, nothing will happen. Gay, if you give it too weak and it will burn out.
  • #7 1486170
    Kondrax
    Level 18  
    Posts: 350
    Help: 3
    Rate: 10
    Super cool szymon188 but which one is the stronger one, you haven't thought about it.
  • ADVERTISEMENT
  • #8 1486199
    szymon188
    Level 22  
    Posts: 519
    Help: 50
    Rate: 39
    It is best to go to the electronic one and ask the seller when buying, because when using old "recycled" resistors, you can never be sure how long it will last,
  • #9 1486272
    Kondrax
    Level 18  
    Posts: 350
    Help: 3
    Rate: 10
    How is it with watts when connected in series or in parallel because I did not find it in the electrical engineering book. Do they add up or how?
  • ADVERTISEMENT
  • #10 1487113
    Paweł Es.
    VIP Meritorious for electroda.pl  
    Posts: 6981
    Help: 1236
    Rate: 690
    When you connect in series, the total power is divided into resistors depending on the voltages on them

    The same current flows through all the resistors.

    Pcałk = U1 * I + U2 * I + ... + Un * I


    With a parallel connection, the power is distributed among the resistors depending on the current that flows through the resistor:

    There is the same voltage across all resistors.

    Pcałk = U * I1 + U * I2 + ... + U * In

    Note that the voltage across any resistor must not exceed the maximum allowable for a given construction type, because it may result in its breakdown)

    It is similar with maximum power

    Both of the above conditions must be met so that the resistor is not damaged.
  • #11 18884287
    pendzel_no1
    Level 12  
    Posts: 22
    Rate: 19
    That was it?
    Determining Resistor Wattage: Identify Watt Rating by Resistance, Tolerance & Size Factors
  • #12 18884801
    CYRUS2
    Level 43  
    Posts: 17639
    Help: 1221
    Rate: 3451
    Fellow advisers - skip your advice.
    It will not work - you have to take it from the catalog.
    The power is specified by the manufacturer.
    Power various types of resistors of the same dimensions may be different.
    Example :
    2W MŁT resistors from "Omig" are much larger than the current 2W resistors.
  • #13 18884834
    JoteR
    Level 24  
    Posts: 497
    Help: 74
    Rate: 83
    CYRUS2 wrote:
    Fellow advisers - skip your advice.
    It will not work - you have to take it from the catalog.
    The power is specified by the manufacturer.


    Yeah, sure. Each of us keeps resistors in a drawer with labels with the manufacturer's name and catalogs dangling next to them.
  • #14 18884878
    _jta_
    Electronics specialist  
    Posts: 48808
    Help: 3197
    Rate: 4182
    CYRUS2 wrote:
    The power of different types of resistors with the same dimensions may be different.

    And very much: I just had resistors of very similar sizes, one of which had a power of 0.5W (the ones with flat tips transverse to the resistor, used in the past in tube circuits), the other 5W (covered with some enamel); I also have dark green resistors (they are probably wire painted) of similar size and also a lot of power.
  • #15 18884973
    jarek_lnx
    Level 43  
    Posts: 22535
    Help: 4165
    Rate: 6023
    The higher the operating temperature allowed by the manufacturer, the higher the power can be at a given surface of the resistor.

    You need to be careful with power resistors, because if the manufacturer specifies that the resistor will withstand 5W, but at the same time it has the temperature of a hot soldering iron, it may be better not to use these "possibilities" and not to smell the burned dust and not have a brown laminate under the resistor and overheated parts nearby .
  • #16 18885119
    CYRUS2
    Level 43  
    Posts: 17639
    Help: 1221
    Rate: 3451
    JoteR wrote:
    Yeah, sure. Each of us keeps resistors in a drawer with labels with the manufacturer's name and catalogs dangling next to them.
    This colleague will not find out what the rated power of the resistors is.
  • #17 18885237
    klamocik
    Level 36  
    Posts: 3033
    Help: 332
    Rate: 715
    As with watts, if you connect two 1 watt resistors, whether in series or in parallel, the power will be 2 watts.
  • #18 18885240
    _jta_
    Electronics specialist  
    Posts: 48808
    Help: 3197
    Rate: 4182
    CYRUS2 wrote:
    This colleague will not find out what the rated power of the resistors is.

    Unless he gets to know the resistors so that he knows which is which - they are slightly different, you just need to know what and be able to see it.
  • #19 18885359
    398216 Usunięty
    Level 43  
    Posts: 34017
    Help: 3914
    Rate: 9191
    klamocik wrote:
    As with watts, if you connect two 1 watt resistors, whether in series or in parallel, the power will be 2 watts.
    Yes. This is due to Kirchhoff's laws.
  • #20 18885605
    Anonymous
    Level 1  
  • #21 18885703
    CYRUS2
    Level 43  
    Posts: 17639
    Help: 1221
    Rate: 3451
    Resistor power.
    This is not a direct link to the destruction of the resistor.
    Determining Resistor Wattage: Identify Watt Rating by Resistance, Tolerance & Size Factors

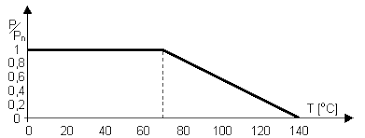

    This is the power curve of the resistor.
    The resistor is able to discharge the rated power at an ambient temperature of max 70 ° C.
    At higher temperatures, the power of the resistor decreases.
  • #22 19817032
    hasek123
    Level 10  
    Posts: 27
    Rate: 1
    This should help.
    Attachments:
    • Determining Resistor Wattage: Identify Watt Rating by Resistance, Tolerance & Size Factors Rysunek_techniczny.jpg (103.66 KB) You must be logged in to download this attachment.
  • #23 19817228
    Anonymous
    Level 1  
  • #24 19817283
    ^ToM^
    Level 42  
    Posts: 9048
    Help: 495
    Rate: 2929
    Adamcyn wrote:
    boomerang wrote:
    I propose an experiment.
    Adjustable voltage power supply, increasing the voltage until the long-term operation does not cause a significant increase in temperature.

    I connected a 1 M? resistor to a regulated power supply, and it won't heat up too damn well.
    Am i doing something wrong? :D


    Adaś, you have a weak power supply. :D
    I connected 10 M? to a 0-3000 V regulated power supply and I can certainly confirm that it heats up, while 1 M? even burns :)
