Hi. I started learning Autocad, I have a student version AutoCAD Electrical 2015 . Does anyone know how I can get symbols on the diagram: Unfortunately, but when looking for this menu: I found no such symbols, not even sockets. Do I need to download any libraries?

Name: AutoCAD Electrical 2015: How to Access Electrical Symbols, Diagrams & Libraries for Student Version
Uploaded: 2015-05-20T16:40:50+02:00
Description: Hi. I started learning Autocad, I have a student version AutoCAD Electrical 2015 . Does anyone know how I can get symbols on the diagram: Unfortunately, but when looking for this menu: I found no such symbols, not even sockets. Do I need to download any libraries?

And what's the problem to sit for an hour and scratch symbols in the appropriate raster and save them as blocks? V.

Change the library from JIC to EIC. I have ACE 2014 and in this library of symbols for drawing plans there is no (only for drawing single and multi-line diagrams), which does not necessarily mean that your version does not.

Thanks for your answers. I tried to change this library only problem: how can i change it? In the Libs folder on drive C I have only folders: Hyd_Iso125, jic1, jic125, panel, panel_mm, pid, pneu_iso125 and a .cfg file - SymLib.cfg

Install yourself a program like Link in which you will find an example library of symbols. Also search for free switchgear design software - you will find symbols in them that you can export to cad.

I subscribe to post # 2. When you search for prefabs, you would already have a large database of your own symbols.

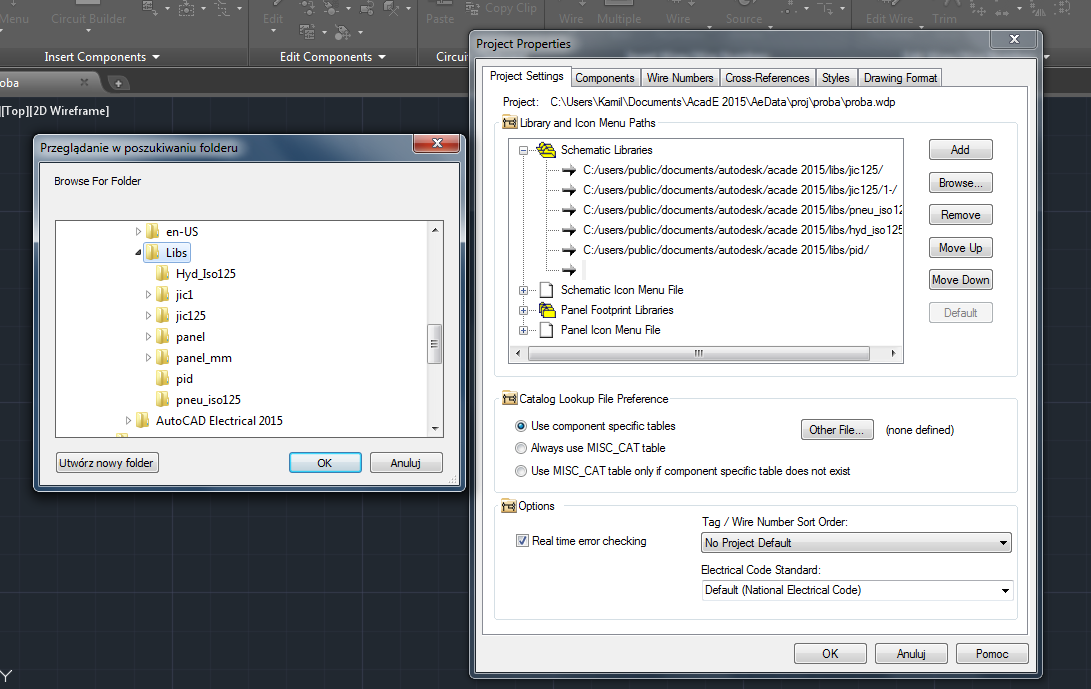

To change the symbol library, right-click on a given project in the Project Manager and select Properties ... from the drop-down list. The window will appear and in the Project Settings tab there are paths to the symbol library. An instructional video below.

Thanks for the hints. I tried the changes in the right place, unfortunately I don't have libraries like IEC in the Libs folder. Okay, I had the IEC option checked during installation. Despite this, there are no symbols like in the first post. It's hard to start completing my own elements. Thank you for your willingness and help

Did you download these symbols? dps-software.pl/prezent-biblioteka-symboli-elektrycznych-cad-draftsight/ to be sure they are under draftsight but since the dwg files will work in another cad.
