Jeep Compass 2008: Seeking Fuse and Relay Descriptions for ECU Communication

Reply | New topic

#1 16964346 15 Jan 2018 22:51

kris-644 kris-644

Level 21

» |

Post #1
16964346 15 Jan 2018 22:51

Hello.
As in the topic. Needed description of fuses and relays with setting power supply to the engine computer. No communication with the ECU, no starter operation. In other modules, a clear communication error with the engine ECU.
Regards.
Chris
ADVERTISEMENT
#2 16964378 15 Jan 2018 23:03

piotrek22101 piotrek22101

Level 39

» | Helpful post? (0)

Post #2
16964378 15 Jan 2018 23:03

https://www.google.pl/amp/www.autogenius.info...p-compass-from-2007-bezpieczniki-schemat/amp/
Failure popped out suddenly or after some incident?
ADVERTISEMENT
#3 16964413 15 Jan 2018 23:17

kris-644 kris-644

Level 21

» | Topic author Helpful post? (0)

Post #3
16964413 15 Jan 2018 23:17

I watched this site, but it's not what you need and that's why I wrote the topic. It just happened and it has already been. he
ADVERTISEMENT
#4 16964574 16 Jan 2018 00:27

-kris- -kris-

Level 14

» | Helpful post? (+2)

Post #4
16964574 16 Jan 2018 00:27

hi
maybe these will be good

greetings kris
#5 16968245 17 Jan 2018 15:02

kris-644 kris-644

Level 21

» | Topic author Helpful post? (+1)

Post #5
16968245 17 Jan 2018 15:02

Welcome back.

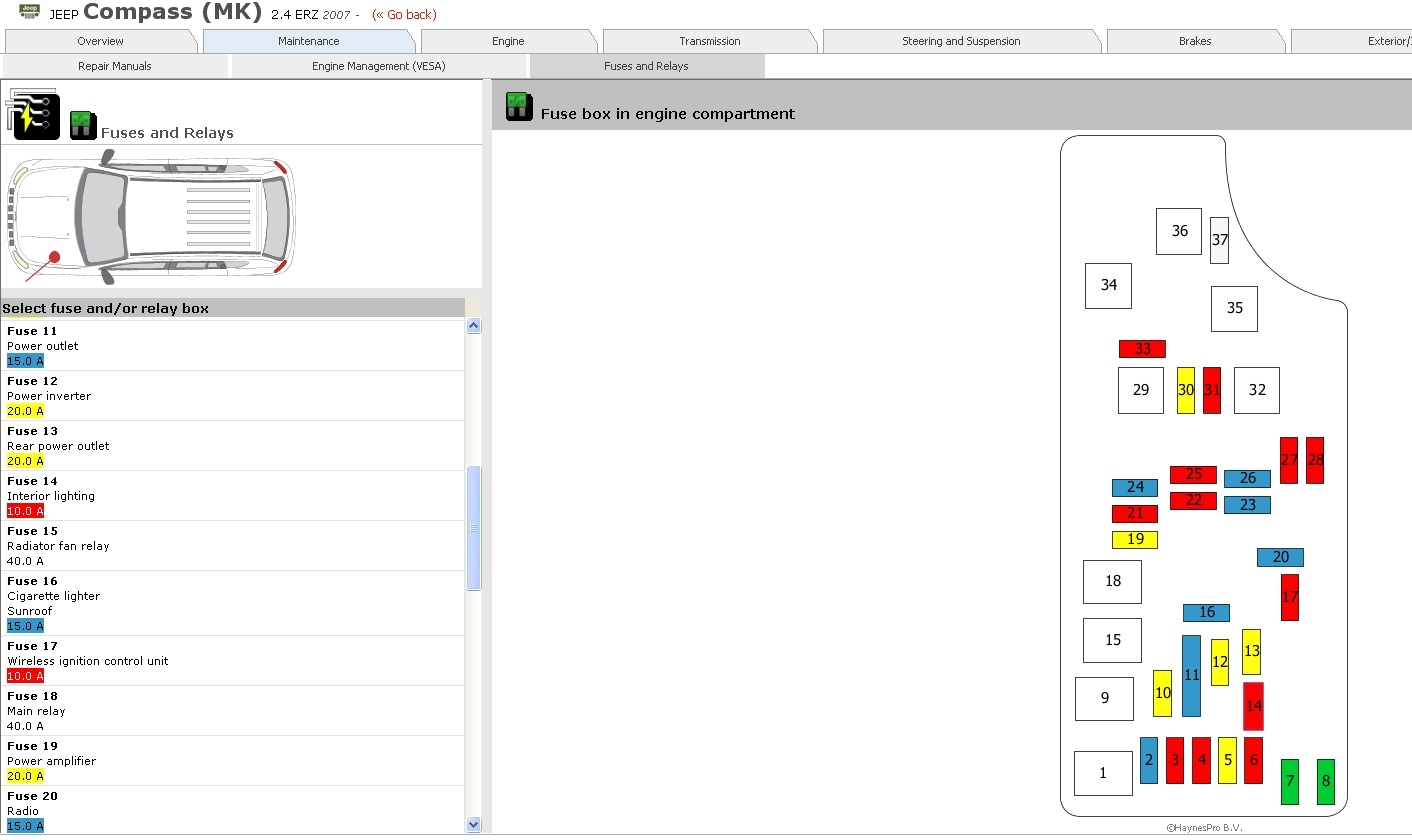

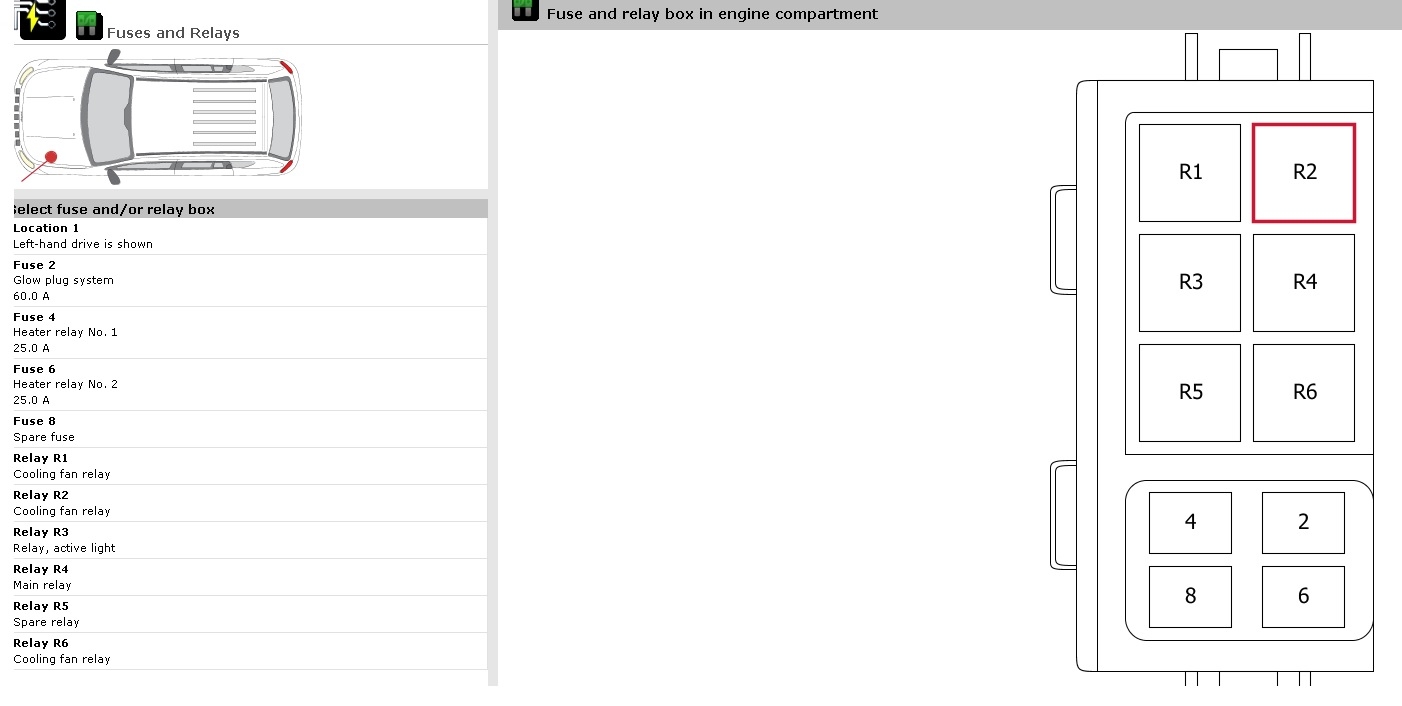

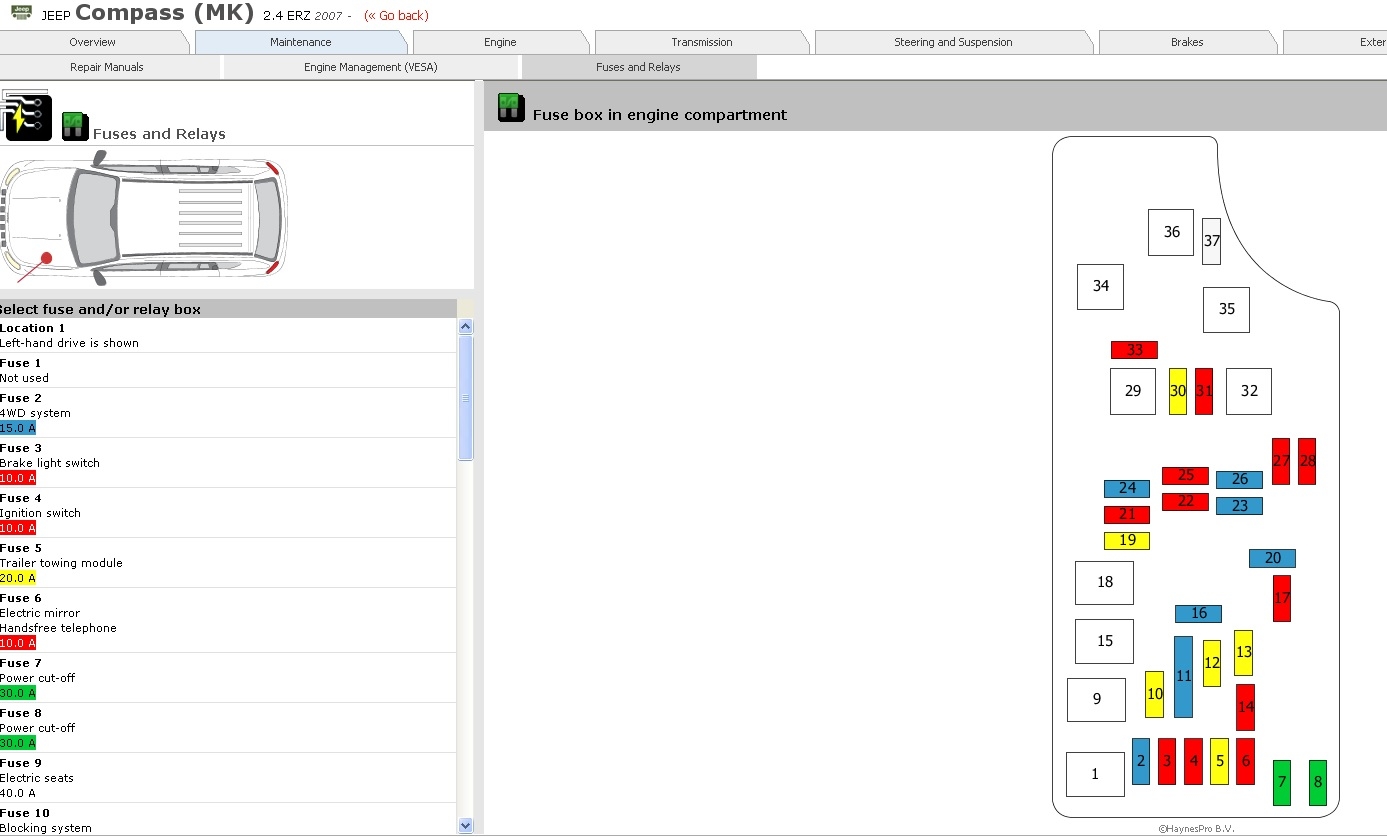

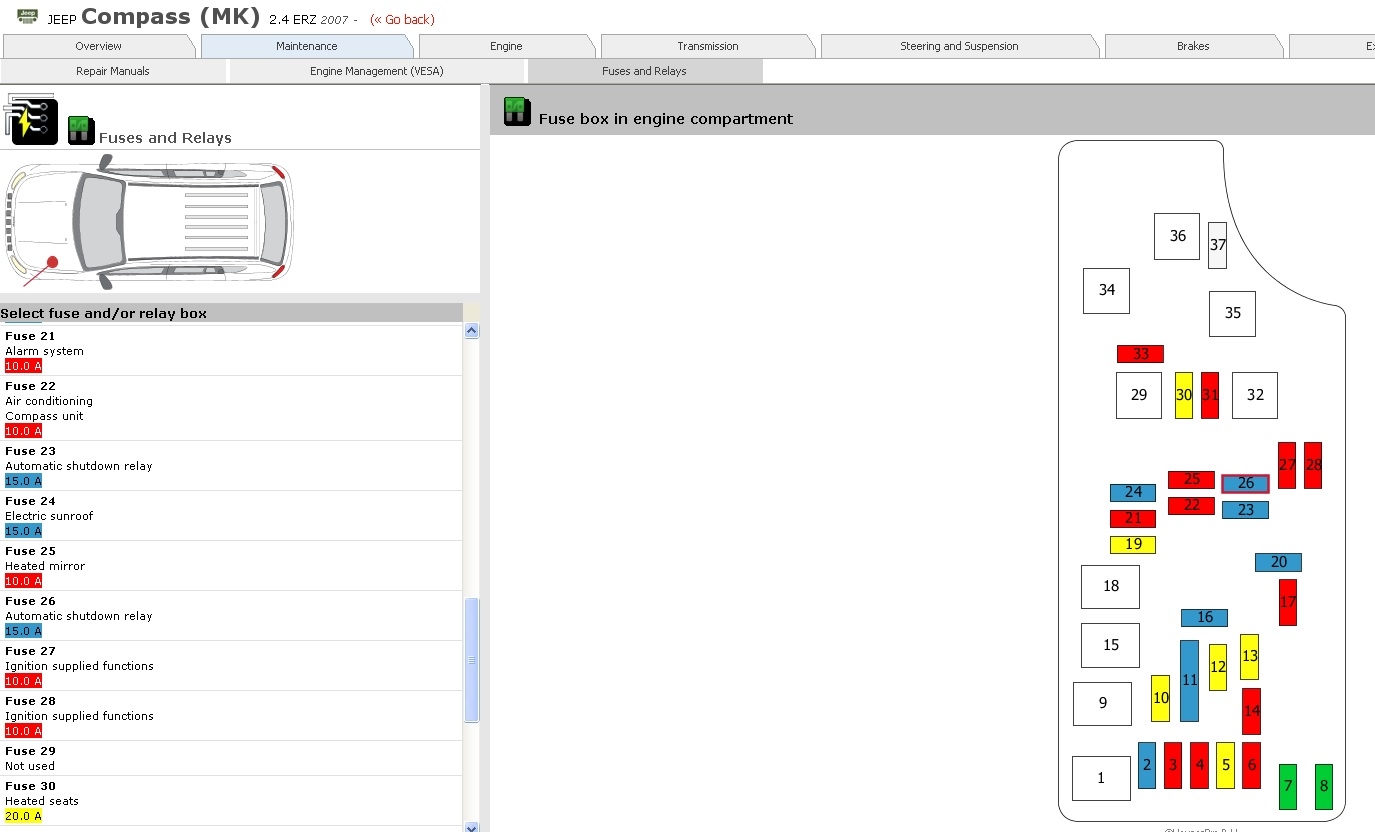

Thank you for the schematics, but I think I have another version with the bsm module under the hood. The EDC16U31 driver turned out to be damaged. Power supply in the same places as the VAG group controller ... I added 2 pieces after bdm and after trouble.
Regards.
Kris
