Vw Passat B5 - Connection of the Carprotect BX20 central locking controller

Paseratti97 7227 8
ADVERTISEMENT
Treść została przetłumaczona polish » english Zobacz oryginalną wersję tematu
  • #1 17069858
    Paseratti97
    Level 2  
    Hello
    Can anyone tell me in Polish where to connect?
    cable corner hatch I understand
    black mass, i.e. under the car body
    red direct current power blue cables separated directions
    yellow-black cable?
    black and white locking cable?
    orange-black cable?
    yellow cable?
    white cable opening?
    orange cable?
    I have no problem with DC ground and direction cables, but what to do with the rest?
    I will mention that in the car I have cables for closing the door opening
    I still have a relay to buy?

    Added after 5 [minutes]:

    This is what my plug looks like.
    Maybe someone knows how ???

    Moderated By CameR:

    Just use "search", for example: https://www.elektroda.pl/rtvforum/topic3274294.html#16075427
    Reg. 3.1.15. Do not ask immediately on the forum if you have not checked anything yourself or have not attempted a self-diagnosis.

  • ADVERTISEMENT
  • #2 17069931
    Pedros050
    Level 43  

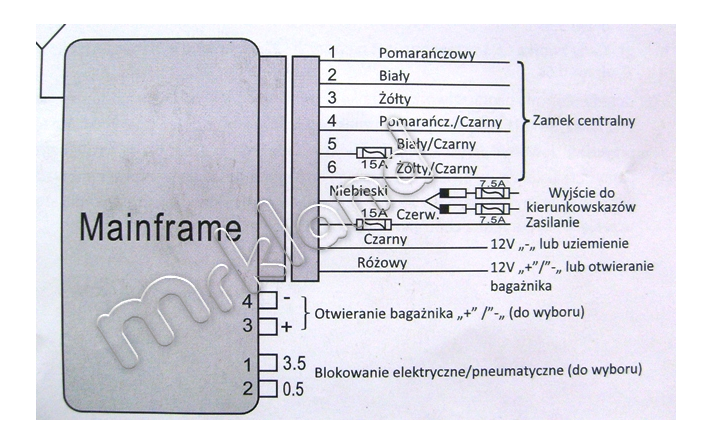

    Hello. This scheme may help a colleague. Vw Passat B5 - Connection of the Carprotect BX20 central locking controller
  • ADVERTISEMENT
  • #3 17069946
    Paseratti97
    Level 2  
    I know that these cables from 1-6 are from the central one, but I have no idea how to connect them with colors and for what? that it would open to me when you press the opening and close it when you close it
    I have cables for opening and closing the lock, how to connect to them ???
  • ADVERTISEMENT
  • #4 17069962
    Pedros050
    Level 43  
    It depends on what the lock is controlled + or -? Vw Passat B5 - Connection of the Carprotect BX20 central locking controller
  • #5 17069972
    Paseratti97
    Level 2  
    How to check???
  • #6 17070009
    Pedros050
    Level 43  
    Do you have the original central that works with the key after closing?
  • ADVERTISEMENT
  • #7 17070034
    Paseratti97
    Level 2  
    not only when I put the key in the lock, it opens the driver's door and when I open and close the door from the window control panel, it works as it should, but from the panel
  • #8 17070058
    Pedros050
    Level 43  
    Check in the control panel if it is sometimes controlled by a central mass?

    Added after 26 [minutes]:

    Okay, don't look for control. Here you can connect only so that the mass comes out of the switchboard, I gave you how to do it and now you have where to connect. Vw Passat B5 - Connection of the Carprotect BX20 central locking controller Illustrative photo.
  • #9 17071507
    bhtom
    Level 38  
    Hello,

    PITERRR wrote:
    ... the drawings I gave you how to do it ...


    I think this is just a pictorial photo? The author will take your advice to heart and will also do for such twisted connectors, and it smells like tinker ;)

    Greetings.
