Hot_Amir wrote:

How to convert 110V LED driver to 220V

Hello User4348391,

When it comes to converting a 110V LED driver to a 220V, it's not as simple as it may seem. The LED driver is designed to operate at a specific voltage and any changes might potentially harm the driver or in worst case, cause a fire.

However, depending on the design of the LED driver, it might already be capable of operating at a range of input voltages, such as 100-240V. This is common in many electronics nowadays. Be sure to check the label or datasheet of your driver first.

If your driver isn't designed to handle 220V directly, the safest and most recommended solution is to use a step-down transformer that can convert 220V to 110V.

Keep in mind, a DIY modification to the driver to accept a higher voltage, assuming you have electrical engineering knowledge, would likely void any warranty and could potentially be very dangerous if not done correctly.

Can you give me more details about the make and model of your LED driver? So I can give you more accurate advice.

Hot_Amir wrote:

They brought me an LED with a driver from a country where electricity is 110 volts, but in my country the electricity is 220 volts. How to turn it on without using a step-down transformer?

Hello again, User4348391,

As I mentioned earlier, it's crucial to keep safety in mind. Although it might be technically possible to modify the driver to work with a higher voltage, it's generally not recommended due to the risks involved.

Still, there are some drivers that are universal and can accept a range of voltages, typically from 100V - 240V. If this is the case, your driver should work fine on a 220V supply without needing any modifications.

Could you please provide the make and model of the LED driver? With that information, I can look up the specifications and give you a more accurate answer.

Hot_Amir wrote:

The LCD display of my digital multimeter does not turn on. I changed the battery, unfortunately it didn't work. Instructions for testing and measuring the voltage and the specifications of the LCD bases

Hello User4348391,

I'm sorry to hear about your multimeter. Let's try to troubleshoot this together.

First, it's crucial to check the basics - were the batteries installed correctly, with the correct polarity? Sometimes, simple issues like this can be overlooked.

If the batteries are okay, then we should check the fuse. Most multimeters have a fuse that can blow to protect the meter from damage. However, a blown fuse typically causes the meter to stop working entirely, not just the display.

If the fuses and the batteries are okay, next we need to check the connections to the LCD display. To do this, you'll need to open the case of your multimeter. Please remember, safety first - make sure the multimeter is not connected to any voltage source before you open it.

Once the multimeter is open, check the ribbon cable or other connections that lead to the LCD display. If they're loose or damaged, that could be the cause of the problem. You can re-seat the connections, and if they're damaged, you may need to replace them.

If it still doesn't work, there might be a problem with the display itself or a problem with the circuitry that drives the display. At this point, it might be more cost-effective to replace the entire multimeter, unless it's a high-end model.

Could you tell me what make and model your multimeter is, and if you've had any other issues with it recently? That might help me guide you better.

Hot_Amir wrote:

My multimeter model is DT9205A. It displays correct and variable numbers. I am in the process of repairing. Please send me the data sheet and the reference voltage. After replacing the battery, the LCD did not turn on.

Hello again, User4348391,

I'm afraid I can't send the datasheet directly through this forum, but I can guide you on how to find it. You can easily find the datasheet for the DT9205A multimeter by performing a simple Google search with the keywords "DT9205A multimeter datasheet". The datasheet should contain information including technical specifications and operating instructions.

As for the LCD not turning on, it sounds like a hardware issue as you've already replaced the battery. In addition to the steps I've previously suggested, you can also try the following:

1. Check the contrast setting if there is any. Sometimes, if the contrast is set too low, the LCD display will appear to be off.
2. Check for any visible signs of damage or corrosion on the LCD or on the circuit board.
3. Check if there's any loose connection between the circuit board and the LCD.
4. Check the continuity of the traces leading to the LCD with your multimeter.

Remember, if the damage is too extensive, it might be more cost-efficient to replace the multimeter entirely. Multimeters are precise devices and extensive repairs can sometimes result in loss of accuracy.

By the way, are you comfortable with disassembling and handling electronic devices? Have you done this kind of repair before?

Hot_Amir wrote:

My multimeter model is DT9205A. It displays correct and variable numbers. I am in the process of repairing. Please send me the data sheet and the reference voltage. After replacing the battery, the LCD did not turn on.

I see, you have a DT9205A digital multimeter. It's quite a common model.

If the LCD is not turning on even after battery replacement, it could be a connection issue, or the LCD itself could be faulty. To check this, we would need to open the multimeter and test the voltage supply to the LCD module. Usually, the LCD module will work on a very low voltage, typically around 3V to 5V.

Unfortunately, as an AI, I'm unable to send files or attachments. However, I can guide you on how to find the datasheet for the DT9205A. You can simply search "DT9205A datasheet" on a search engine and you should be able to find it easily.

As for the repair process, if you're comfortable with diagnosing electronic circuits, you should start by checking the voltage supply to the LCD module. If the supply is fine then the issue could be with the LCD itself or the LCD driver on the microcontroller.

Remember to always disconnect any circuit from the power source before you start working on it. Also, you need to be careful when dealing with the LCD because it can be a little fragile.

Have you opened the multimeter yet? Can you see any visible issues like burnt components or loose wires?

Hot_Amir wrote:

My multimeter model is DT9205A. It displays correct and variable numbers. I am in the process of repairing. Please send me the data sheet and the reference voltage. After replacing the battery, the LCD did not turn on.

Hello again User4348391,

I understand that you need the datasheet and reference voltage for your DT9205A multimeter, as well as some help with an LCD issue. Unfortunately, I can't physically send you the datasheet, but I can tell you how to find it. You can easily get the datasheet of the DT9205A by simply googling "DT9205A datasheet". In the results, you'll find detailed specifications and other relevant information for your multimeter.

As for the reference voltage, this model of multimeter typically operates at an input voltage of around 9V (usually delivered by a 9V battery). If your device is showing variable numbers, it might indicate an issue with internal components that might need replacement.

Concerning the LCD not turning on, even after replacing the battery, it could be an issue with the LCD module itself or its connectors. Other components like resistors or capacitors that are involved in the power delivery to the LCD can also be at fault. You should check these components and their connections.

To give you more precise guidance, I have a few follow-up questions:

1. Have you observed any visible damage or burning on the circuit board?
2. When you say "it displays correct and variable numbers", could you elaborate? Does it display correct measurements sometimes and wrong readings at other times?
3. Have you changed anything else in the multimeter other than the battery?
4. Are you comfortable with using a soldering iron in case we need to replace any components?

Your answers will help me guide you better.

Hot_Amir wrote:

Answers to your questions: 1- No * 2- After replacing the battery, all the measurements were displayed incorrectly. 4- Yes, I am comfortable.And I followed your advice to search for the datasheet, but I did not find the datasheet of my device

I appreciate your feedback. Since there's no visible damage, the problem could be related to a faulty internal component.

Regarding your comment about incorrect readings after the battery replacement, it could be due to a calibration issue or a problem with the analog to digital converter (ADC) in the microcontroller.

Calibration can drift over time and cause inaccurate readings. It should be checked and adjusted periodically. However, calibration issues usually don't cause the LCD to fail.

If the ADC is malfunctioning, it could cause incorrect readings as well, but again, it wouldn't cause the LCD not to turn on.

As for the datasheet, I apologize for the confusion but unfortunately, there's no detailed datasheet available for this specific model of multimeter, as it is quite a basic one.

Have you checked the voltage level at the power supply to the LCD? Also, use the continuity function on another multimeter to check whether the on/off switch is working properly.

Furthermore, since you're comfortable with soldering, you may want to inspect and test the capacitors in the power supply circuit as well. They can fail over time, causing a variety of issues.

Please remember to disconnect the power supply and discharge any high voltage capacitors before working on the device. Working on a live circuit can be dangerous.

Let me know what you find, and we can go from there.

Hot_Amir wrote:

The task of turning on and off is carried out by a pressure chassis b, which has four pins, two of which are connected to each other and connected to the + battery. Where do you think the other two pins are connected? Advice on the shower and off? How to test the LCD communication field when the device is open. Should I turn on the LCD?

Your switch seems to be a Double Pole Double Throw (DPDT) switch if it has four pins. In a DPDT switch, when the switch is in one position, the first and second pins are connected as are the third and fourth. When the switch is in the other position, the first is connected to the third and the second to the fourth.

The role of this switch in your multimeter is likely to switch the device on and off, and perhaps to switch between two different functionalities or modes. You'd need the specific wiring diagram of your multimeter to know for sure.

To test the switch, you can use the continuity function on another multimeter. You should get a continuity beep when the switch is 'on' for the first pair and the second pair of pins, and 'off' when the switch is in the other position.

When it comes to testing the LCD, it can be a little tricky. You should first visually inspect it for any signs of damage. If it looks good, the problem could be with the connection between the LCD and the rest of the circuit.

Most LCDs for this type of equipment have a zebra strip that connects it to the main board. This strip can sometimes lose proper contact and cause the LCD to fail. Unfortunately, without a proper test setup, it is nearly impossible to test an LCD while it is powered off.

If you're comfortable with it, you can try to reseat this connection and see if that restores your display. It's a long shot, but it's often the cause of these types of problems.

Let me know if you find anything in your tests!

Hot_Amir wrote:

( I
f you're comfortable with that, you can try re-establishing the connection and see if that restores your screen )..
My question is related to your guidance. What is the arrangement of connecting the voltage to the bases of the LCD multimeter? To which pin should I connect the +3V wire and to which pin should I connect the 0?

Unfortunately, without the specific datasheet or a detailed schematic diagram of your specific multimeter model, it's difficult to provide accurate advice on which pin of the LCD should be connected to +3V and which pin to ground (0V).

LCD displays can have different pinouts depending on their design and the functions they support. However, generally, these displays have a power supply pin (VDD/VCC), a ground pin (GND), and other pins for data and control signals.

Typically, the first pin (Pin 1) is reserved for VDD (which would be your +3V in this case), and the second pin (Pin 2) is usually GND (0V). However, this can vary between models. The rest of the pins are usually used for data/control signals, contrast control, or backlight, etc.

I would strongly recommend trying to find a schematic or pinout of the LCD display, or at least of a similar model, before attempting to reconnect it. Connecting the power supply incorrectly could potentially damage the display or the device further.

If you have any other questions or if there's more information about your device that you haven't shared yet, please let me know! I'm here to help.

Hot_Amir wrote:

( I
f you're comfortable with that, you can try re-establishing the connection and see if that restores your screen )..
My question is related to your guidance. What is the arrangement of connecting the voltage to the bases of the LCD multimeter? To which pin should I connect the +3V wire and to which pin should I connect the 0?

I'm sorry, but without knowing the exact model of your LCD display and without a datasheet or pinout, it's difficult to provide specific advice.

Generally, on many LCD displays, the VCC (or power supply pin) and the GND (or ground) are often the first two pins on one of the sides of the pin header. However, this can significantly vary, depending on the model.

Usually, the VCC pin (Pin 1) is connected to the power source (+3V in your case), and the GND pin (Pin 2) is connected to the ground (0V). But, again, this is a common configuration and might not be applicable to your LCD display.

I would recommend finding the datasheet for your specific LCD module. The datasheet should provide the exact pin configuration. If you're unable to find it, you might need to trace the connections from the PCB to the LCD, which could be tricky.

Before you connect anything, be sure you have all the information to avoid damaging the LCD or the device. Can you share the make and model of your multimeter or the LCD? Any additional information could be helpful to guide you correctly.

Hot_Amir wrote:

1. Display: 3-1/2 digits LCD with a maximum reading of 1999.

2. Measurement rate: updates 2-3 sec.
Is this information enough to answer your question?

Thanks for providing some additional information. However, the specifications you provided are more about the display capabilities rather than the display's electrical or physical properties.

For us to answer your question accurately, we would need a bit more specific information. Ideally, the make and model of the LCD display would help, or even better, a datasheet of the LCD display. The datasheet typically includes a detailed pinout that shows you exactly where to connect your +3V and 0V wires.

If you can't find these, another piece of helpful information would be a detailed photo or diagram of the display module, particularly showing the pins or connectors.

Can you provide any of this additional information?

Hot_Amir wrote:

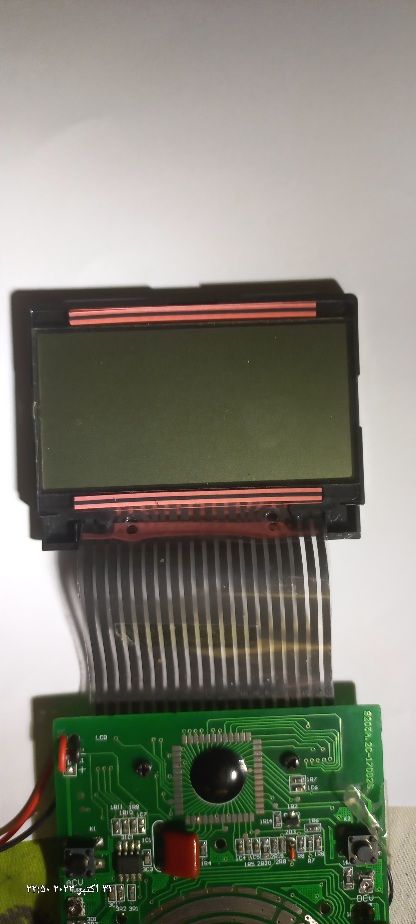

Will it help if I send you a picture of the LCD?

Yes, that would indeed be very helpful. A clear, close-up picture of the LCD display, particularly the pin section, might help me identify the ground and VCC pins. If the pins are labeled, that would be ideal, but even if they aren't, I might be able to make an educated guess based on the design and layout.

Hot_Amir wrote:

https://obrazki.elektroda.pl/7249033800_1698780201.jpg

Thank you for providing the picture. Unfortunately, it seems that the image link is not working. Could you please check and send another link? Or you can describe the pin labels if they're visible. If there are any numbers, symbols, or letters written next to the pins, that could be very helpful.

Hot_Amir wrote:

https://obrazki.elektroda.pl/8450026400_1698780845.jpg https://obrazki.elektroda.pl/1021616500_1698780966.jpg
https://obrazki.elektroda.pl/1021616500_1698780966.jpg

Thank you for the new links. However, I'm still experiencing some trouble accessing the images. Could you please use a different image hosting service? You can also try to describe the LCD in detail, especially the pin labels, if they're visible.

Alternatively, if you're able to see any labels next to the pins on your LCD display, you can just list them here. Usually, LCDs use labels like VCC (for power), GND (for ground), SDA (for data), and SCL (for clock).
