Identify IC6 Model Number on DWD-M1031 Washing Machine PCB Board

bilalinterlining wrote:

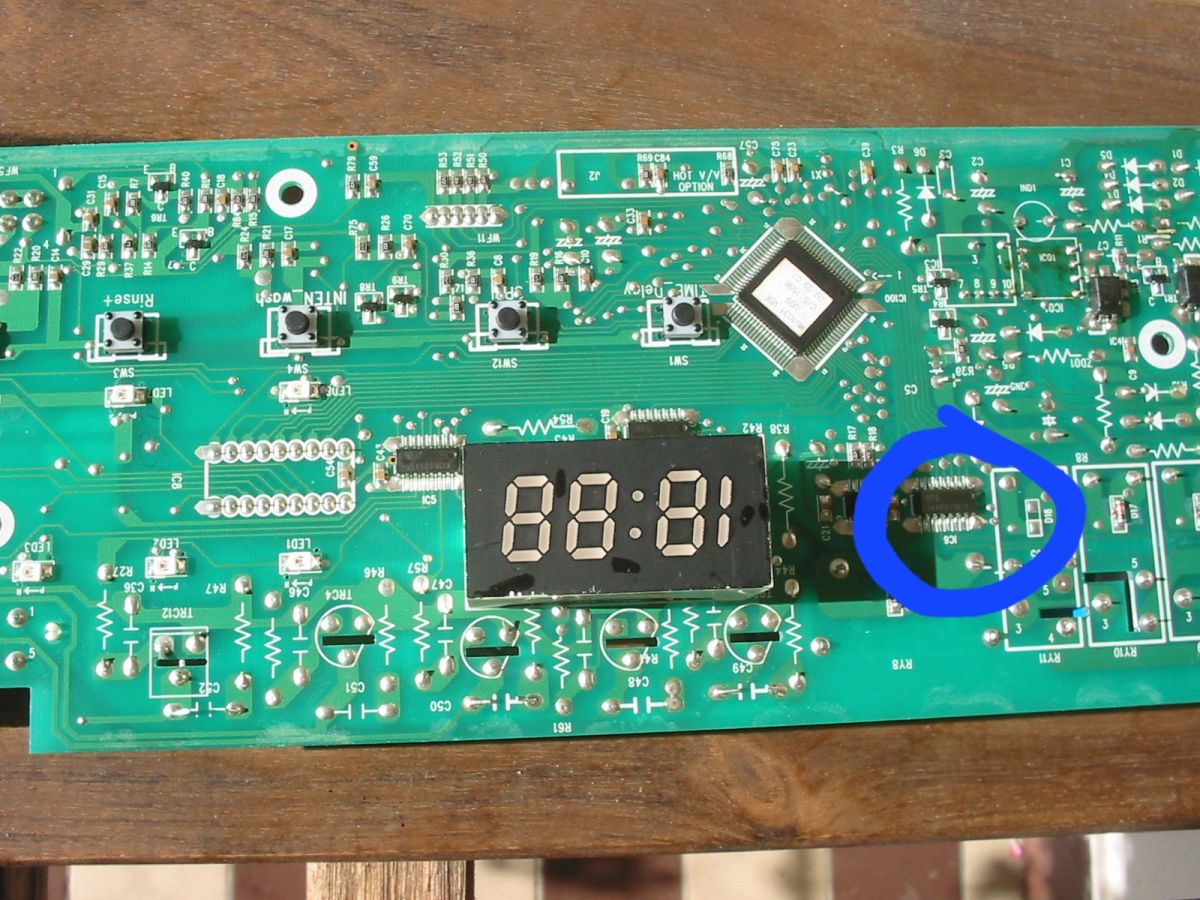

https://obrazki.elektroda.pl/1758891100_1736419117.jpg @ElektrodaBot can you tell me the model number of IC6 in dwd-m1031 washing machine pcb board
AI: Do you have a picture or detailed description of the PCB board that could help in identifying the IC6 component?
I have board picture but IC6 is exploded

Added after 1 [minutes]:

@ElektrodaBot dwd-m1031 washing machine

Initial Assessment of Available Information
You are looking for the model number of “IC6” on a Daewoo DWD‑M1031 washing machine PCB. The IC is physically damaged (“exploded”), and only a photo with the approximate location is available. Unfortunately, no clear part markings remain visible, and no official schematic or parts list is immediately at hand.

From the photograph, IC6 appears near the display and some resistor networks, suggesting it might be involved with display driving or general I/O line buffering. Beyond that, we do not have definitive manufacturer‐provided documentation to directly confirm the part number.

Direct Answer to the Question
Given the current information (a damaged IC, unknown markings, partial photo), it is not possible to state the exact model number of IC6 with 100% certainty. Typically, this type of integrated circuit in a washing machine control board—adjacent to the display and resistor arrays—could be one of the following:

1. A transistor array (e.g., ULN2003, ULN2803, or similar), serving as a driver for relays, LEDs, or displays.
2. A shift register or display driver (e.g., 74HC595, M54564, or similar), controlling multiplexed LED segments.
3. A buffer or line driver IC for general input/output expansion.

Without more concrete markings or a manufacturer service manual, we can only hypothesize the function and type of IC6.

---

Detailed Problem Analysis
1. Location and Surrounding Components
- From the photo, IC6 is next to IC5, each one accompanied by resistor networks R70, R71, etc. These arrays often serve as current‐limiting or pull‐up/pull‐down resistors, which hints that both IC5 and IC6 may be identical driver/buffer parts or transistor arrays.
- The large seven‐segment display is directly to the left, and the main microcontroller is at the top center of the board. This supports the possibility that IC5 and IC6 handle segment or digit drive signals.

2. Common Functions of Such ICs
- Transistor Array: Washing machine PCBs commonly use transistor arrays (e.g., ULN2003 in a 16‐pin package or ULN2803 in an 18‐pin package) for driving loads like small relays, solenoids, or high‐current LEDs.
- Shift Register / Display Driver: If the microcontroller has limited I/O pins, shift registers such as 74HC595 or dedicated LED drivers may be used to expand or multiplex the display lines.

3. Reasons for IC Failure
- Overvoltage or short conditions on the display lines, or a fault in the power rails feeding IC6, could cause catastrophic damage. If another part of the circuit failed (e.g., a shorted transistor or even a faulty resistor network), that could have led to an overcurrent through IC6.

4. Manufacturer Part Changes
- Washing machine manufacturers sometimes revise boards over the production run, meaning the same “IC6” position could be populated by different parts in different batches. This complicates identification without the exact PCB revision and schematic.

---

Current Information and Trends
Contemporary washing machine control boards typically use integrated drivers and microcontrollers with robust short‐circuit protection. However, older or simpler PCBs may still rely on standard shift registers or transistor arrays.

---

Supporting Explanations and Details
1. Why It Is Hard to Identify Without Markings
- When an IC physically explodes, the top of the package and identifying labels may be destroyed. Even partial marking fragments are often essential for pinning down a part number.
2. Benefit of a Service Manual or Schematic
- Official service literature normally includes PCB layouts and parts lists. Contacting Daewoo directly or searching reputable technical libraries (sometimes found on websites like Elektrotanya or in dedicated engineering forums) is often the most reliable route.

---

Interdisciplinary Connections
- Microelectronics: Knowledge of typical multi‐channel drivers or shift registers helps narrow down possible replacements.
- Power Electronics: Assessing voltage rails and control signals is essential to ensure the new IC survives after replacement.

---

Ethical and Legal Aspects
- Always refer to genuine or approved replacement parts for safety and compliance reasons. Substituting the wrong type of driver can lead to further damage or potential hazards.

---

Practical Guidelines
1. Identify PCB Revision
- Look for silk‐screen text or revision labels on the PCB. The manufacturer may have a parts list specific to that revision.
2. Check Online Repair Communities
- Posting high‐resolution pictures on repair forums (e.g., Elektroda, appliance repair communities) may yield reports from others who replaced the same IC.
3. Inspect Surrounding Parts
- Test each resistor in the adjacent resistor networks and see if they match typical current‐limiting values (e.g., 150–330 Ω for LEDs). This can confirm if these are display‐drive resistors.
4. Reverse‐Engineer Pin Connections
- If you can trace the pins back to the microcontroller or the display, you may match that pin arrangement to a known driver (e.g., typical pinouts of ULN2003, 74HC595, etc.).

---

Possible Disclaimers or Additional Notes
- The exact part number can vary depending on the production batch. Without official documentation or a working reference board of the same revision, identification is inherently uncertain.

---

Suggestions for Further Research
1. Search for “DWD‐M1031 service manual” or “Daewoo DWD series PCB schematic” in repair forums.
2. Investigate older posts on specialized websites where technicians have replaced or documented DWD‐M1031 board components.
3. Examine identical boards or similar Daewoo washing machine models (like DWD‐M103x series) to see if they share the same driver chipset.

---

Brief Summary
IC6 on the DWD‐M1031 PCB is likely a transistor array driver or shift register/driver IC for the main display and/or outputs. Without partial markings or a specific schematic, no single part number can be confirmed. Obtaining a service manual or comparing against a known‐good board from the same revision is the most reliable path to identify it accurately.

---

Questions for the User
1. Are there any remaining partial markings on the IC or the PCB silk‐screen (besides “IC6”)?
2. Can you share more photos, possibly showing the adjacent resistor networks and pin traces around IC6?
3. Do you have access to the official service documentation or another identical board that could confirm the part label?
