Equivalent transistor for MJ1504 in 12V car battery charger circuit?

Equivalent transistor for MJ1504 in 12V car battery charger circuit?

207 1

Report a violation of the law

Reply | New topic

#1 21680079 23 Jun 2018 05:43

Reynante Sadioa Reynante Sadioa

Anonymous
Post #1
21680079 23 Jun 2018 05:43

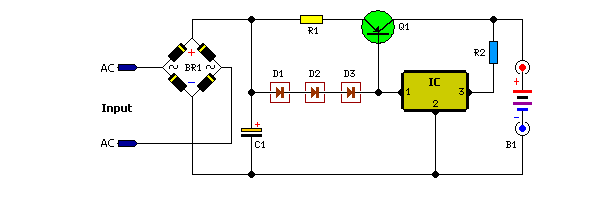

I have a problem finding for MJ1504 (Q1) as stated in 12V car battery charger circuit schematic posted Thursday, April 18, 2013. Kindly please give a replacement or equivalent for this transistor?

Attachments:

forums-circuit-diagrams-1-1366214461.png (3.76 KB) You must be logged in to download this attachment.
ADVERTISEMENT
#2 21680080 25 Jun 2018 08:55

David Ashton David Ashton

Anonymous

Post #2
21680080 25 Jun 2018 08:55

This may be because the transistor you need is an MJ15004 (note two zeroes).Element 14 have them in Australia for 5 bucks-odd - in the states that would be Newark but they'd probably use the same number. Ebay have plenty of them as well.Another transistor that should work ok in your circuit is the 2N2955 if you really can't find the MJ15004.
