INDUCTION LAUNCHER
I have all the parts connected and ready, just need to add new SCR/switch et al.
The SCR at PIN 1 exploded on the first 2 tries. Tested w multimeter and determined SCR was busted.
I copied the components from this youtube vid:https://www.youtube.com/watch?v=8qEH8NAI2TQ&list=LL4sbmwrdGZSvPH4DlIHtY0Q&index=18&t=0s
I need a new SCR and perhaps a different configuration - would love some positive constructive suggestions and feedback.
ATTACHED:

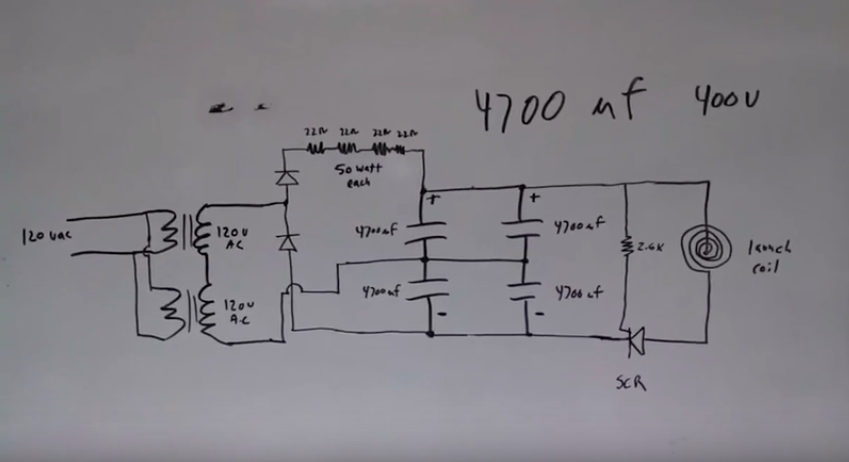

Diagram of how mine is presently set up
2 schematics from the YouTube vid
I have all the parts connected and ready, just need to add new SCR/switch et al.
The SCR at PIN 1 exploded on the first 2 tries. Tested w multimeter and determined SCR was busted.
I copied the components from this youtube vid:https://www.youtube.com/watch?v=8qEH8NAI2TQ&list=LL4sbmwrdGZSvPH4DlIHtY0Q&index=18&t=0s
I need a new SCR and perhaps a different configuration - would love some positive constructive suggestions and feedback.
ATTACHED:
Diagram of how mine is presently set up
2 schematics from the YouTube vid
