Type 20572665 - 150W Motor Connection: Identifying Capacitor Terminals & Appropriate RPMs

piotr8605 4014 3
ADVERTISEMENT
Treść została przetłumaczona polish » english Zobacz oryginalną wersję tematu
  • #1 13123584
    piotr8605
    Level 14  
    Hello,
    I got a motor from a friend and I want to connect it.
    5 cables are led from the motor.
    I measured the resistance between all cables and they are as follows:

    R12 = 80.2 Ohm
    R13 = 33.5 Ohm
    R14 = 43.5 Ohm
    R15 = 80.8 Ohms
    R23 = 47.6 Ohm
    R24 = 57.6 Ohm
    R25 = 67.5 Ohms
    R34 = 10.8 Ohm
    R35 = 48.3 Ohm
    R45 = 58.3 Ohm

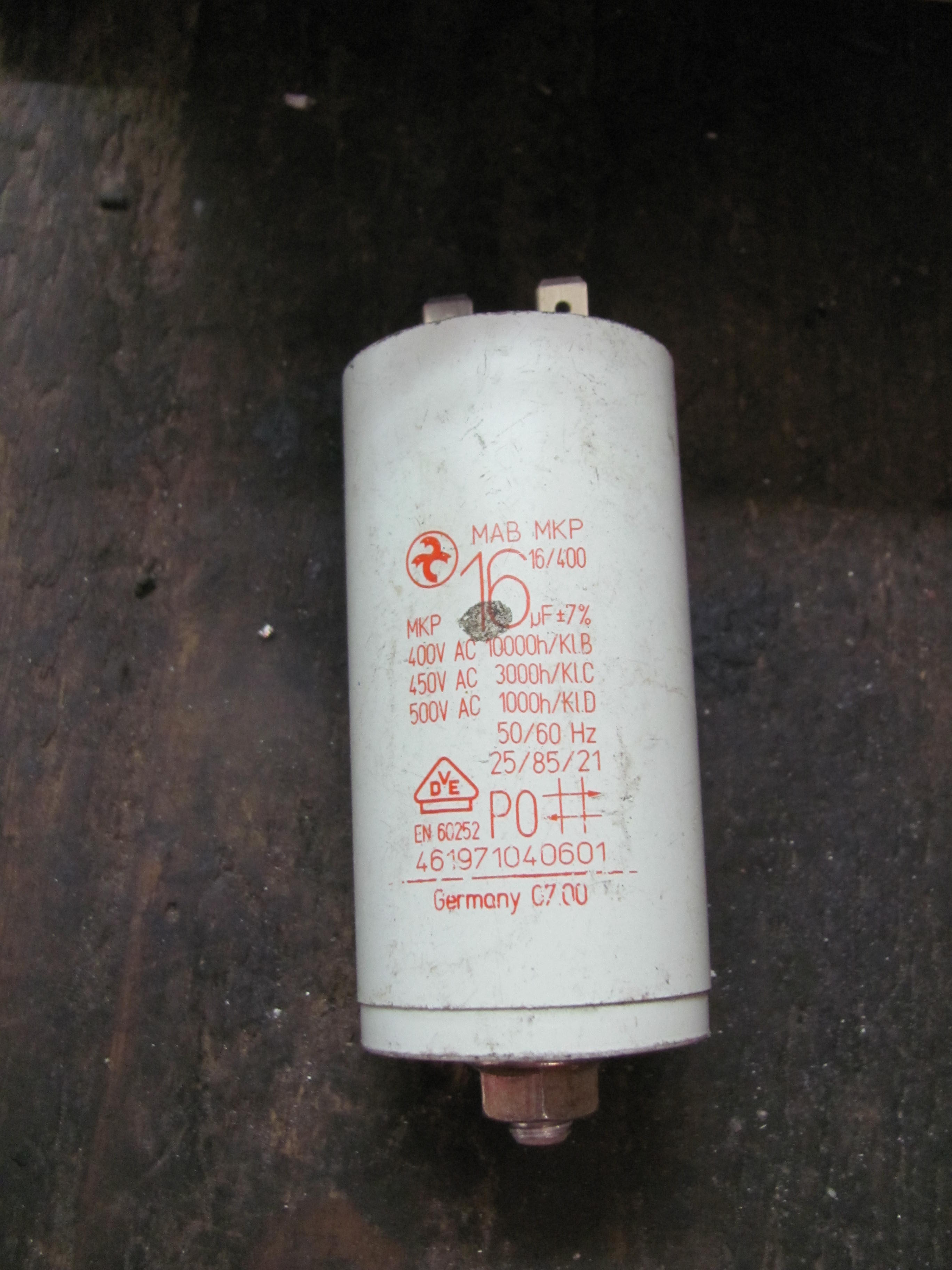

    I do not know what terminals I should connect the capacitor and will the capacitor in the attachment be appropriate?

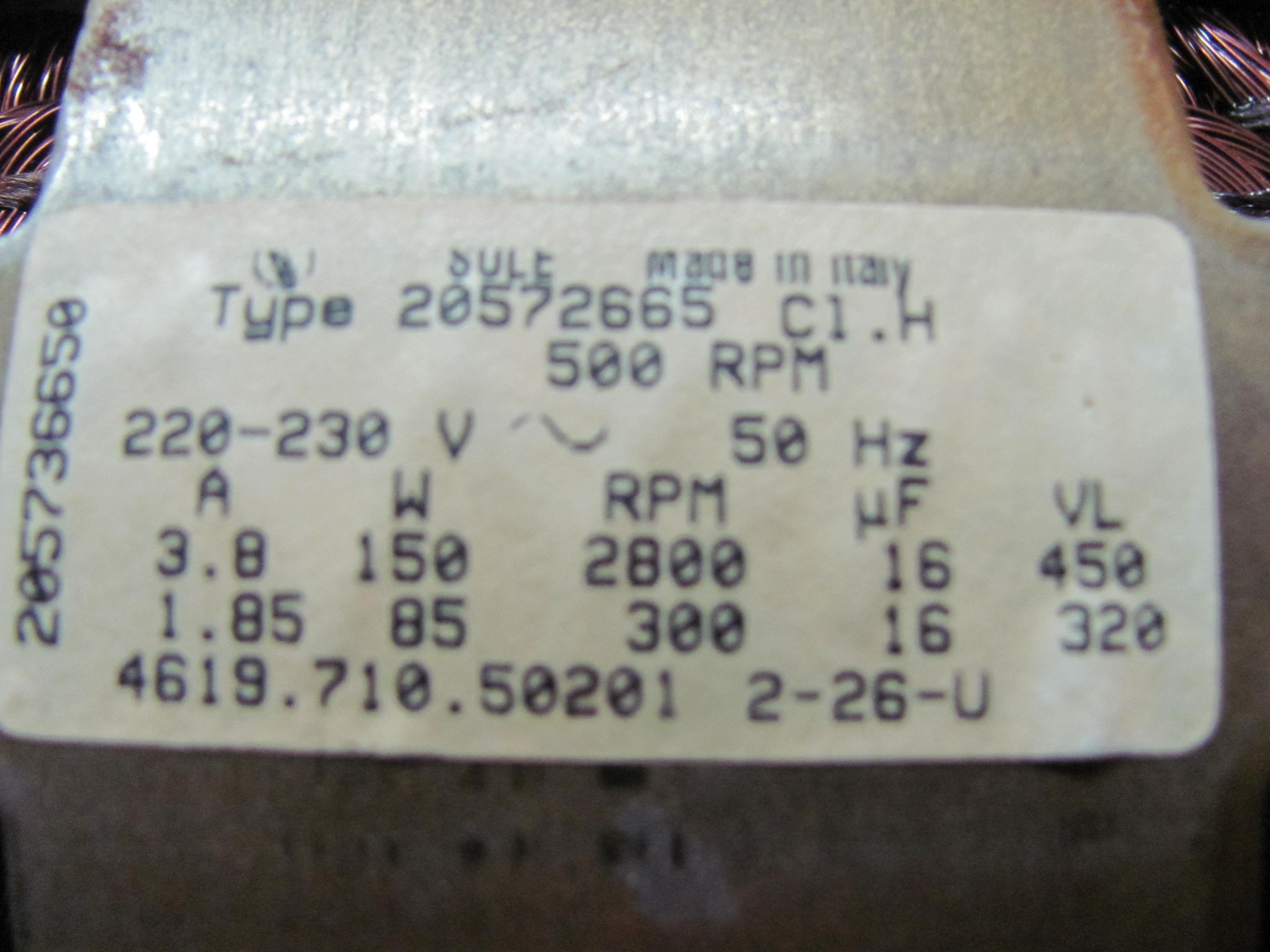

    The nameplate shows that the engine has three types of rotations:
    500RPM, 2800RPM and 300RPM.

    I will be grateful for help in starting the engine.
  • ADVERTISEMENT
  • #2 13132263
    Strumien swiadomosci swia
    Level 43  
    What washing machine is it from?
  • ADVERTISEMENT
  • #3 13132308
    MARCIN.SLASK
    Home appliances specialist
    Strumien swiadomosci swia wrote:
    What washing machine is it from?


    Probably Whirlpool FL 244-500.
  • #4 21013694
    dennislundu6
    Level 1  

    hello i would also want to wire the motor i have the same motor
