LG 42LE5500 Power Supply Schematic: Request, Sources to Purchase or Download

ahmed1159 30954 7
ADVERTISEMENT
This content has been translated flag-pl » flag-en View the original version here
Report a violation of the law
Reply | New topic
  • #1 16334897
    ahmed1159
    Level 6  
    Posts: 20
    Rate: 9
    Please i want schematic diagram for power supply for lg 42LE5500
    or any site that ican buy from it
  • ADVERTISEMENT
  • #2 16335214
    lisek
    Service technician RTV  
    Posts: 39935
    Help: 6341
    Rate: 6863
    PSU in this one is EAY60803201 (board is customised for this model i.e.. PCB has jumpers that change the pcb parameters & model number etc for other types of screen (notably AUO screen or LG) /
    * or. EAY60803101 / EAY60806101

    LG 42LE5500 Power Supply Schematic: Request, Sources to Purchase or Download

    Chassis/Version: LD03E
    Panel: LC420EUH (SC)(A1)
    LED driver (backlight): integrated into PSU; 118V 660mA (42 inch LG)
    - PWM LED driver: AS3693B, MEGA48PA
    Power Supply (PSU): PLDF-L903A EAY60803101 / 3PCGC10008A-R
    - with PWM Power: VIPER27H (Standby), ICE2PCS04 (PFC),

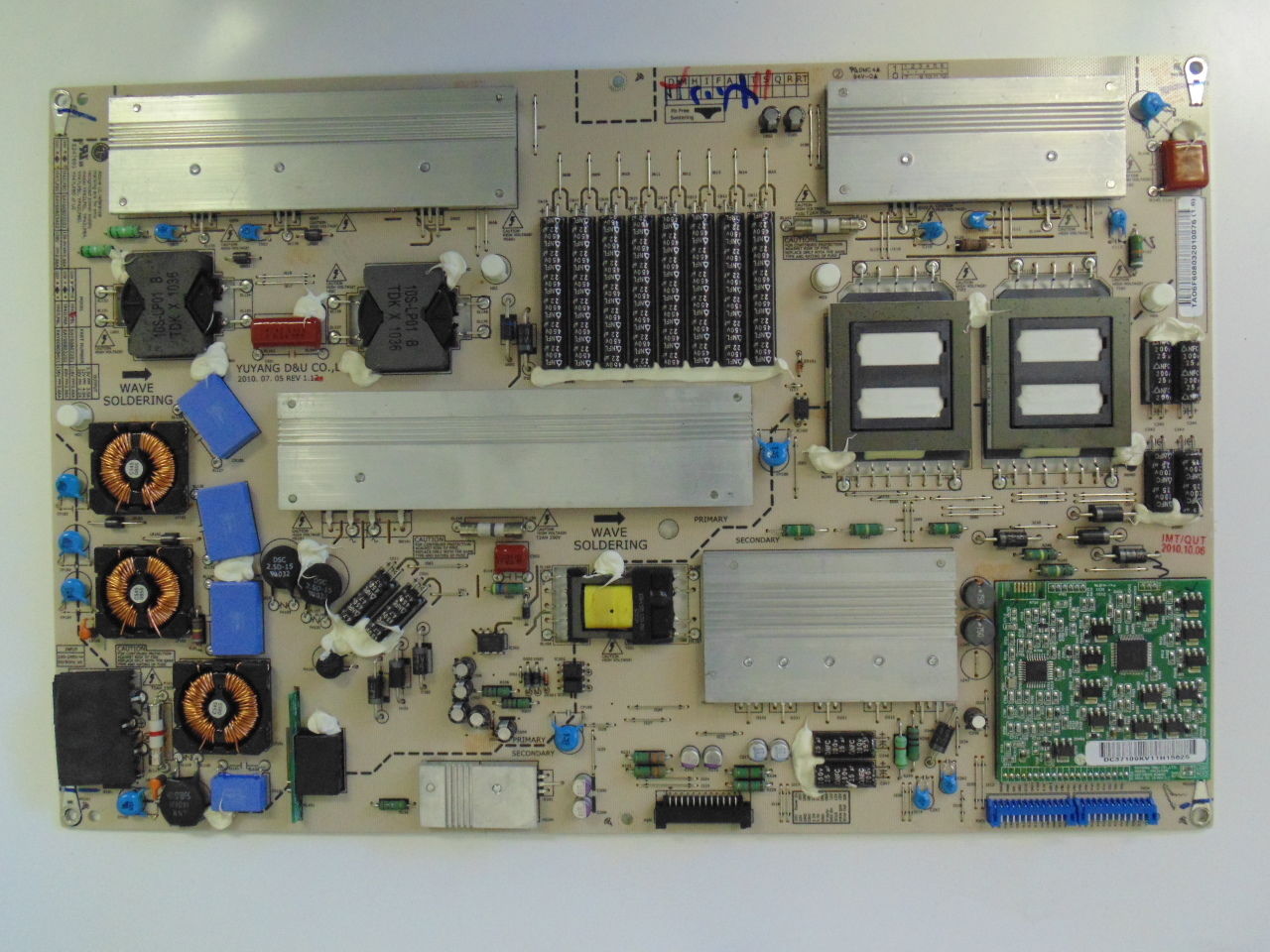

    pic. EAY60803201
    LG 42LE5500 Power Supply Schematic: Request, Sources to Purchase or Download
  • ADVERTISEMENT
  • #3 16335291
    ahmed1159
    Level 6  
    Posts: 20
    Rate: 9
    Thank u
    but i want the circuit diagram
    i have this file for lg
    there is no any site that i can buy ?
  • ADVERTISEMENT
  • #4 16335319
    lisek
    Service technician RTV  
    Posts: 39935
    Help: 6341
    Rate: 6863
    Write what's your power supply and that there are IC in your model.
    * and write what the matrix is applied
    pls.

    LG over the last few years has ceased to publish diagrams of power supply units from their TV.
    Itis necessary to rely on the schemes from their manufacturers ( if they give ? ) or solutions power supply PSU units on the basis of these applied IC
  • ADVERTISEMENT
  • #5 16337261
    ahmed1159
    Level 6  
    Posts: 20
    Rate: 9
    I do not have the tv ..i am try to learn and read from lg training manual catalog
    the power supply model is EAY60803101
    the power ic and other details not important
    only i need to follow the drawing circuit
    thank u
  • #6 16338210
    lisek
    Service technician RTV  
    Posts: 39935
    Help: 6341
    Rate: 6863
    As I wrote , there is no schematic of this power supply or similar.
    Is Not even in the Service manual for 42LE5500.
    LG 42LE5500 Power Supply Schematic: Request, Sources to Purchase or Download

    Only after the apps out there, applied IC
    Model: 42LE5500-xx
    Quote:
    LG LED TV 42LE5500
    Chassis/Version: LD03E
    Panel: LC420EUH (SC)(A1)

    LED driver (backlight): integrated into PSU; / **118V 660mA (42 inch LG)

    PWM LED driver: AS3693B, MEGA48PA

    Power Supply (PSU): PLDF-L903A EAY60803101/ 3PCGC10008A-R

    PWM Power: VIPER27H (Standby),
    ICE2PCS04 (PFC) and L6599D
    Attachments:
    • AS3693B_Datasheet_EN_v1.pdf (3.41 MB) You must be logged in to download this attachment.
  • #7 16340008
    ahmed1159
    Level 6  
    Posts: 20
    Rate: 9
    Thank u for your help
  • #8 20963689
    jaimezmbrano
    Level 1  
    Posts: 1

    Hola a todos, por favor, si alguien me puede ayudar con el esquemático de PCB EAY 60803101 de LG. Llega al taller con el fusible F102 abierto y el zener B68 en corto, al igual que el oscilador Viper 27H. Hago los reemplazos, pero no logro que la fuente oscile, por lo tanto, no hay standby. Agradezco mucho la ayuda que me puedan brindar.
