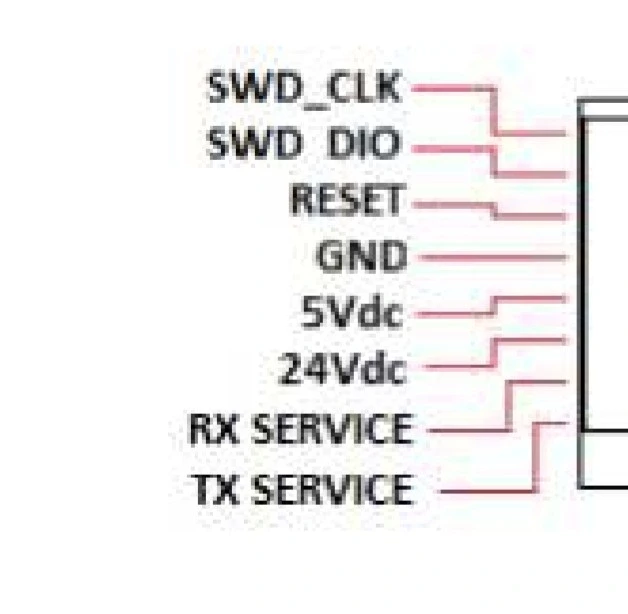

Ariston BUS BridgeNet - communication with the boiler

mipl 8796 22
This content has been translated flag-pl » flag-en View the original version here.
  • #1
    mipl
    Level 12  
    Hello

    I am looking for information on the protocol used to communicate with Ariston boilers. The manufacturer calls it BUS BridgeNet but does not provide any further information. I would like to read the operating parameters (water temperature, etc.). There is not much information on the web either, only that it can be based on Ebus . Ebus is generally available as standard description . Unfortunately, my attempts to preview, communicate using the Ebus converter failed. Maybe someone has more information on this topic and can share it?

    best regards
  • #2
    Tetora
    Level 2  
    I stick to the topic. I have a similar problem. I would like to take complete control of controlling my own drivers and security, while also being able to connect to my own applications. Ariston writes almost nothing about this communication protocol. If I do not find anything, I will not buy this boiler, and I just liked this manufacturer (if nobody knows anything, I will choose an alternative company that has better described ways of communicating).
  • #3
    hanz0xFE
    Level 2  
    I discover this:
    BUS Bridgenet have EBUS phys/link layer, but
    Code:


    QQ = 0x70 (termostat master)
    ZZ = 0x3C (boiler slave)
    PB = 0x20 (bridgenet command)
    SB = 0x01
      0x00 (get setpoints)
      0x01 (get params )
      0x02 (get faults)
      0x0E (return params)
      0x70 (cast time)
      0x38 (bus controls)  and more...
    N1 = 2 (master data len)
    IDL:IDH = 0x6810
      0x6810 (temperature heater out)
      0x6910 (temp return)
      0x6210 (tem hot water tank)


    N2 = 6 (slave data len)
    L:H = real temp in 0.1C
    L:H = min limit, ignored with measured
    L:H = max limit

  • #4
    komw
    Level 10  
    hanz0xFE wrote:
    I discover this:
    BUS Bridgenet have EBUS phys/link layer, but
    Code:


    QQ = 0x70 (termostat master)
    ZZ = 0x3C (boiler slave)
    PB = 0x20 (bridgenet command)
    SB = 0x01
      0x00 (get setpoints)
      0x01 (get params )
      0x02 (get faults)
      0x0E (return params)
      0x70 (cast time)
      0x38 (bus controls)  and more...
    N1 = 2 (master data len)
    IDL:IDH = 0x6810
      0x6810 (temperature heater out)
      0x6910 (temp return)
      0x6210 (tem hot water tank)


    N2 = 6 (slave data len)
    L:H = real temp in 0.1C
    L:H = min limit, ignored with measured
    L:H = max limit



    Where did you found this? It very hard to find any information about busbridge protocol, and it seems that is the one post on the internet that it seems to be working with data from Ariston heaters.
    Currently I'm working with reverse engineering of this protocol, and I found also few additional codes (to turn on/off winter mode, turn on/off comfort mode)
    I'm curious where did you found this :)
  • #5
    gabor9
    Level 6  
    Hello hanz0xFE/komw
    I also have an Ariston boiler (Genus One System) and have been working on understanding the communication when I found your posts.
    I'm still experimenting with the messages, but so far I can confirm the following codes working:

    Code:

    PBSB ID
    2010 6810 Heat Flow (out)
    2010 6910 Heat Return
    2010 6210 Hot Water Supply - For me the response to this is "06ff7f0080ff7f" so this is not connected.
    2010 6510 Hot Water Supply (alternate?) - This is giving me the actual temperature of HWS tank
    2010 c04b Boiler status (first byte of data) 01 - standby, 02 - heating, 04 - hotwater, 05 - circulating
    200f 6147 HWS temp. pre-set
    200f 6047 Heating #1 temp. pre-set
    2070      Date/time announcement

    I'm actually particularly interested in querying the boiler's system pressure , as I have a minor leakage in my system and would like to track it before it gets fixed.

    Anyone has identified a command for this yet?

    Btw I don't have any proprietary devices connected to BUS, only a FHEM ebus-ttl device which connects to a CH340 USB-TTL adaptor. I'm using ebusd for the communication.
  • #6
    komw
    Level 10  
    Please contact me directly, because I'm working for an ebusd deamon configuration, and I found many others working codes.


    gabor9 wrote:
    Hello hanz0xFE/komw
    I also have an Ariston boiler (Genus One System) and have been working on understanding the communication when I found your posts.
    I'm still experimenting with the messages, but so far I can confirm the following codes working:

    Code:

    PBSB ID
    2010 6810 Heat Flow (out)
    2010 6910 Heat Return
    2010 6210 Hot Water Supply - For me the response to this is "06ff7f0080ff7f" so this is not connected.
    2010 6510 Hot Water Supply (alternate?) - This is giving me the actual temperature of HWS tank
    2010 c04b Boiler status (first byte of data) 01 - standby, 02 - heating, 04 - hotwater, 05 - circulating
    200f 6147 HWS temp. pre-set
    200f 6047 Heating #1 temp. pre-set
    2070      Date/time announcement

    I'm actually particularly interested in querying the boiler's system pressure , as I have a minor leakage in my system and would like to track it before it gets fixed.

    Anyone has identified a command for this yet?

    Btw I don't have any proprietary devices connected to BUS, only a FHEM ebus-ttl device which connects to a CH340 USB-TTL adaptor. I'm using ebusd for the communication.
  • #7
    hanz0xFE
    Level 2  
    Is good to know, that im not alone lost in ebus:)
    I spent much time with reversing this protocol and last half year this project sleeps.
    What i remebmer, and it was a reason for lay it aside, is devices handshake.
    Termostat(sensys) and boiler(genus evo) perform device scan and handshake on start or new device connected to the bus. If not, is impossible to put question to boiler - he only responds with and no data.
    Initialization of bus is started with bus reset emited from last connected device. Next are emited 16bytelen master identificators and then are asked slave adresses. Step 2 and 3 is repeated twice.
    PBSB
    2034 - bus reset
    2031 - master device identificator bcasts
    203A - request slave device
    If it do Sensys, all works, is possible to disconnect sensys and play with boiler. When i try do own HS, it dont pass. So there is some more to discover.
    I’ll reopen this case and put some more info.
    If somebody know more, do the same.
  • #8
    gabor9
    Level 6  
    I actually do not have any other devices but the boiler, still all functions seem to work (I can send and receive responses). I don't exactly know how, but after a bit of playing around I got a device with ID 3C appearing on the bus and therefore device 37 (the boiler) accepts and responds to any messages. I'll try to replicate this to learn how I got there. I only have a FHEM ebus board attached directly to the boiler's bus connector.
  • #9
    hanz0xFE
    Level 2  
    Ok, so what you use as master address, when you communicating with boiler?
    Maybee this is what i do wrong, because im using Sensys addr (0x70/0x75)

    Note that:
    0x37 is master address (source) and 0x3C is slave address (destination) of same device (boiler in this case).
    Destination = Source + 5
  • #10
    gabor9
    Level 6  
    Alright, so I did everything from scratch. Restarted my pi that's communicating with the boiler (so ebusd as well) and the boiler itself.
    For a few minutes, I couldn't send commands, all reads were timing out. Noted that I didn't have device 3c showing up yet.

    Code:
    pi@raspberrypi:~ $ ebusctl hex 3c2001026910

    ERR: read timeout

    pi@raspberrypi:~ $ ebusctl info
    version: ebusd 3.3.v3.3-32-g3926e9c
    update check: revision v3.3-40-gd9d1b9a available
    signal: acquired
    symbol rate: 99
    max symbol rate: 191
    reconnects: 0
    masters: 2
    messages: 0
    conditional: 0
    poll: 0
    update: 0
    address 31: master #8, ebusd
    address 36: slave #8, ebusd
    address 37: master #18

    After a couple of minutes, device 3c appeared and I could start to issue commands.
    I didn't do anything in-between but re-execute the above "hex" and "info" commands.

    Code:
    pi@raspberrypi:~ $ ebusctl hex 3c2001026910

    06e6010080ff7f

    pi@raspberrypi:~ $ ebusctl info
    version: ebusd 3.3.v3.3-32-g3926e9c
    update check: revision v3.3-40-gd9d1b9a available
    signal: acquired
    symbol rate: 44
    max symbol rate: 191
    min arbitration micros: 44
    max arbitration micros: 51
    min symbol latency: 6
    max symbol latency: 7
    reconnects: 0
    masters: 2
    messages: 0
    conditional: 0
    poll: 0
    update: 0
    address 31: master #8, ebusd
    address 36: slave #8, ebusd
    address 37: master #18
    address 3c: slave #18

    Update: I realized that it might has to do something with boiler activity. If the boiler is active (heating for example) then it starts responding to messages from that point on.

    Dodano po 3 [godziny] 14 [minuty]:

    I attached a list of setting ID's I was able to read from my boiler with command 2001. I think command 2000 should return the same values with a slightly different binary representation. This should help on what values we need to focus on :wink:
    I already got the interpretation of some of these at least, please see the last column
  • #11
    komw
    Level 10  
    Guys, I've posted my configuration at:
    https://github.com/komw/ariston-bus-bridgenet-ebusd

    Did you faced problems with read timeout/ arbitration lost etc?
    If I'm asking boiler for values (active read by send request to boiler slave) for example in every 1 second, my thermostat (Cube S Net) are often restarting (also sending bus restart command and restarting my boiler)
  • #12
    gabor9
    Level 6  
    Thanks for the config :wink:
    I have random arbitration lost/ACK error messages every few seconds, and wrong symbol received/read timeout much less often.
    However, I also noticed that the communication occasionally turns to "read timeout"s, and then I cannot read any values. There is just no response from the boiler for a longer period of time. Interestingly, this seems to be resolved by itself if something "wakes it up", like if the heating or hot water kicks off. My suspicion is that the boiler turns to some form of sleeping mode after a while (probably after 30 minutes, according to my logs). Broadcast messages are still sent by the boiler continuously, so this is not a huge issue on my side - heating status is included in the broadcasts and that's what is most important for me.
    Still, it would be nice if we could get rid of these errors and keep communication steady. I tried to play around with latencies and timeouts, just to make sure it's not a HW issue but without any changes.
    If you get to timeouts a similar way, can you try to change something on the thermostat, push some buttons etc. to see if it restores the communication?
    I have no restarts on my boiler though.
  • #13
    komw
    Level 10  
    What type od ebus are you using? Ebus + wemos(esp-ebus) ? In a next few days I'll try to use ebus adapter directly connected to server via my USB-serial adapter. Maybe sending it via WIFI is the issue.
    I didn't have problems that after some time boiler doesn't response to my packages. I faced another problem, because If I send a active read messages (not broadcast messages, but sending it to heater slave) to often, my boiler and thermostat are resetting (thermostat shows logo, etc), and do all initialization, I noticed that in this case, boiler/thermostat send an bus reset message 2034)
    My thermostat constantly sending many packages over the net to boiler, It seems to be some kind of ping messages.

    Currently I'm trying to tweek how often I can ask the boiler for values without resets etc.
    I'm using Genus One + Cube S Net thermostat. For ebus I\m using a v2.0 adapter + wemos with ebus-esp firmware (I'm connecting ebusd to wemos via WIFI)



    gabor9 wrote:
    Thanks for the config :wink:
    I have random arbitration lost/ACK error messages every few seconds, and wrong symbol received/read timeout much less often.
    However, I also noticed that the communication occasionally turns to "read timeout"s, and then I cannot read any values. There is just no response from the boiler for a longer period of time. Interestingly, this seems to be resolved by itself if something "wakes it up", like if the heating or hot water kicks off. My suspicion is that the boiler turns to some form of sleeping mode after a while (probably after 30 minutes, according to my logs). Broadcast messages are still sent by the boiler continuously, so this is not a huge issue on my side - heating status is included in the broadcasts and that's what is most important for me.
    Still, it would be nice if we could get rid of these errors and keep communication steady. I tried to play around with latencies and timeouts, just to make sure it's not a HW issue but without any changes.
    If you get to timeouts a similar way, can you try to change something on the thermostat, push some buttons etc. to see if it restores the communication?
    I have no restarts on my boiler though.
  • #14
    gabor9
    Level 6  
    My setup is: Raspberry Pi 3B+ -> CH340 USB-TTL adaptor -> FHEM ebus adaptor.
    I'm also running a couple of other things on the Pi, like the "Evohome Listener/Sender" for communicating with Honeywell Evohome.
    Have you tried setting different polling priorities (r2..r9 instead of r1)?
    I thought it may make a difference if you pull the data less often.
  • #15
    sonicoAA
    Level 2  
    gabor9 wrote:
    Hello hanz0xFE/komw

    I'm actually particularly interested in querying the boiler's system pressure , as I have a minor leakage in my system and would like to track it before it gets fixed.

    Anyone has identified a command for this yet?

    Btw I don't have any proprietary devices connected to BUS, only a FHEM ebus-ttl device which connects to a CH340 USB-TTL adaptor. I'm using ebusd for the communication.



    Hi all, this is what I discovered:
    2000 0875 System pressure (bar * 10) and heater power (255...0)

    10 3c 20 00 08 75 47 c4 04 c5 46 c1 04 f1 00 06 0f 0c 00 00 01 00 d9

    0x0c = 1.2 bar
    0x00 = burner power (valid only if burner state is ON)
  • #16
    komw
    Level 10  
    [quote="sonicoAA"]
    gabor9 wrote:
    Hello hanz0xFE/komw
    2000 0875 System pressure (bar * 10) and heater power (255...0)

    10 3c 20 00 08 75 47 c4 04 c5 46 c1 04 f1 00 06 0f 0c 00 00 01 00 d9

    0x0c = 1.2 bar
    0x00 = burner power (valid only if burner state is ON)


    Did you mean a Ariston Genus One Boiler? Because I didn't found those values on my heater. Only 2000 7547 but it means only a system pressure, not a burner power.

    I changed my wemos+esp_ebus firmware to orange pi zero+ with internal UART controller, and not it works fine without read timeouts etc.. Its probably because an Ariston are more sensitive to latency than Valiant and other boilers.
    i put my Ebusd configuration to github: https://github.com/komw/ariston-bus-bridgenet-ebusd
  • #17
    hanz0xFE
    Level 2  
    10 3c 20 00 08 75 47 c4 04 c5 46 c1 04 f1 00 06 0f 0c 00 00 01 00 d9

    is raw ebus packet, means:

    10 3c : source - dest
    20 00 : PBSB = request data
    08 : master data len
    75 47 : request ID system pressure
    c4 04 : request ID ? burner power
    c5 46 : request ID ?
    c1 04 : request ID ?
    f1 : master CRC
    00 : slave ACK
    06 : slave data len
    0f : ? status ?
    0c : system pressure return (7547)
    00 : ? burner power (C404)
    00 01 00 : ???
    d9 : slave crc
  • #18
    komw
    Level 10  
    So, its mean that my Genus One Net doesn't have such command.
    If I'm asking for c404 (no matter if boiler is heating or not) I'm getting empty response:

    ebusctl hex 3c200002c404 ->
    020100

    Dodano po 1 [minuty]:

    From another hand.
    Guys did't you found a solution for getting a gas metter? In Ariston App there is such estimation for gas usage, It will be good to get it via ebus
  • #19
    sonicoAA
    Level 2  
    Ok, so my system is a Genus Premiumm Evo, with Solar In Evo System. I've one Sensys configured as Remote Control.
    I've no zones defined and no zone sensors (only on/off thermostats).
    My interface is a simple optocoupler and one inverter connected to a ftdi232. No transmission interface, so I can only listen to traffic on the bus.
    My raspberry runs with windows 10 core and I write the software using visual studio 17 and c #. I don't use ebusd
    In this configuration, I can listen to the following messages (not all, some others I can't understand the meaning):

    masters: 10 (Sensys), 33 (Solar Manager) and 38 (Burner)

    10 fe 20 70 LL broadcast Date Time

    10 fe 20 50 LL 55 55 or 00 00 broadcast ??? (seems a sort of counter/pace)
    10 fe 20 51 LL broadcast ??? (counter + status bits?)

    33 fe 20 10 LL
    64 97 broadcast boiler LOW temp
    6f 10 broadcast boiler HI temp

    37 fe 20 0f LL
    76 47 broadcast external temp
    60 47 broadcast heater water temp. (floor circuit)
    37 fe 20 10 LL
    c0 4b broadcast heater status (01 - standby, 02 - heating, 04 - HWS, 05 - post-circulator)
    61 47 broadcast HWS temp setpoint
    67 97 broadcast ??? temp (always 58C)

    01 91
    .....
    07 91 broadcast ??? 7 params, always zeros. Zones settings?

    37 fe 20 10 LL 64 97 44 02 00 65 97 44 02 00 66 97 44 02 broadcast ??? 3 parameters 9764, 9765, 9766 always 0244 (58.0C). Could it be zones temp. set? I've no zones configured

    10 38 20 00 LL 6c 10 6d 10 6f 10 70 10 solar collector(106c), boiler LOW (106d), boiler HI temps (106f) and ??? (1070) (always ff38 -20C)
    10 38 20 00 LL d1 40 6b 10 73 47 c1 00 ??? (40d1), ??? (106b), solar circulator flux (l/min)(4773) and solar circulator status (0/1) (00c1)
    10 38 20 00 LL d4 showers num. and hot water tank % fill (this message appears only when I ask for solar tank status on the Sensys)

    10 3c 20 00 LL 68 10 d1 40 c0 4b 0e 11 ??? always 0f (1068), floor heating circuit out (40d1), always 09 (c04b), heater status (01,02,04,05) and burner status (on/off) (110e)
    10 3c 20 00 LL 75 47 c4 04 c5 46 c1 04 ??? always 0f (4775), circuit pressure (bar) (04c4), ??? (46c5) and burner power (0...255) (04c1)

    10 3c 20 00 02 02 41 a5 00 -> 02 01 00 b7 ??? always 01 00
    10 3c 20 00 02 02 45 a1 00 -> 02 01 00 b7 ??? always 01 00
    10 38 20 00 08 03 01 03 03 c2 4b 78 47 -> 06 0f 00 00 01 00 00 7c ???

    My goal was to monitor the operation of the solar system. So the Raspy collects the messages and calculates the averages every 5 minutes, then sends the results to an online web server, which then creates a daily chart.
    I attach an example of a sunny day graph.

    Ariston BUS BridgeNet - communication with the boiler

    Now I'd like to make some statistics: I know when hot water is requested, I know when the burner has to start, so I can figure out how much gas is required for heating, how much for the sanitary water and how much is supplied by the solar panel.
    Knowing the relative power of the boiler (0 ... 255), from Sensys I can see that the burner power is limited to 80% for heating and 67% for sanitary water. I can therefore approximately calibrate the value 0 ... 255 in KW and then in cubic meters of gas.
  • #20
    komw
    Level 10  
    I'm still trying to find where in my boiler is the heating power :) (becuase you adress is not working for me).

    Your procedure to calculate gas usage looks promising, but I need to find where my Ariston Genus One sends a power to ebus ;)
  • #21
    mikulas975
    Level 1  
    My Ariston Genus One System 30 is yesterday mounted.
    I did not bought a thermostat, as I would like to control it through Domoticz -> ebus.
    Did you try to run the boiler without thermostat, or it must to be connected ?
  • #22
    tpatai
    Level 1  
    Currently I'm using a swtiching termostat connected to the TA1 port.
    I also have a wood-fired boiler. If the pump of this bolier is active then by a relay the TA1 port is interrupted, so the gas bioler (Ariston Genus Evo Premium 24) stops heating.
    This way the pump of the gas bolier and the pump of the other bolier cannot operate in the same time.

    My question is if I would use a modulation termostat using the BUS interface then can I simply interrupt the bus signal by a simple relay controlled by the wood fired bolier pump?
    Or how is it possible to use the two boliers when using a modulation termostat?
  • #23
    abershadsky
    Level 1  
    hi, I am very glad that I found this topic.
    how to read boiler error codes from the bus? the boiler remembers the last 10 faults

    Dodano po 31 [minuty]:

    It seems to me that the boiler works like this: if no polling device is connected to it, the boiler sends telegrams starting with 0x37, for example
    37FE20000261476D.
    6147 - indicates that it supports such a request
