ECU PINOUTS / BOOT MODE / INSTRUCTIONS / ALL BRANDS part 1

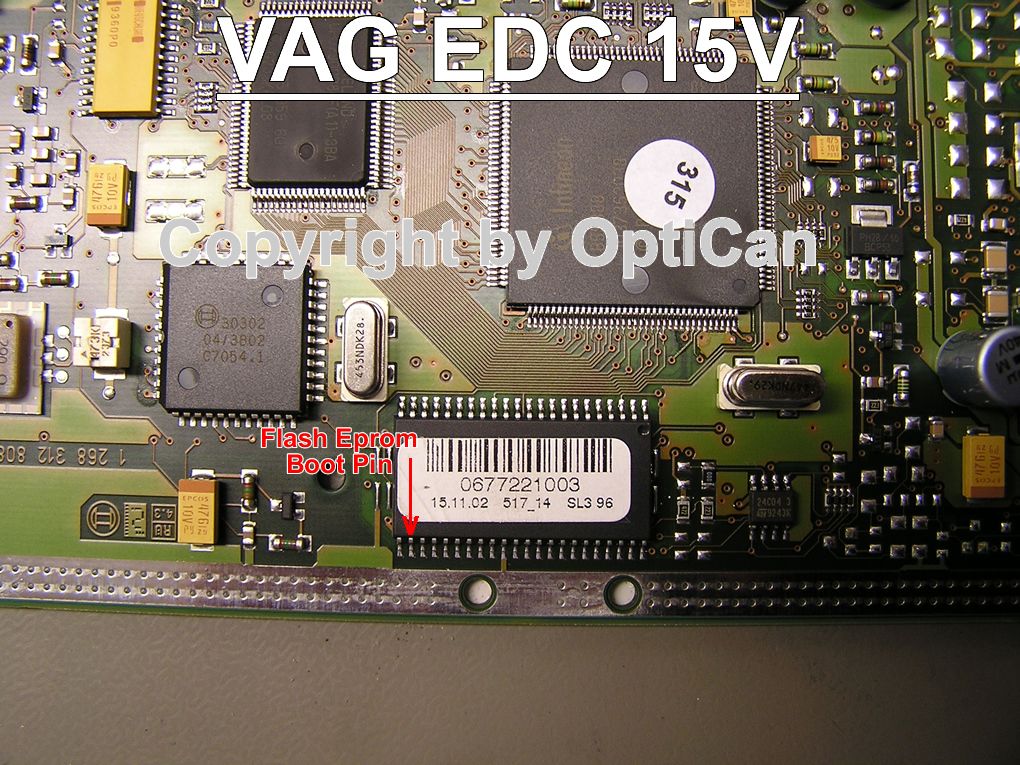

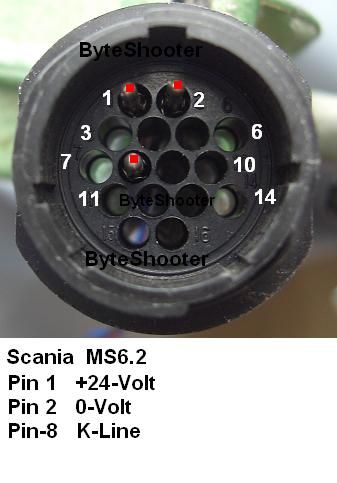

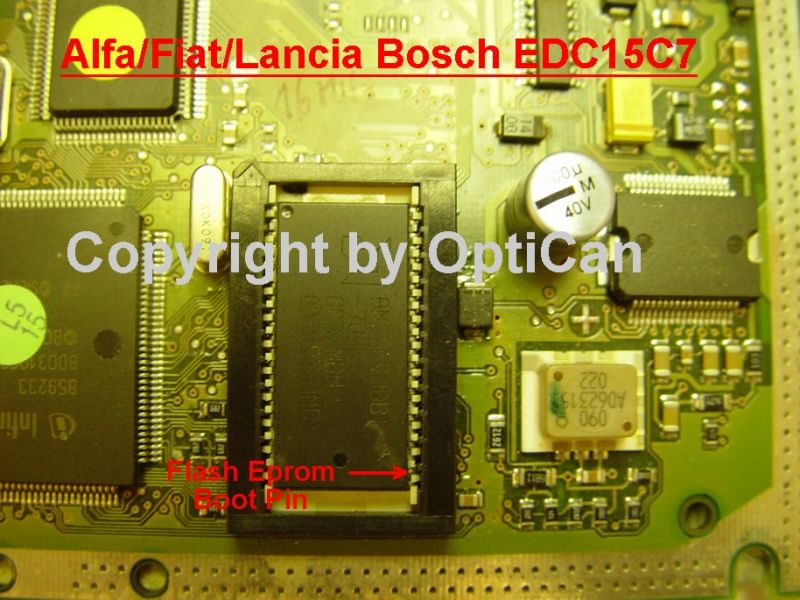

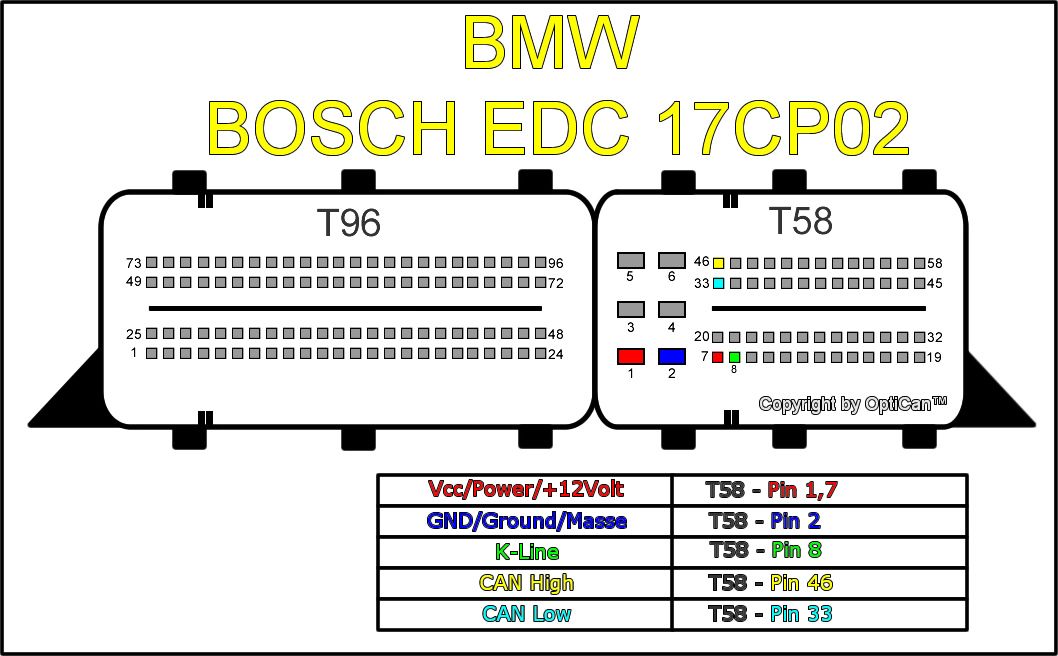

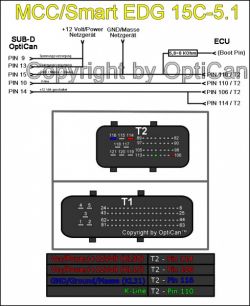

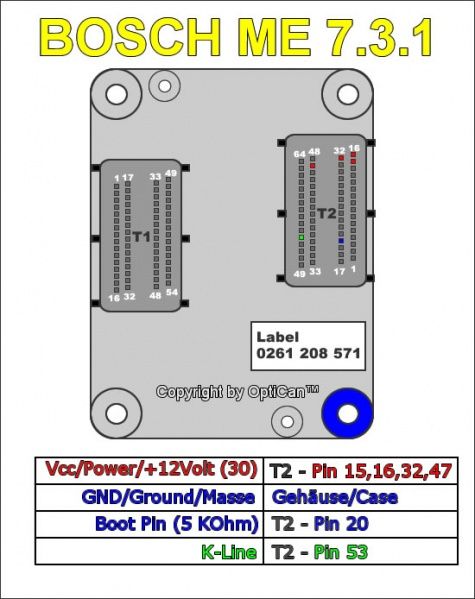

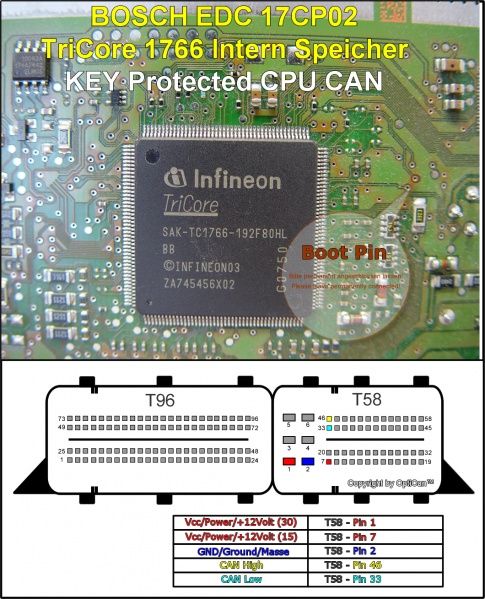

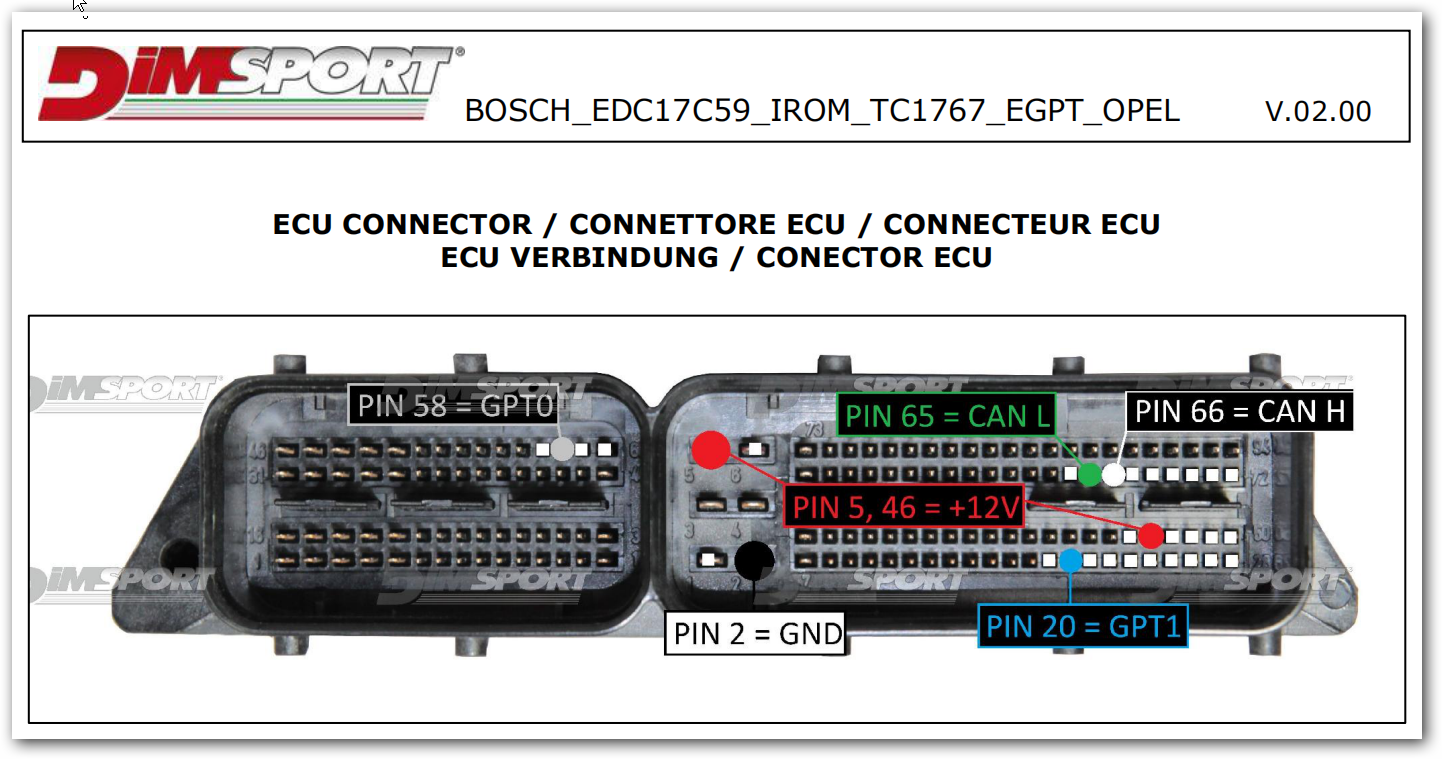

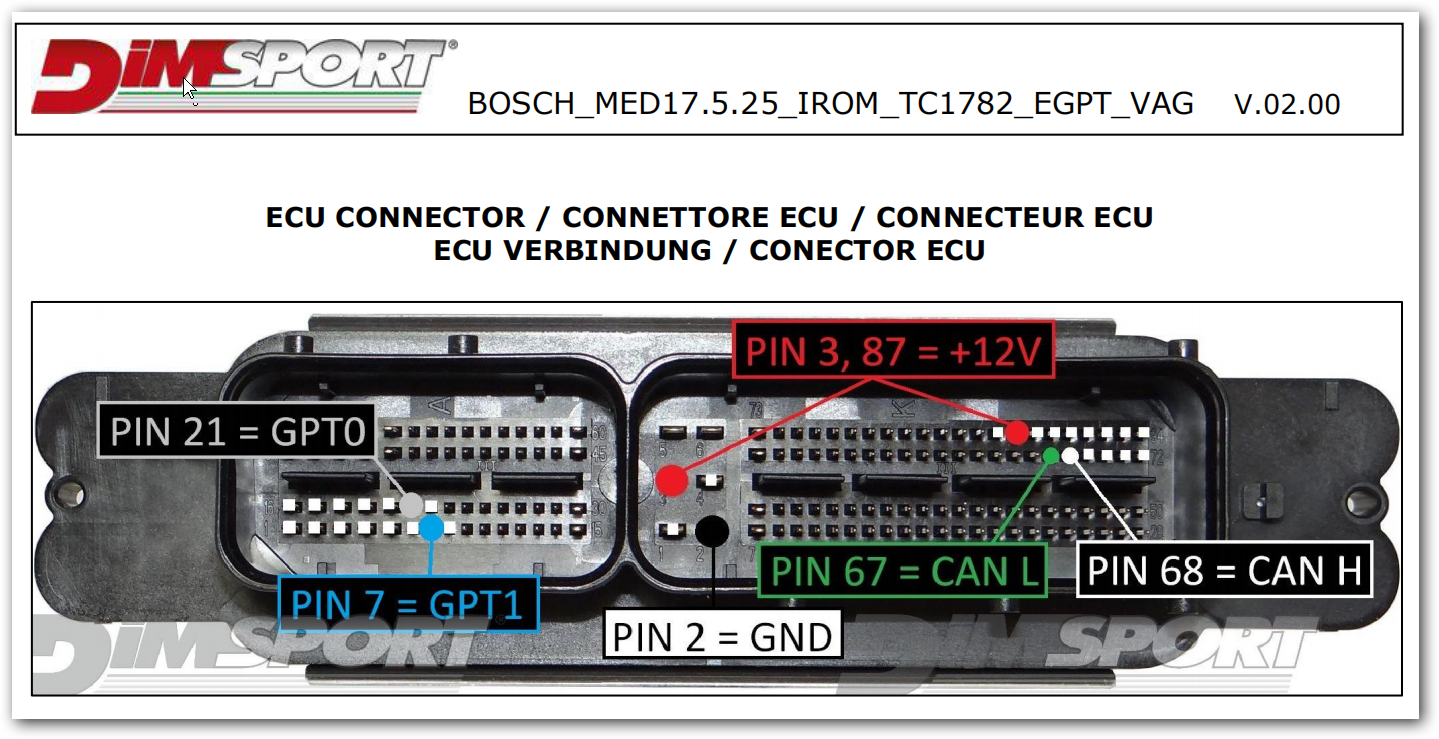

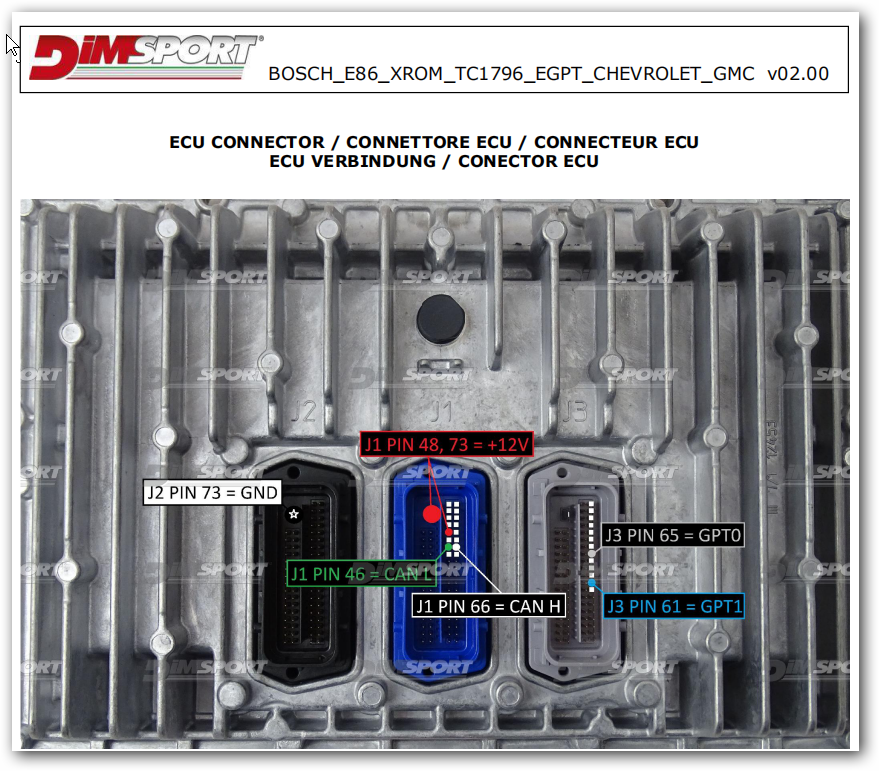

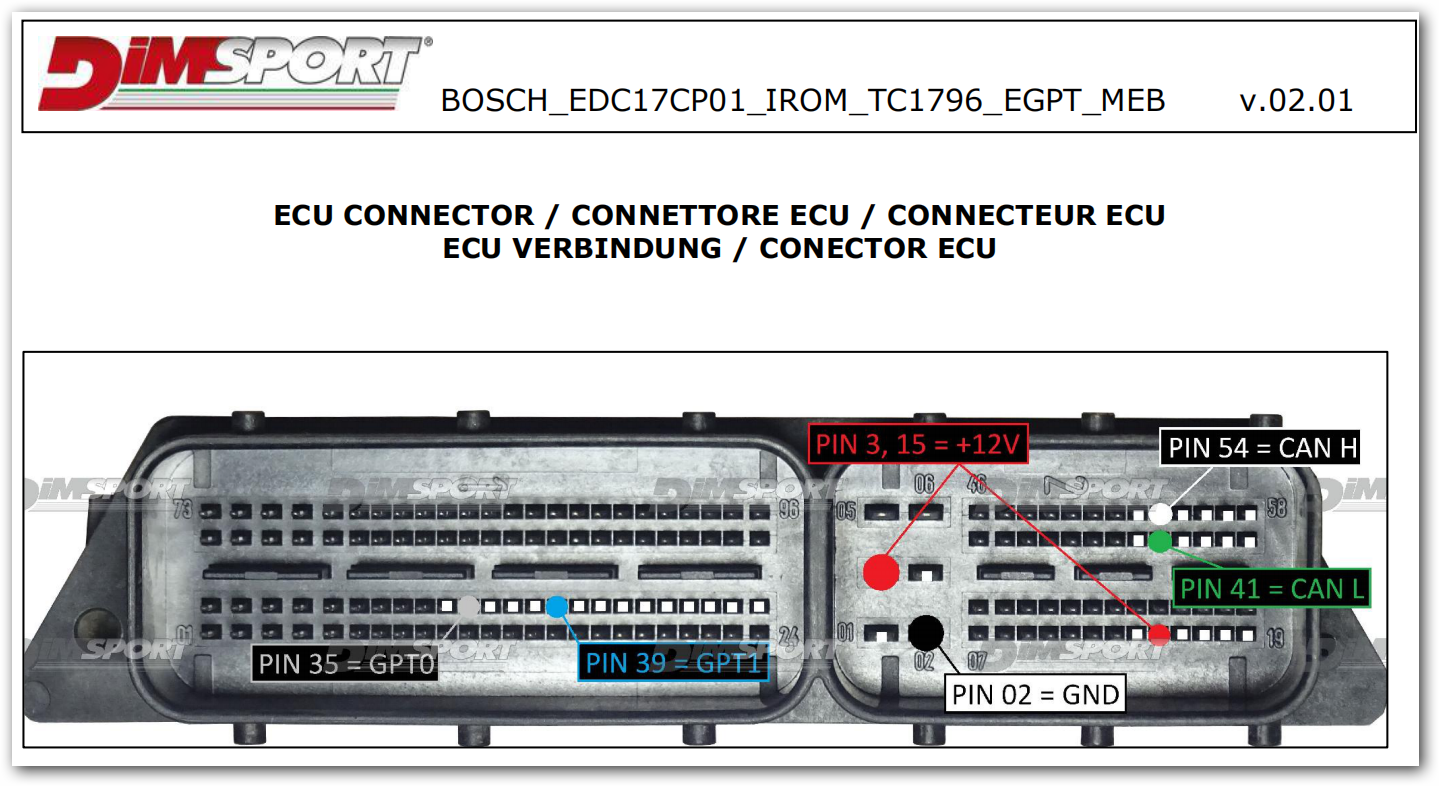

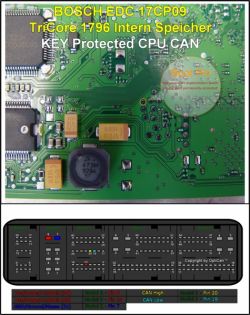

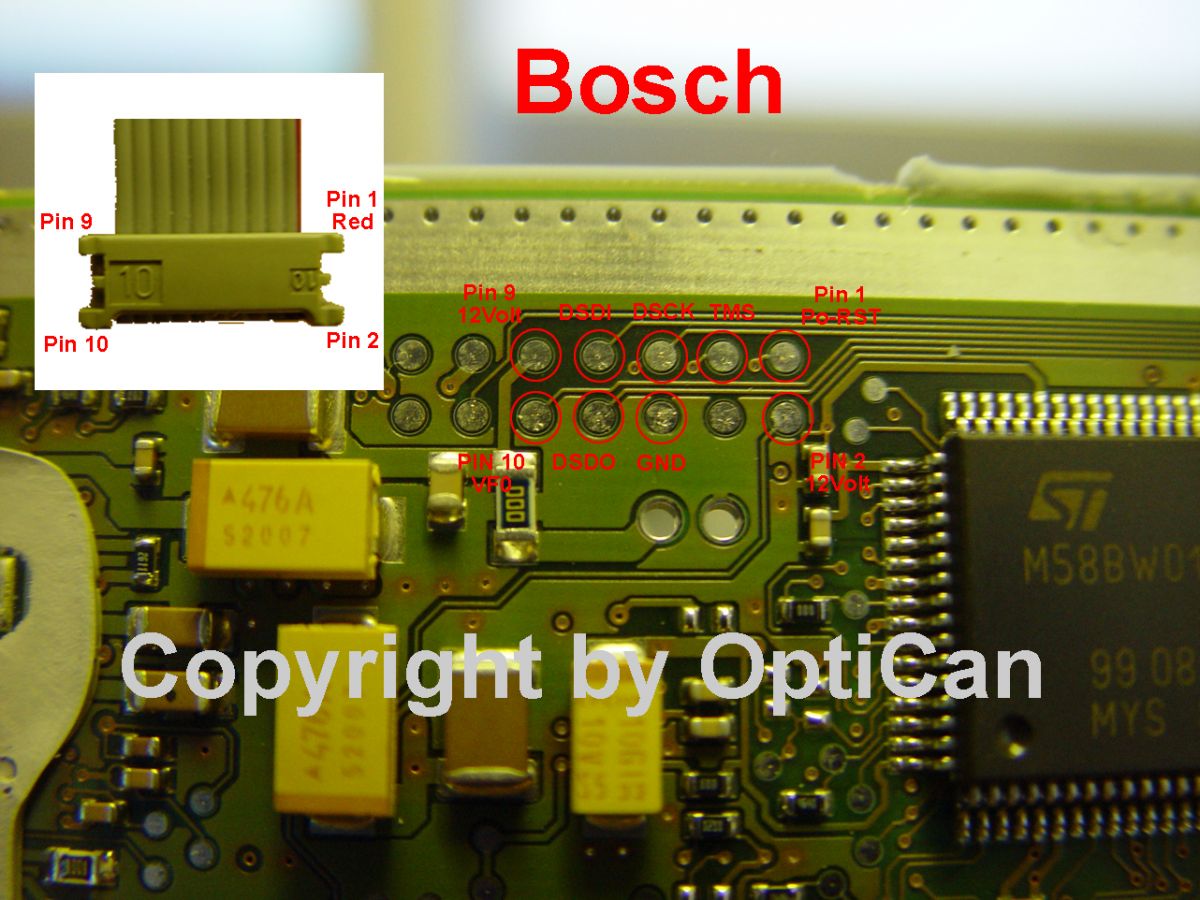

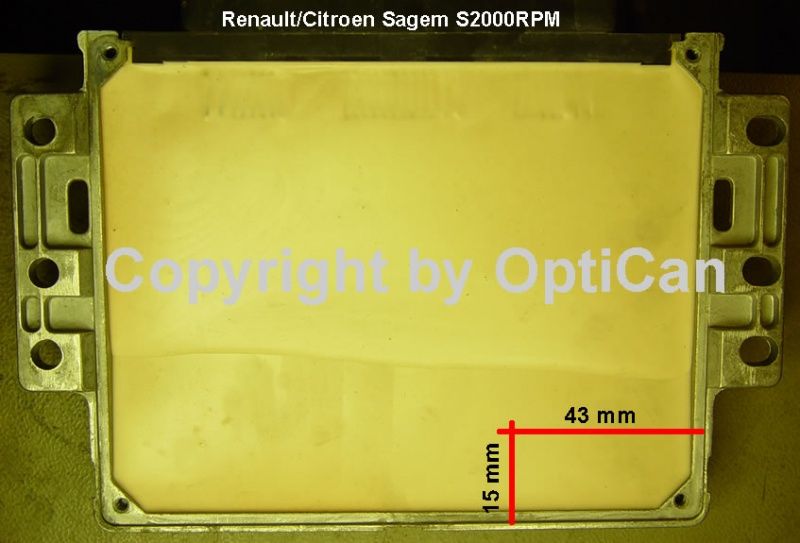

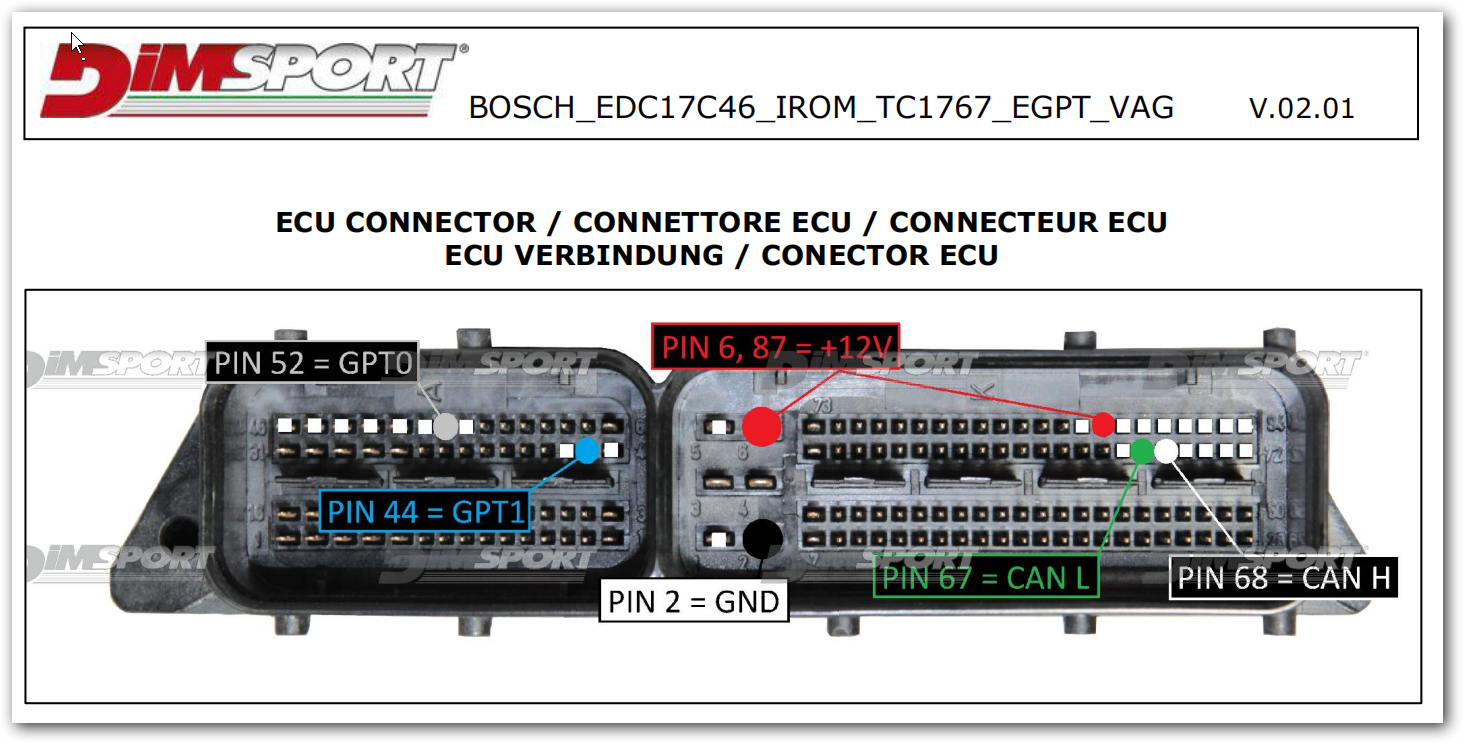

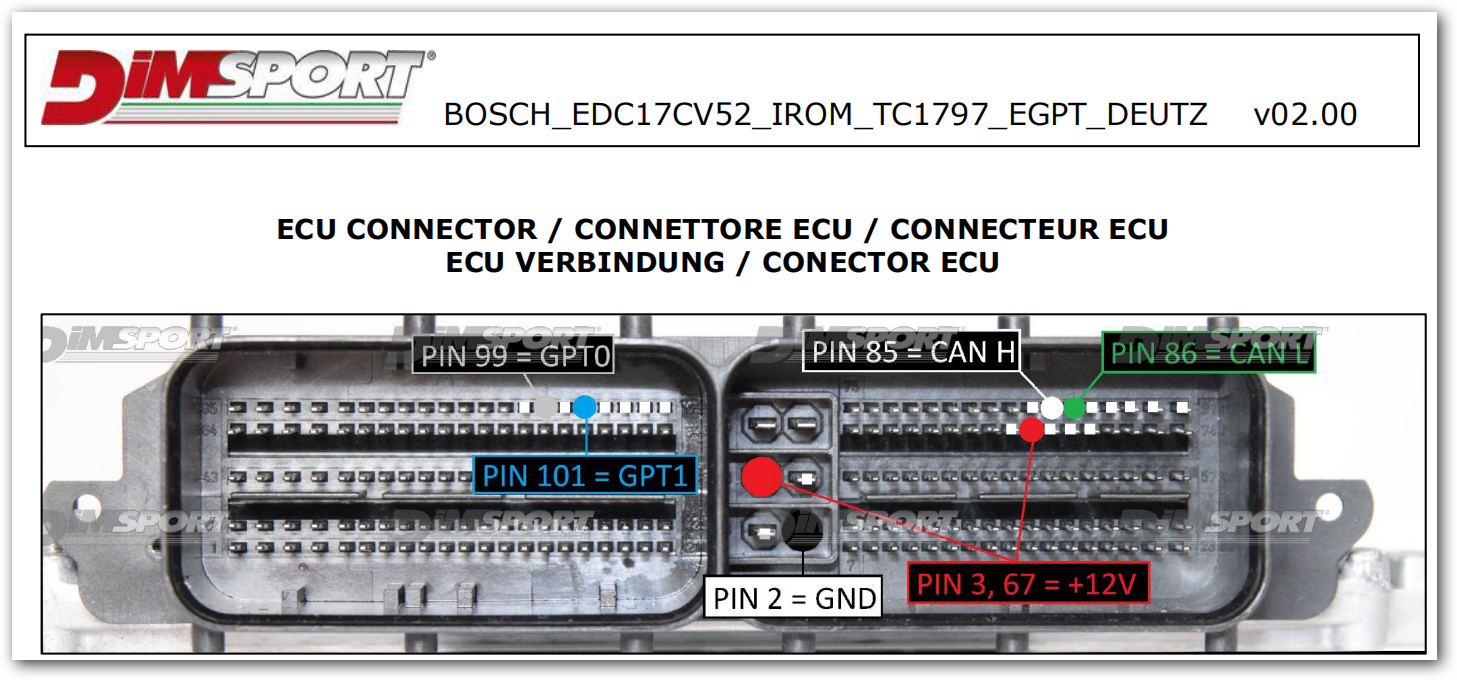

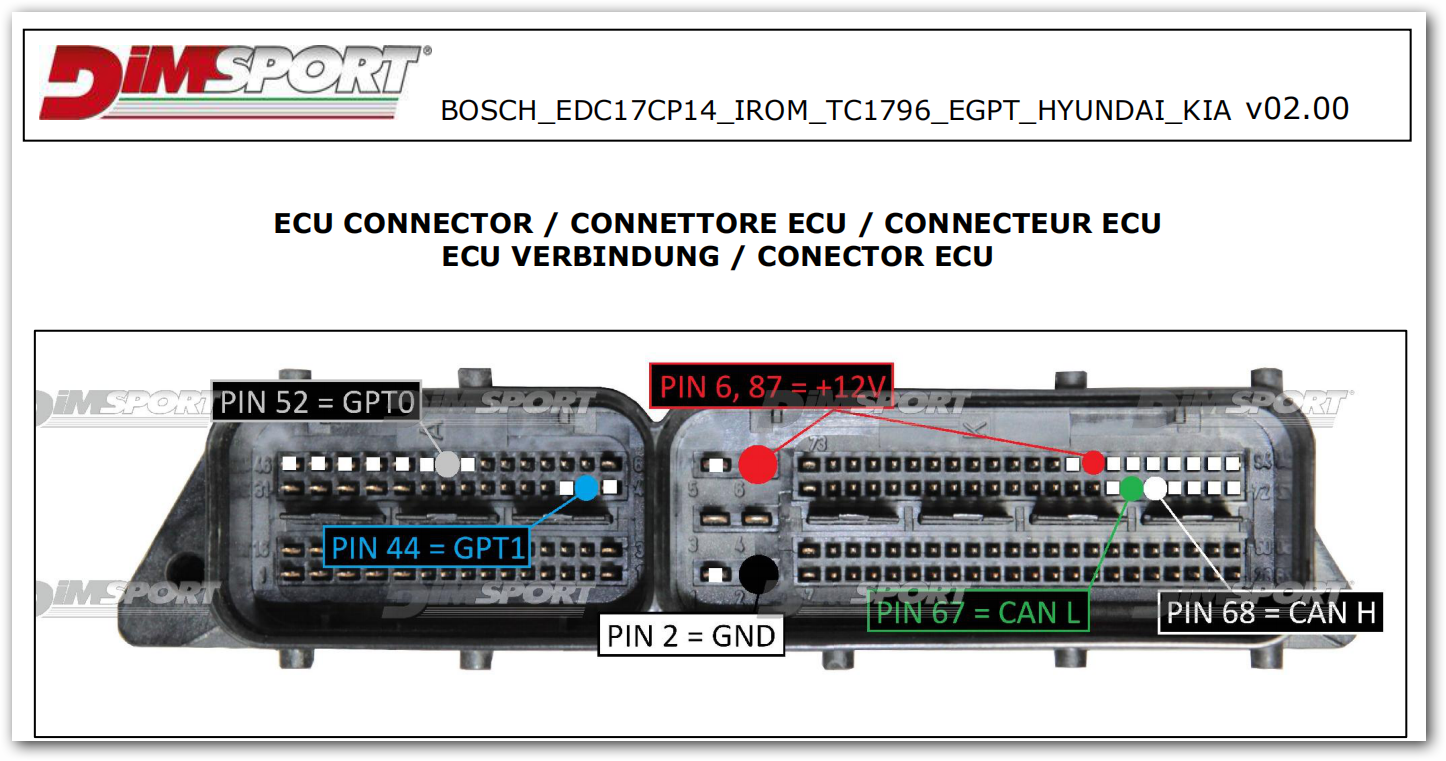

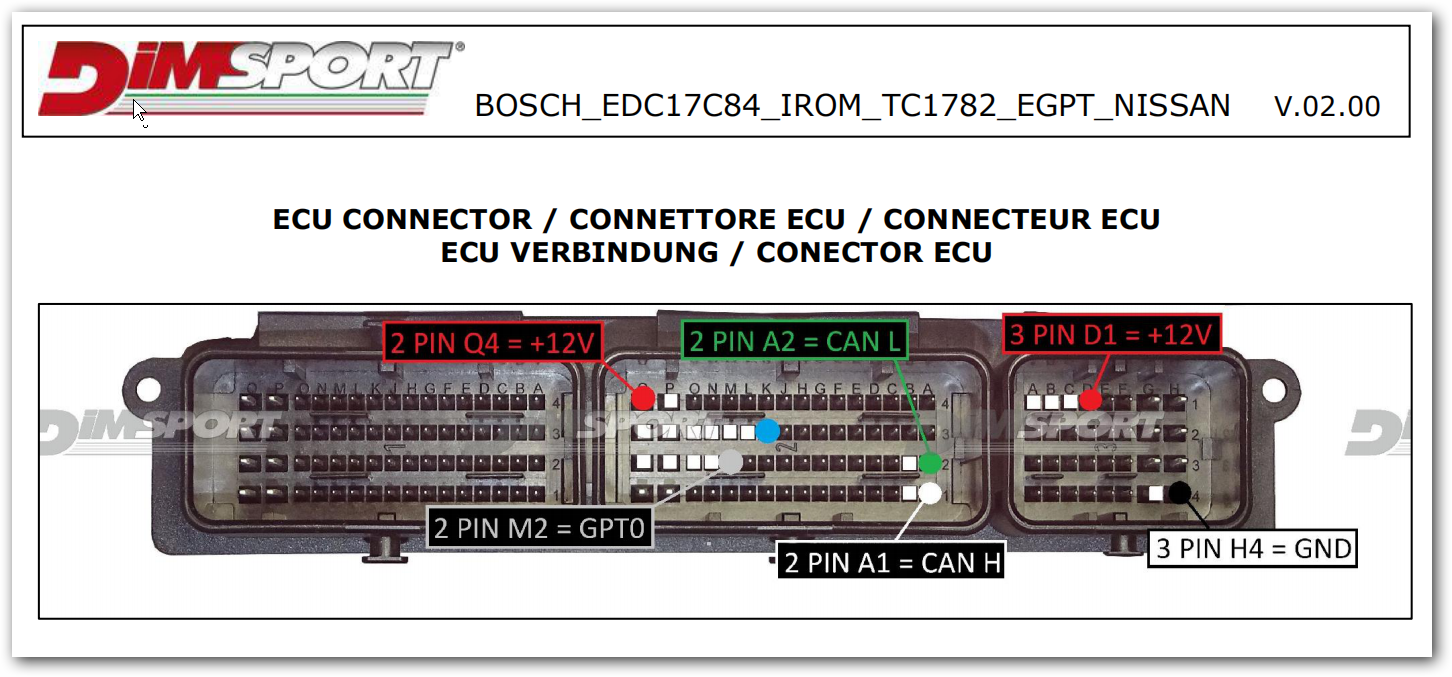

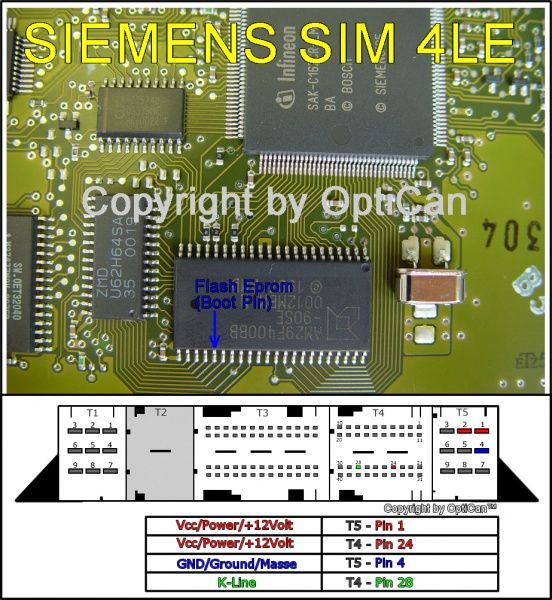

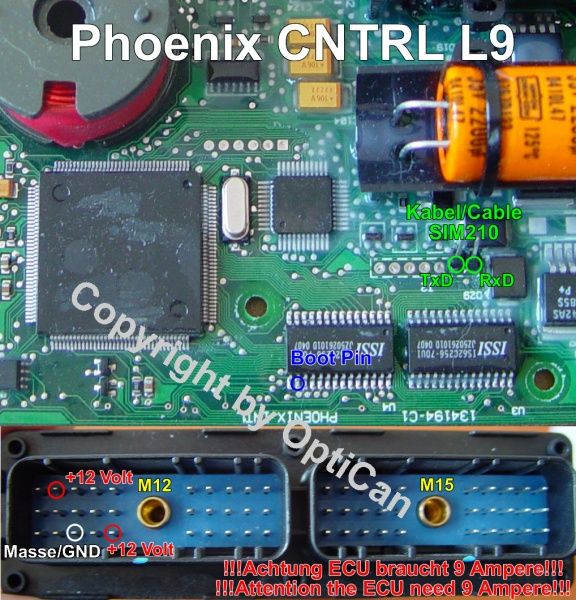

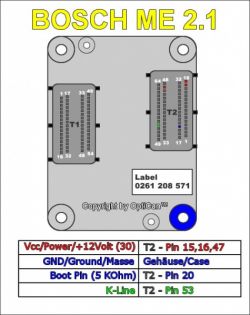

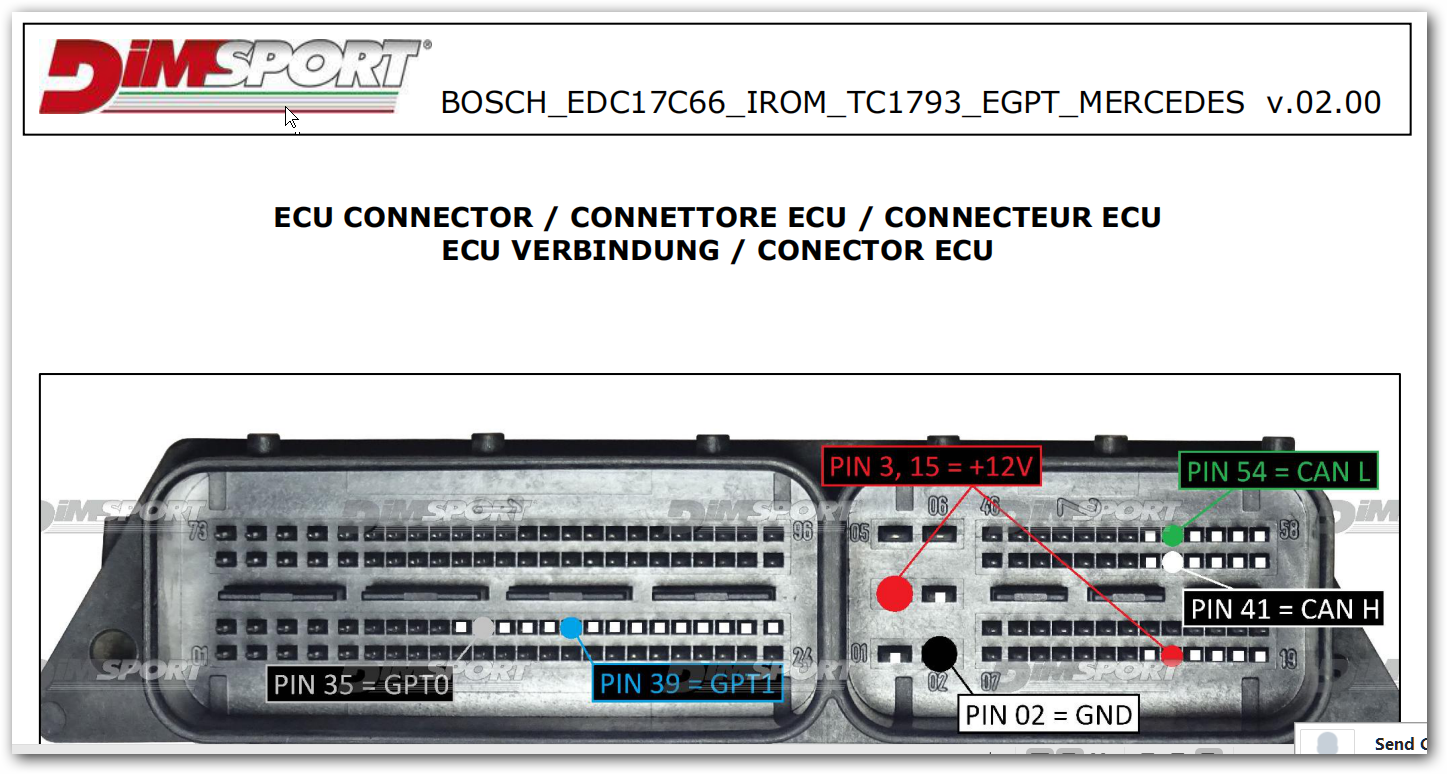

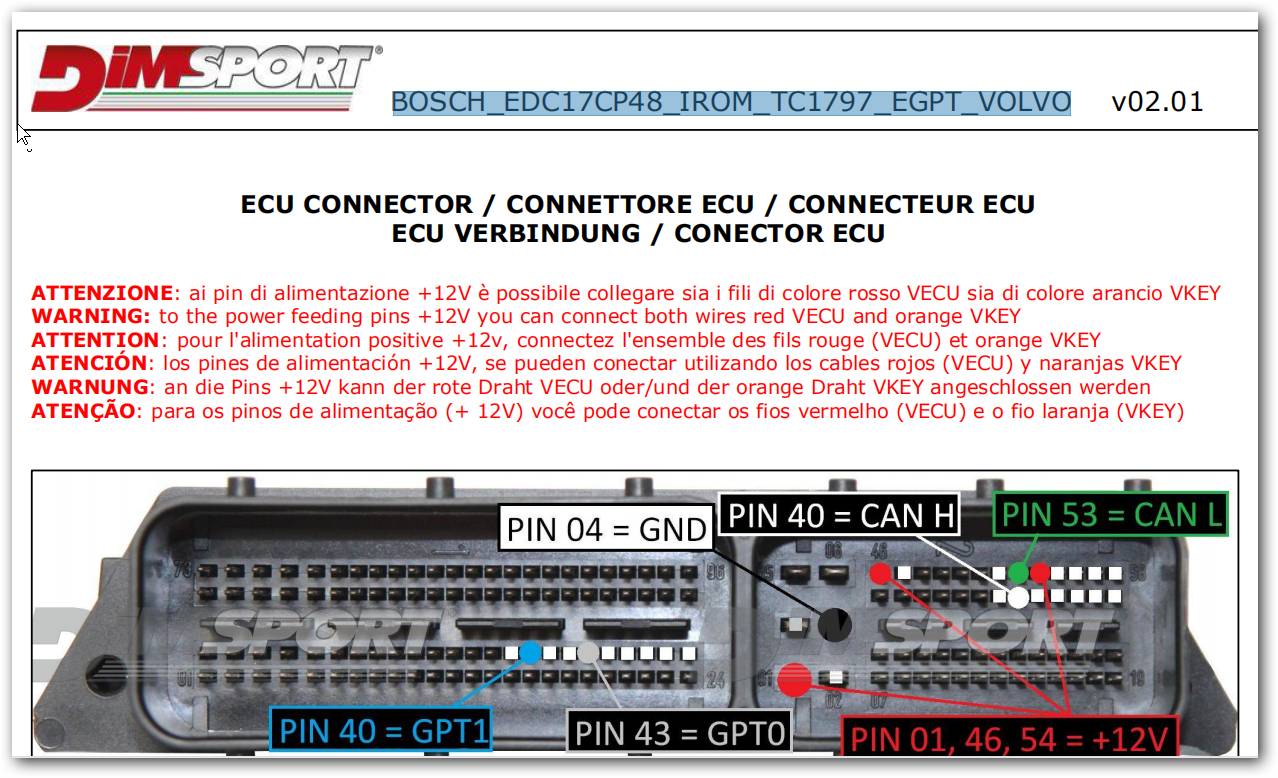

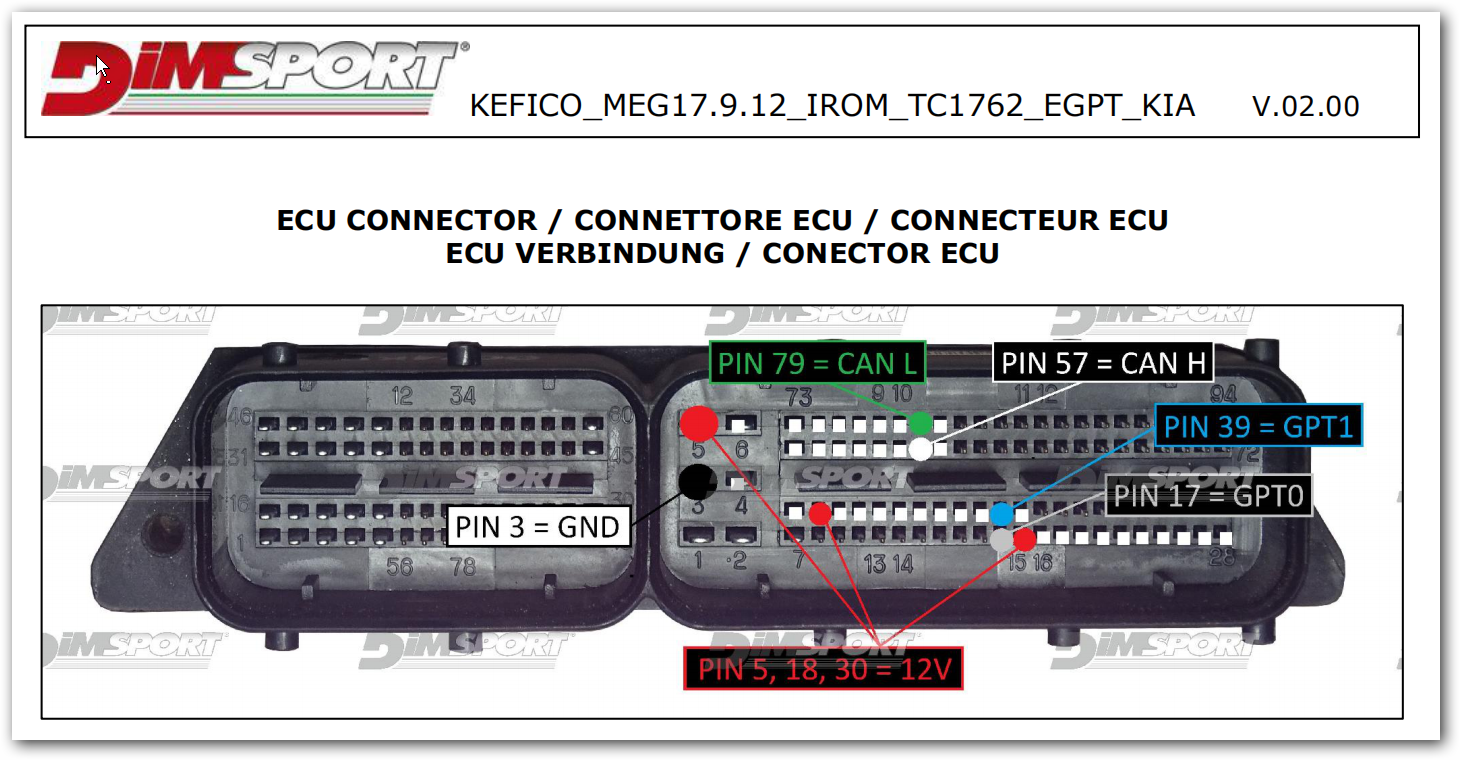

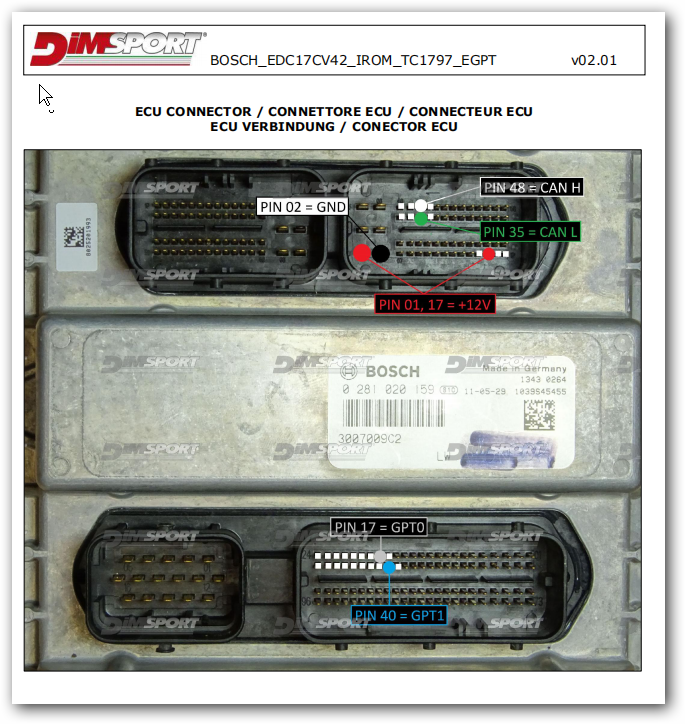

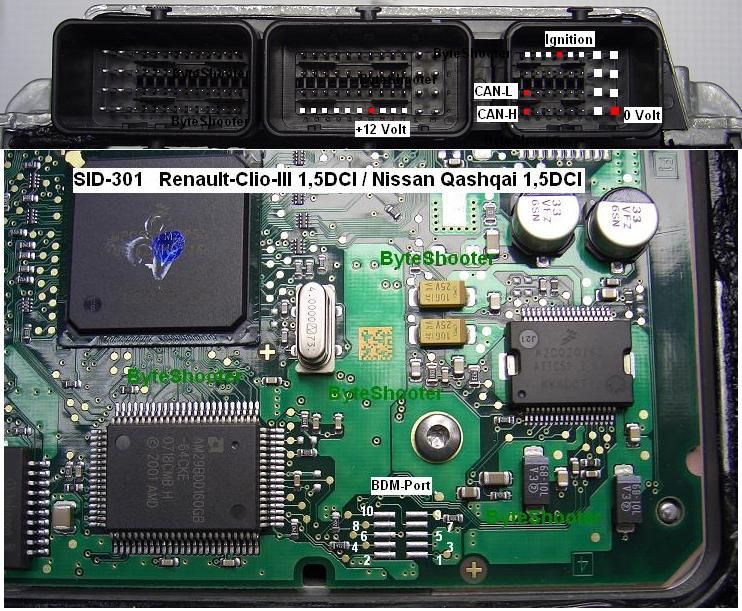

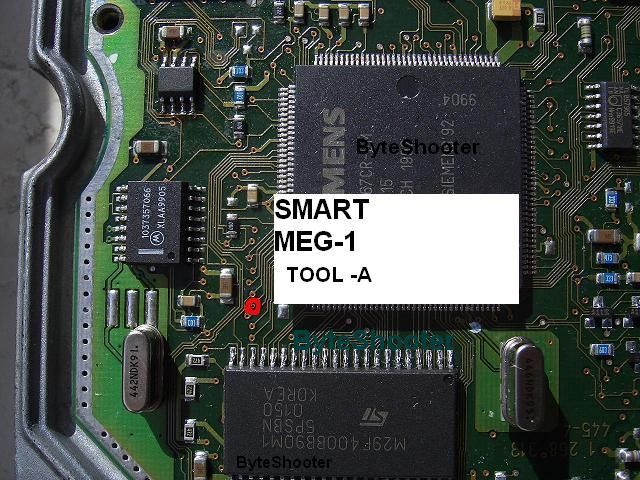

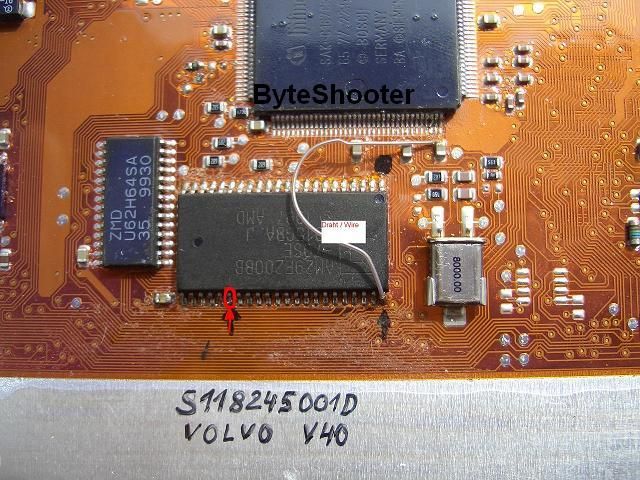

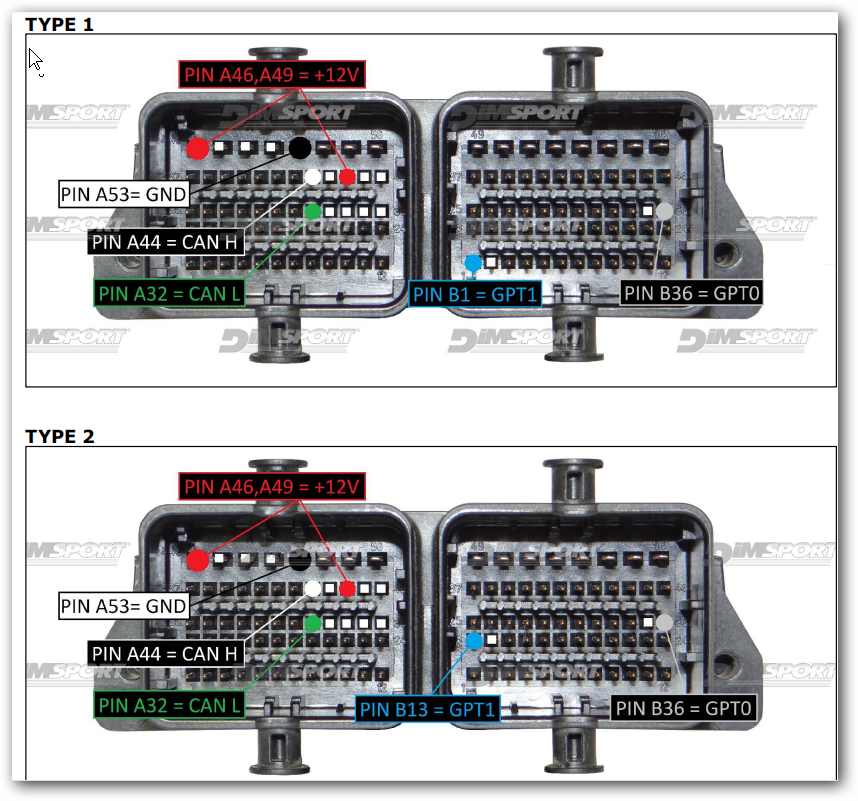

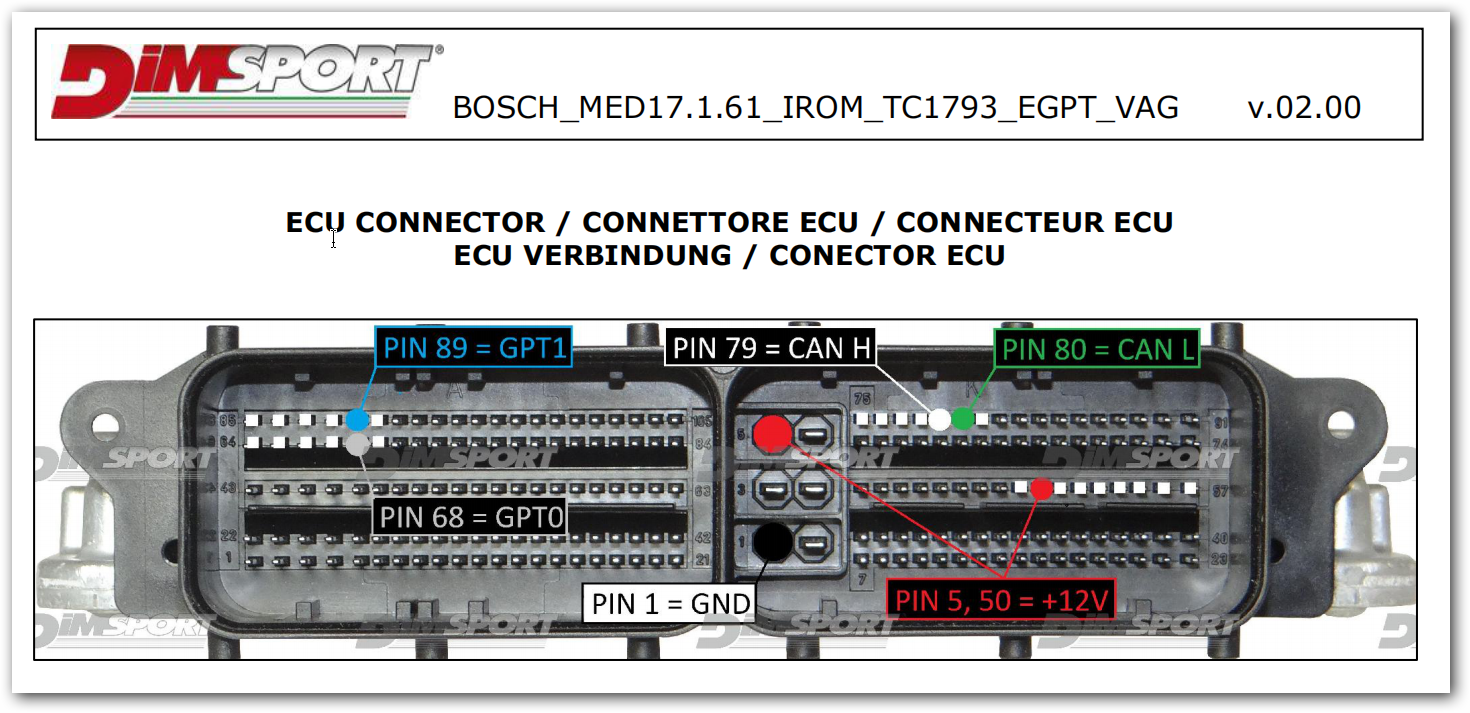

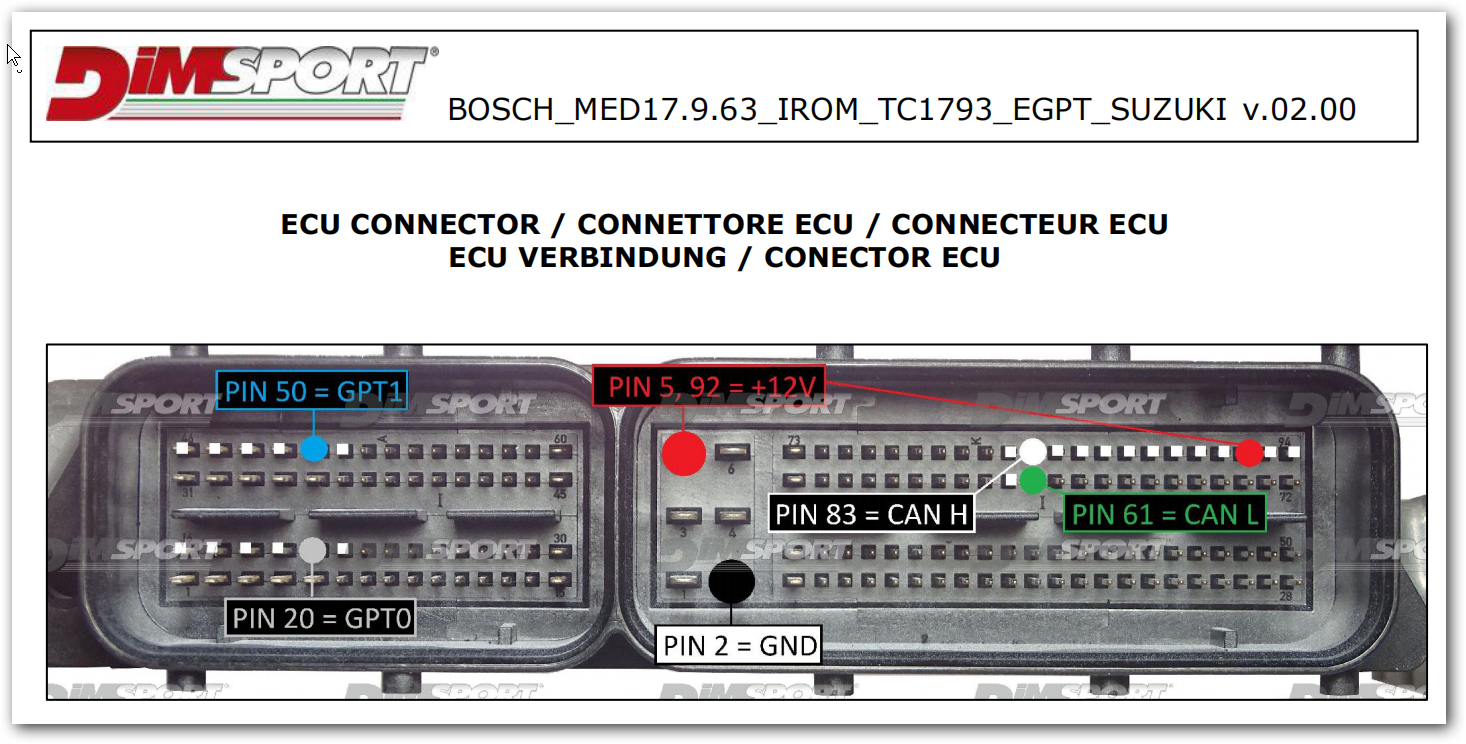

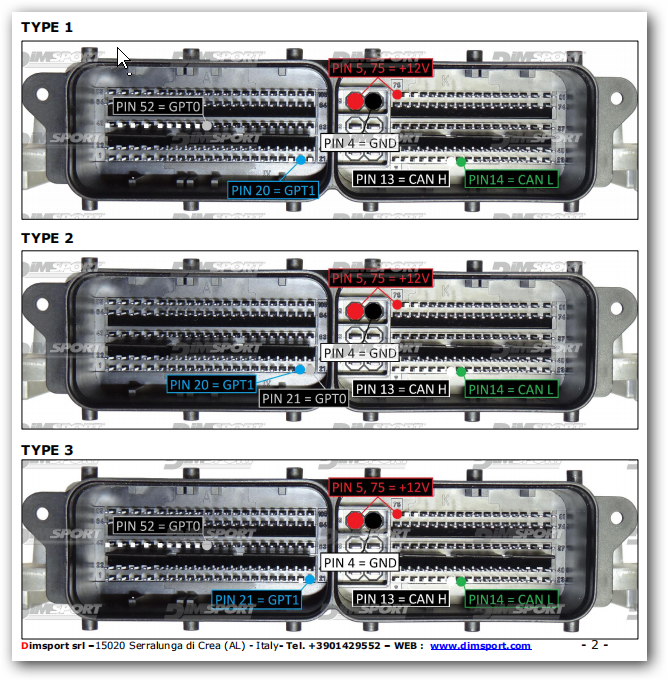

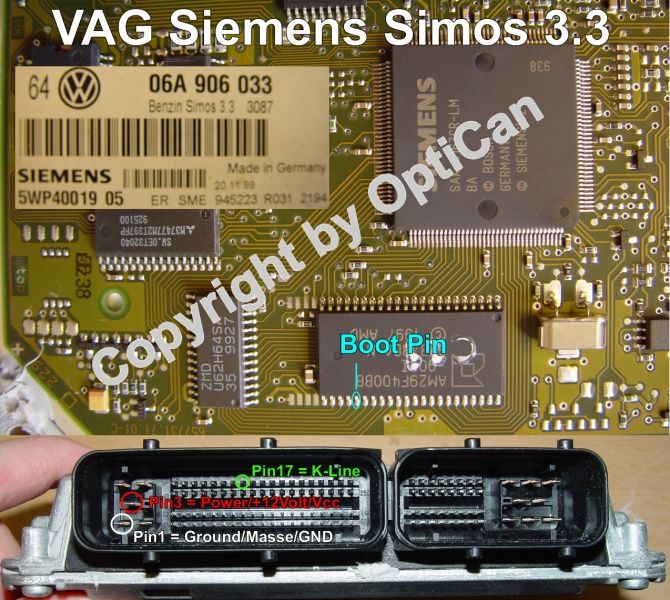

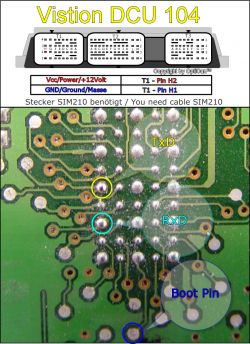

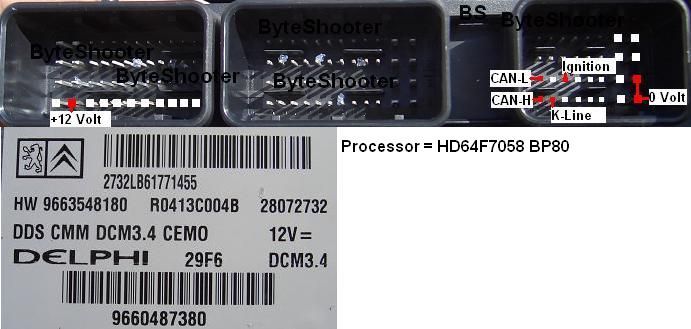

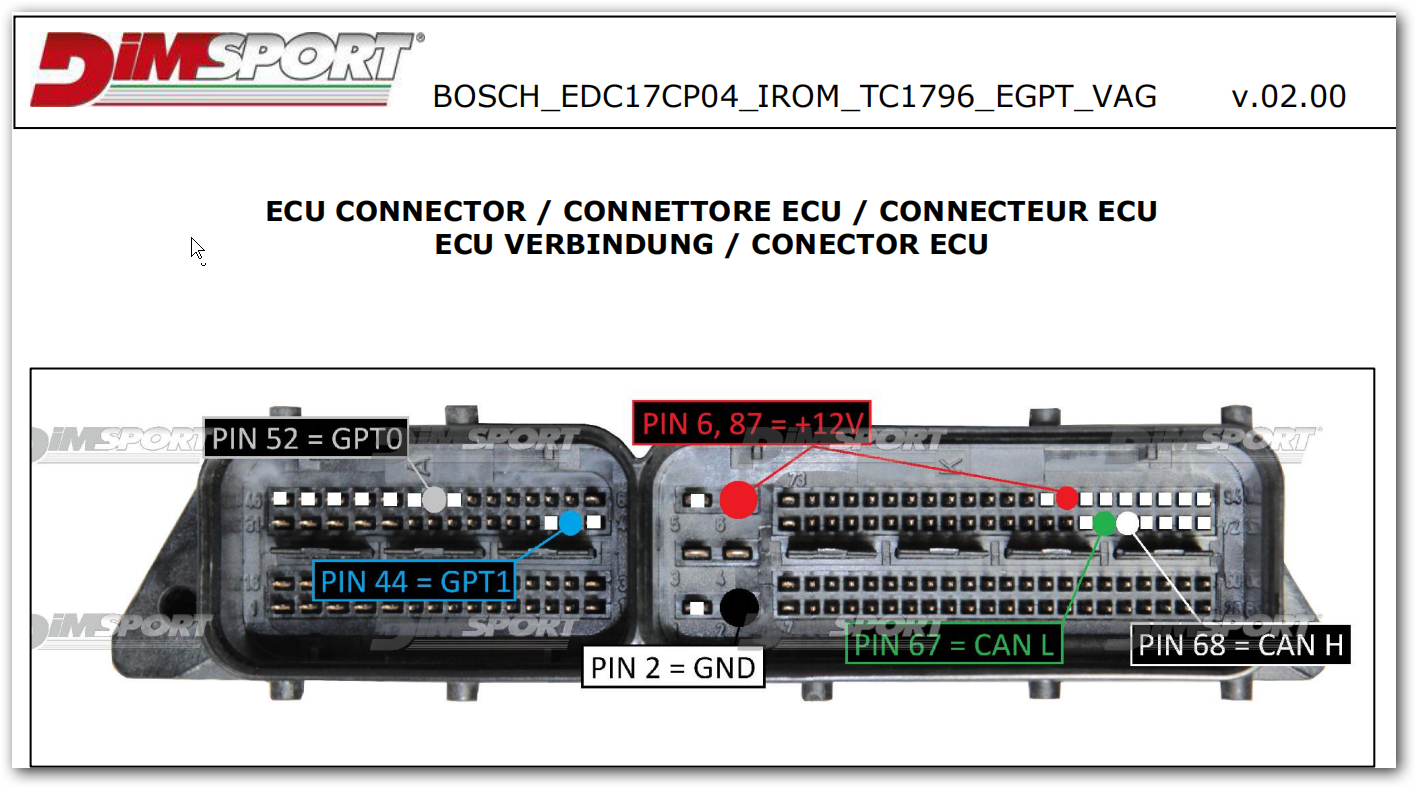

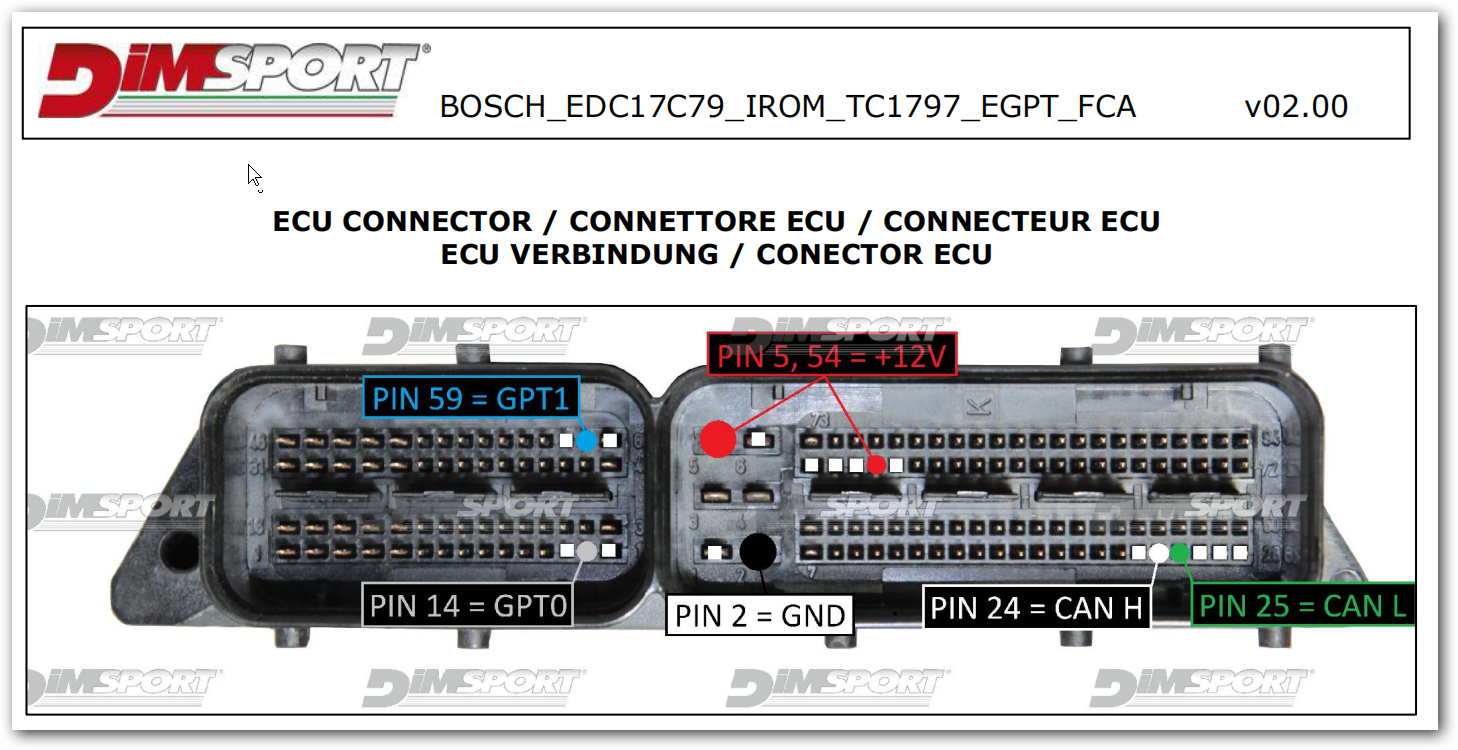

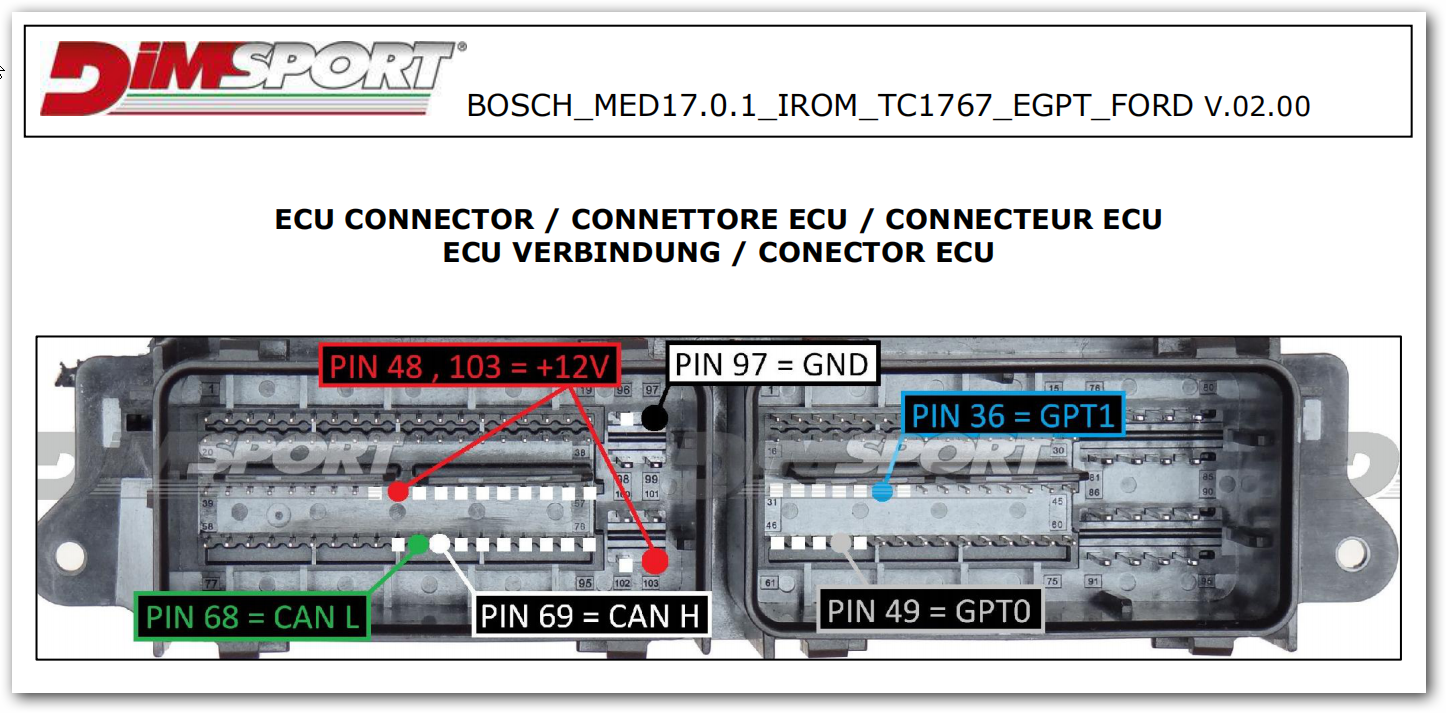

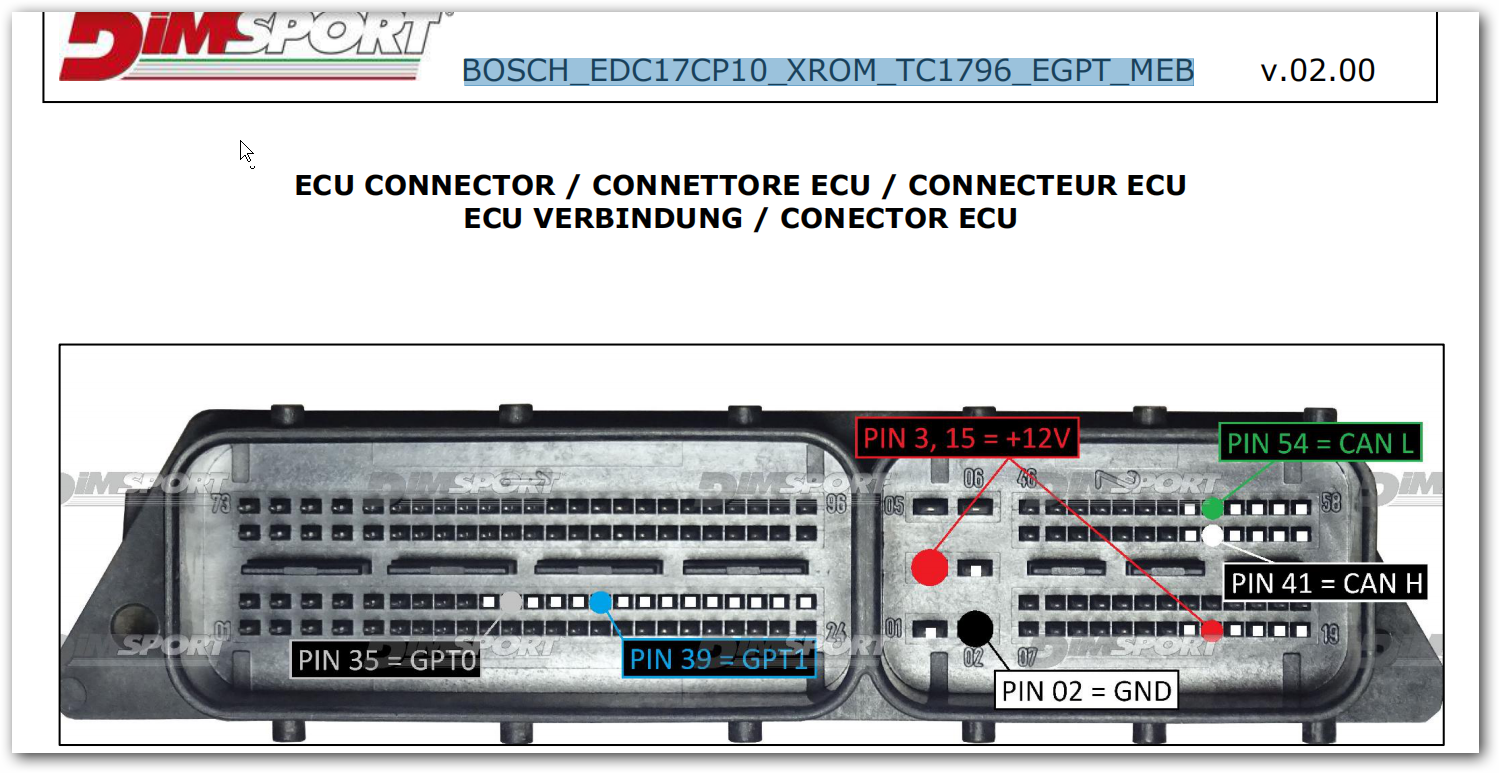

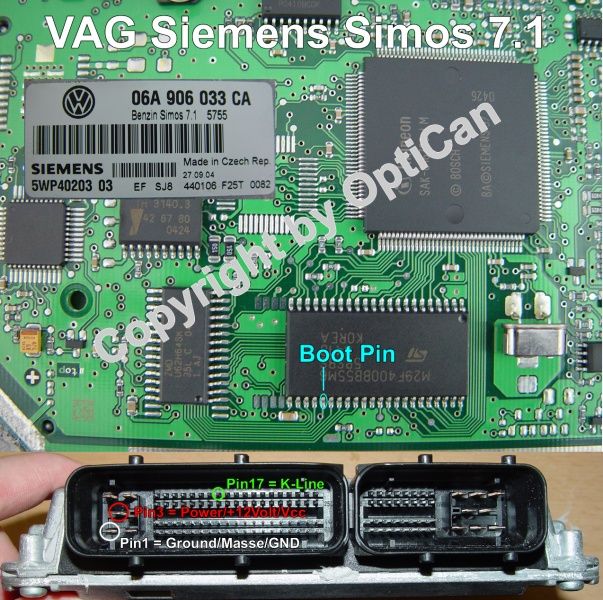

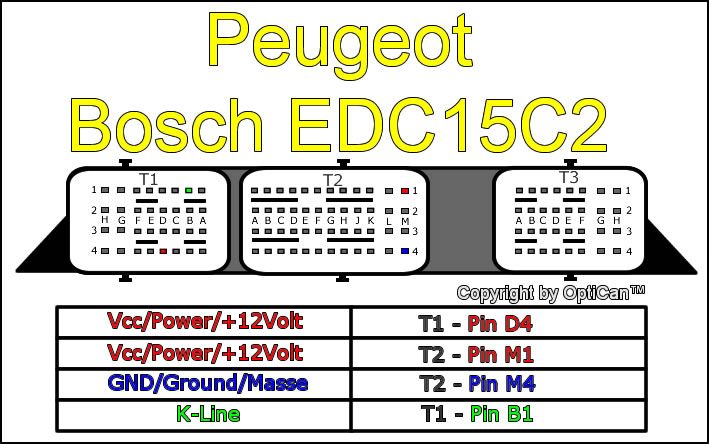

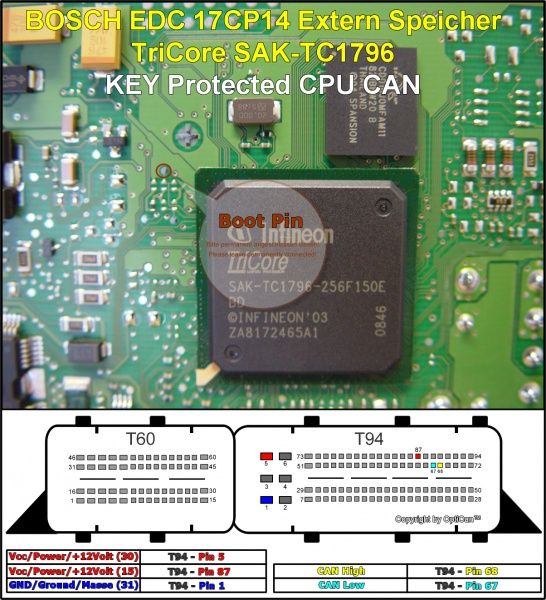

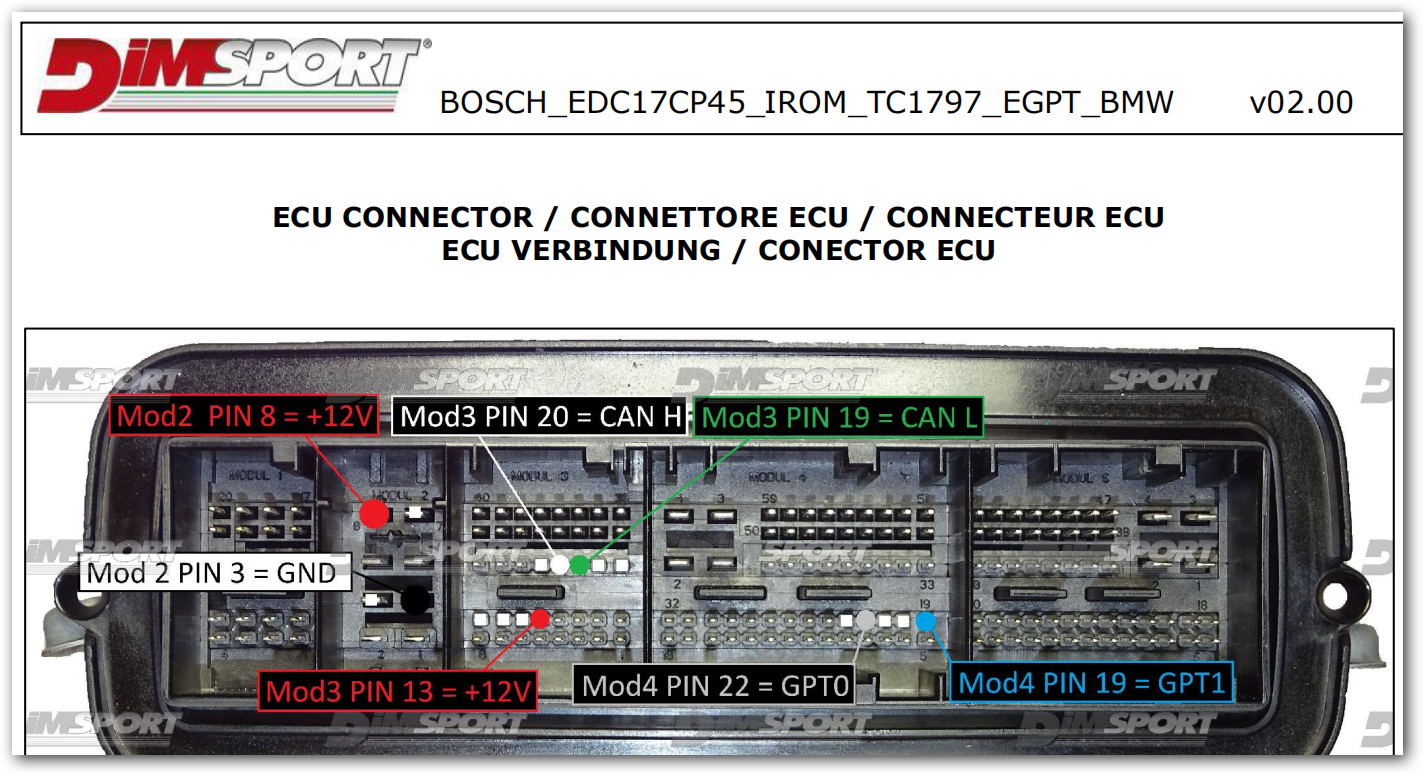

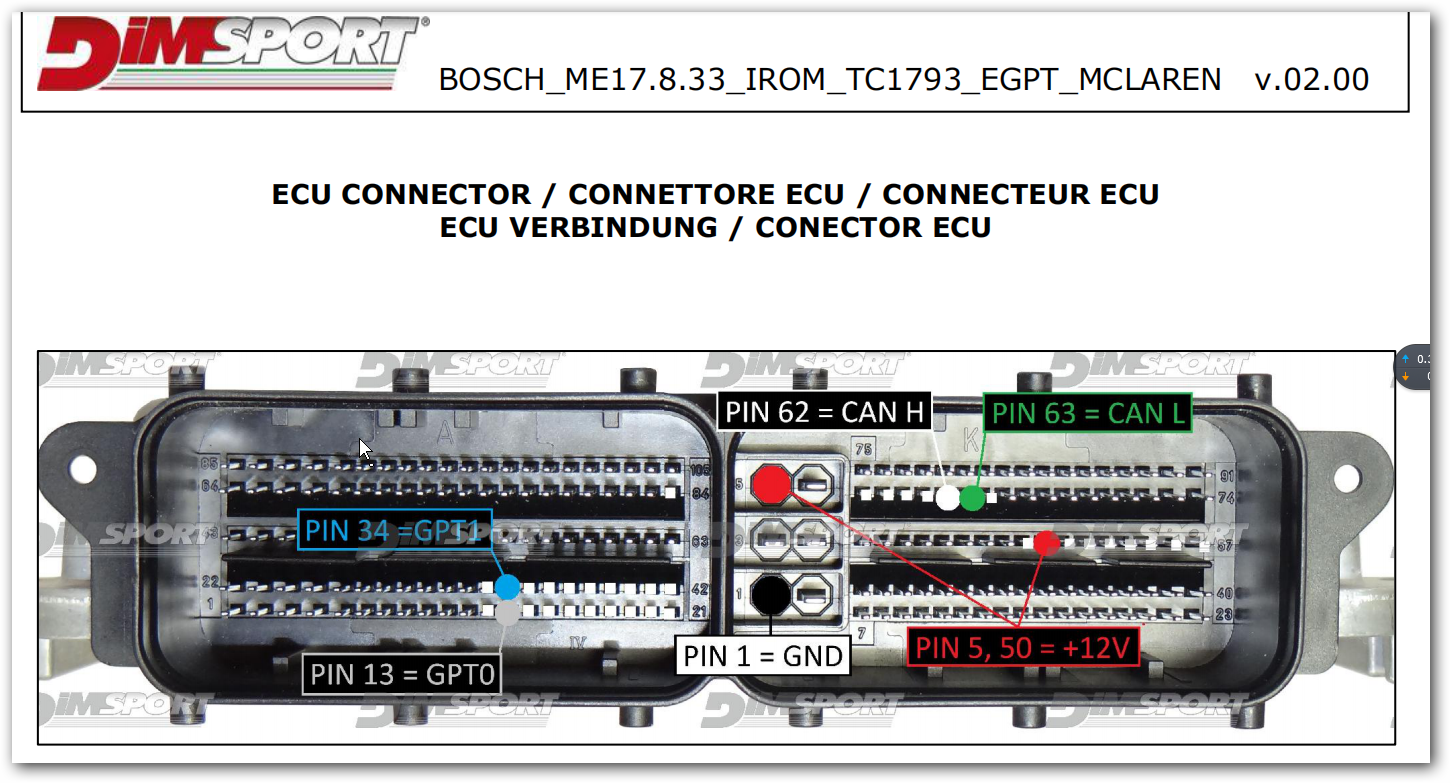

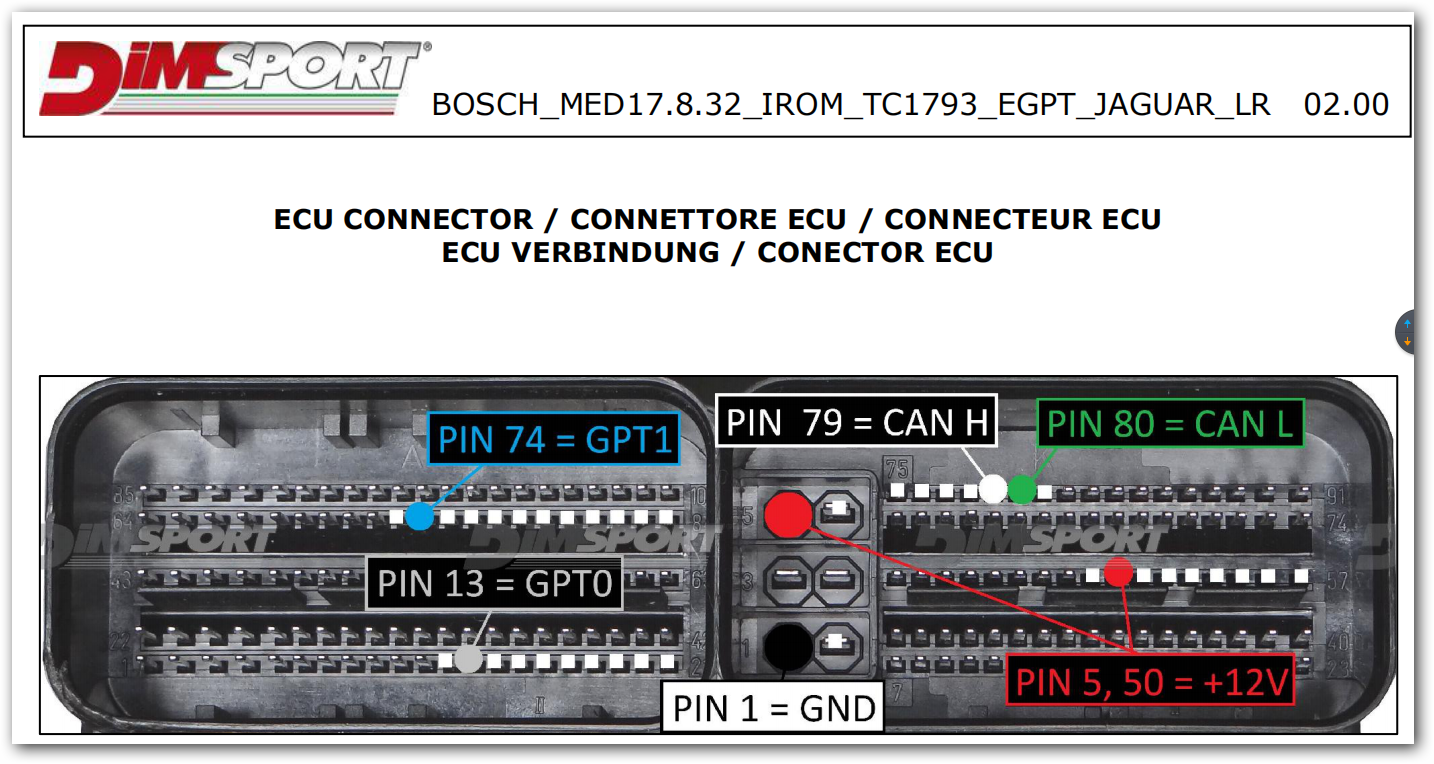

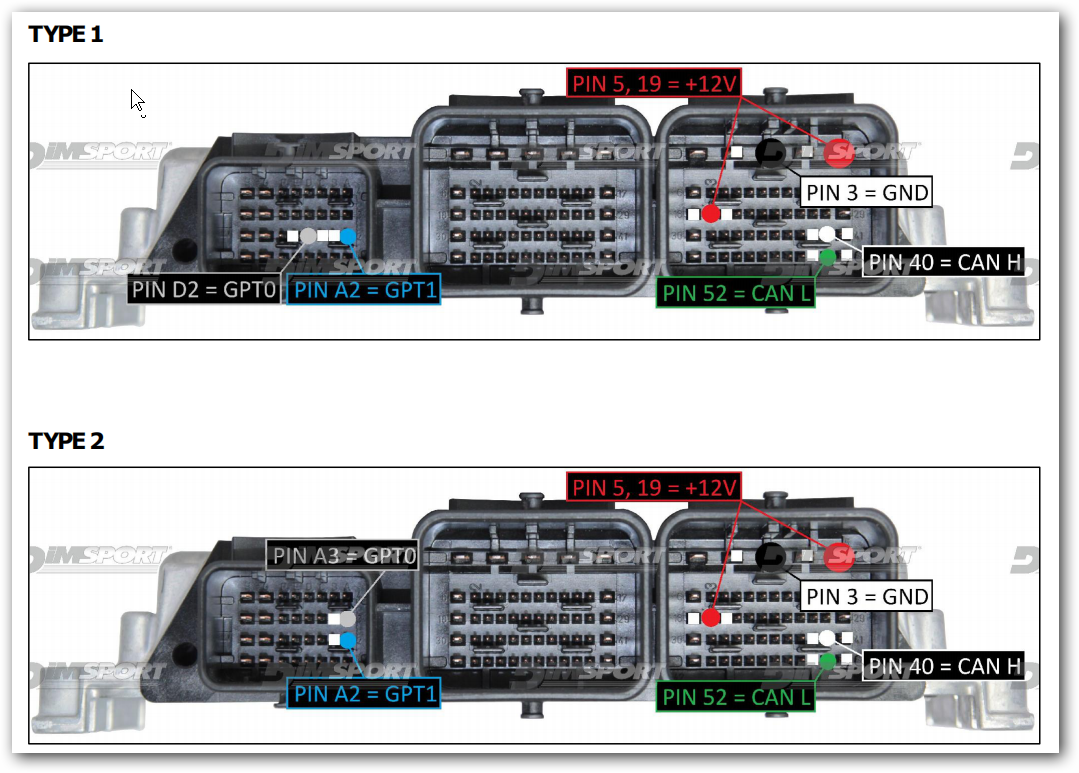

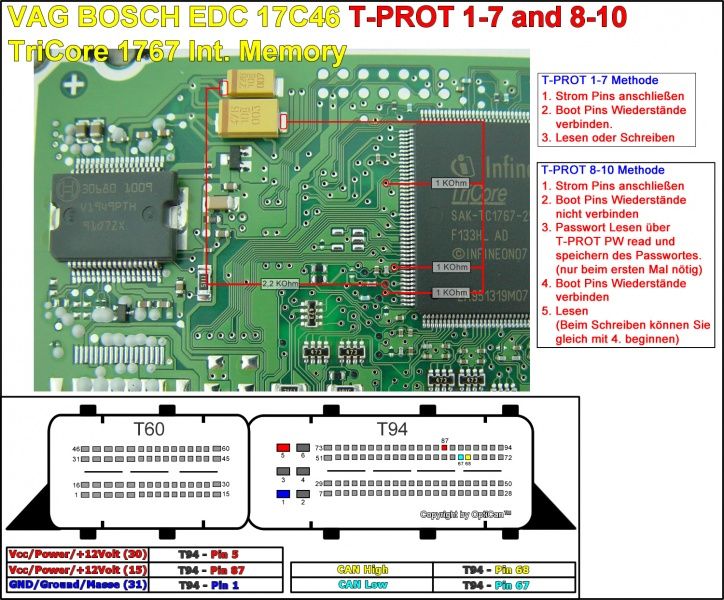

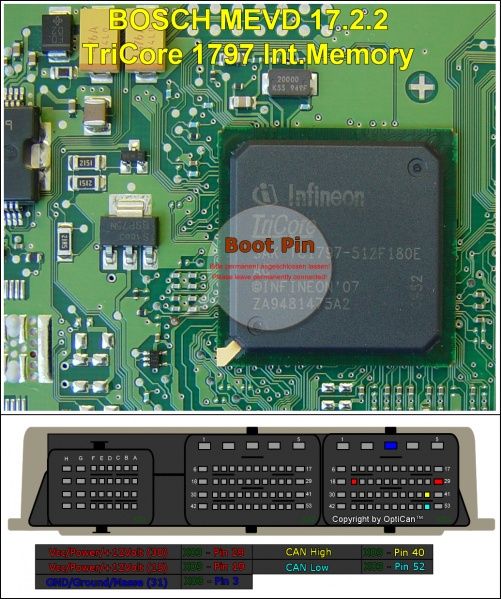

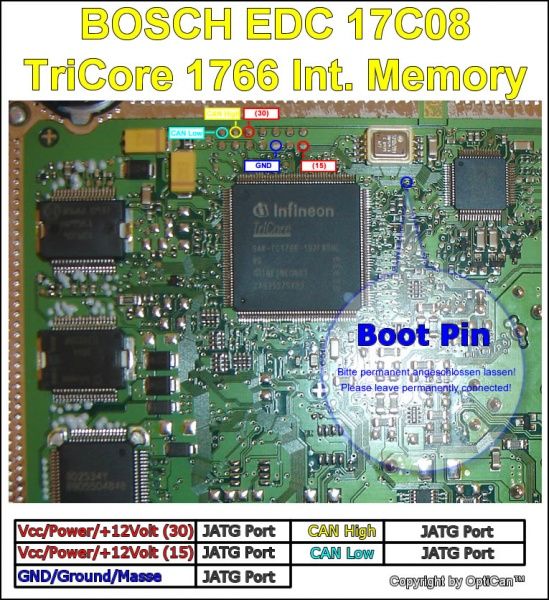

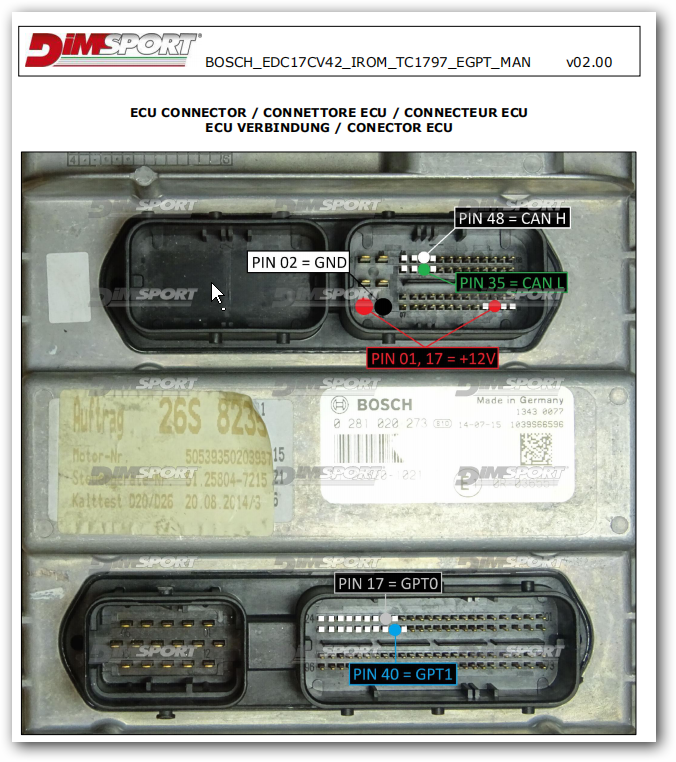

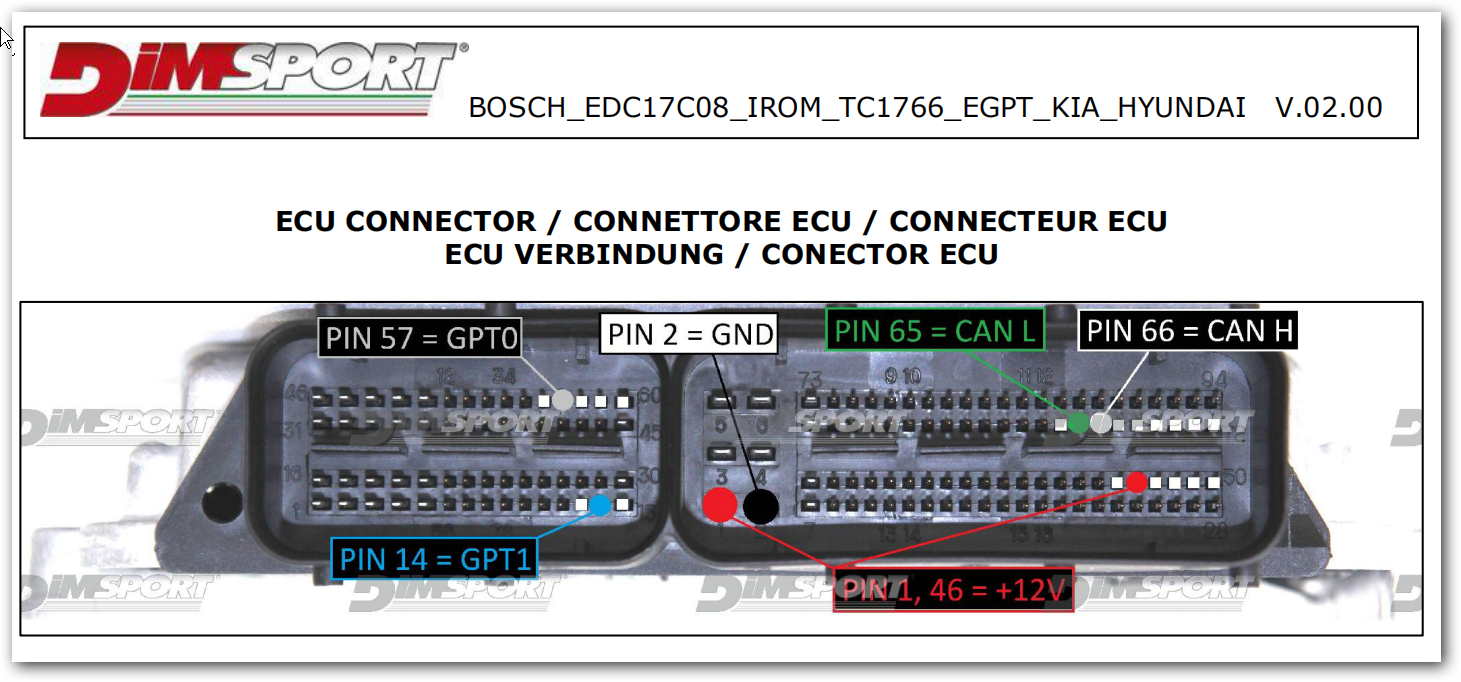

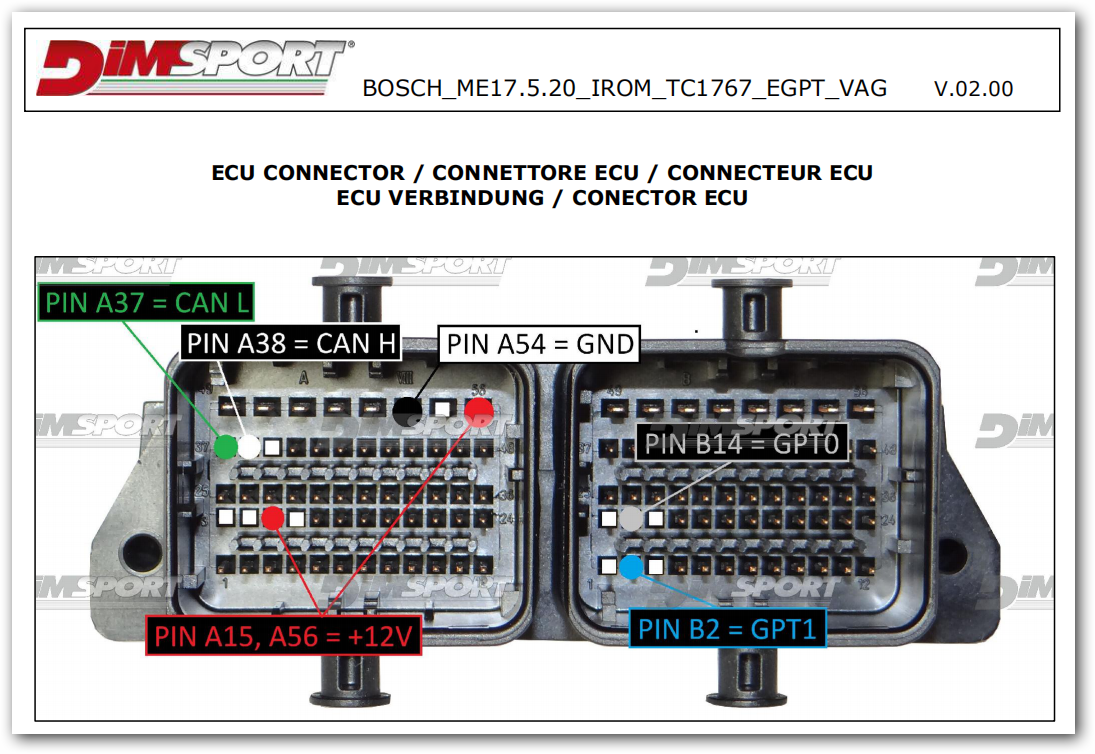

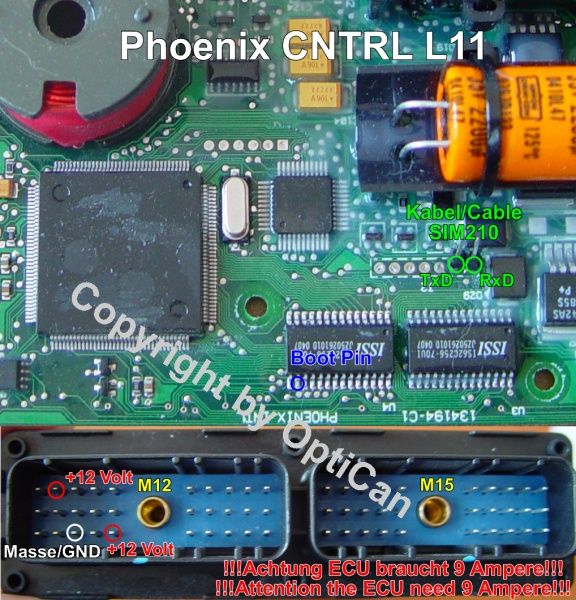

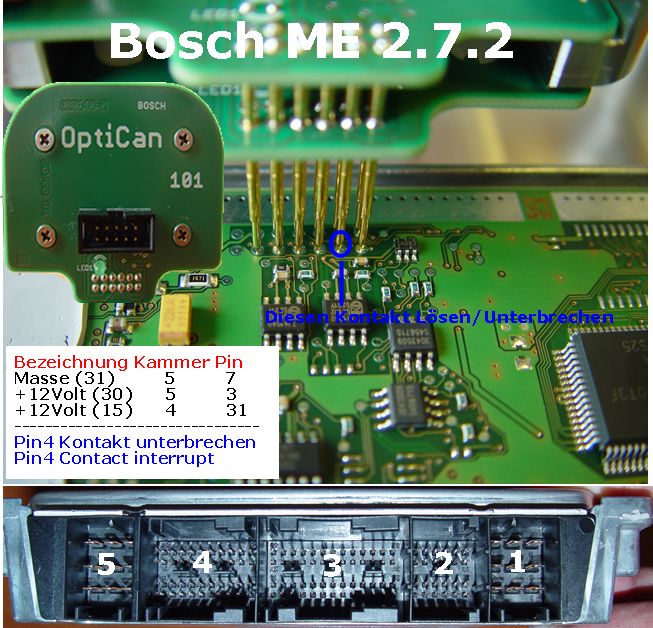

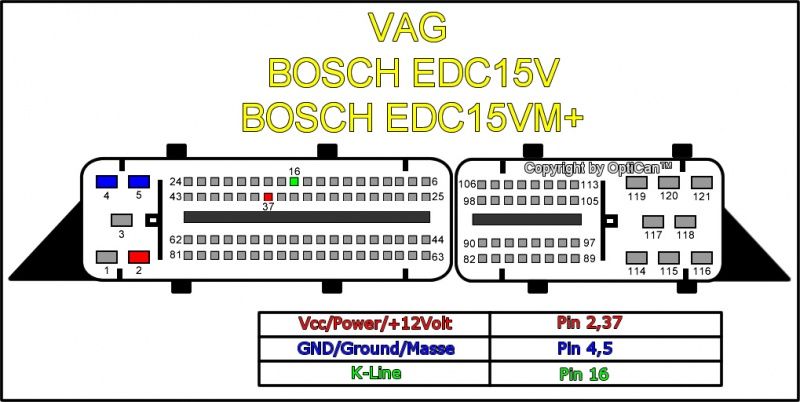

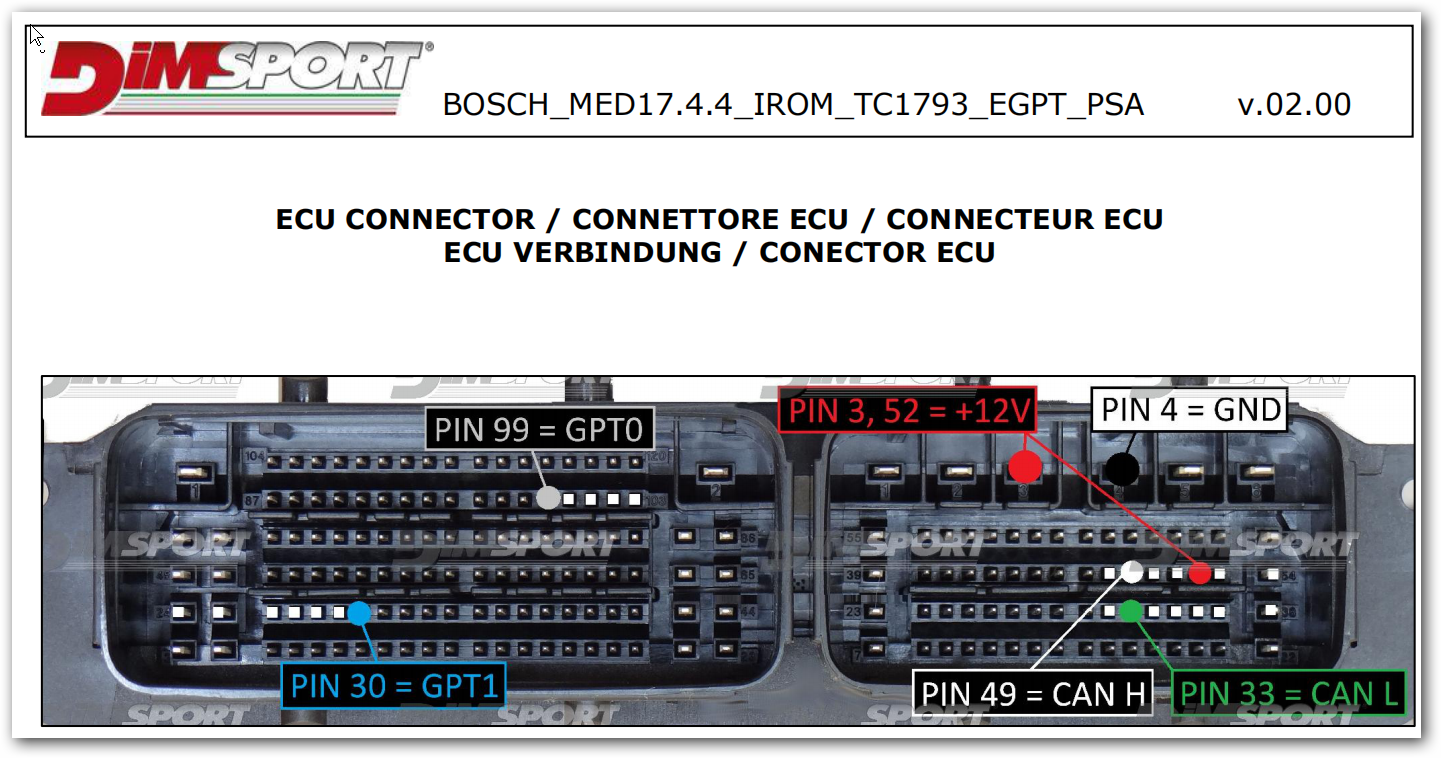

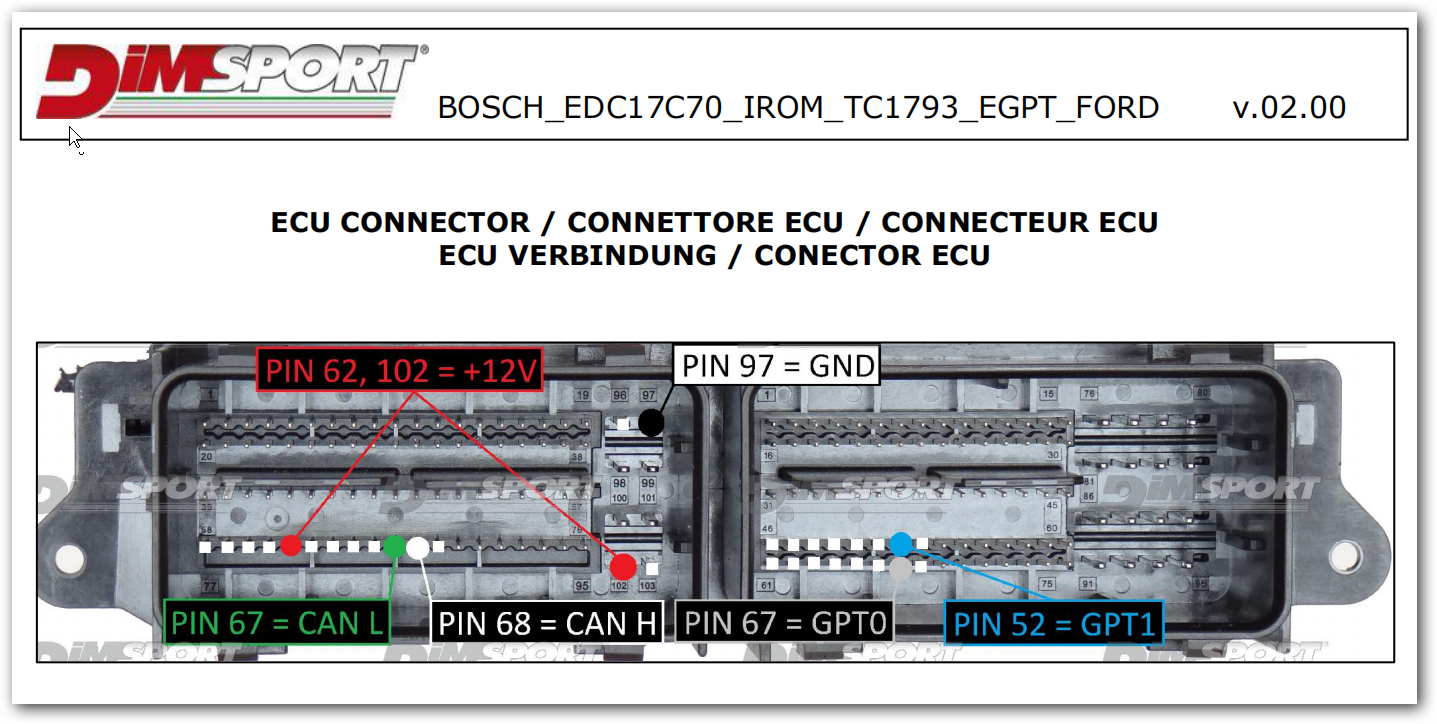

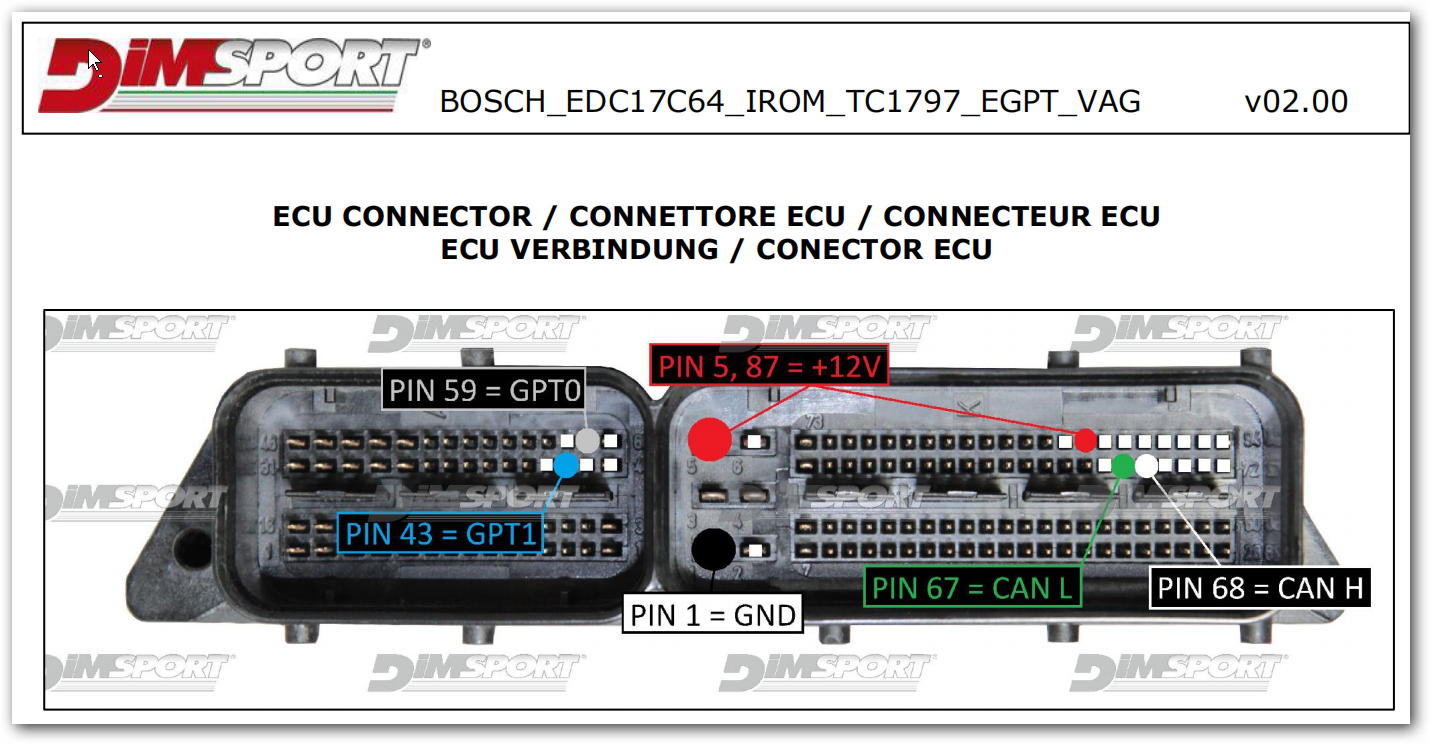

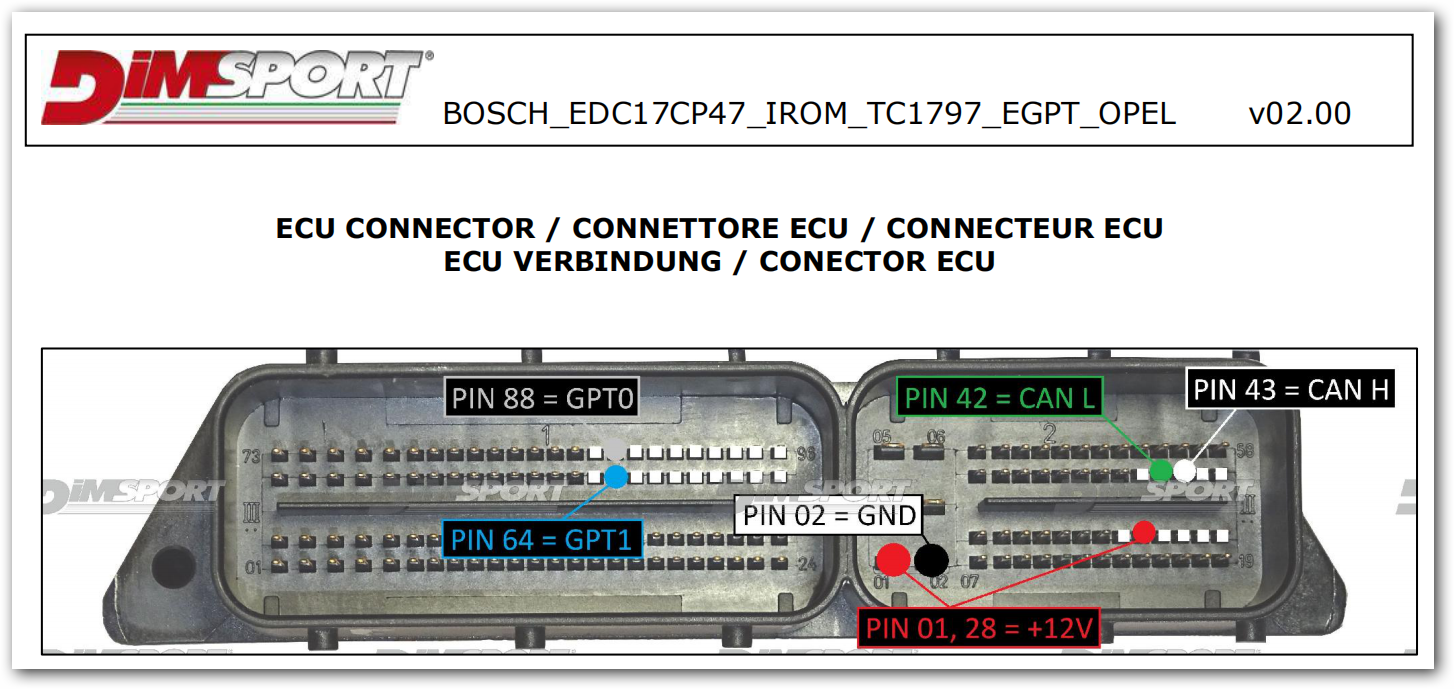

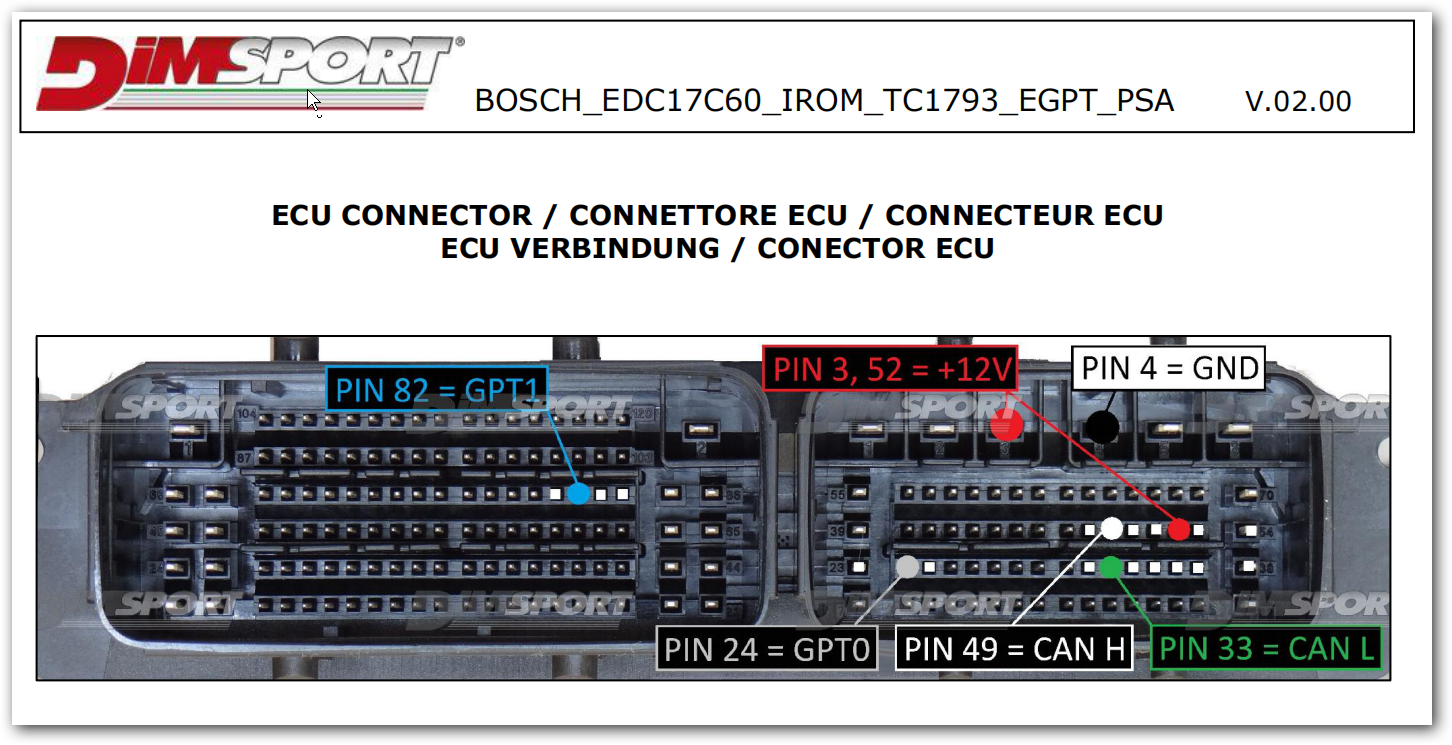

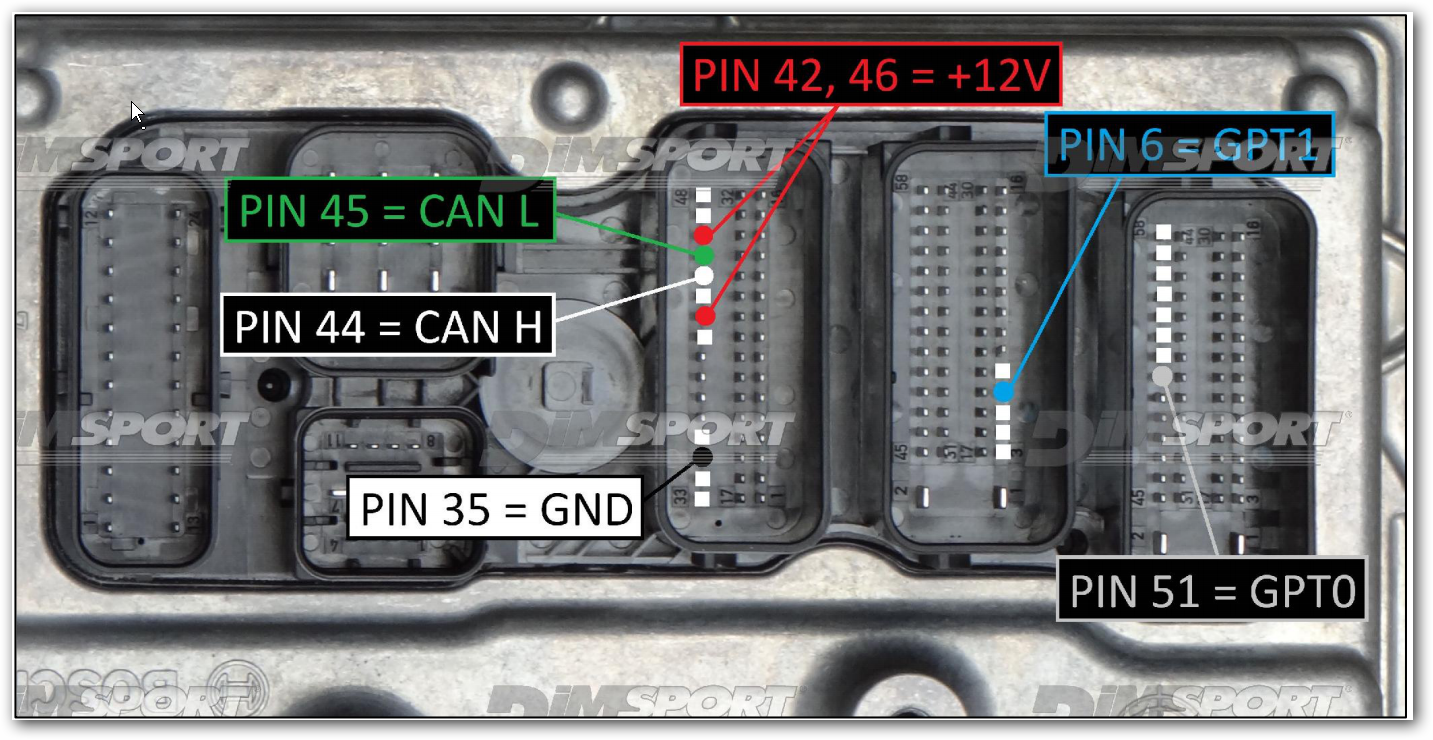

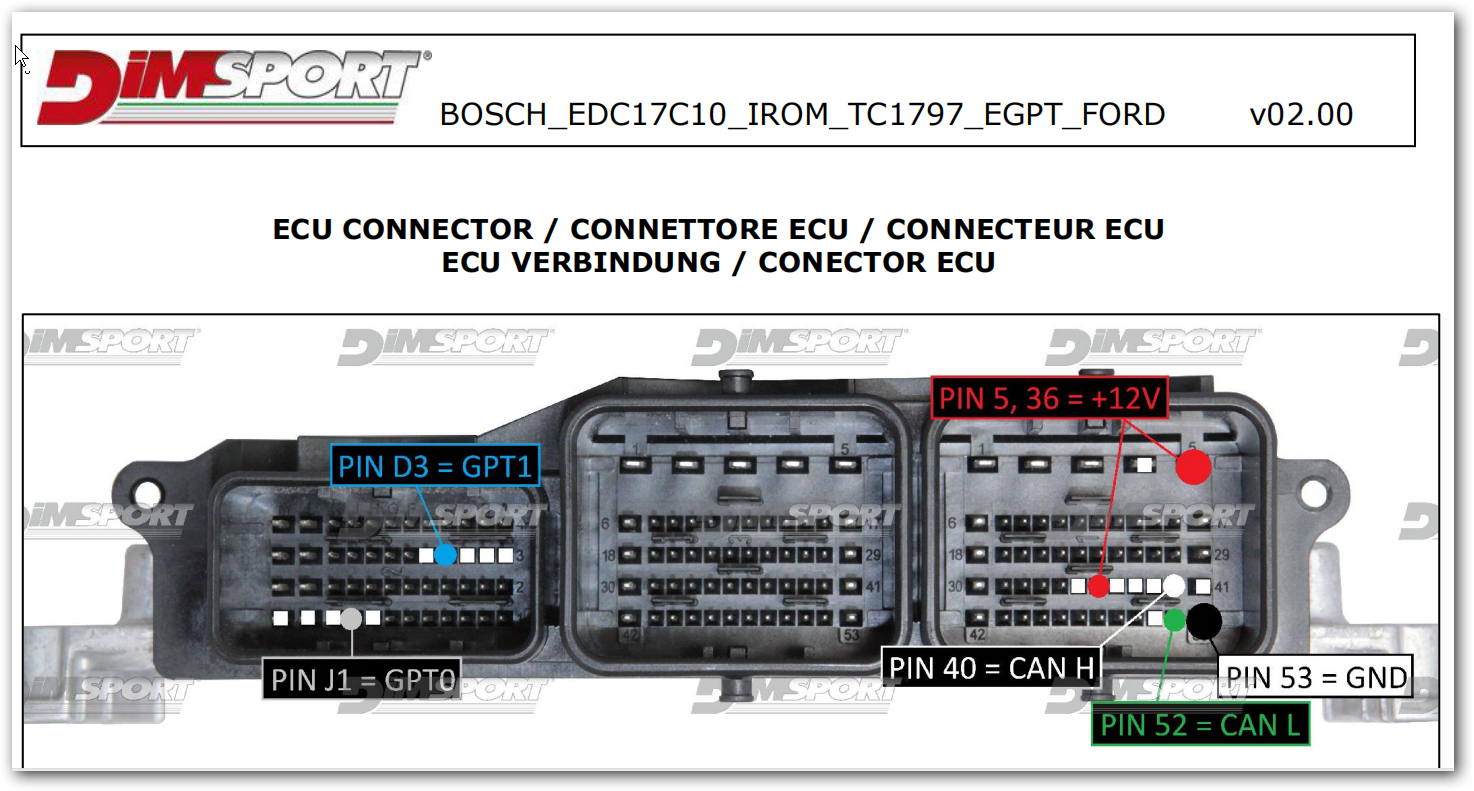

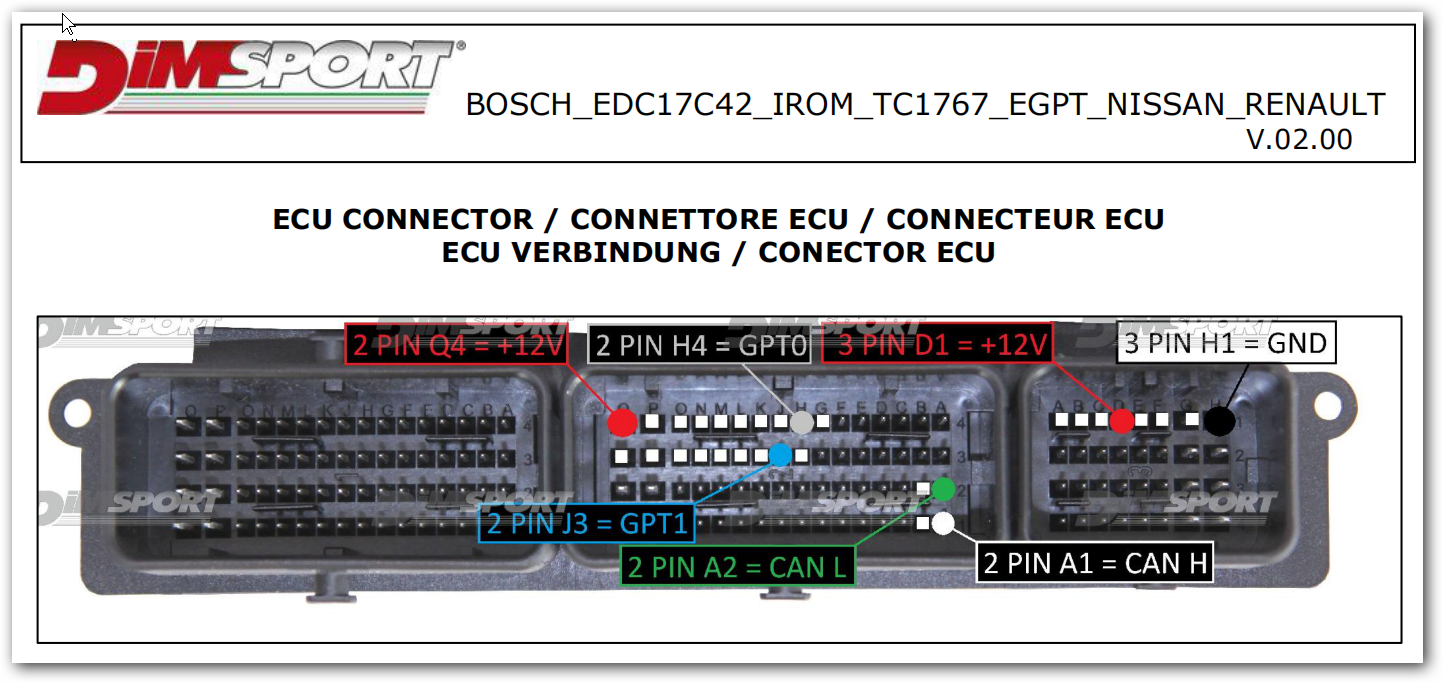

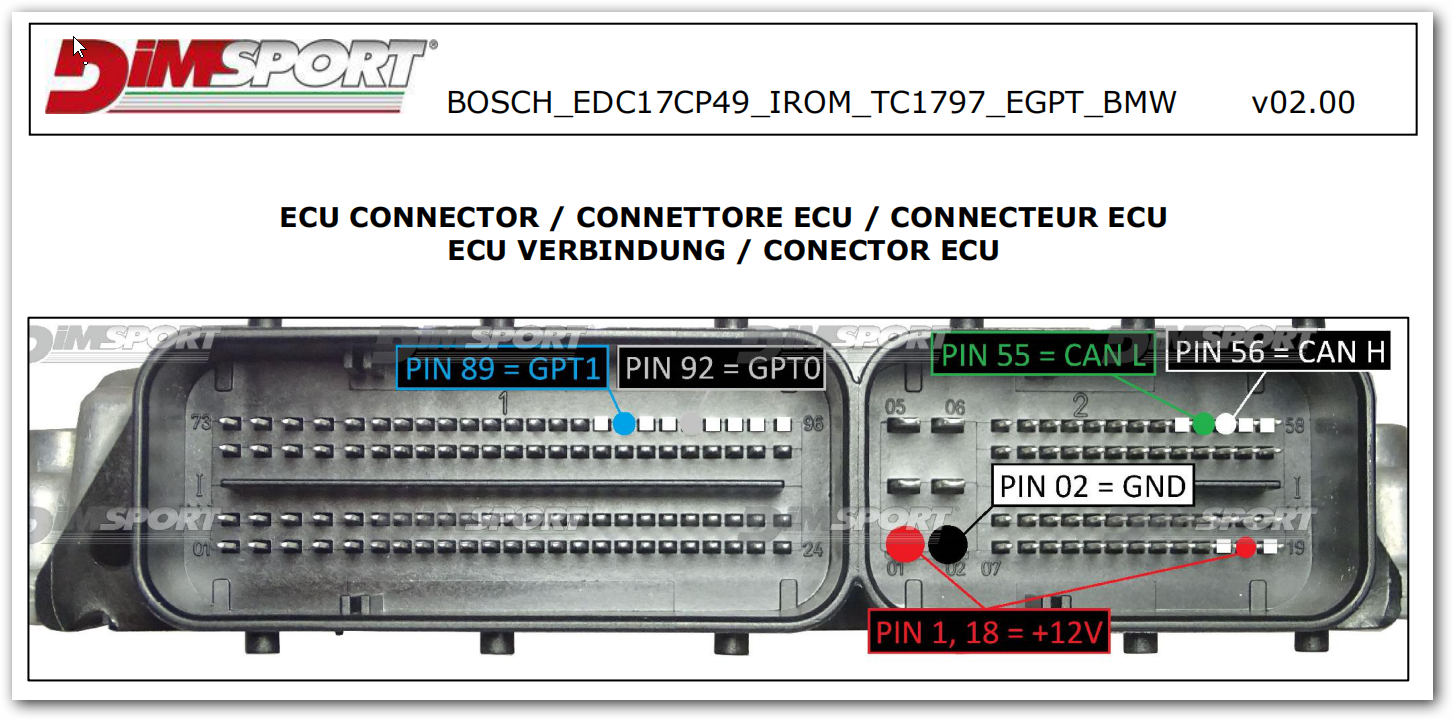

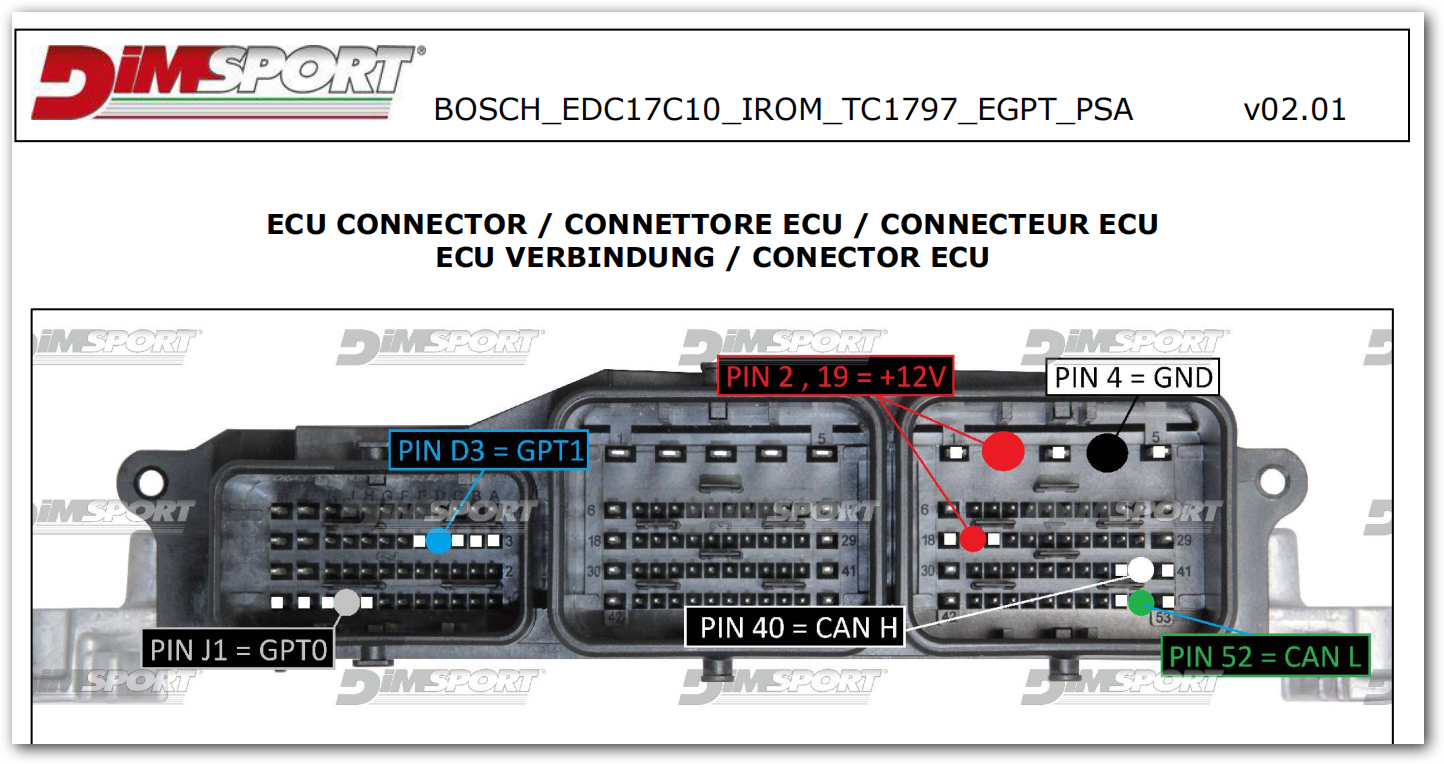

As the topic. I present one of the parts of the information base that I obtained from various sources.

I invite you to read.



Added after 2 [minutes]:

Another serving.

And another one.

welcome.

And another one.

SUZUKI motorcycles



xxxxxxxxxxxxxxxxxxxxxxxxx

This time Yamaha motorcycles.

Mazda, various, not standard, exotic.

NISSAN





xxxxxxxxxxxxxxxxxxx

Maybe SUBARU mods someone?

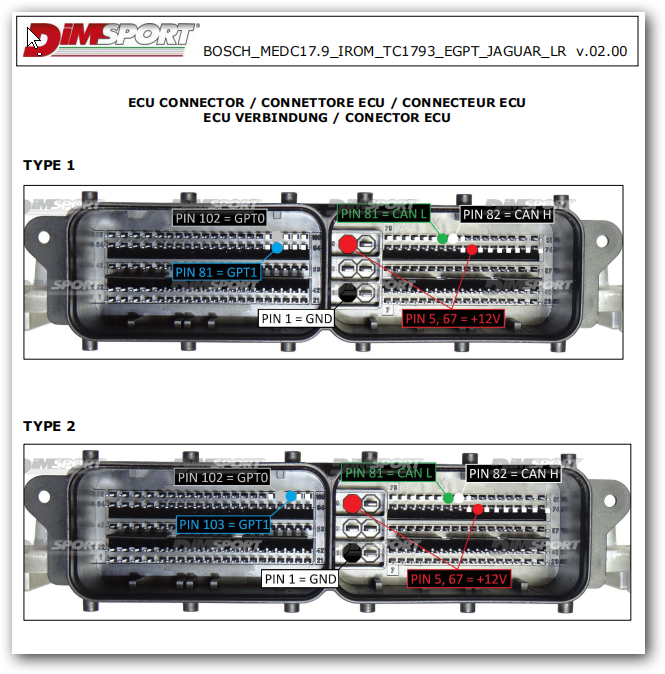

JAGUAR




xxxxxxxxxxx

List of EPROM memory types, where information about immo is stored.

Memory symbols with the vehicle model.

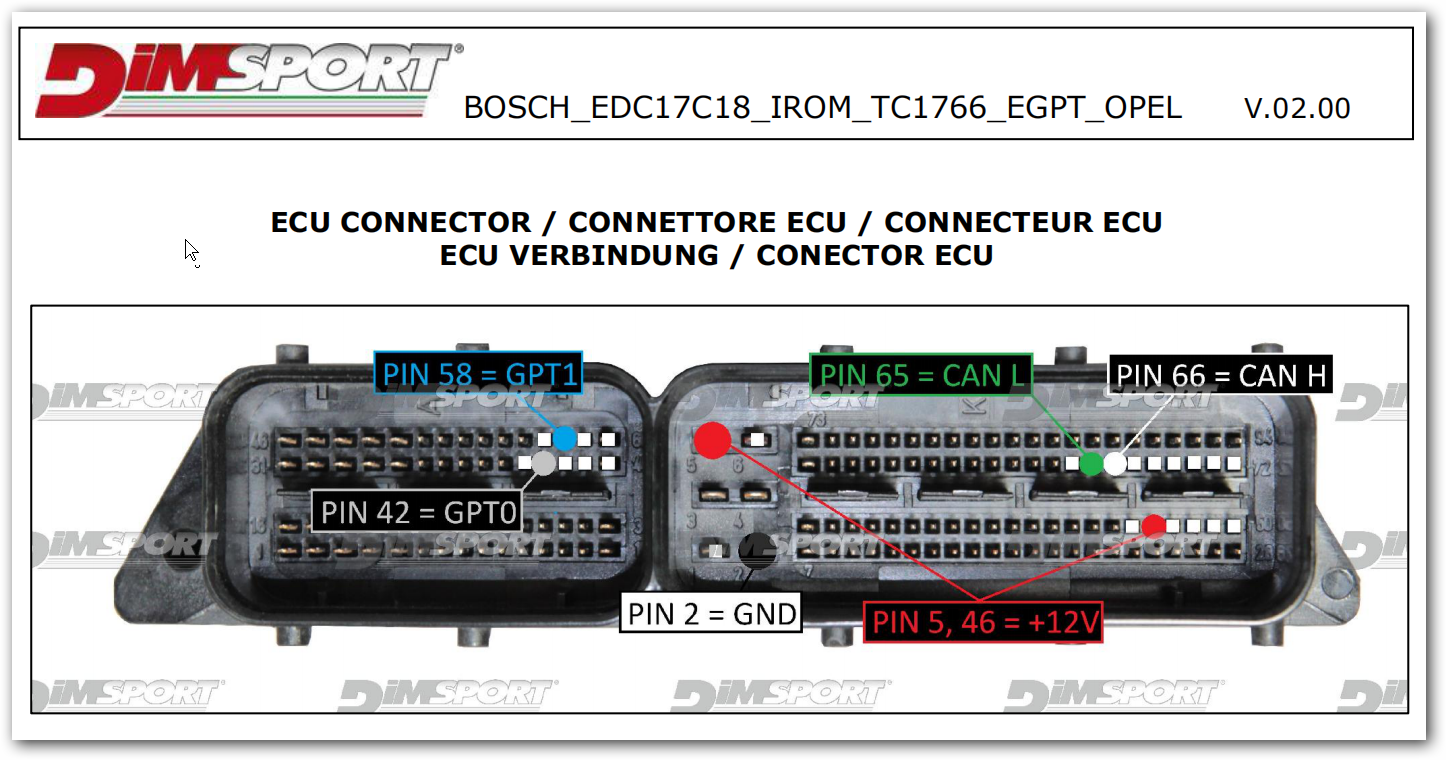

"whole" OPEL at a glance.

PSG, hybrids etc.

ANOTHER PORTION OF ELDERLY THIS TIME.

ANOTHER PORTION OF ELDERLY THIS TOTAL. 2

ANOTHER PORTION OF ELDERLY THIS TOTAL. 3

ANOTHER PORTION OF ELDERLY THIS TOTAL. 4

ANOTHER PORTION OF ELDERLY THIS TOTAL. 5


HAVE FUN

Hello
Great stuff. Thanks for sharing such a rich library and a lot of knowledge transferred on the forum.
I came across this thread not by accident.
As a hobby, I became interested in car electronics because it has changed a lot over the last 20 years.
Wanting to deepen my knowledge (or maybe just satisfy my curiosity) in this topic, I bought a pair of Hony FR-V 2.2 i-CDTI accessories (I have one now - still working) to assemble a part of the installation on the table with a working system in the car.
However, I was stuck at the very beginning when connecting the ECU itself after OBD with a laptop.
I can't find the pinout list for this ECU (I'm not sure, but it seems to be EDC16C7) after the numbers found on the Internet, it indicates that, but not unequivocally because it also appears, if I remember correctly, EDC16C31.
The numbers of this ECU are 0281 013 520, FSB 37820-RJL-E23 on the back of the CUSTOM ERS NO 37825-RJL-E11, RBAJ parts NO 407918-1722
Can you help identify which type exactly it is? and do you have pinout info to connect to it via OBD?
If you manage to pass it, the next step will be to connect the IMMO, alarm and clocks.

I got inside this ECU
In the network I found a description that it is EDC16C7-7.11
Will the pinout for this model be P58-19 (+ 12V) and P58-K-Line 31?

THANKS WELL PREPARED

- great that so much material uploaded - valuable information - THANKS!

hello i need a pinout for ecu me5.9.2

>>18397392
Hello,
Very good job.
And now the question about the e-prom memory located on the ECU: EDC15C9/ Yaris D4D/2004.

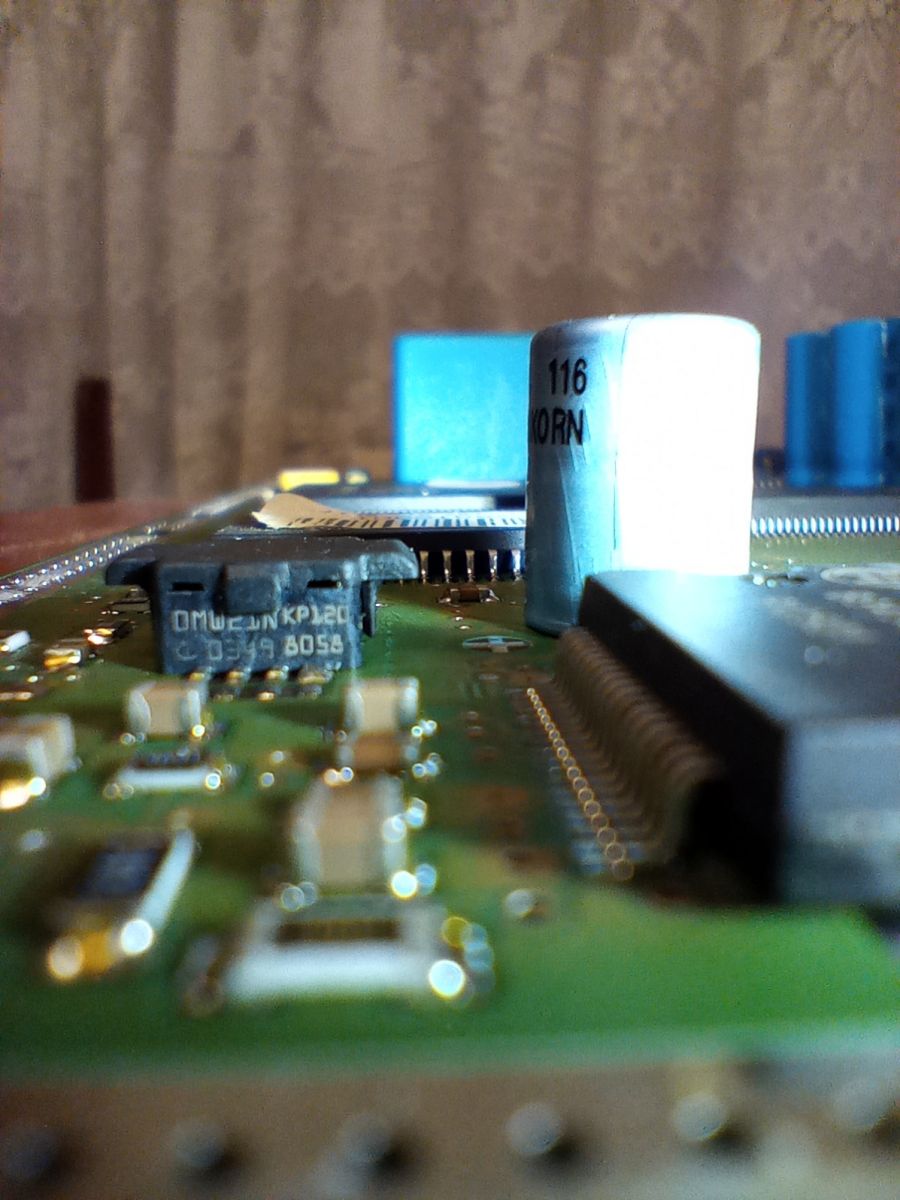

it is the element with the inscription OMW21N ; KP120 manufacturer probably Cypress, the memory has a removable cover (protection against erasing the content?)
Can anyone provide a pdf datasheet for this chip or anything?

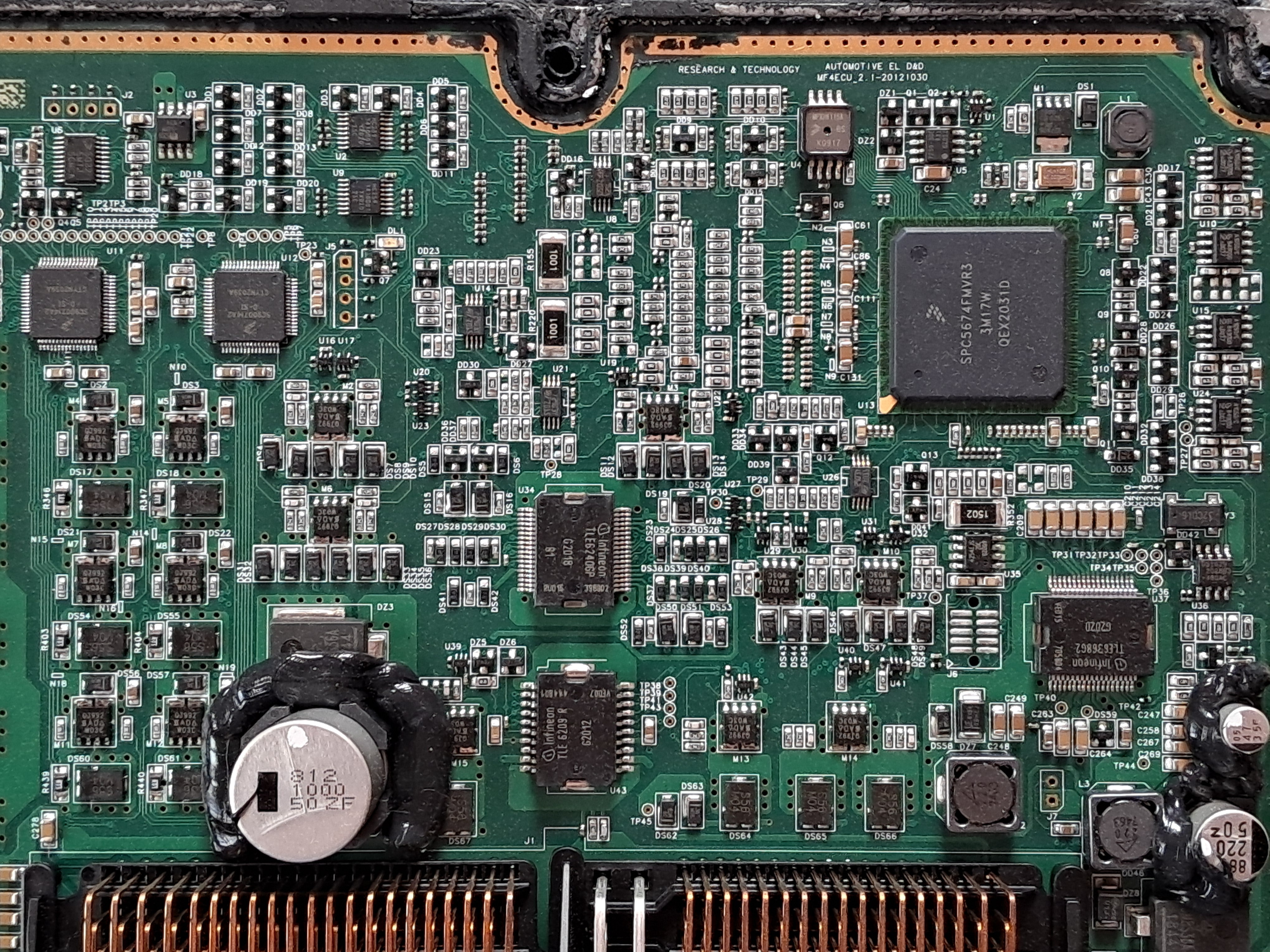

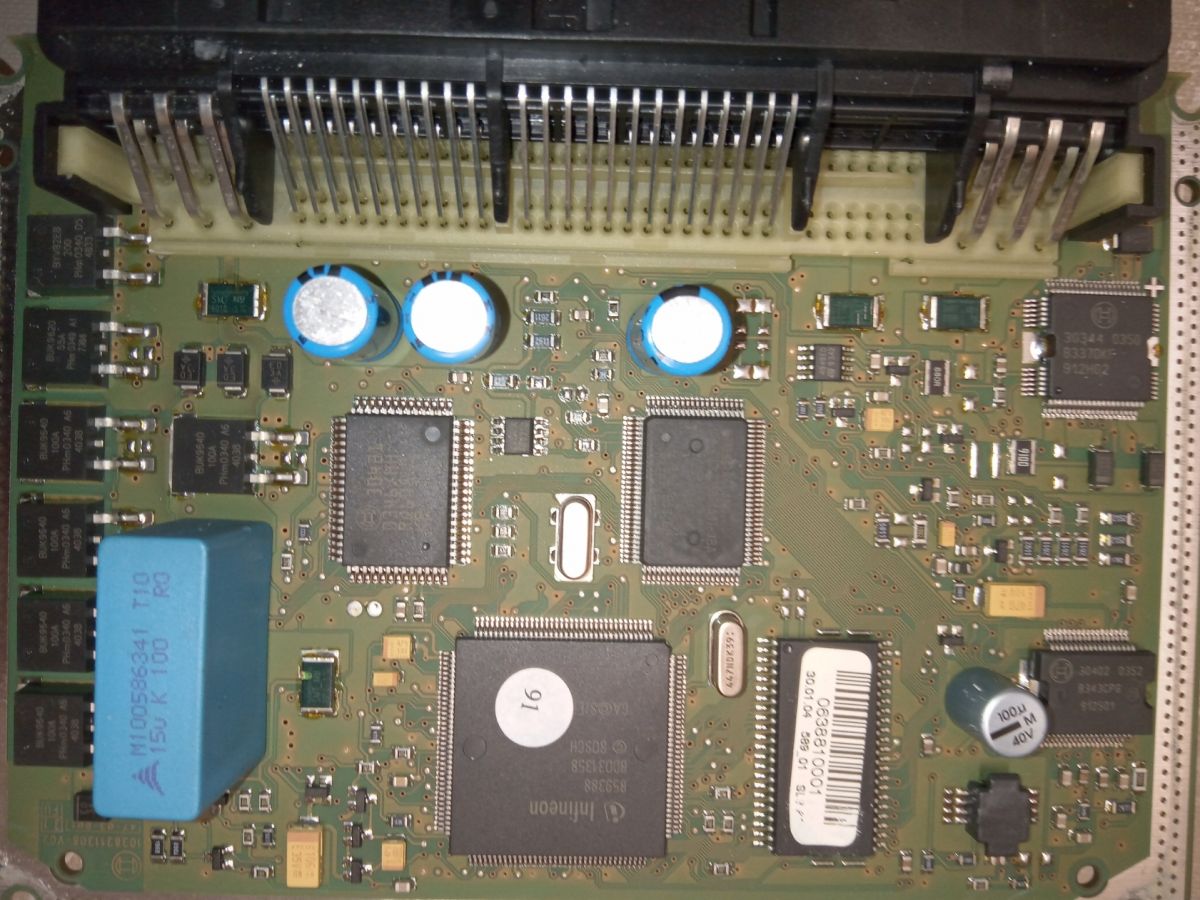

Below is a photo of the ECU

Thank you in advance and best regards.

After all, you have a 29Fxxx memory next to the proc with a barcode.

Thanks for your reaction,
But yes, I have eyes, ... and my question concerned this particular cube, because I would like to know what it is for and what is written in it. ferry window flooded with a transparent gel? If you know anything about it, I will be grateful for suggestions. Regards

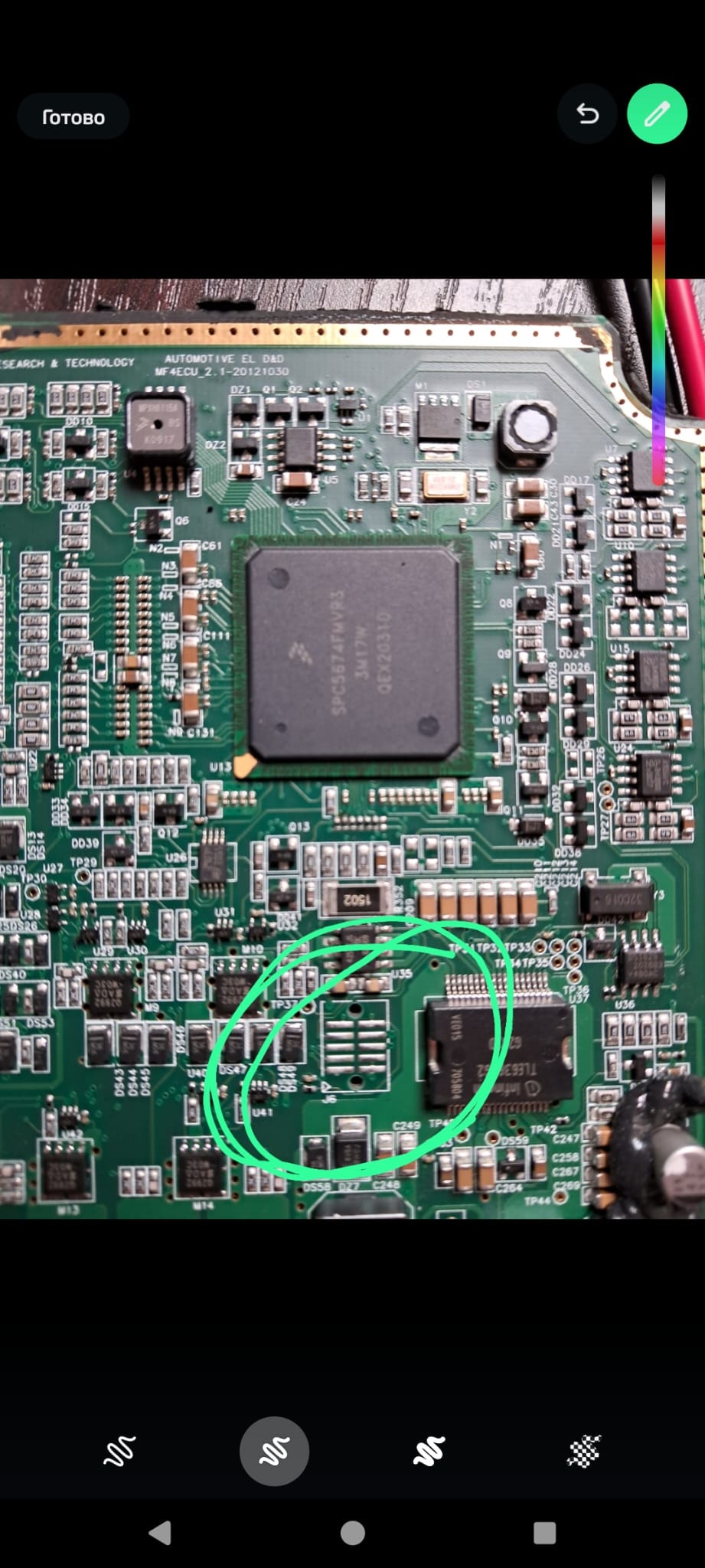

I will answer, Atmospheric pressure sensor, typical arrangement of elements for Infineon C167

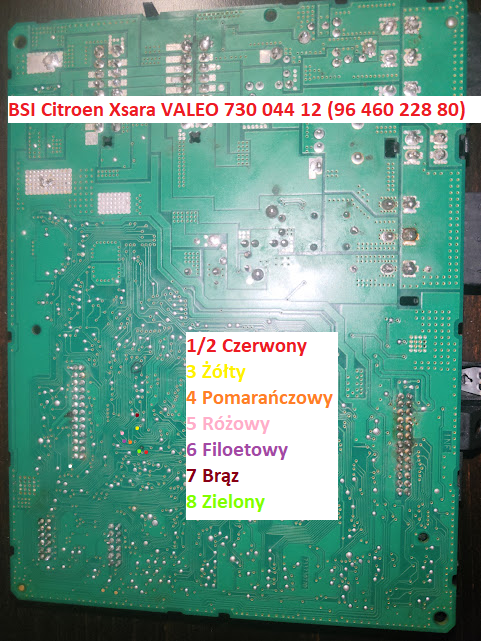

It is true that it is not ECU but BSI, but I will add my study.

The pin numbering corresponds to the pins in 95080

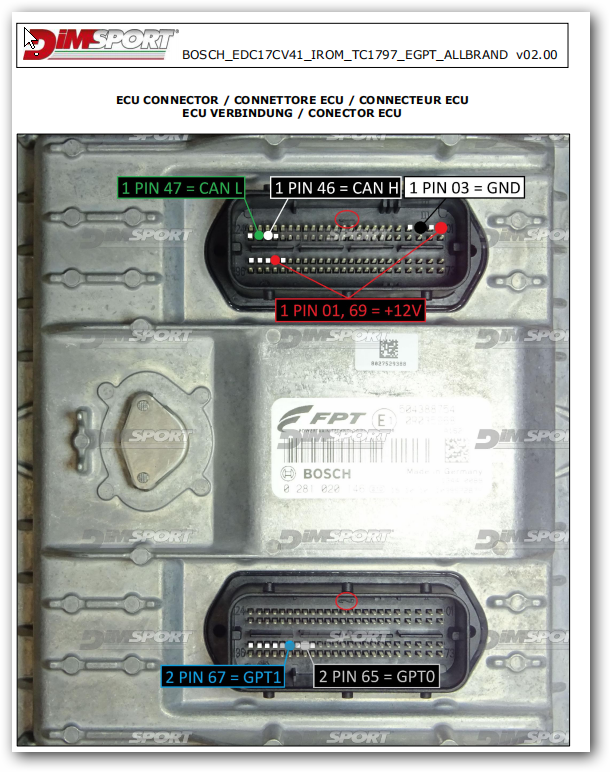

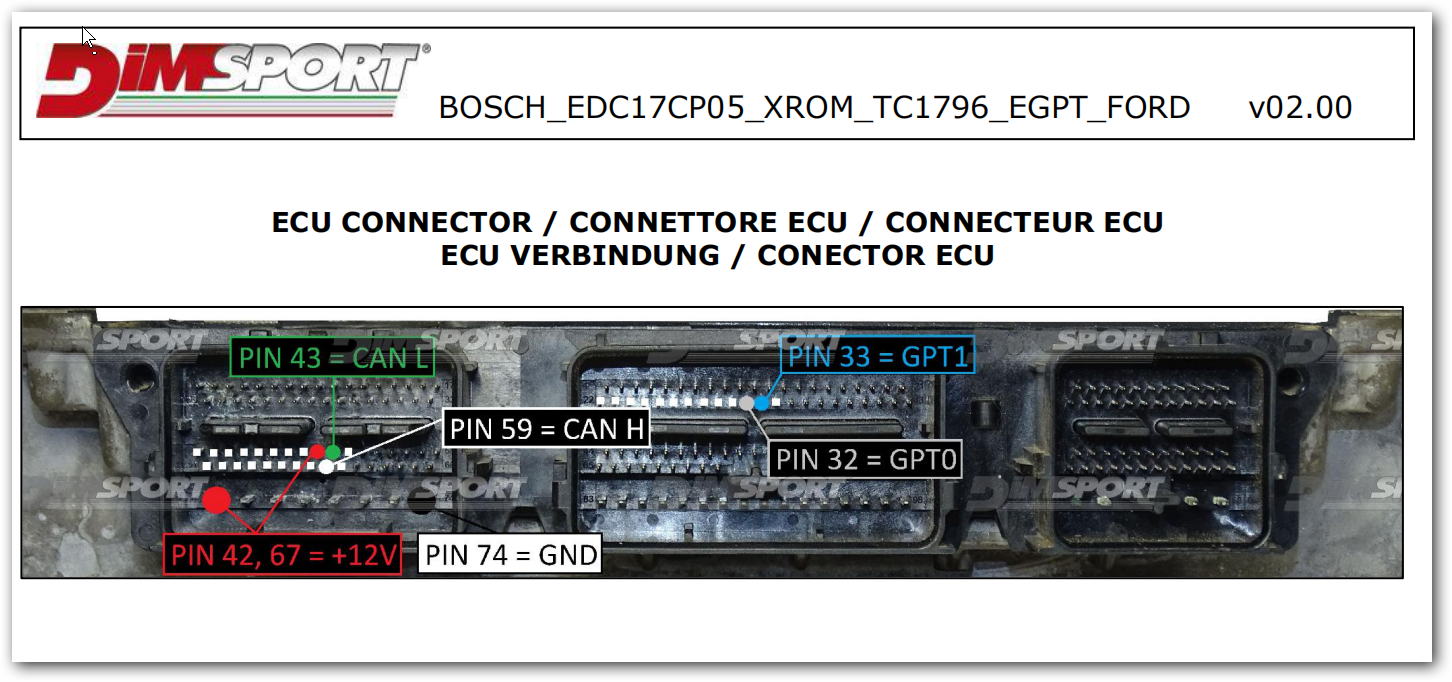

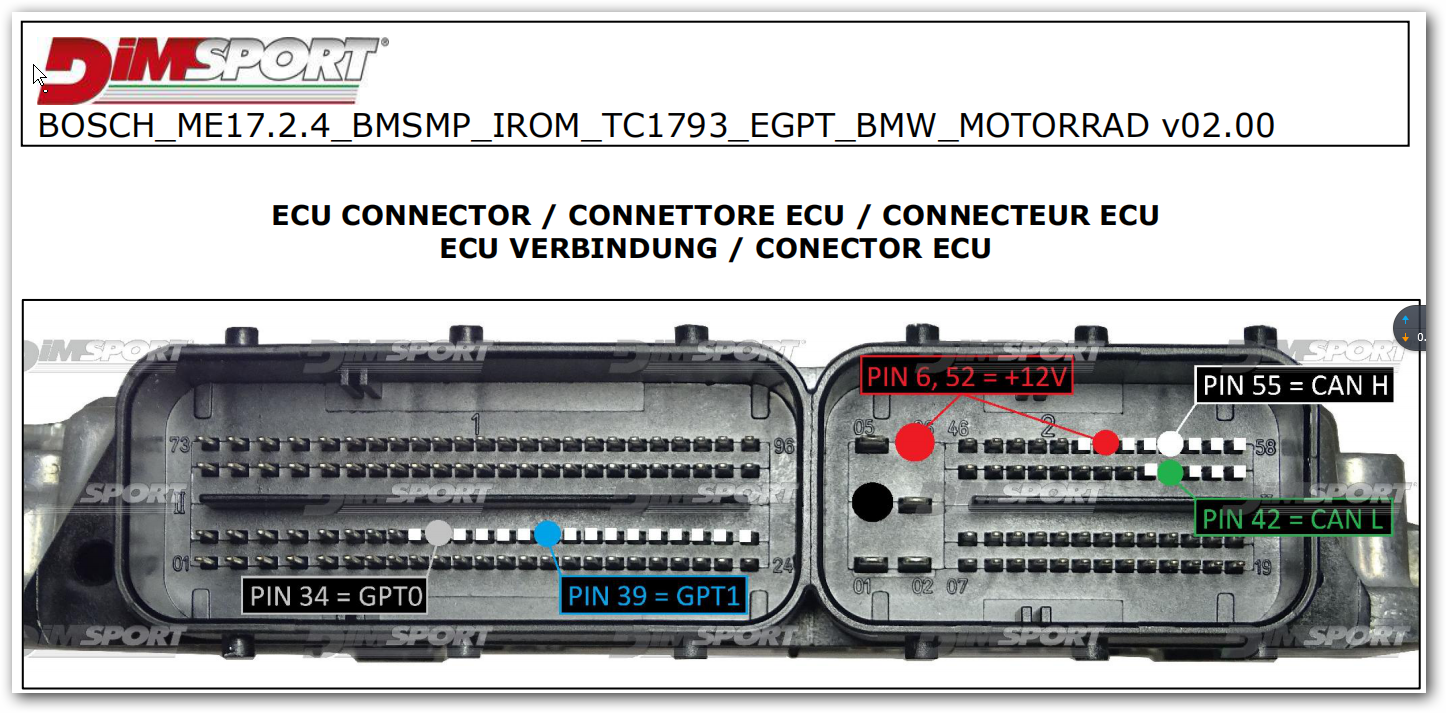

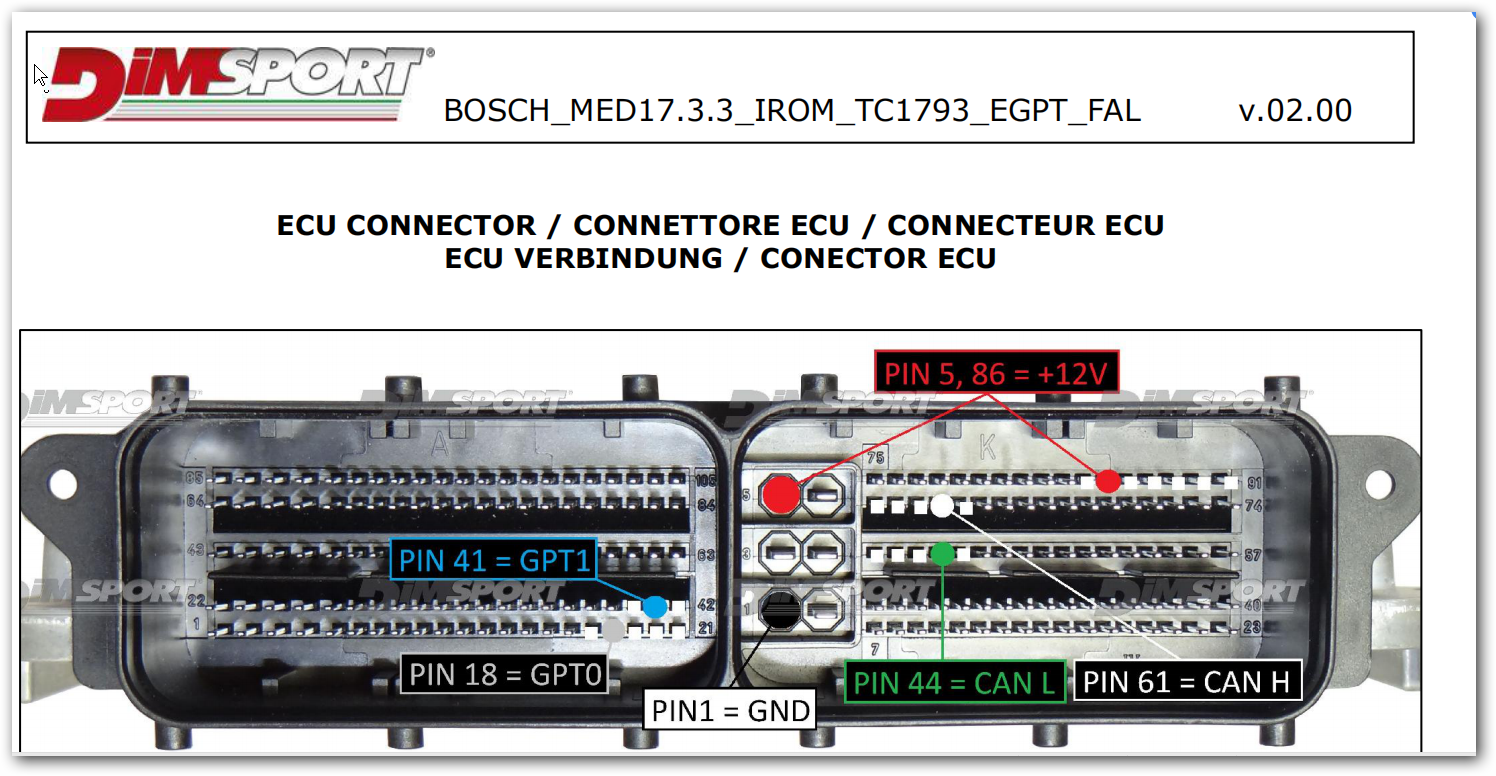

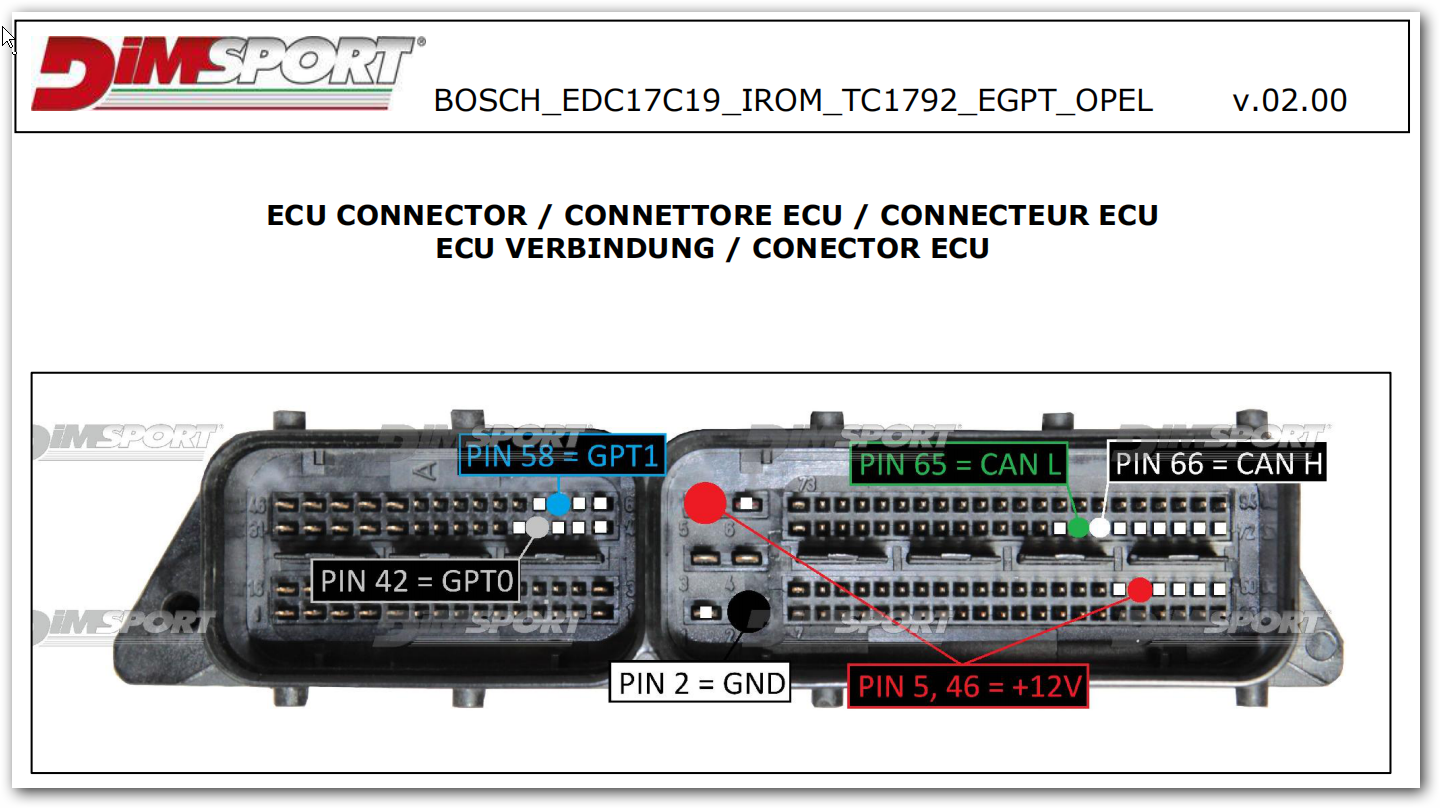

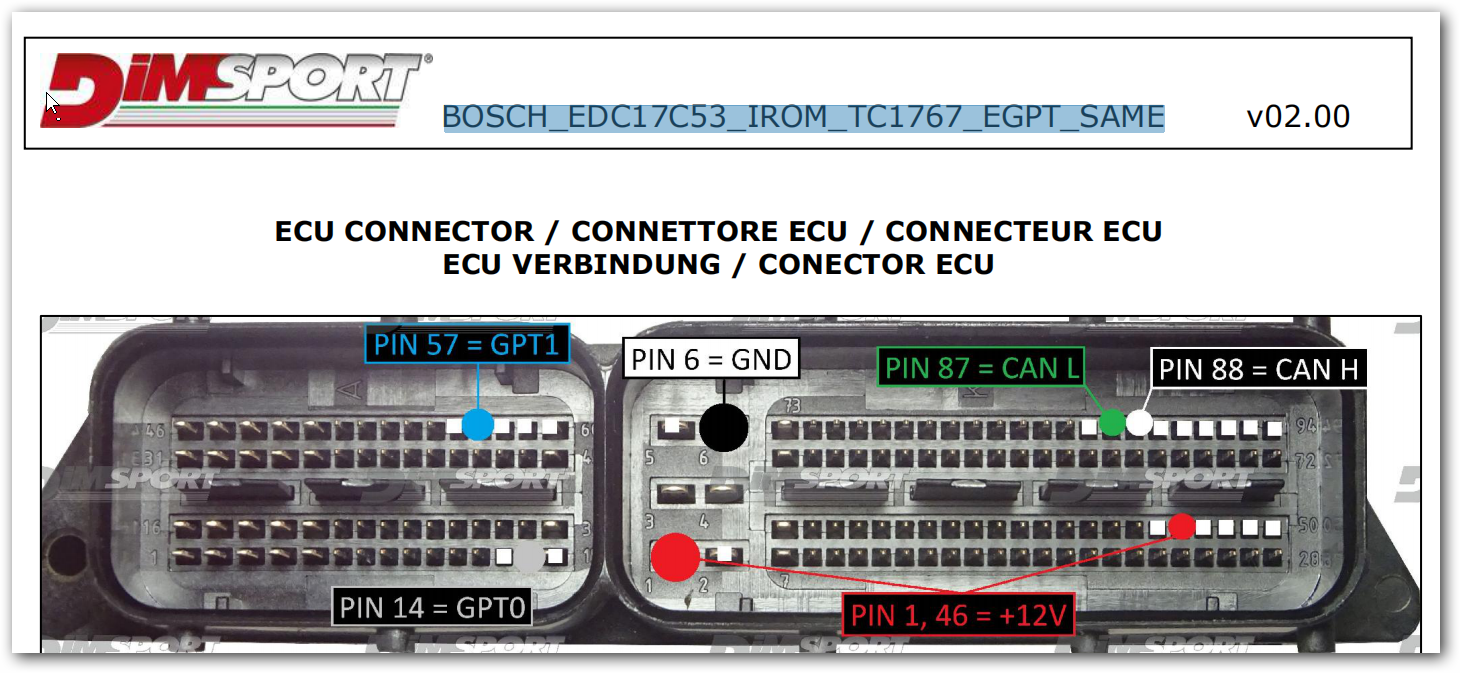

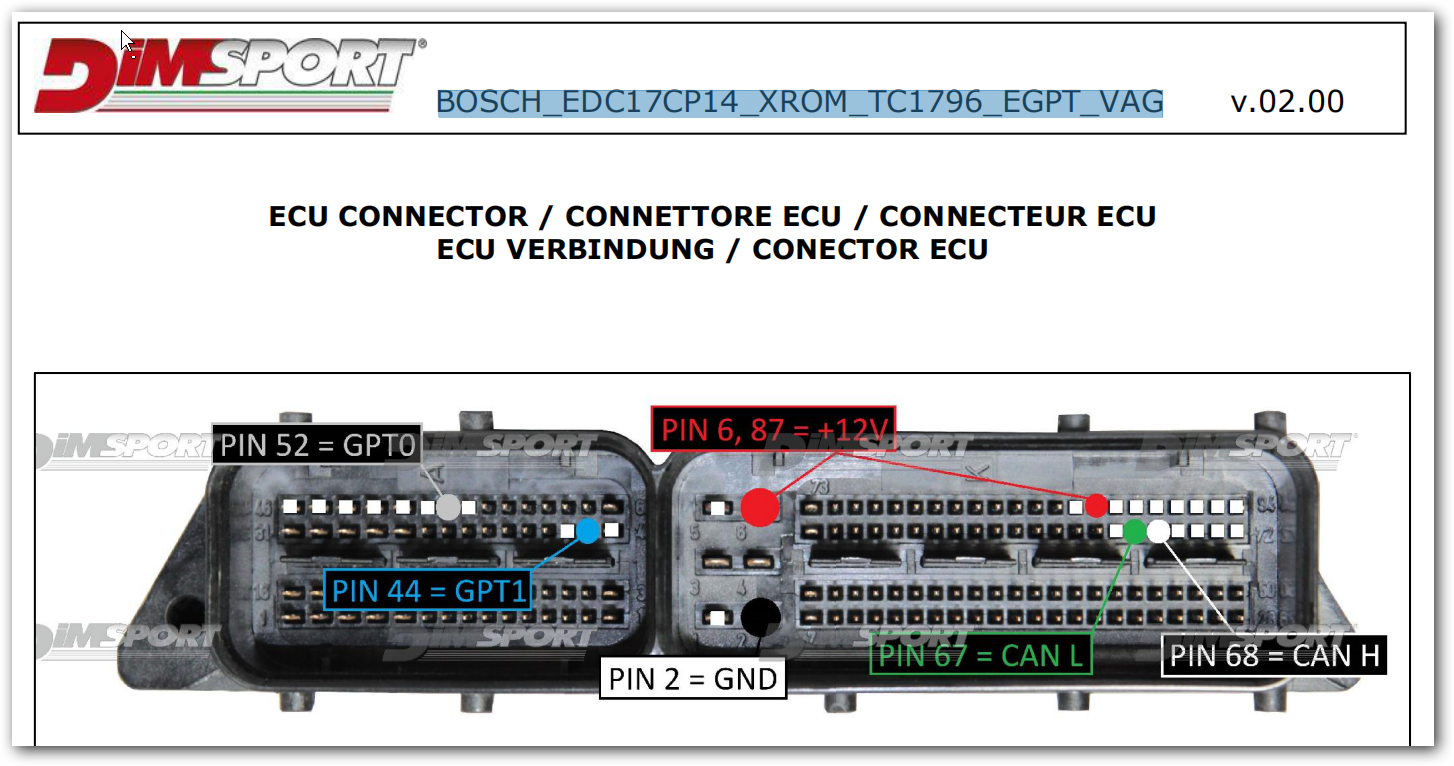

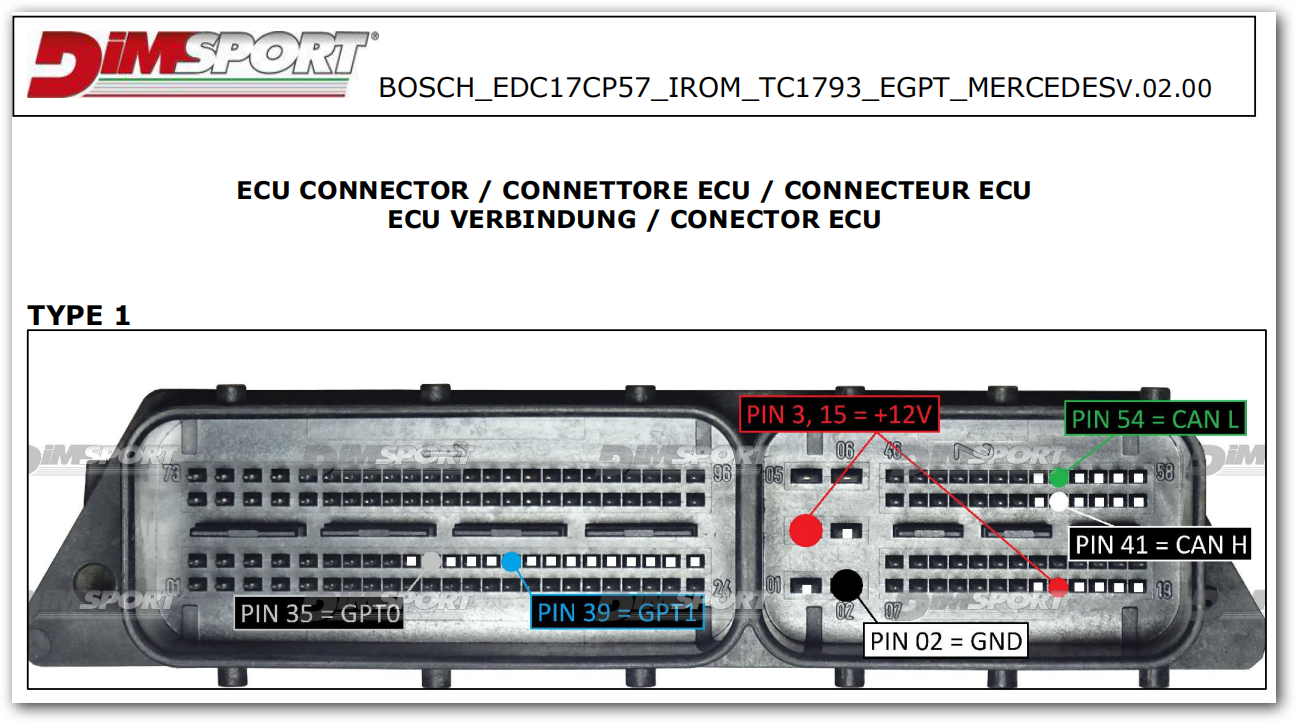

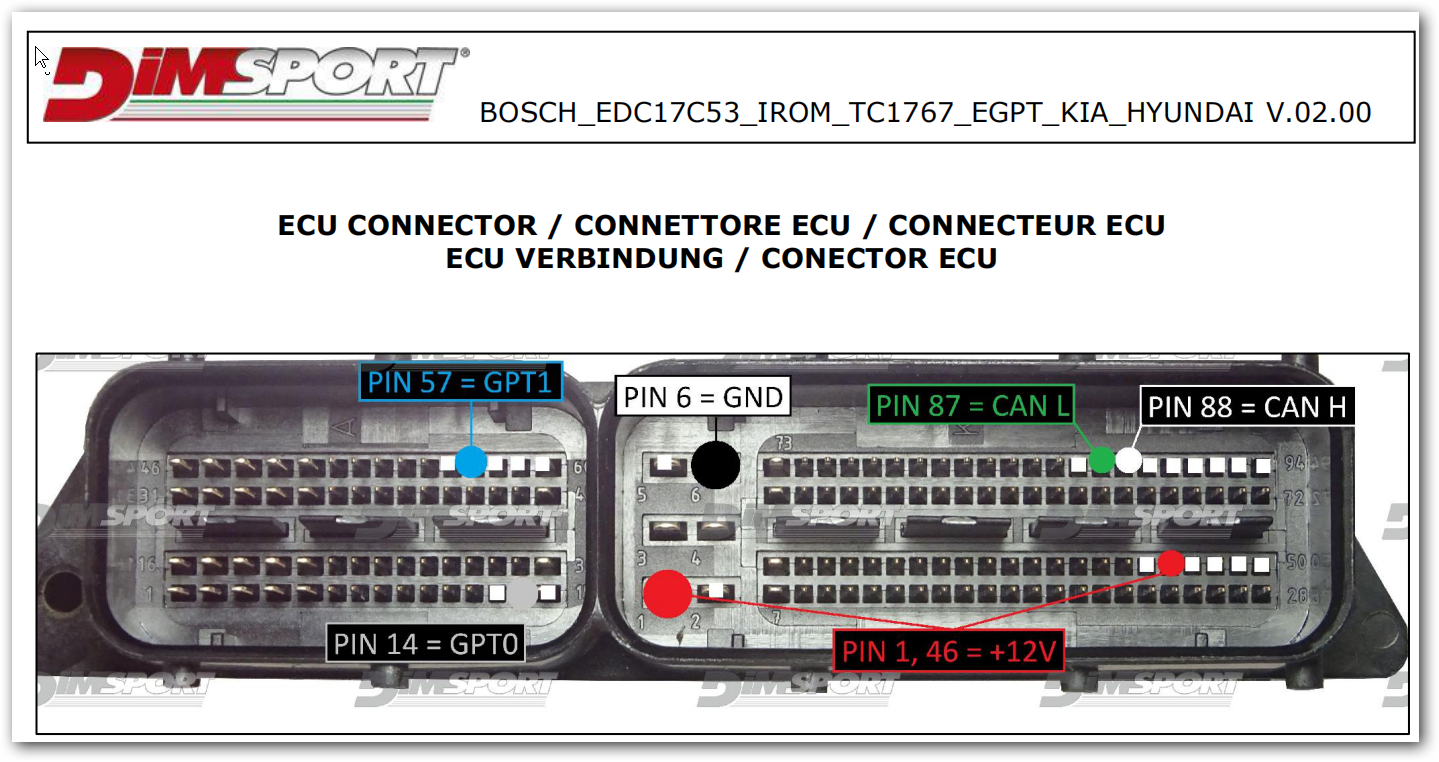

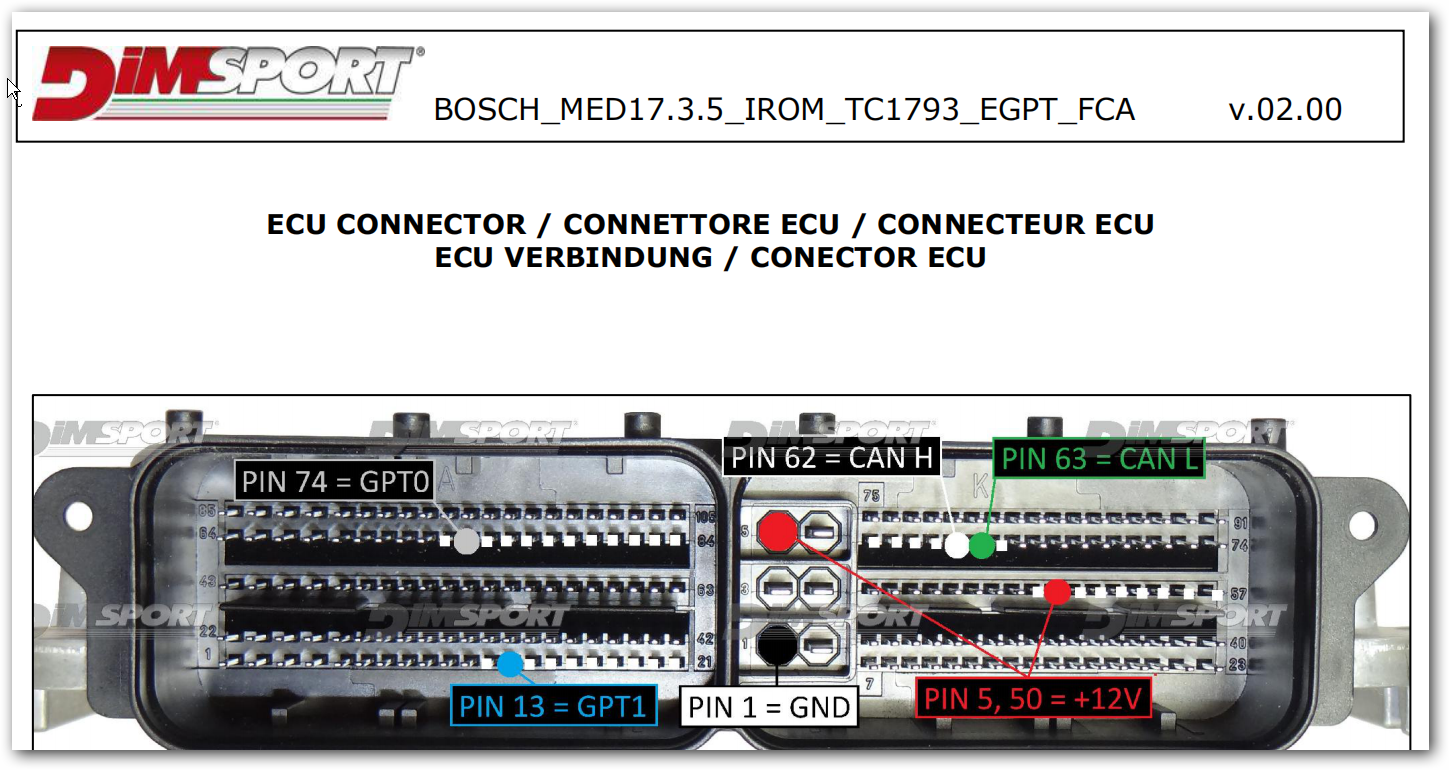

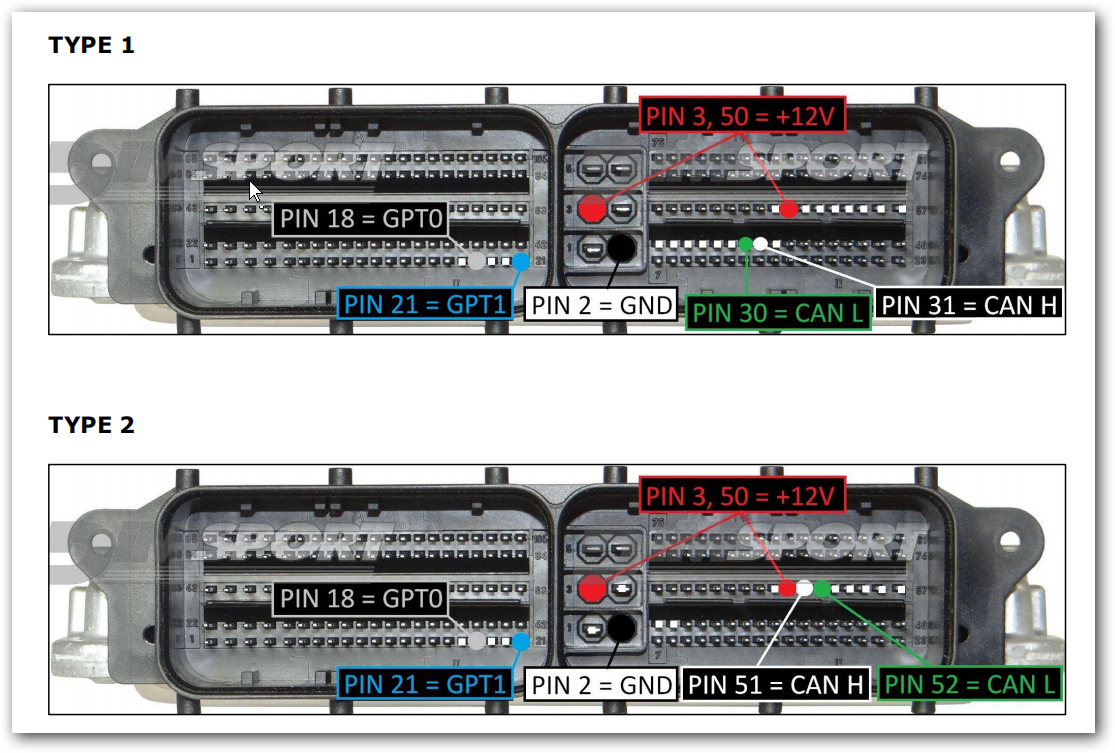

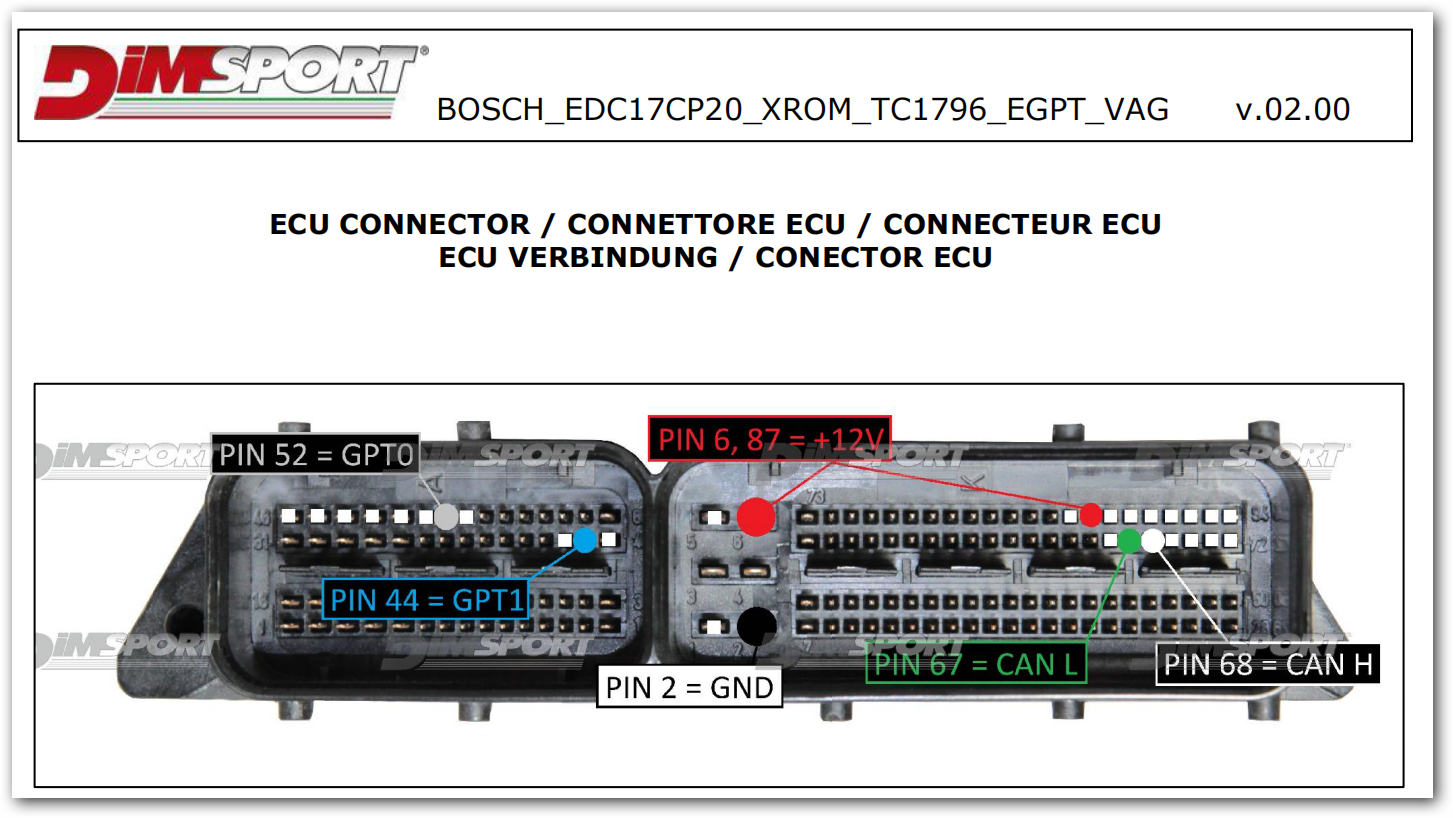

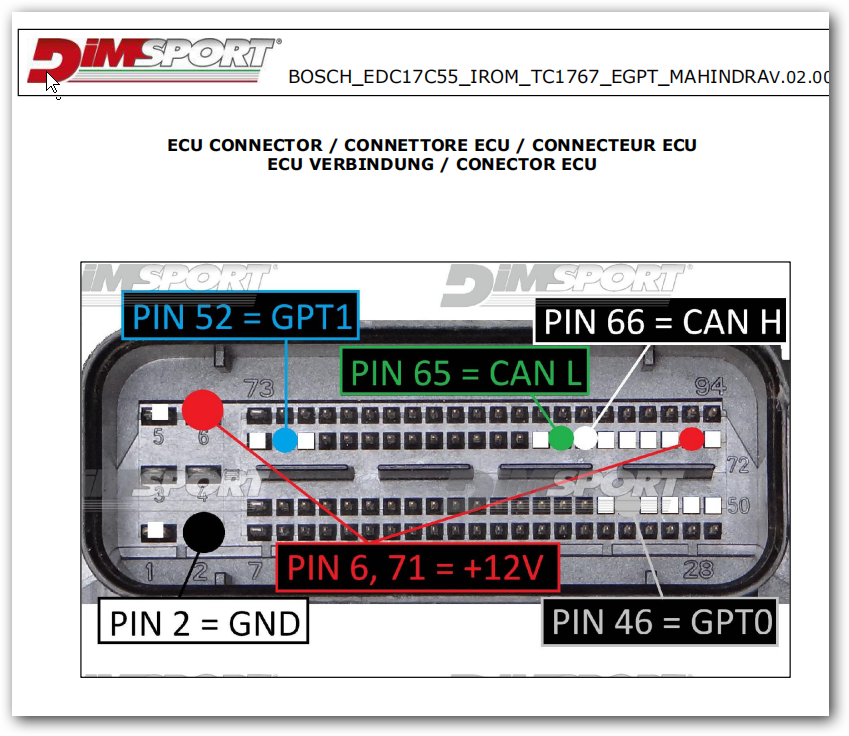

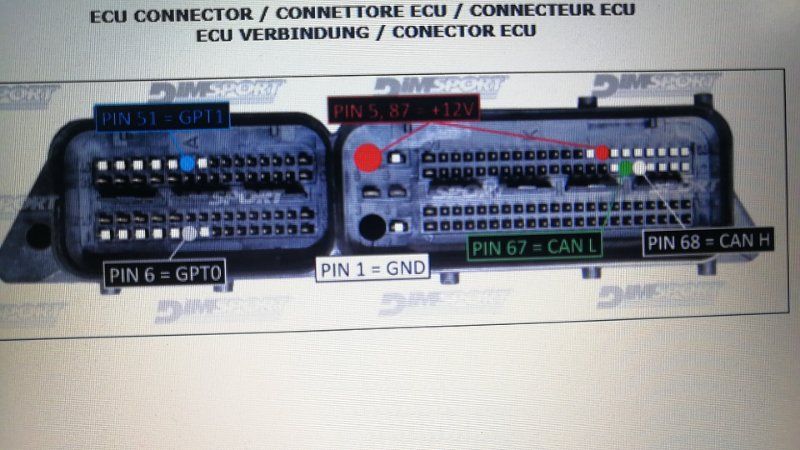

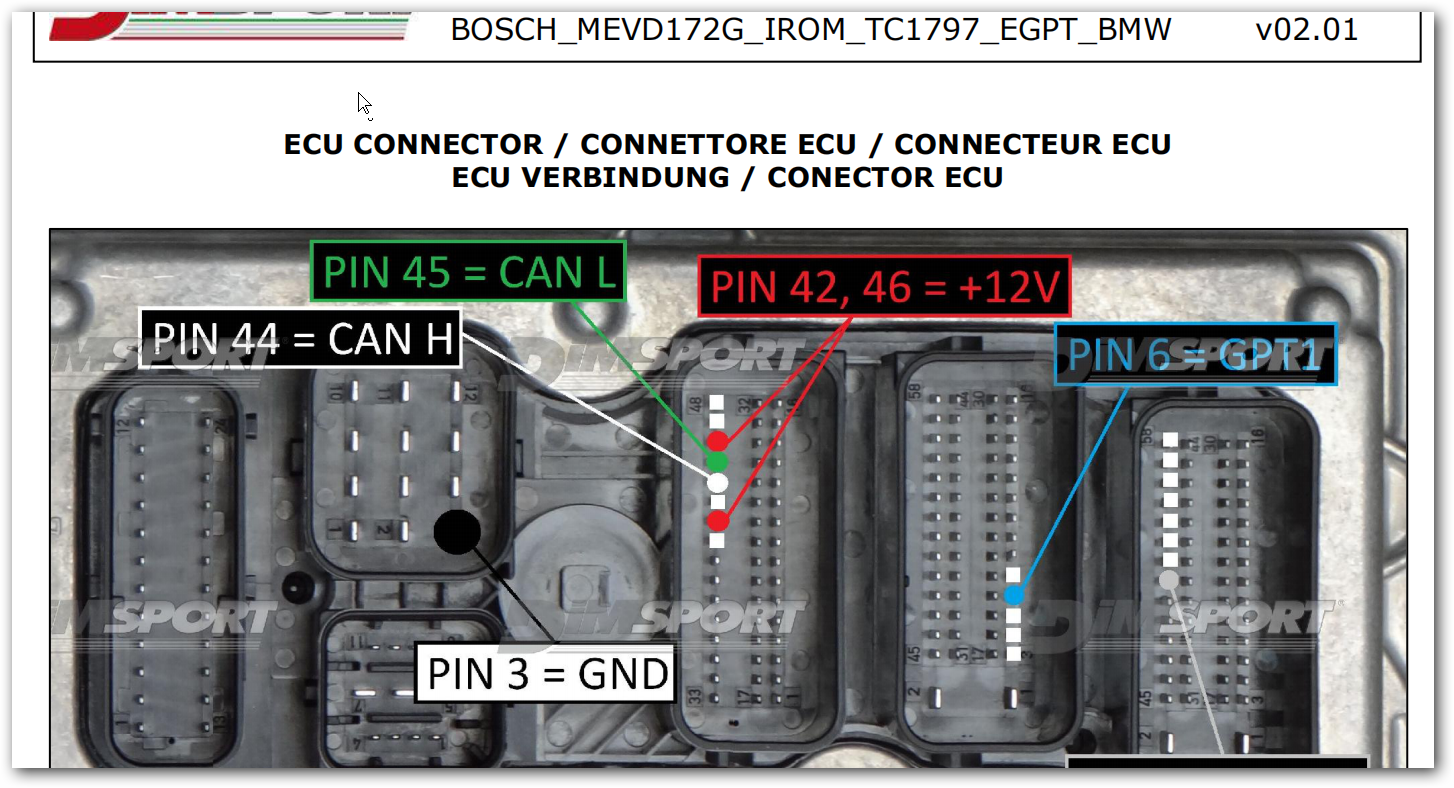

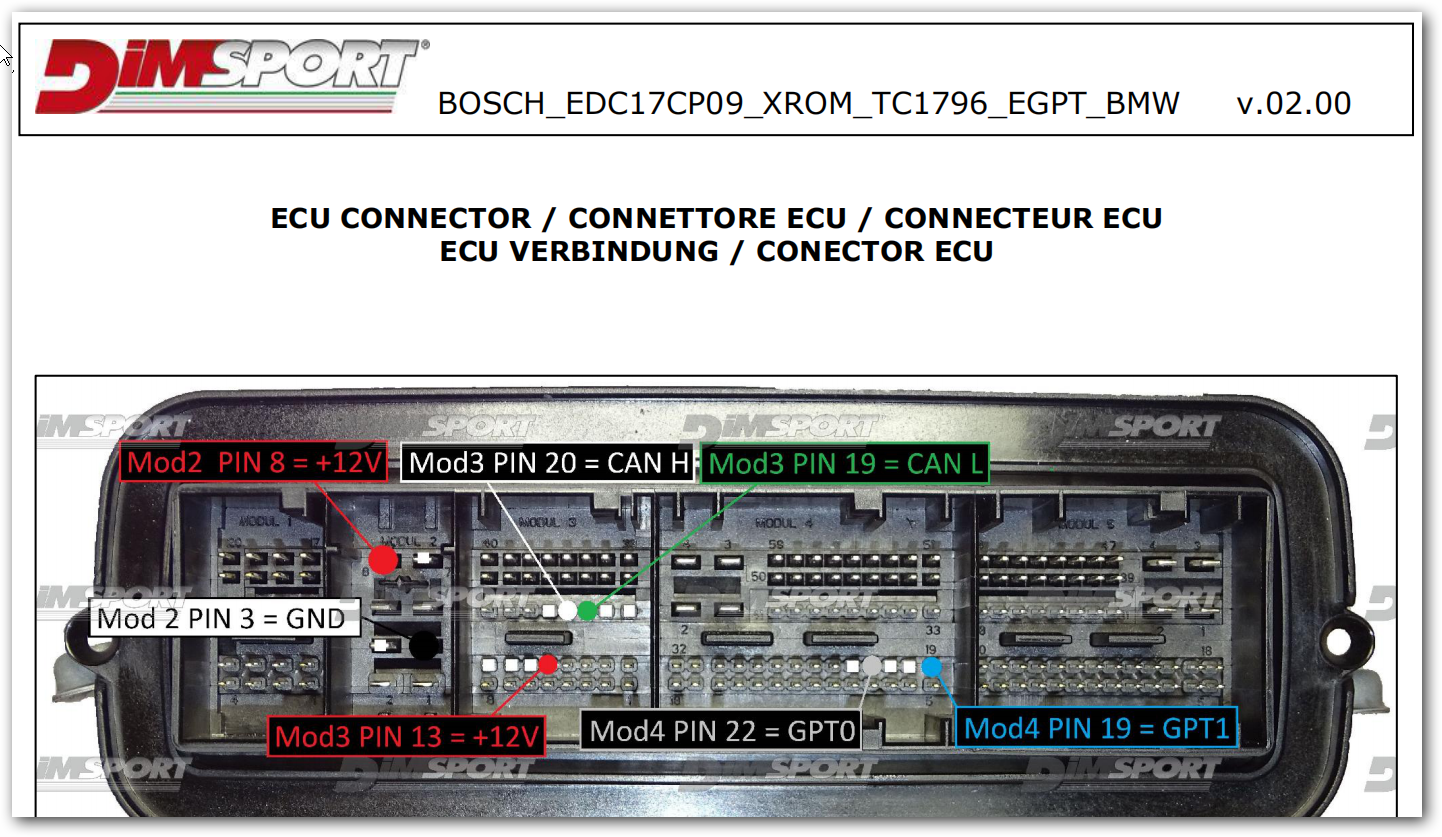

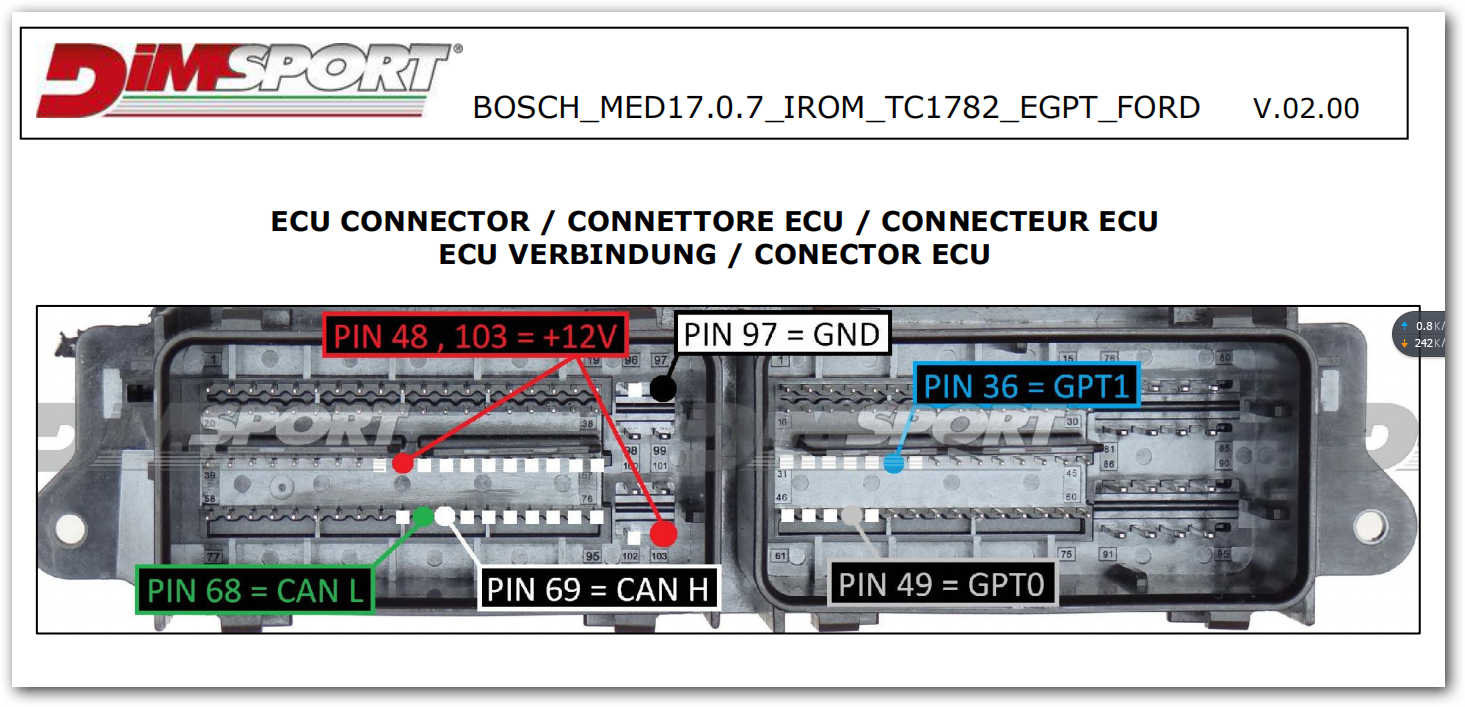

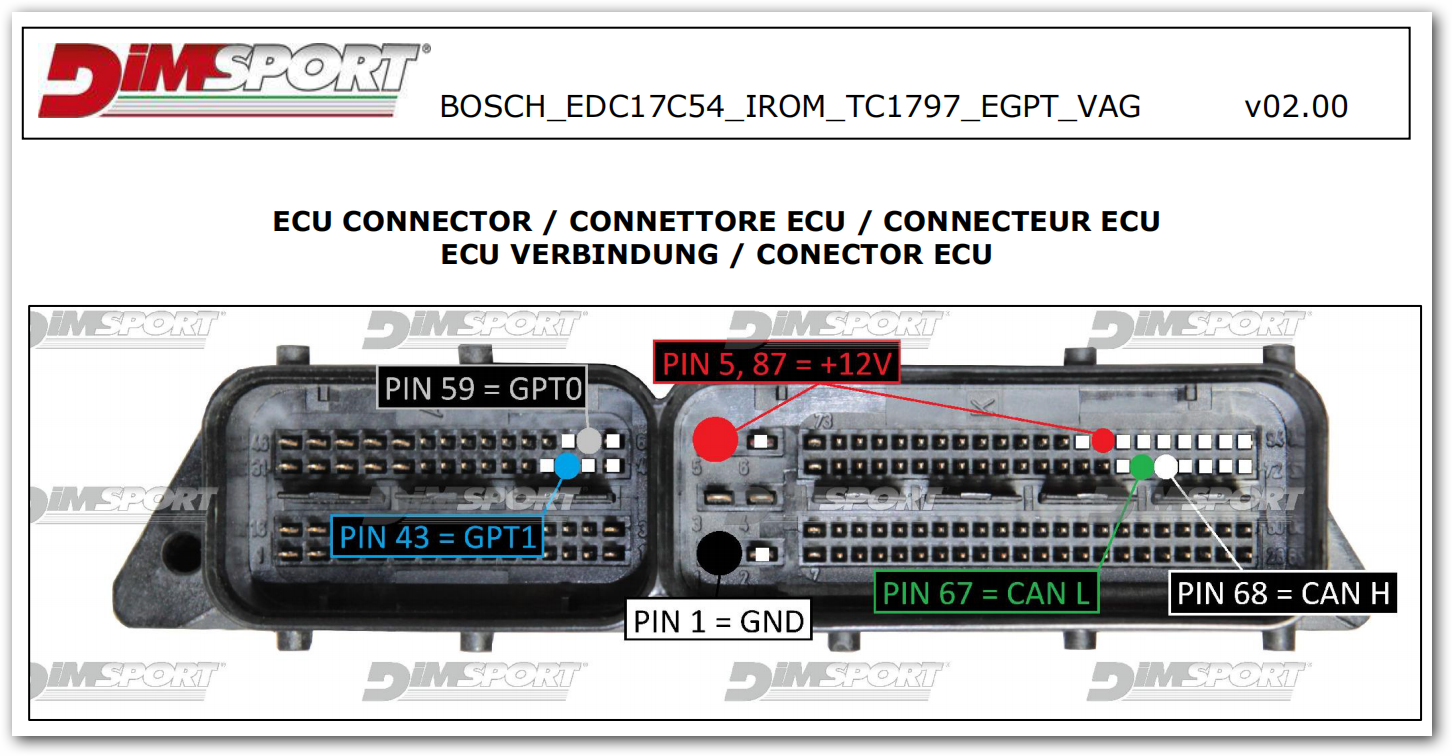

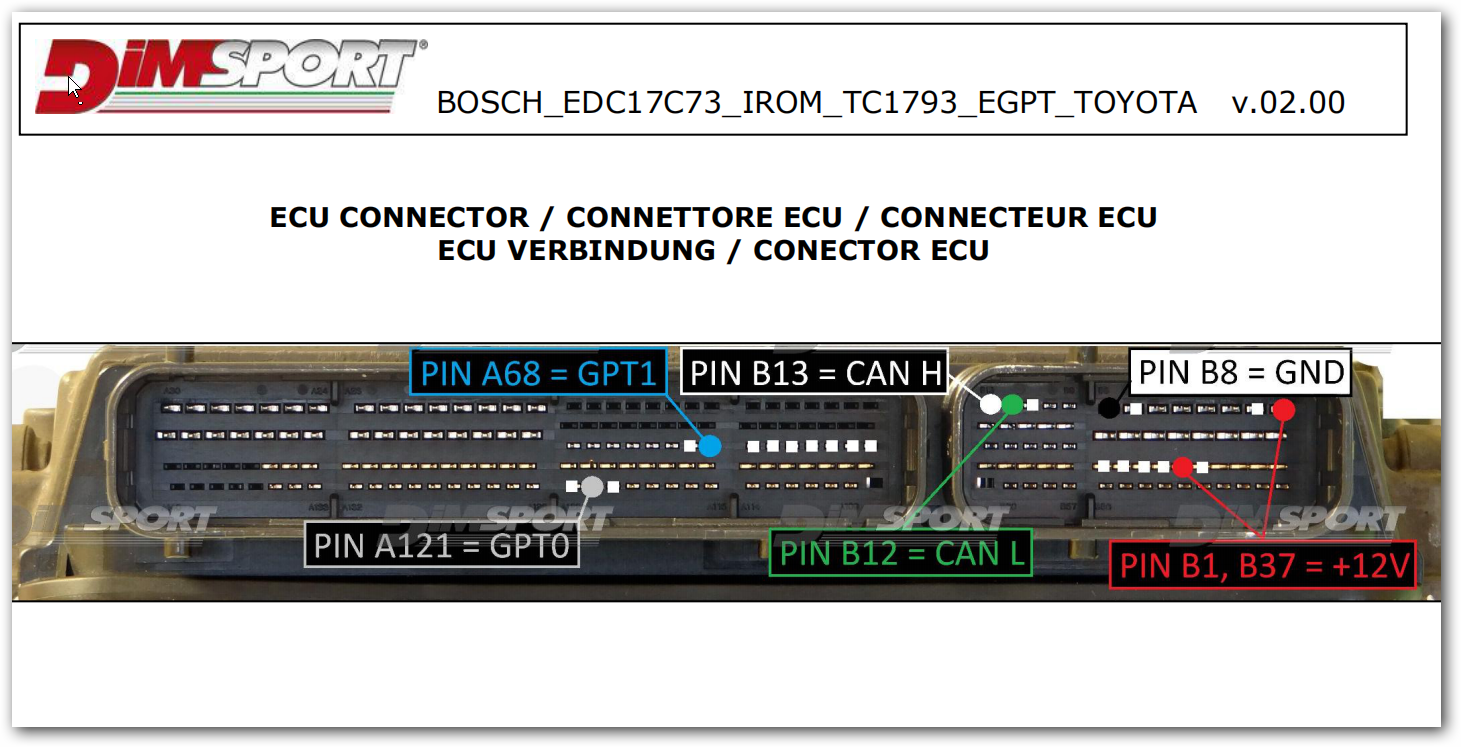

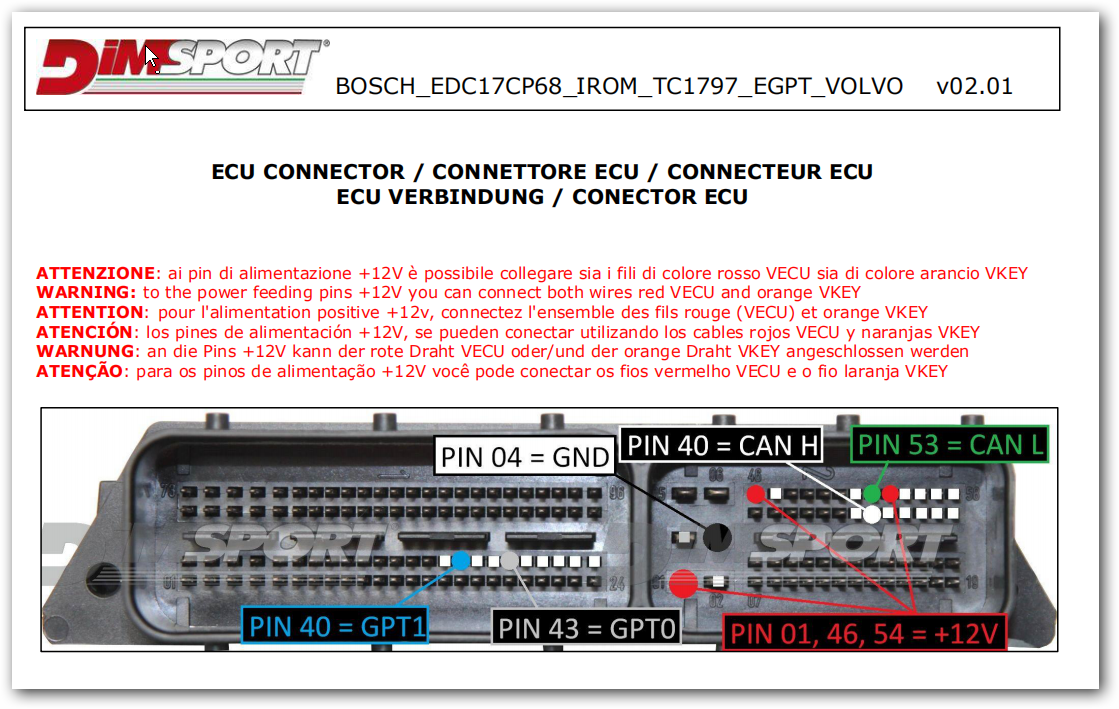

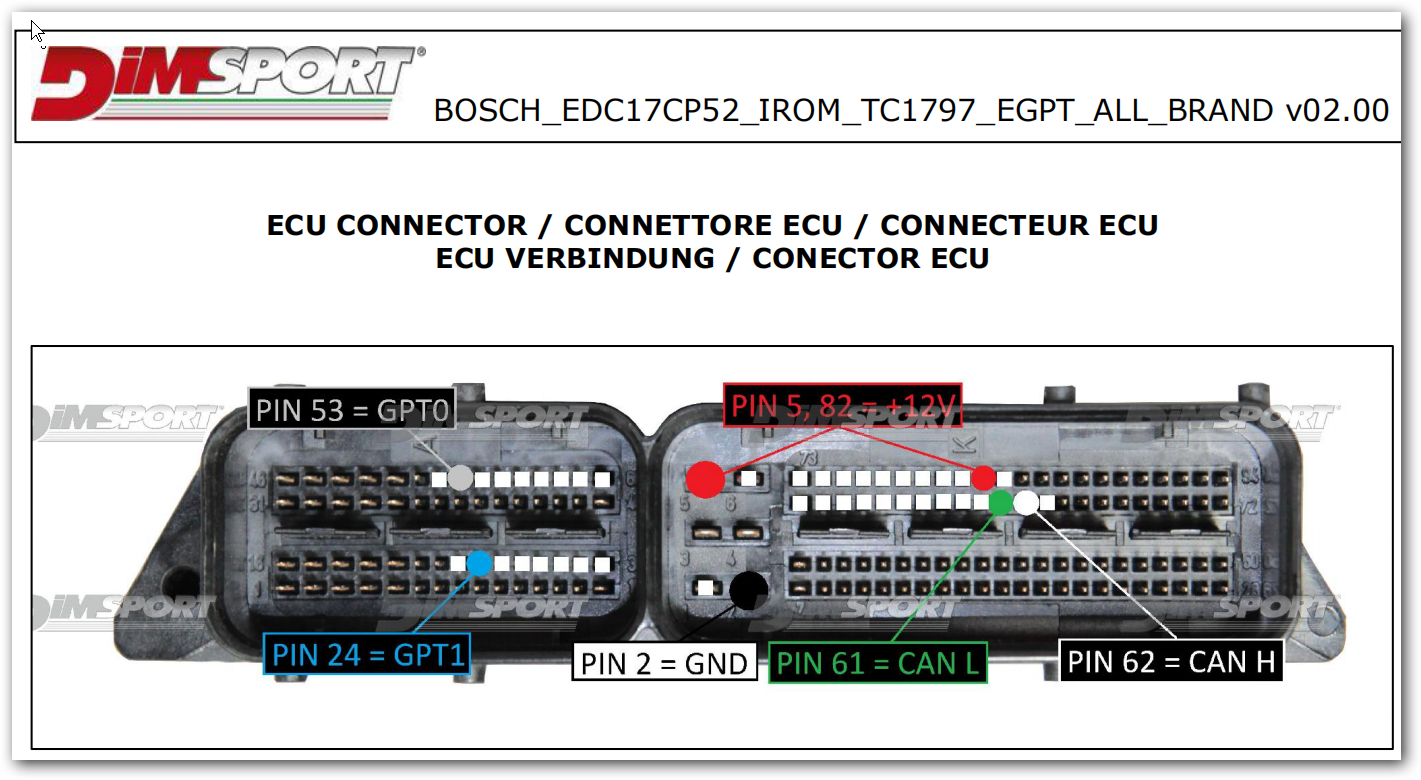

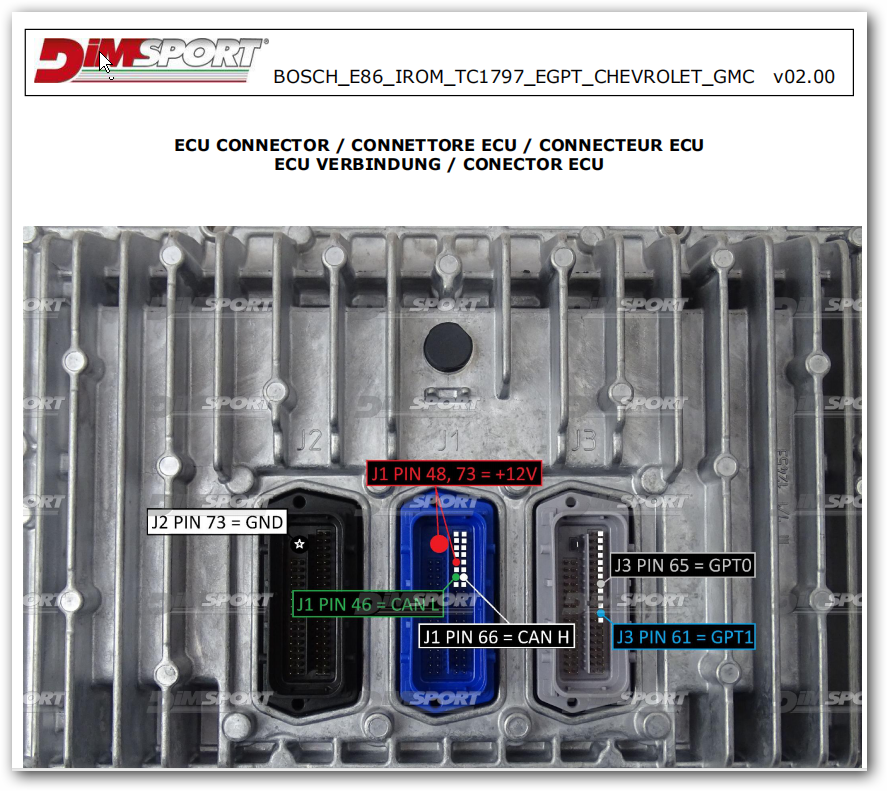

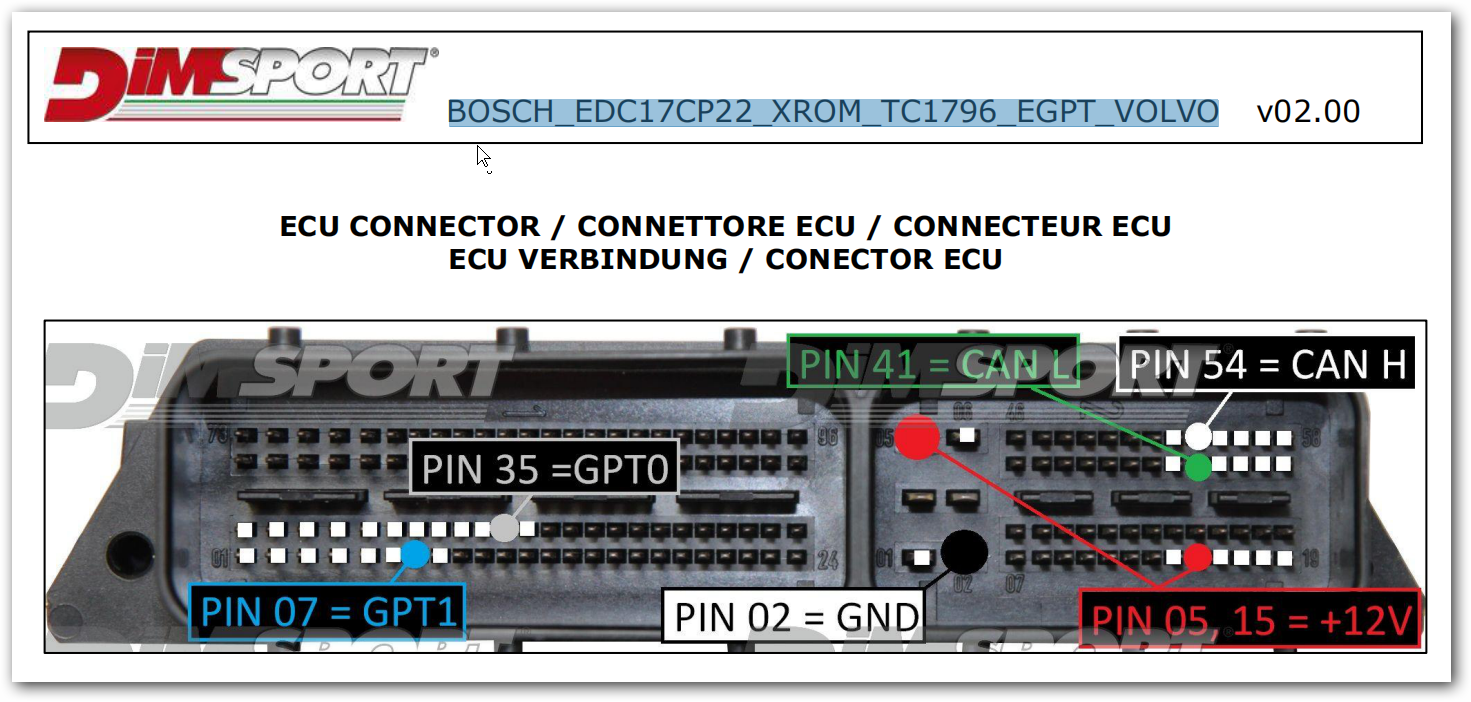

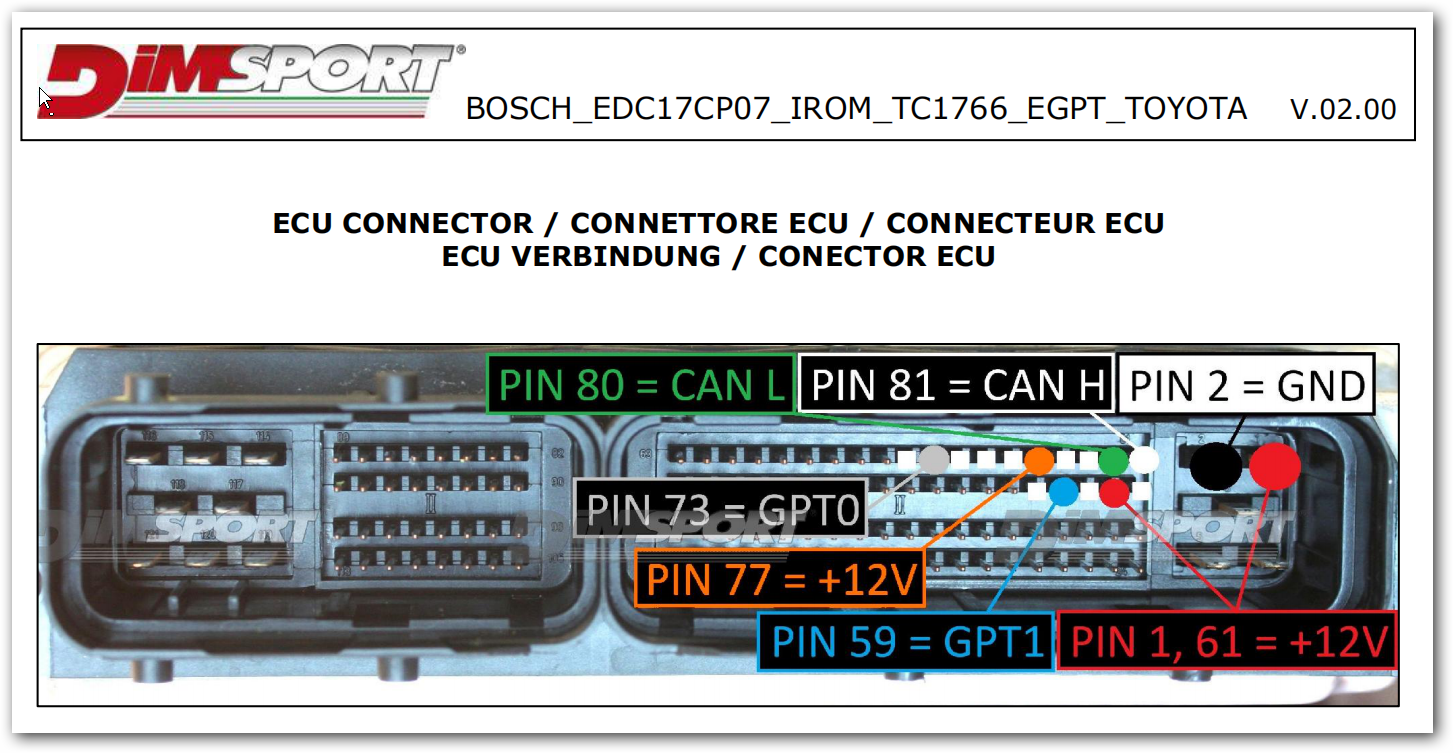

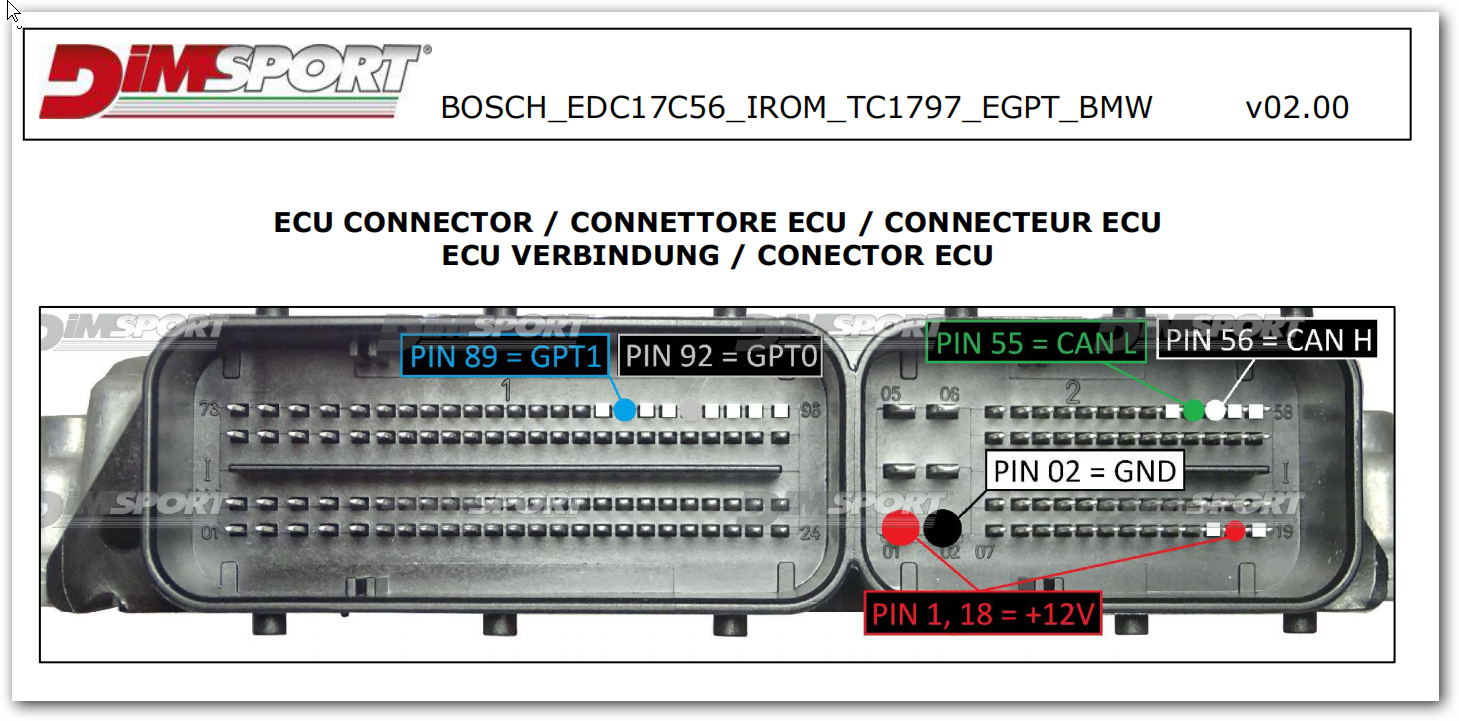

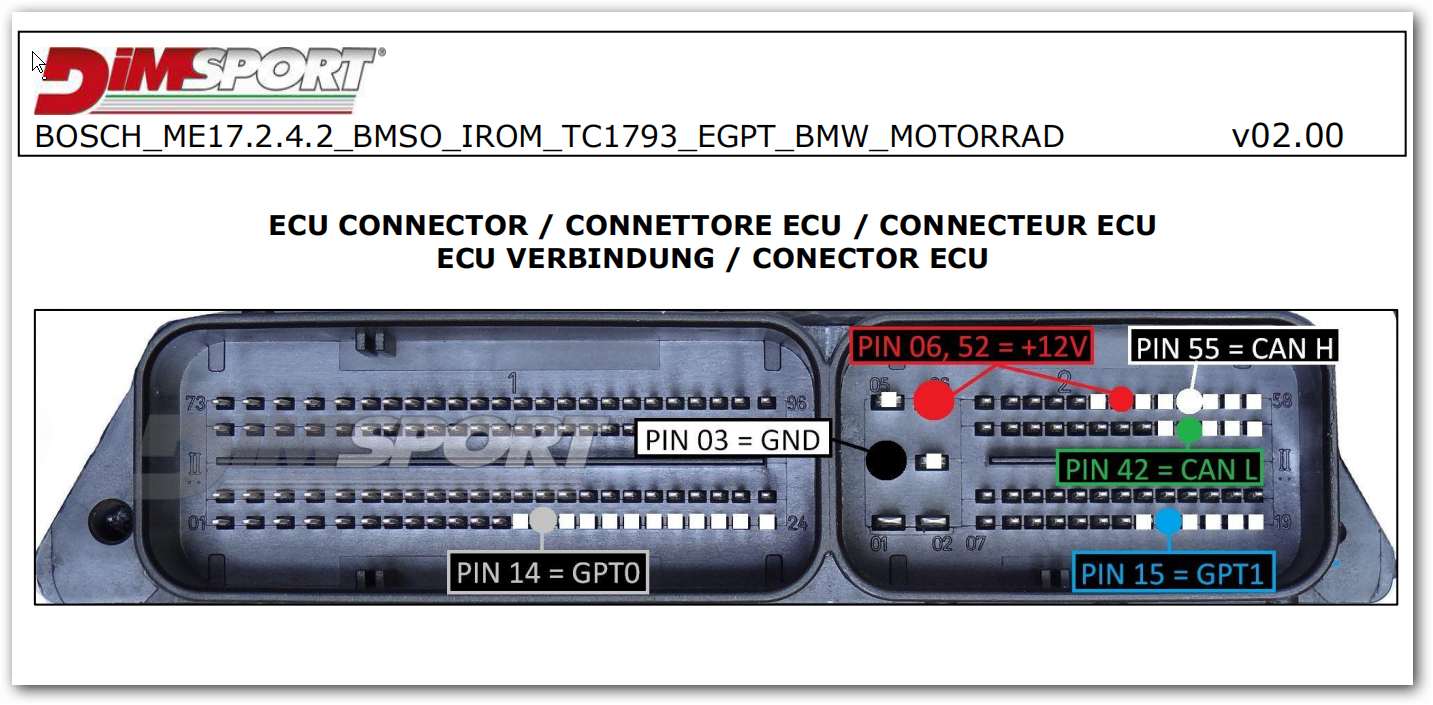

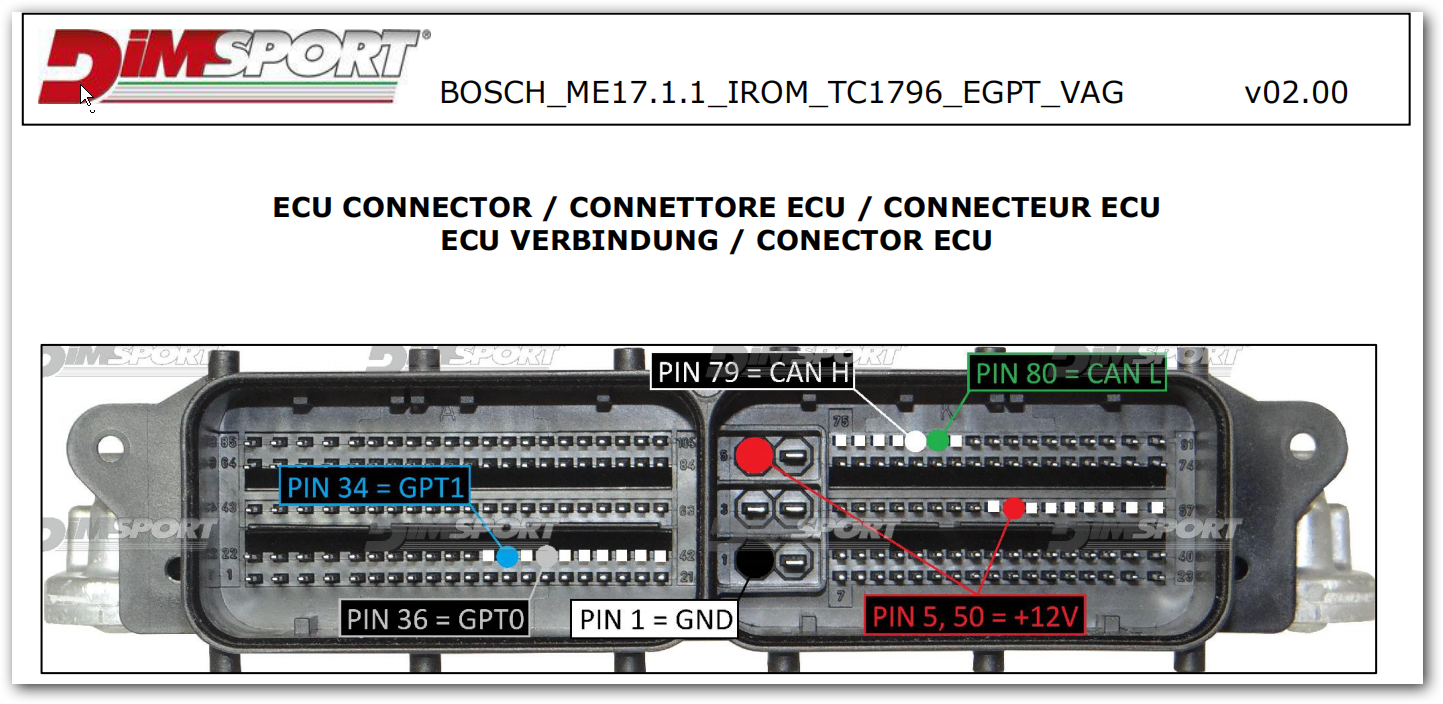

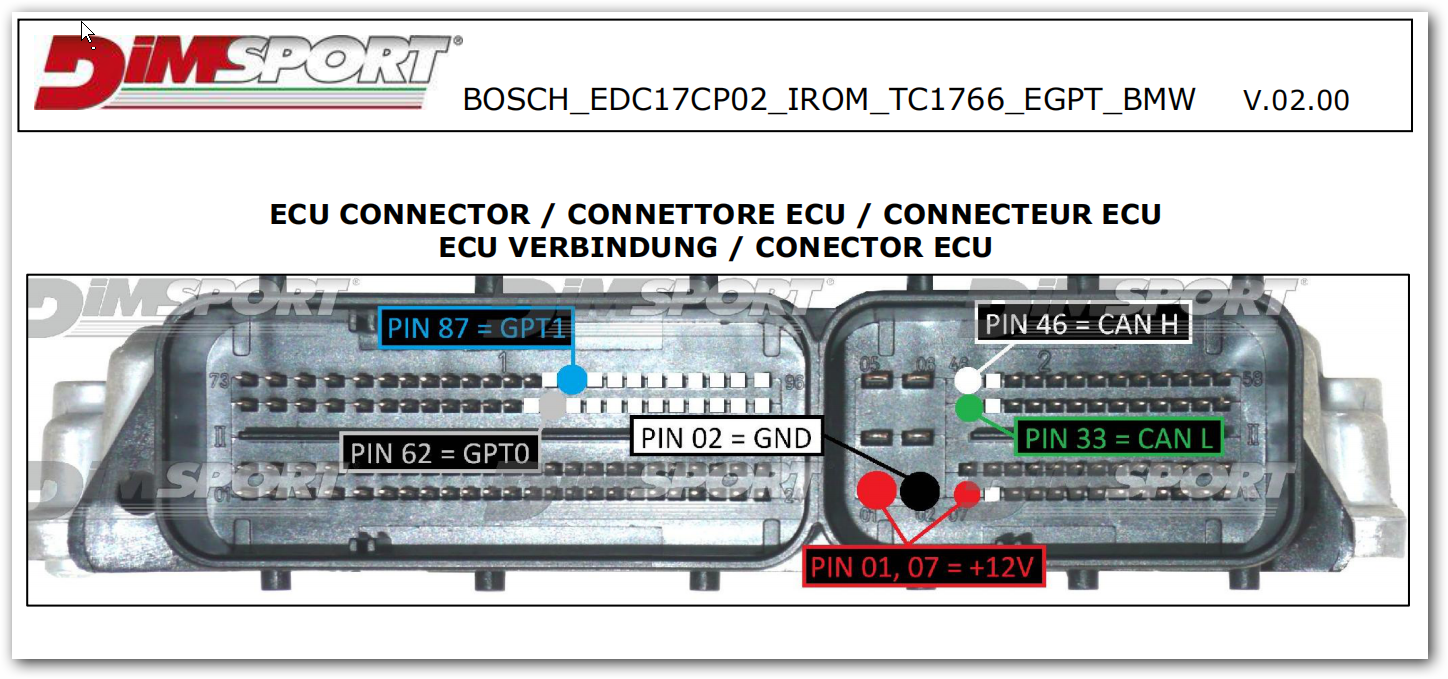

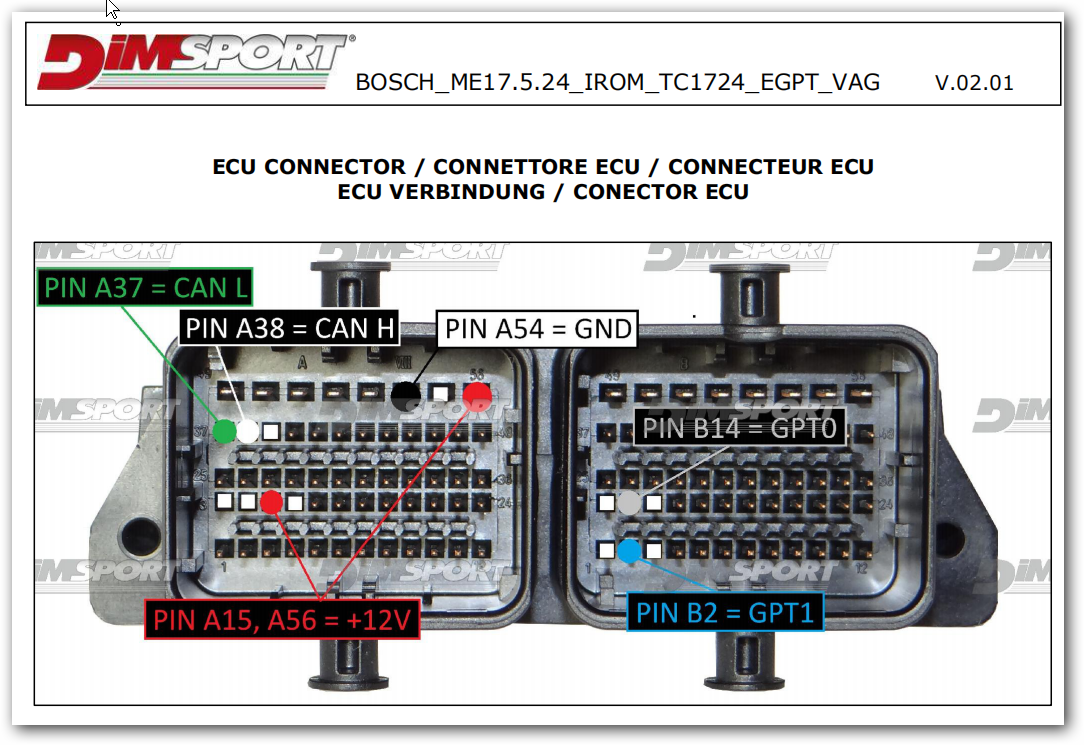

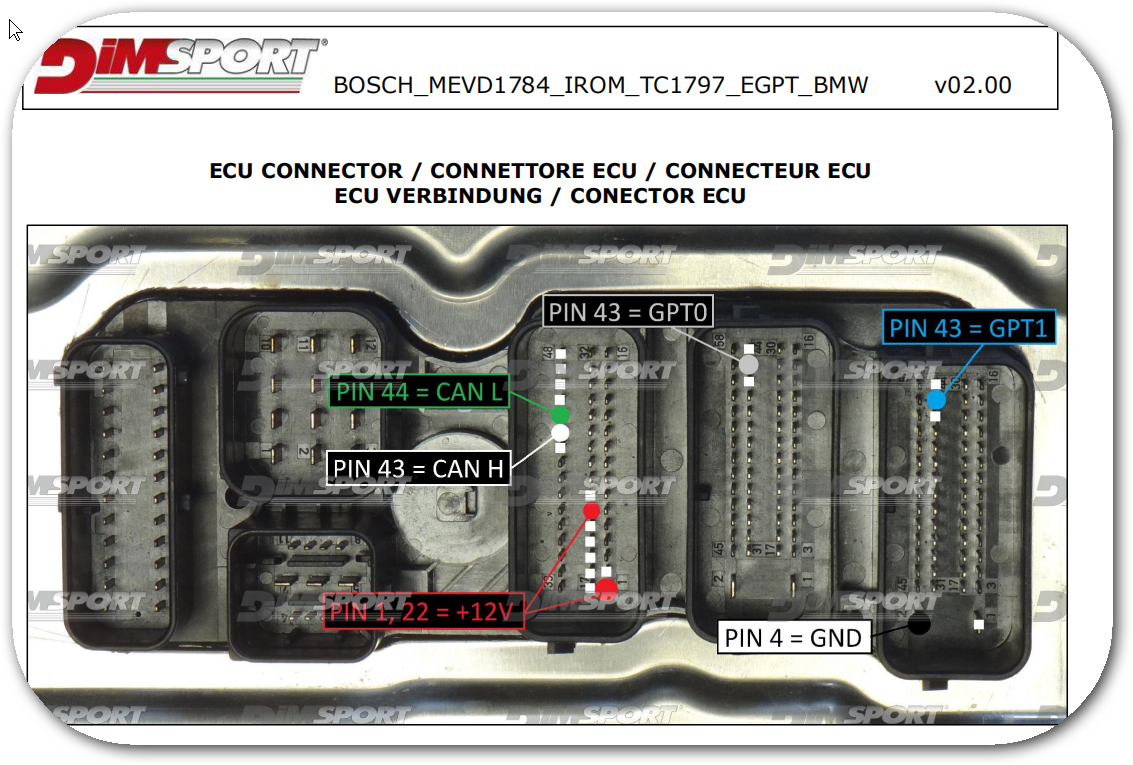

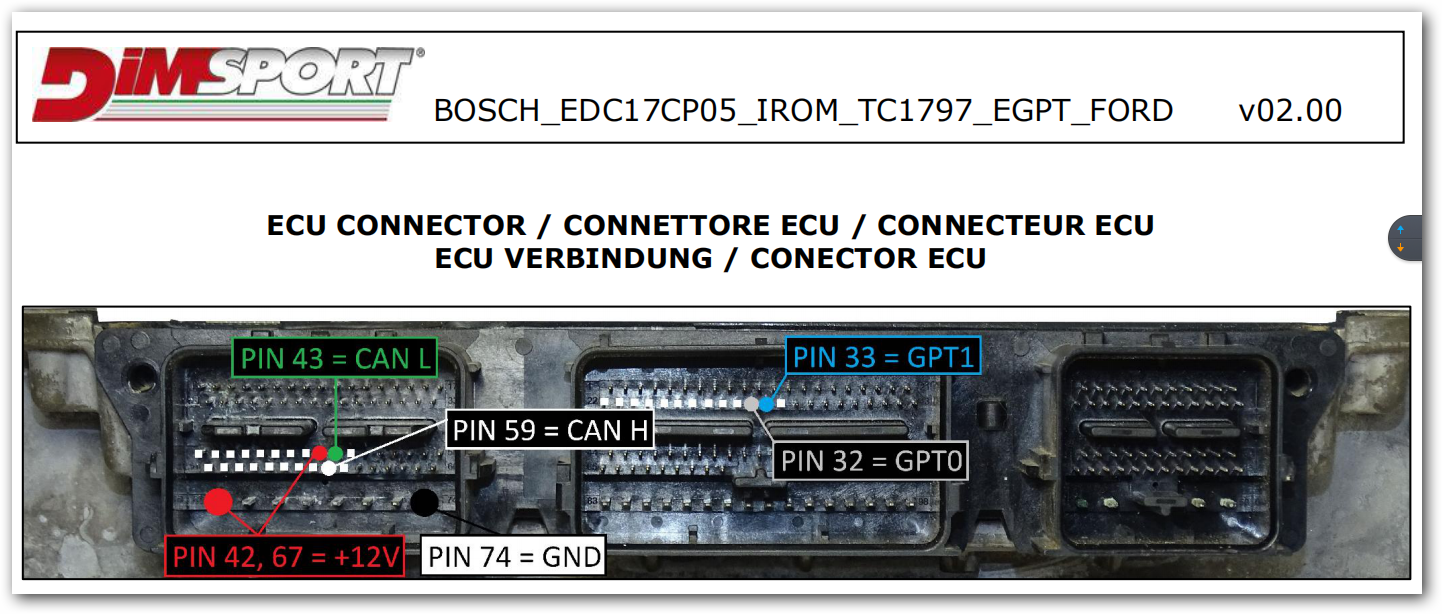

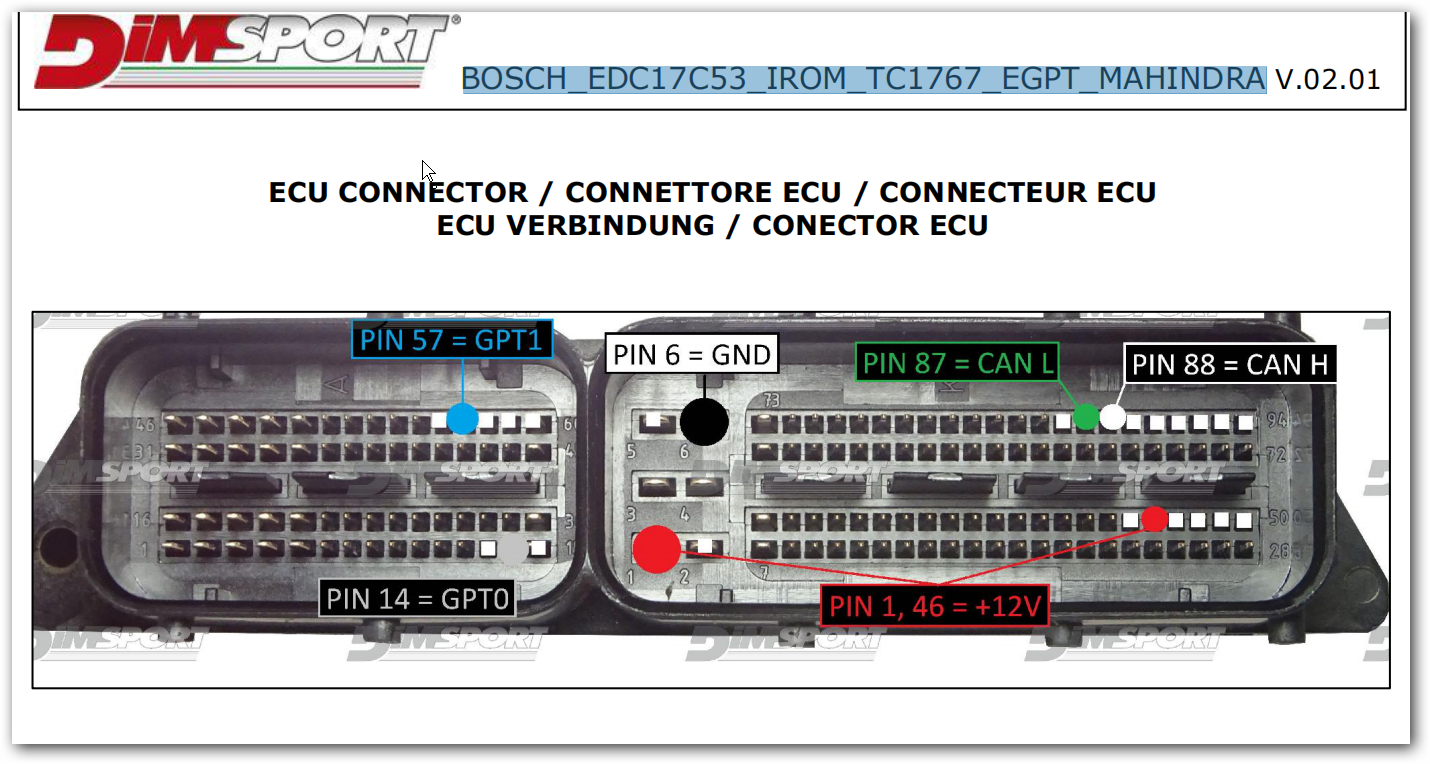

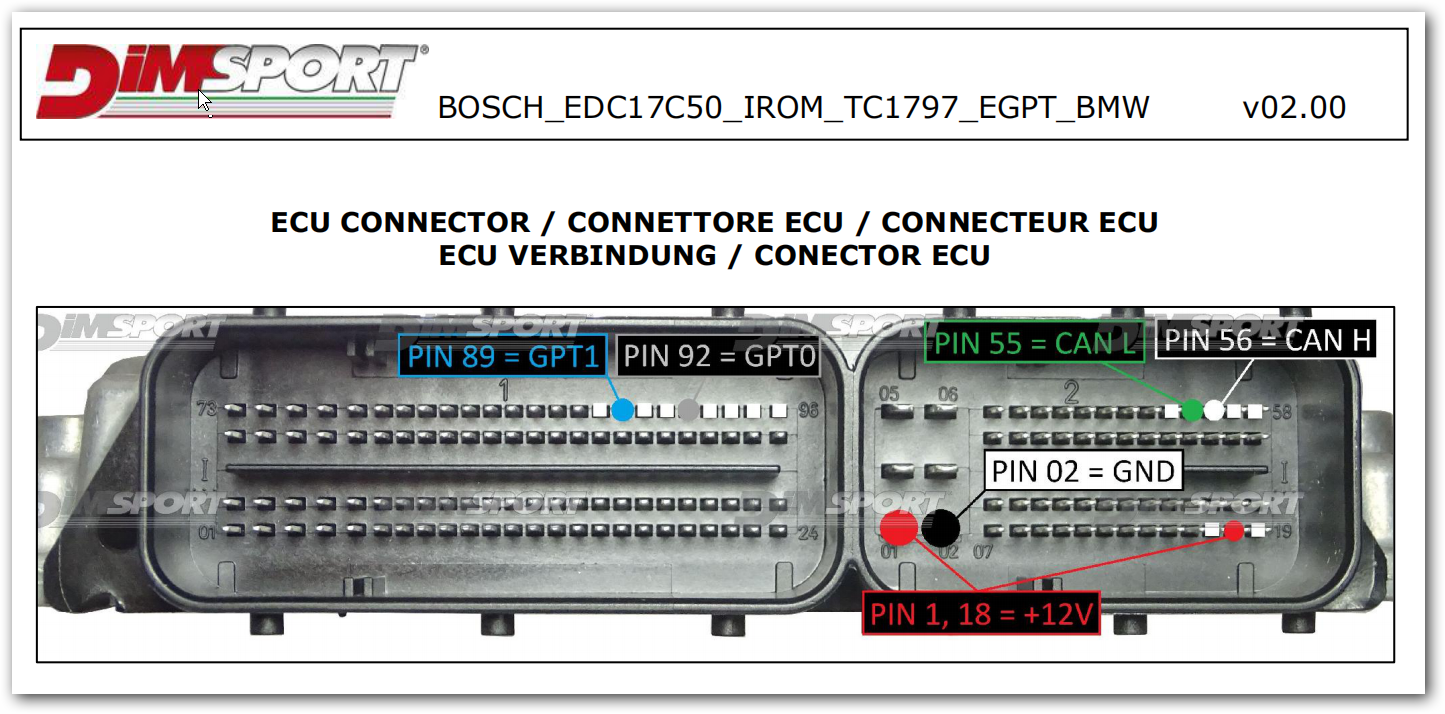

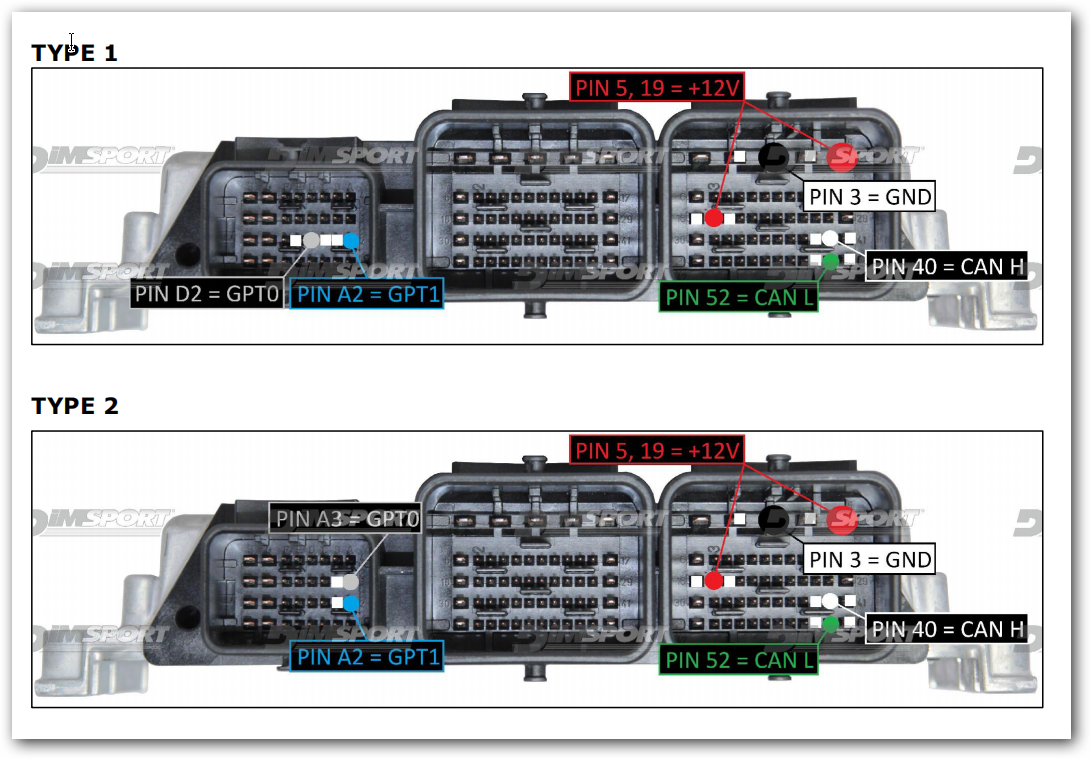

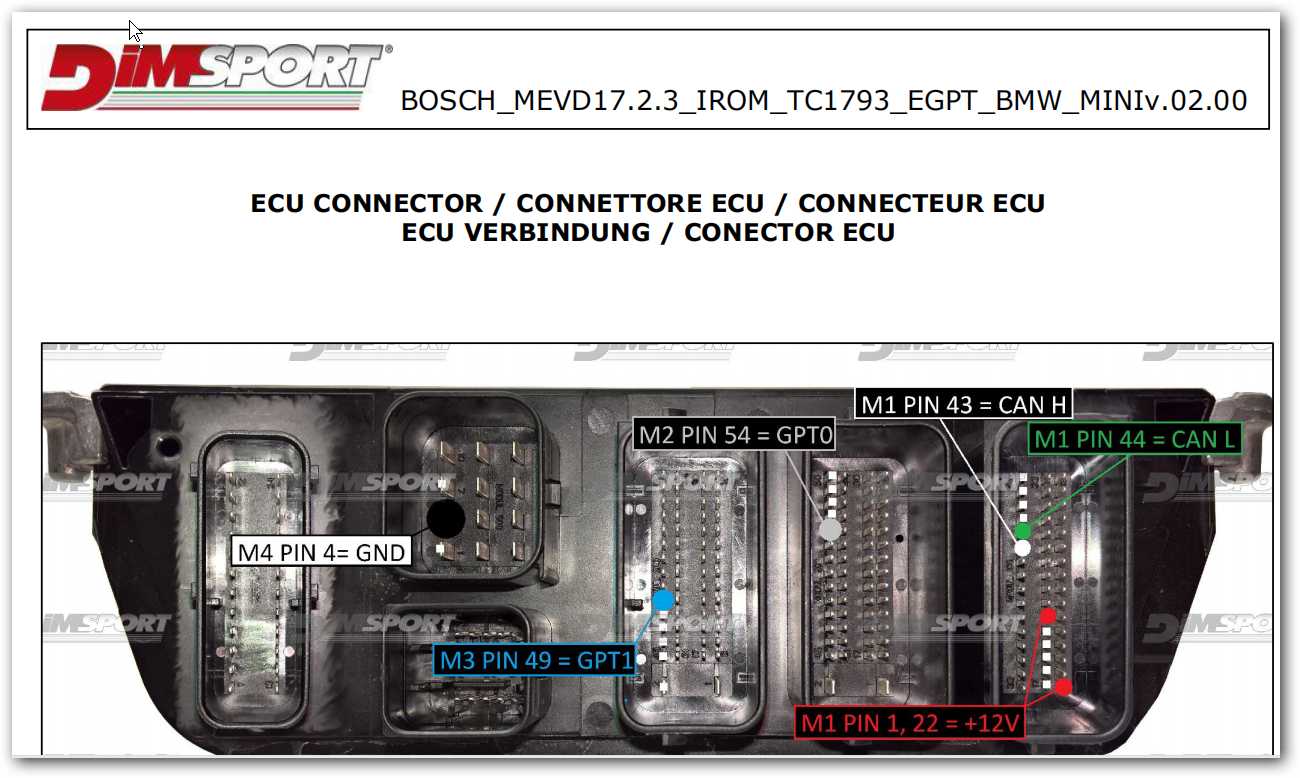

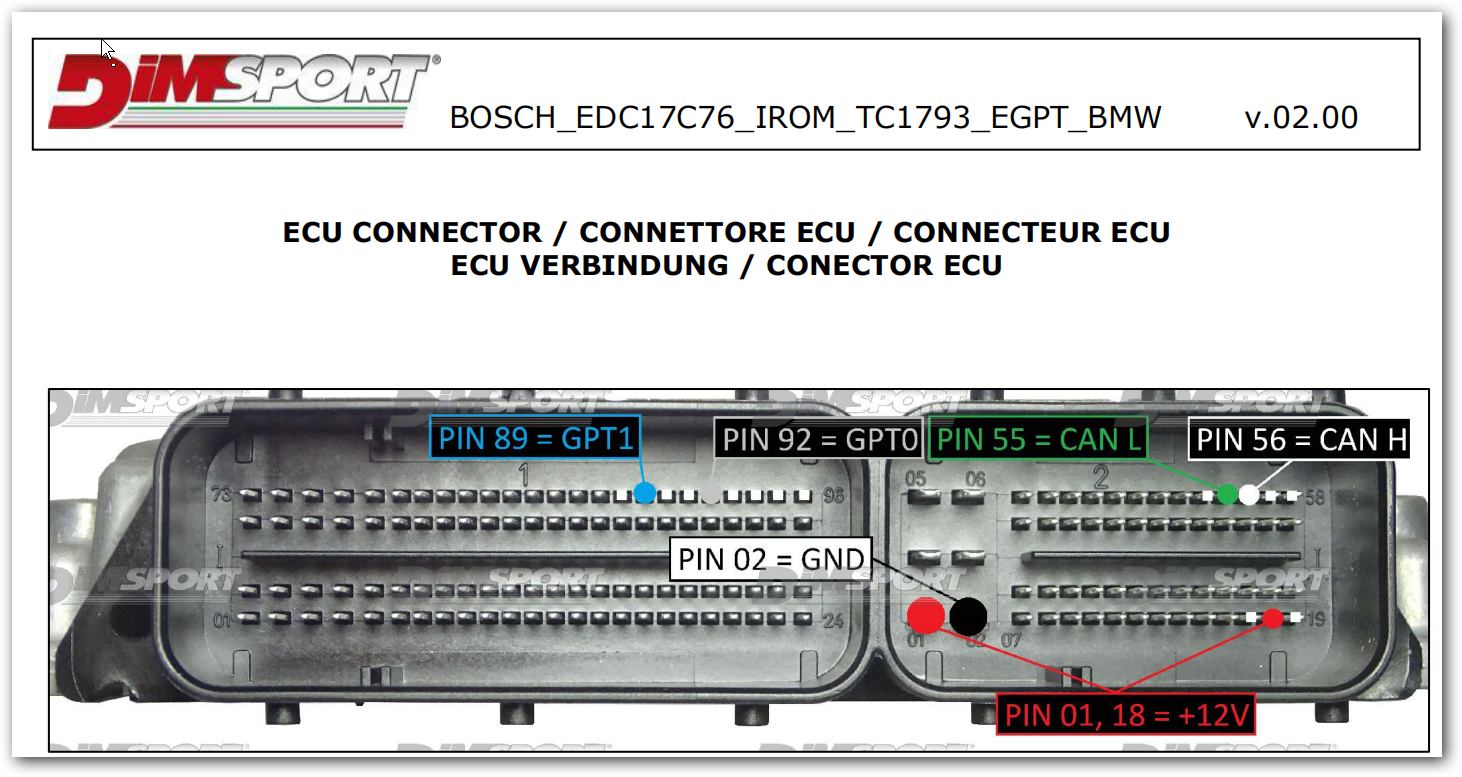

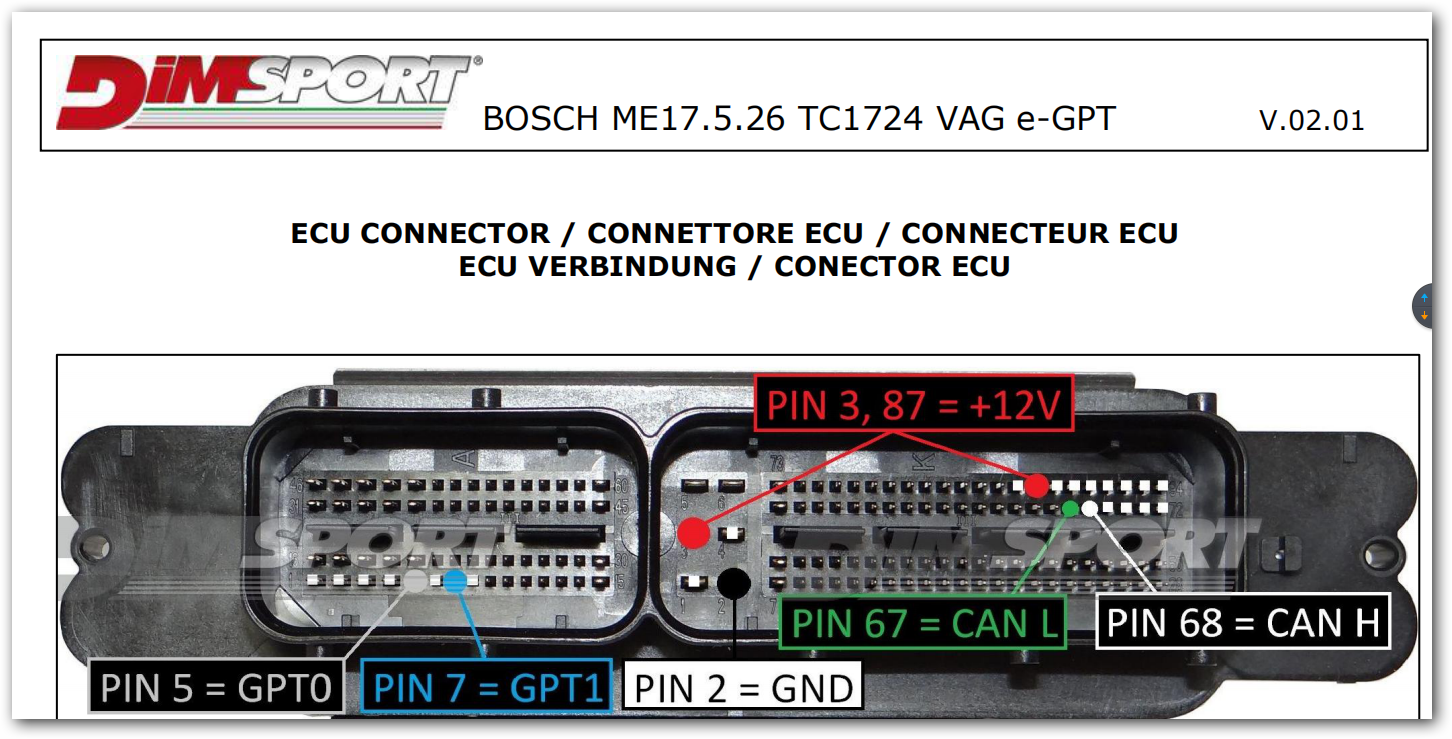

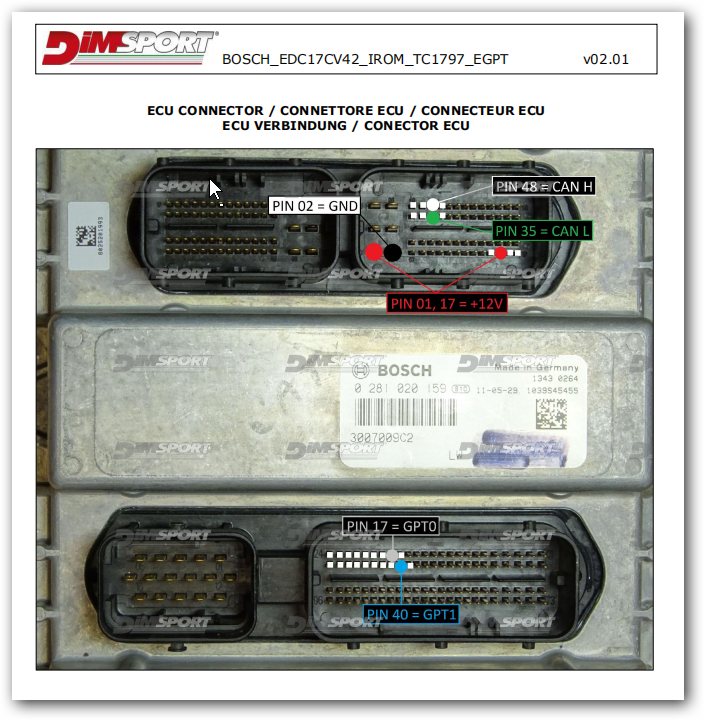

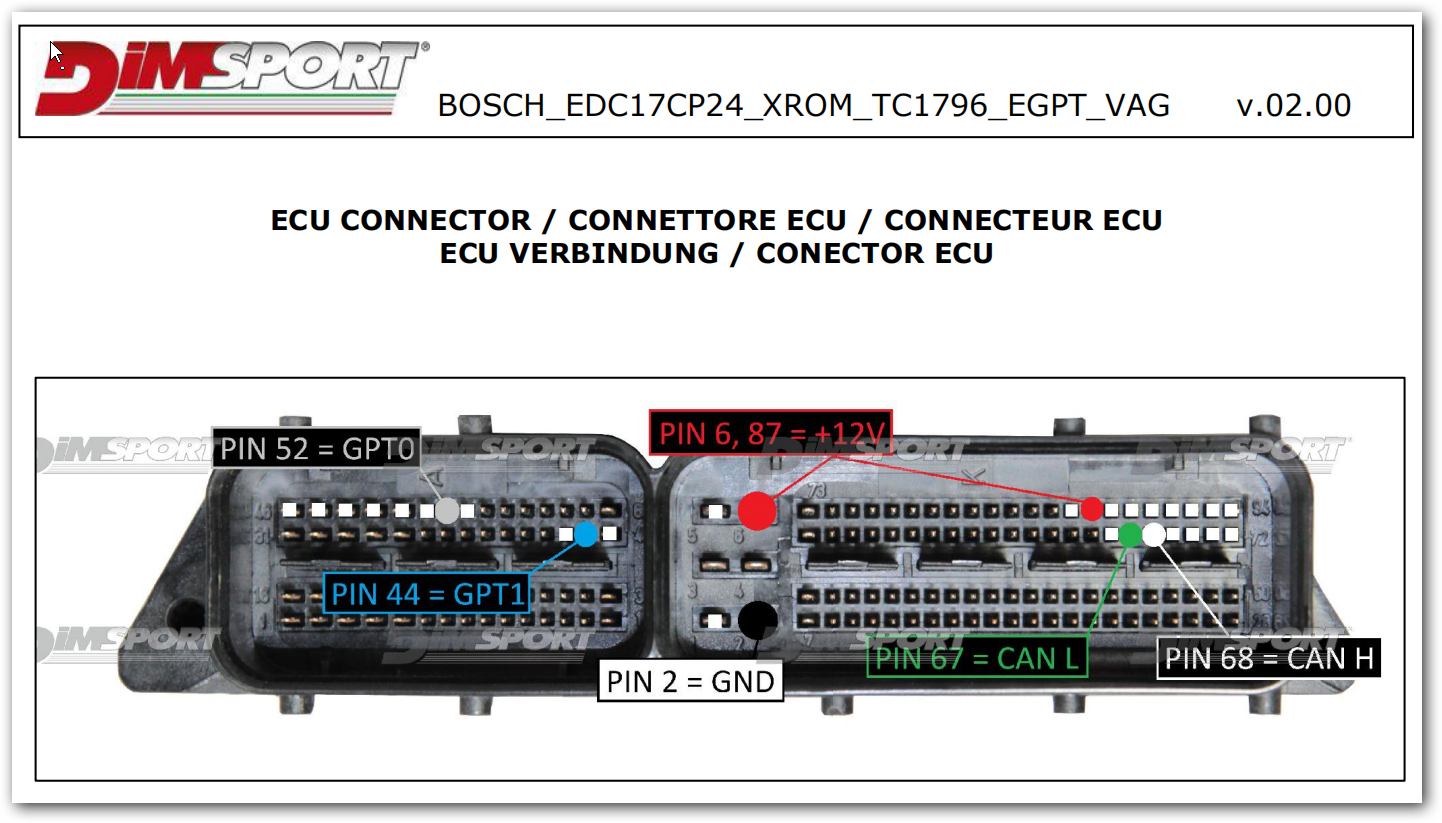

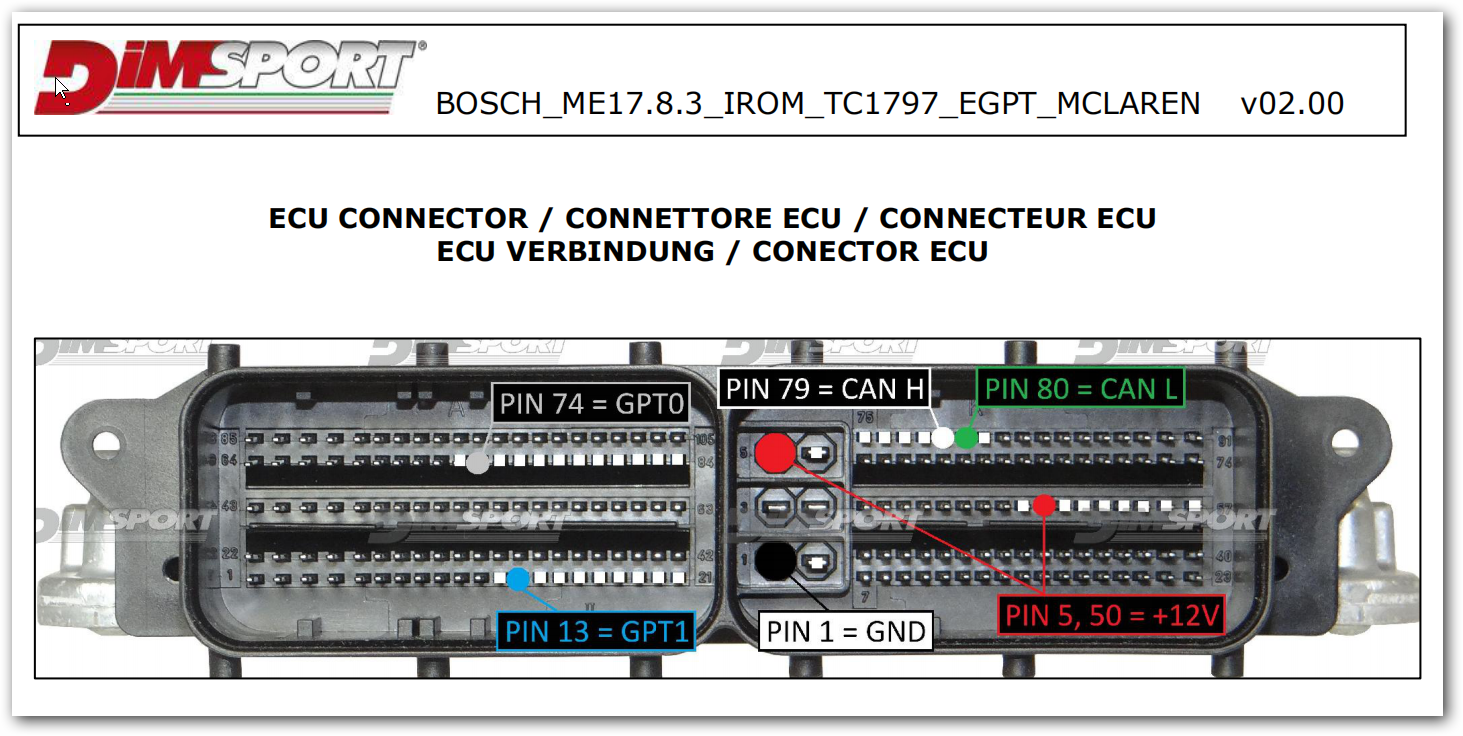

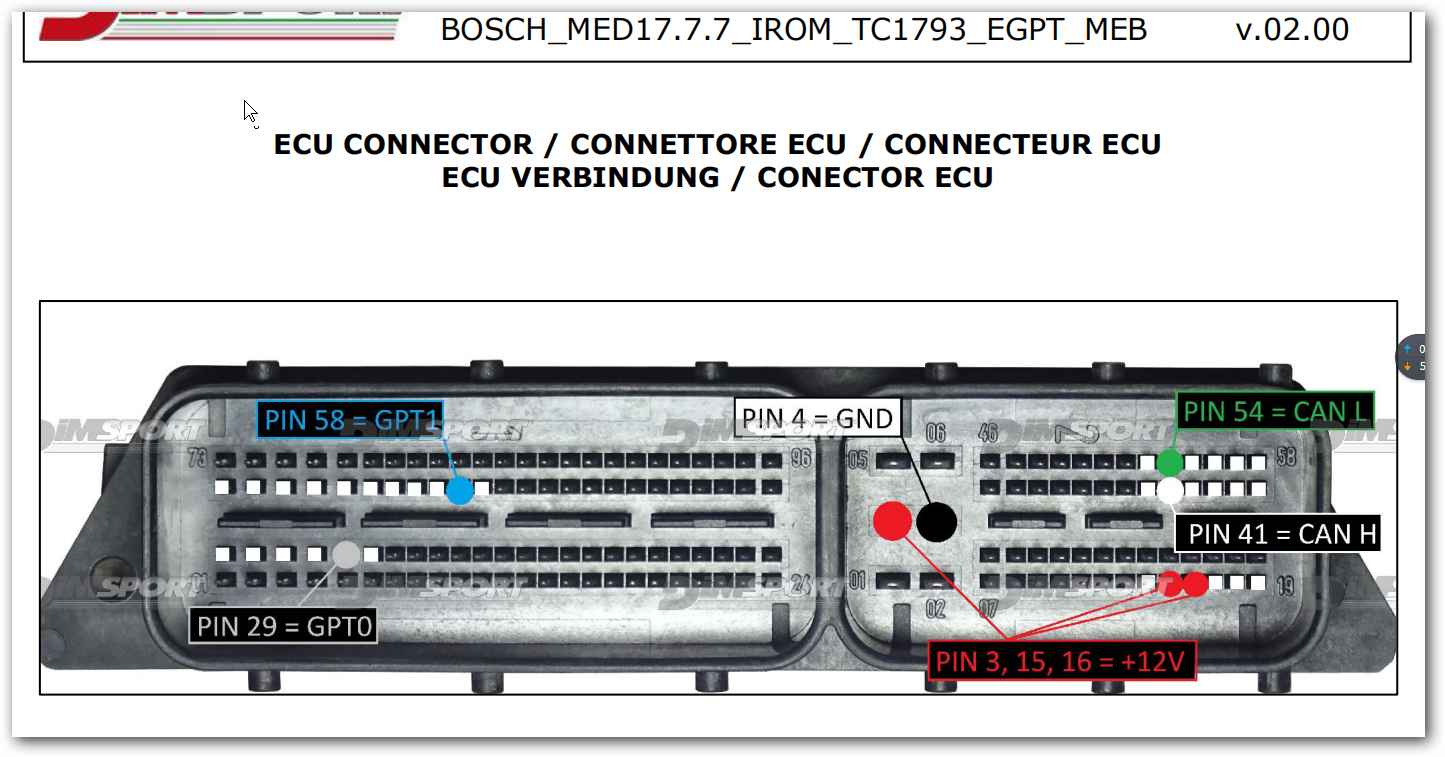

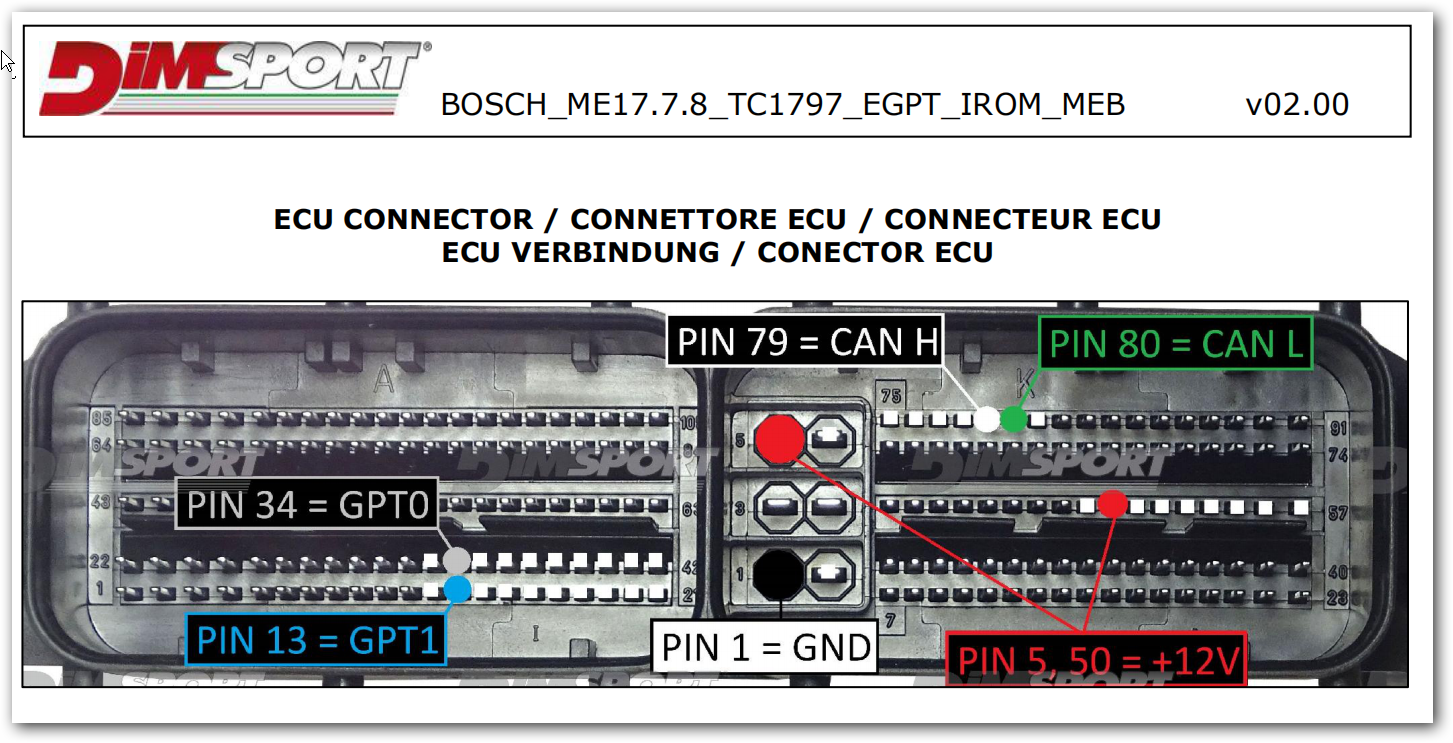

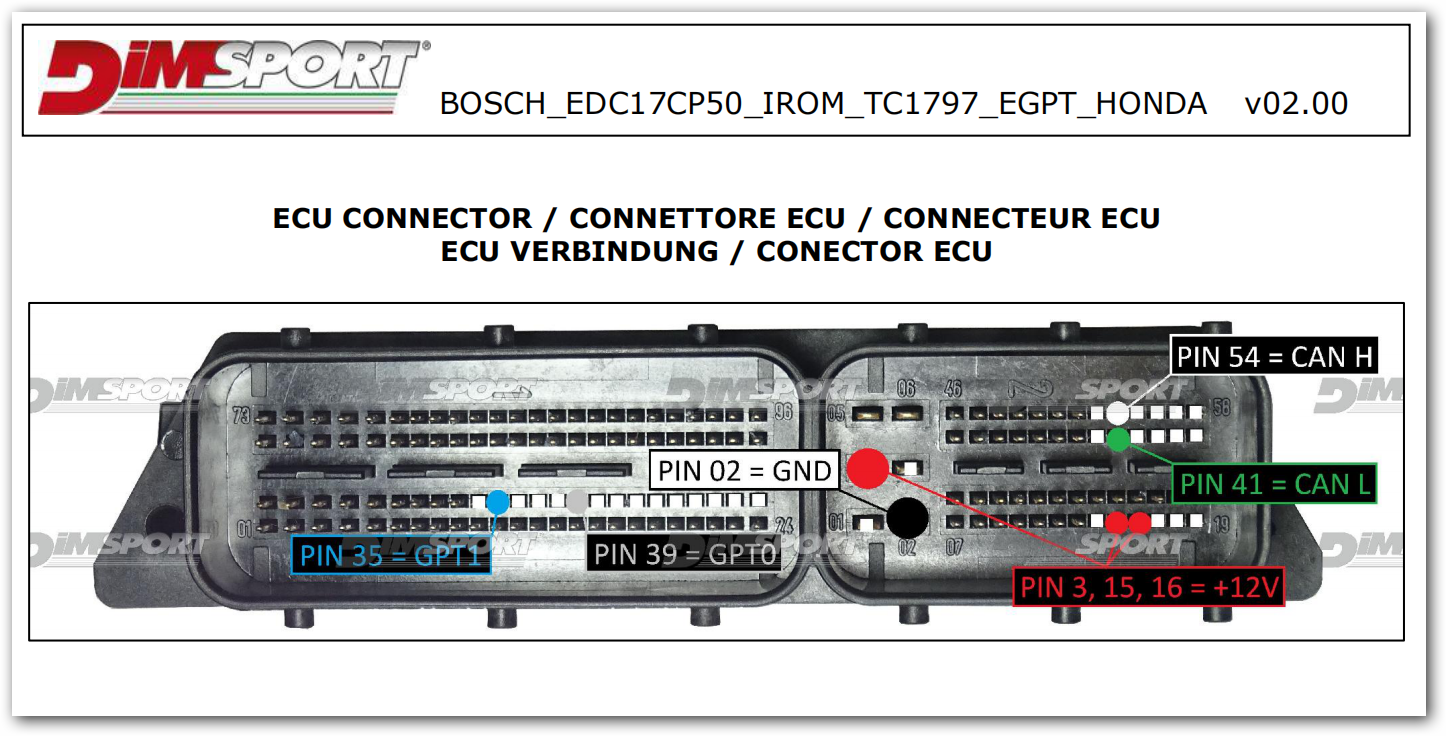

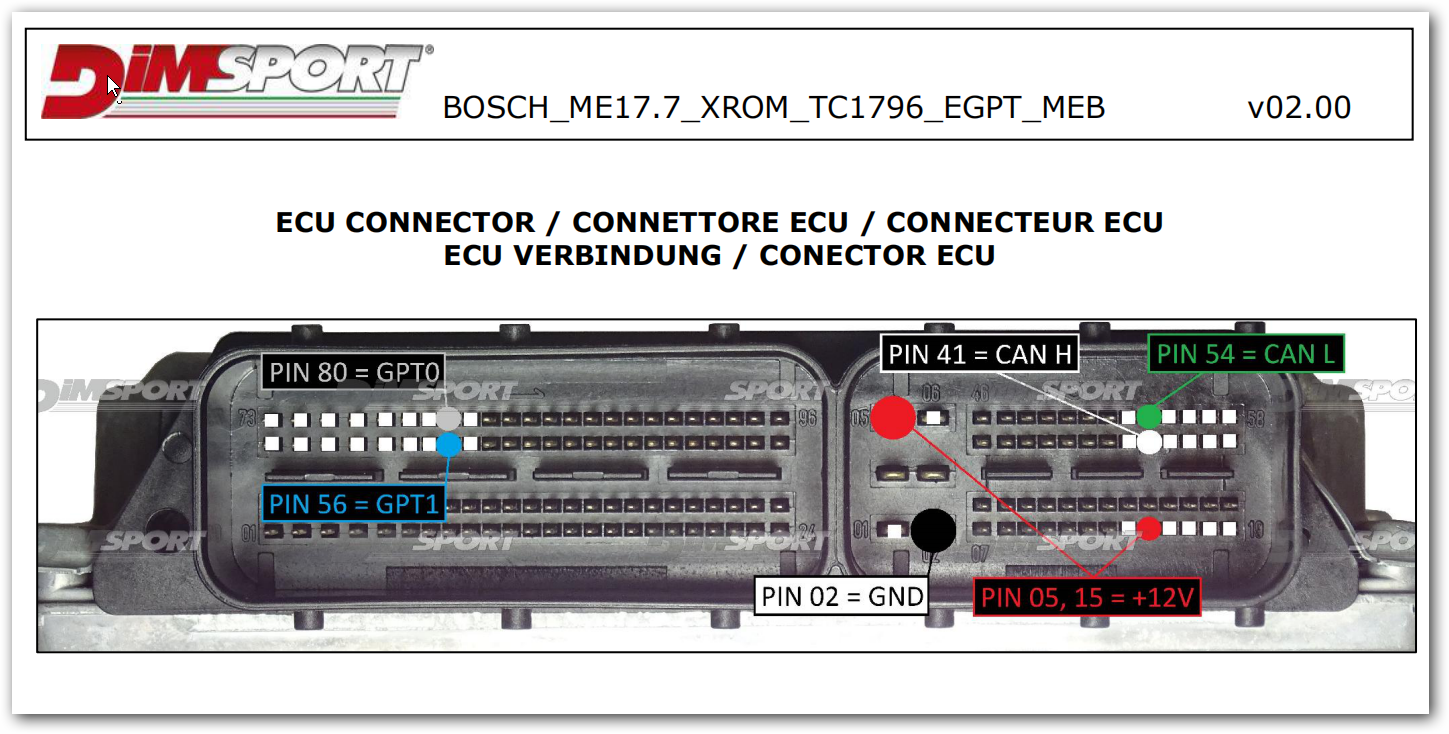

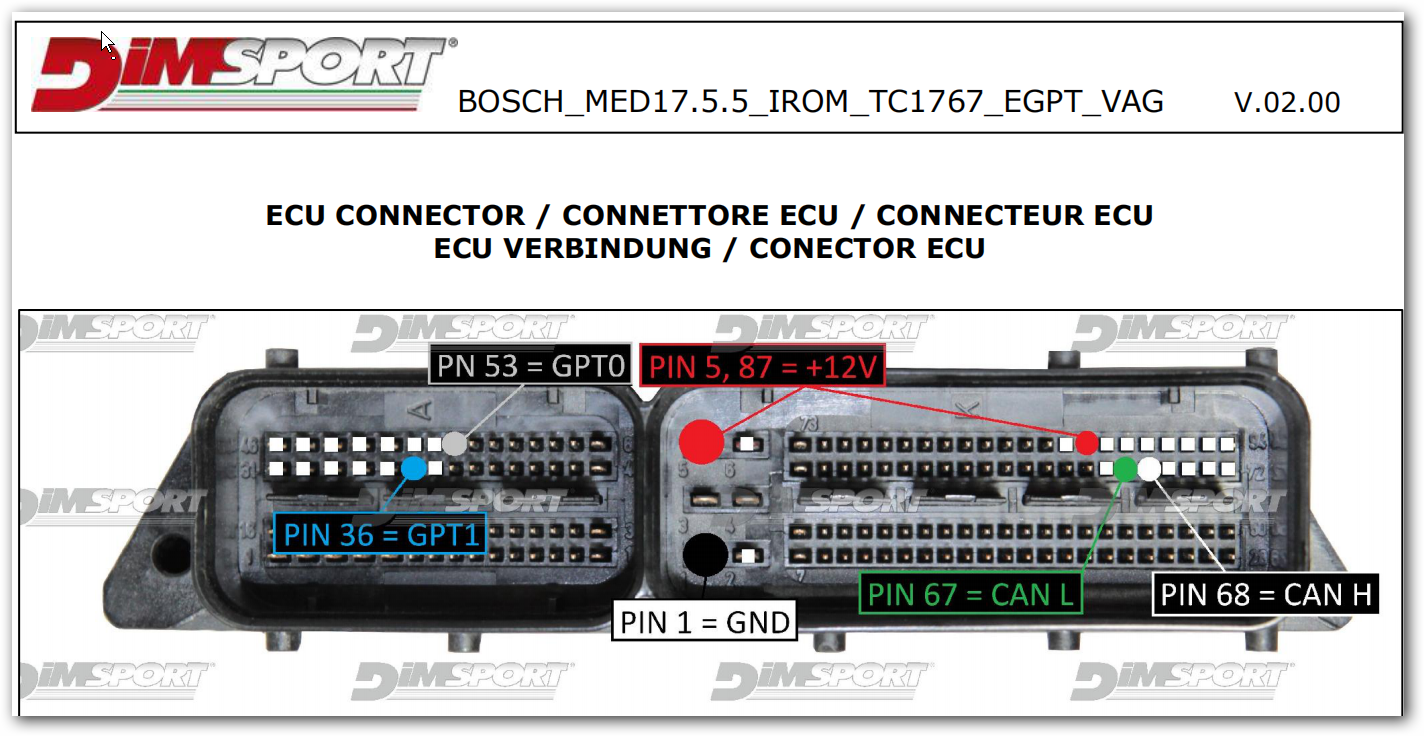

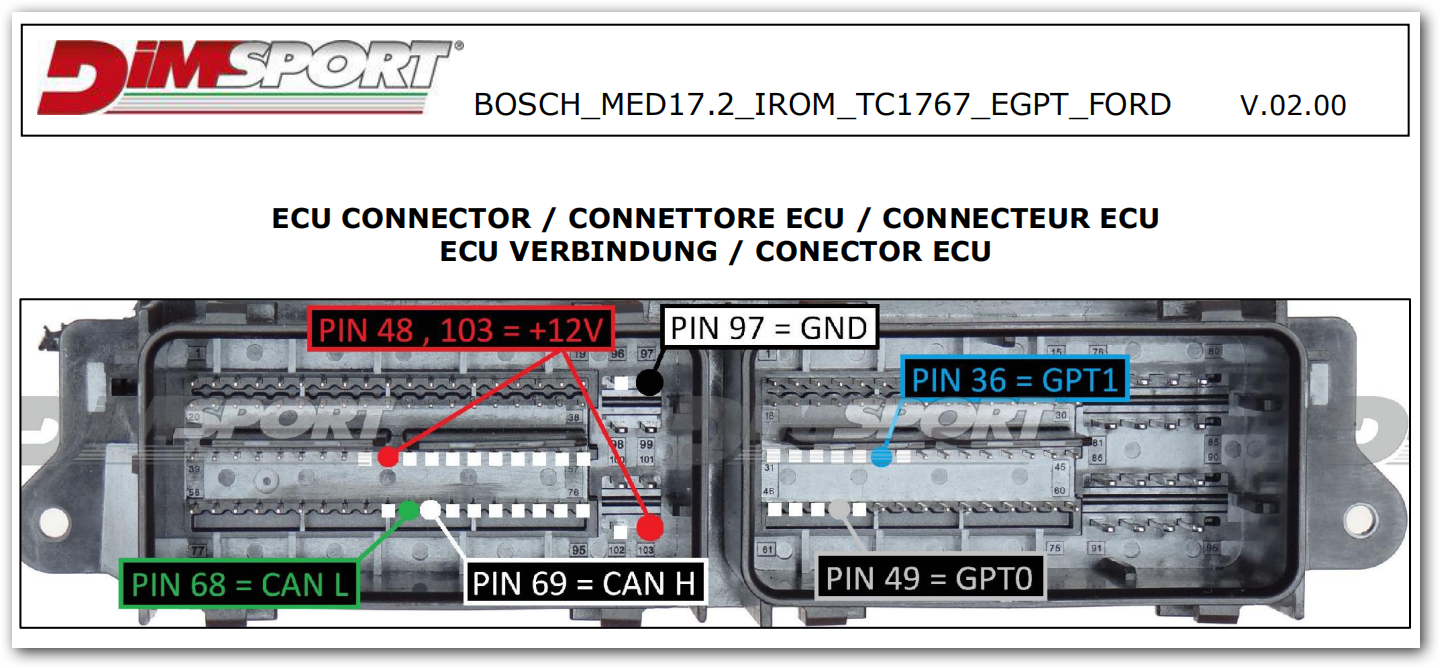

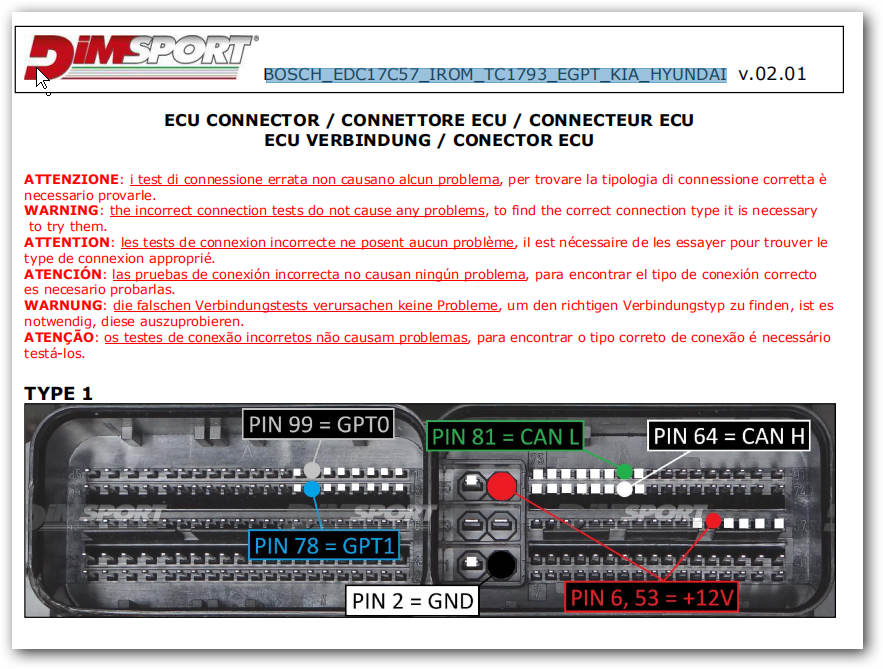

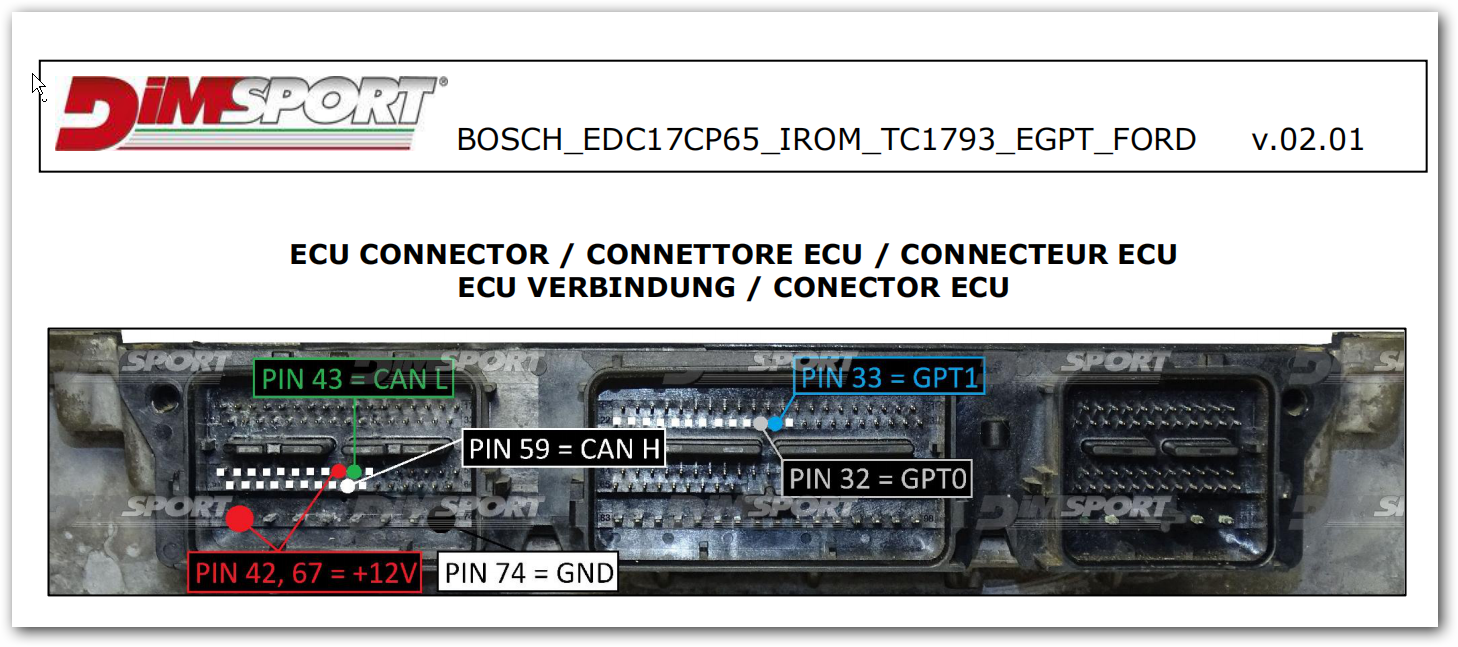

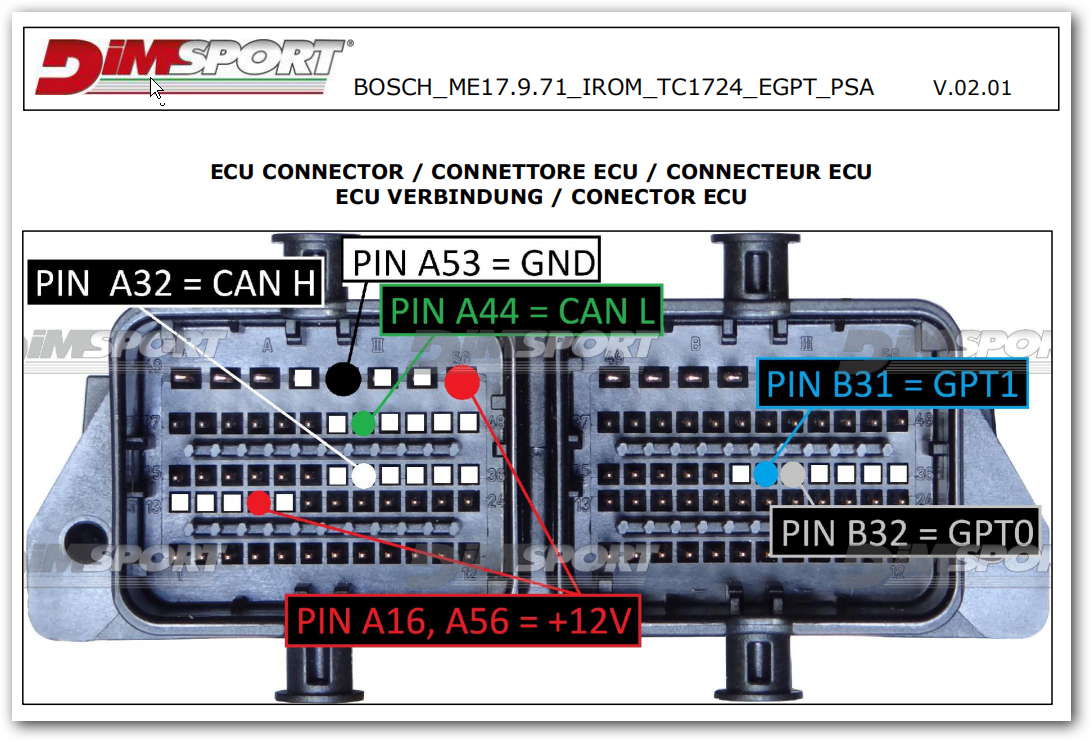

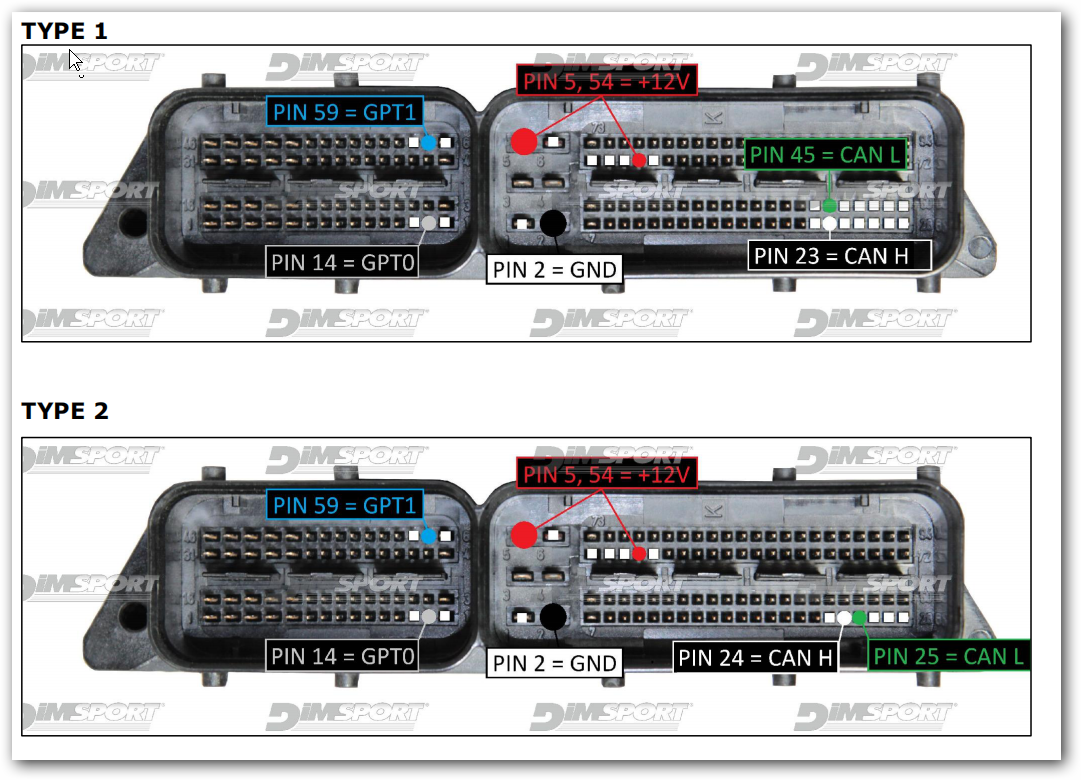

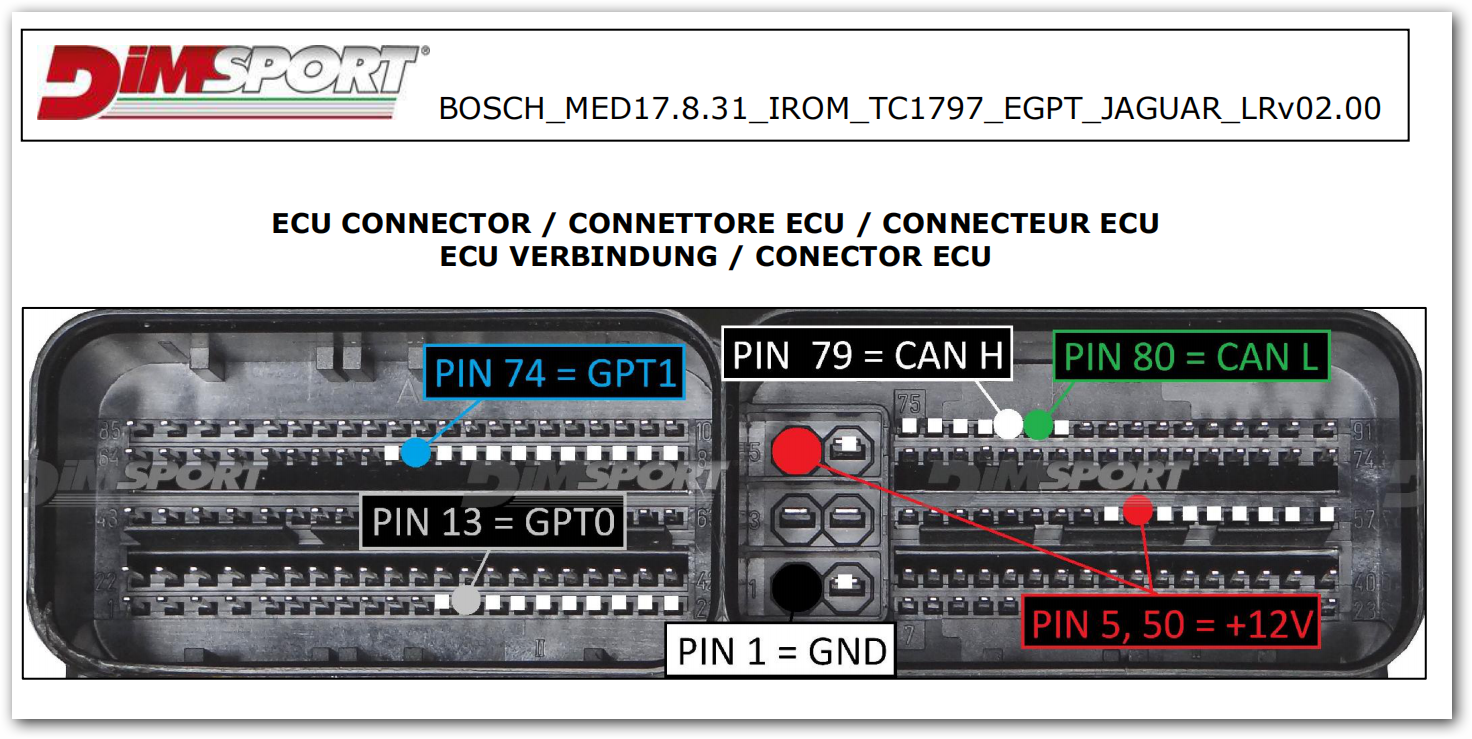

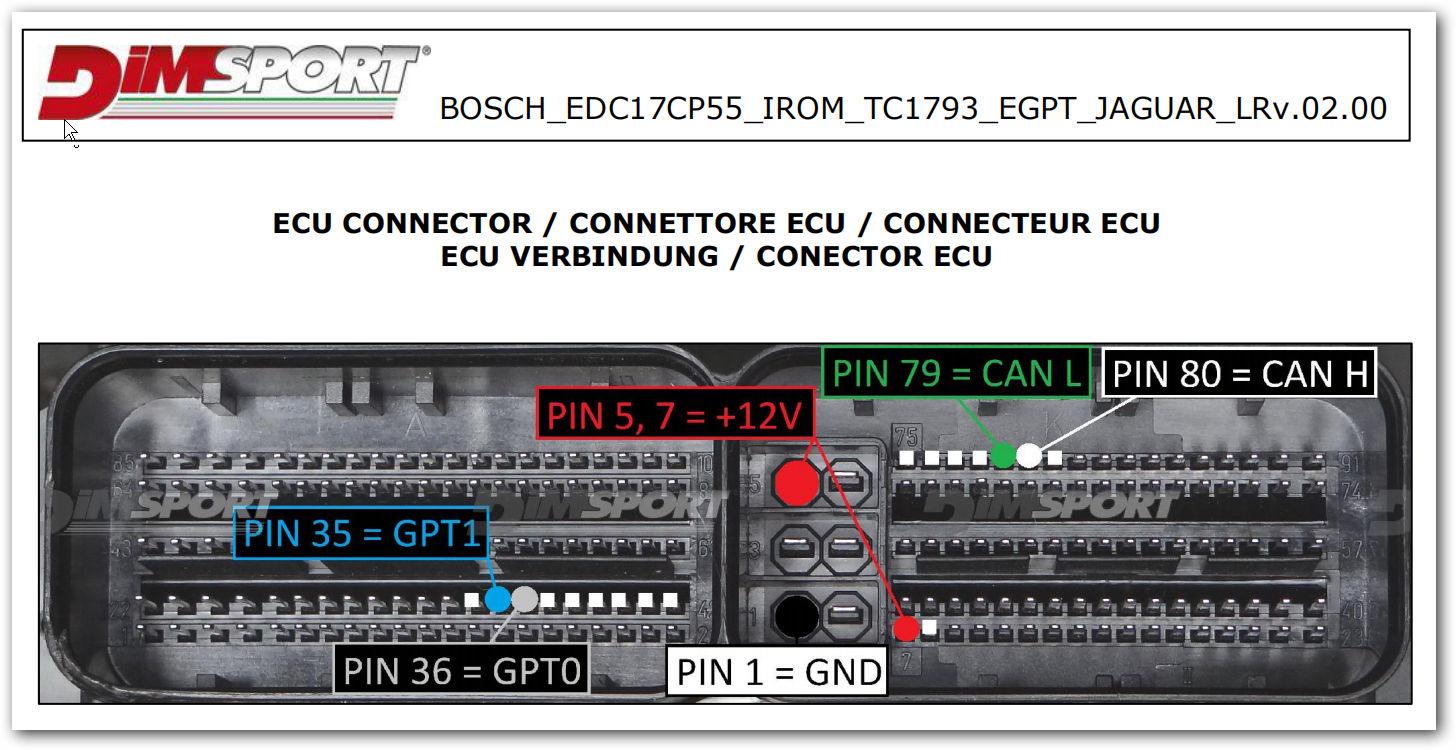

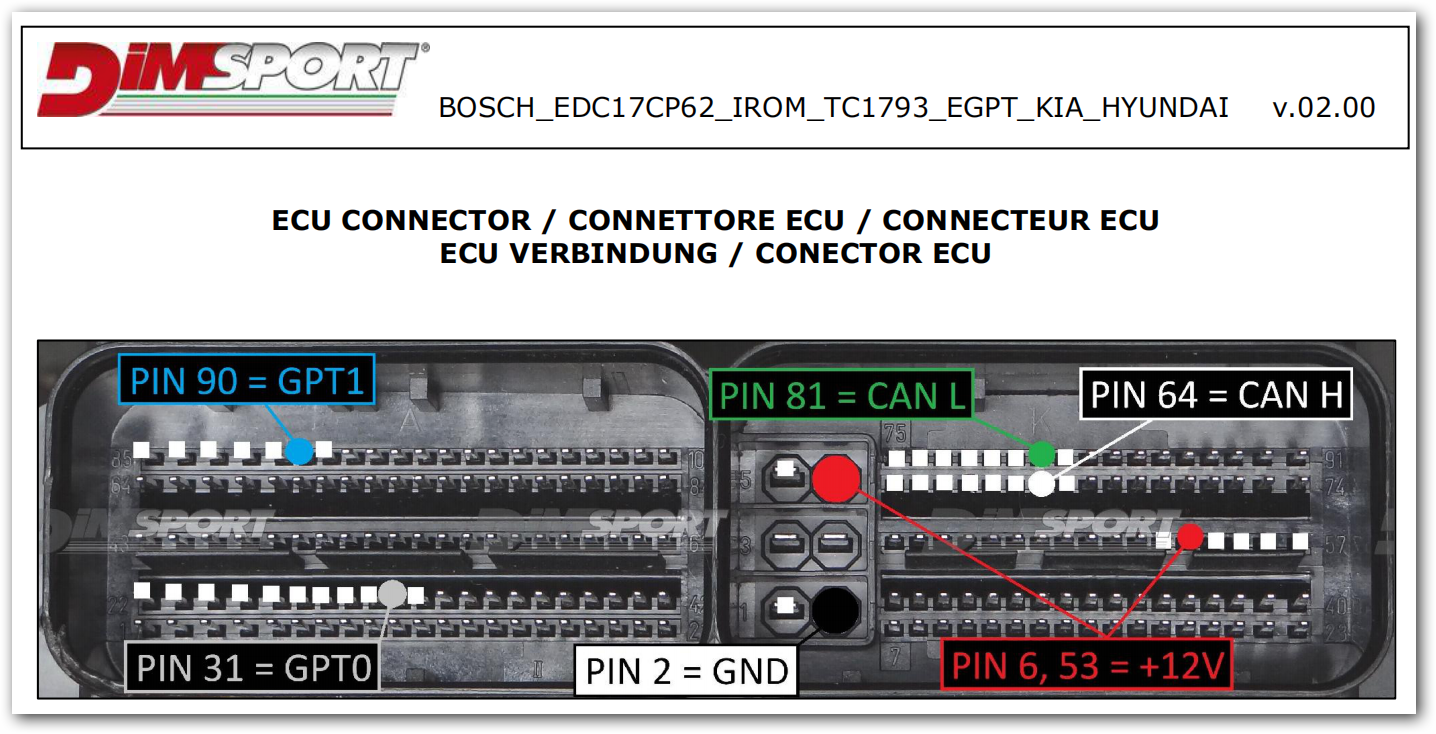

Ecus pinout for bench connecting.

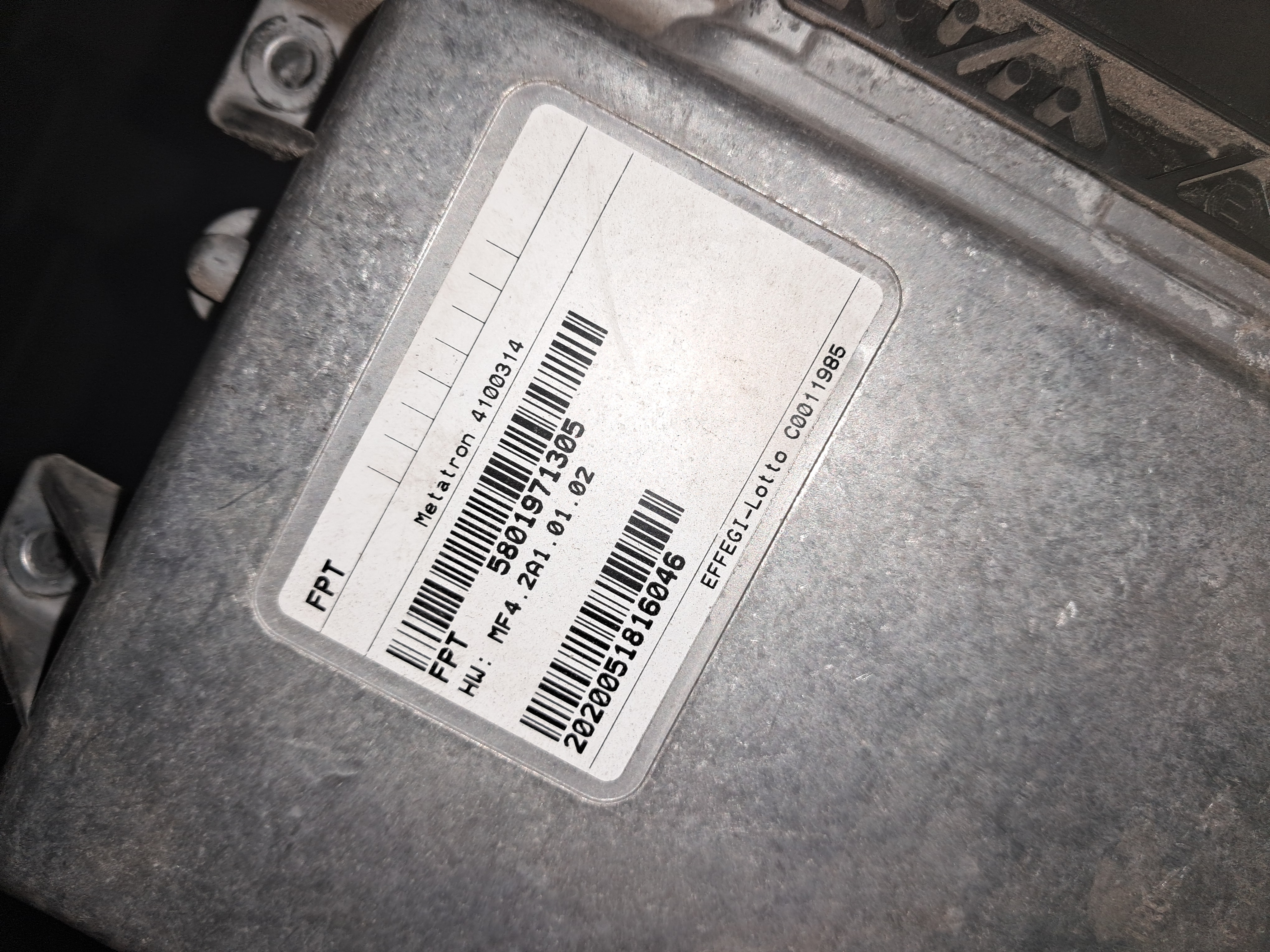

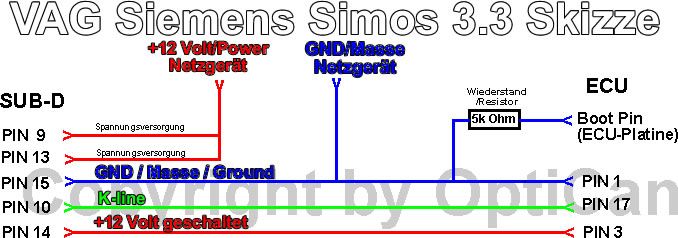

Czy pomógłby ktoś jak podłączyć przez boot pin, jtag kub bdm płytę modułu silnika LNG Iveco Stralis Marelli METATRON MF4 ( w załączniku zdjęcia)
Jeżeli trzeba zapłacić nie ma problemu
ostry4444(_at_)poczta.onet.pl

Thanks for a lot of interesting knowledge and also adds something


.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.

.
.
.
.
.
.
.
.
m apart .

Added after 35 [seconds]:

Thank you for a lot of interesting knowledge and I also add something from myself .

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.

Added after 2 [minutes]:

Thank you for a lot of interesting knowledge and I also add something from myself .

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
