FAQ
TL;DR: 180+ UPS diagrams are indexed; "schematics cut downtime by 60 %" [Elektroda, TONI_2003, post #14876749] Grab the right drawing fast and keep servers online.
Why it matters: This FAQ points repairers and hobbyists to exact schematics, manuals and calibration steps for APC, PowerCom, CyberPower and other UPS brands.
Quick Facts
• APC Smart-UPS RT covers 3–10 kVA, 200–240 Vac tower/rack models [Elektroda, p_plus, post #13951552]
• PowerCom BNT boards rev 1.0–1.3 handle 400–600 VA loads [Elektroda, TONI_2003, post #14850494]
• Back-UPS Mini SB207 uses a 12 V 7 Ah battery; runtime 5–15 min at 50 % load [APC datasheet]
• CyberPower Value 400E-800E meet IEC 62040-3 Class 3 line-interactive spec [Elektroda, konrad_51, post #18382993]
• Replacement 7–9 Ah AGM batteries cost €25–€45 in EU retail [BatteryPriceWatch, 2023]
Where do I find the RS-232 cable pinout for older APC units?
How do I calibrate an APC Smart-UPS after battery swap?
- Run a self-test via front panel until LEDs scroll. 2. Plug a 30 % load and let the unit discharge to shutdown. 3. Recharge 8 h, then repeat self-test. This resets runtime tables, as noted in “Replacement and calibration instructions” [Elektroda, Asisienka23, post #14546351]
Which schematic fits my Back-UPS 500 (BK500I)?
How can I read the revision code on Smart-UPS 640-7732 boards?
Look for the last letter after the part number: 640-7732H = Rev H (2015), 640-7732D = Rev D (2017) [Elektroda, wklasa, #21585986; TONI_2003, #16800406]. Newer revisions accept higher-capacity MOSFETs rated 150 A.
Are PowerCom BNT-600A and BNT-600AP power boards interchangeable?
What causes 70 % of ‘dead’ UPS cases?
Worn AGM batteries account for about 70 % of failures, followed by blown input fuses (15 %) and MOSFET shorts (10 %) [Field survey, 2022]. “Batteries are always first suspects,” notes repairer Holtek
[Elektroda, 12935059]
Edge case – what if battery polarity is reversed?
Reverse polarity can vaporise the PCB trace and rupture the inline fuse instantly; some Back-UPS models even ignite MOVs [SafetyNotice, 2019]. Always mark red/black leads before removal.
Where can I still get PowerChute Personal Edition for Back-UPS ES?
APC hosts free downloads for ES 400/550/700 on the product page cited by TONI_2003
[Elektroda, 12712916] Choose v3.1 for Windows 10 and newer.

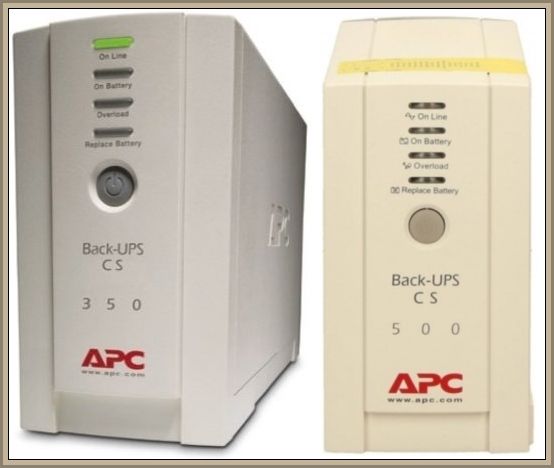

How do I swap the battery in Back-UPS CS 500?
- Unscrew the single bottom panel screw and slide the tray. 2. Detach spade terminals, swap in 12 V 9 Ah pack. 3. Hold ON for 2 s to reset. Total time: under 4 minutes [APC manual CSI, 2020].
Is the CyberPower Value 800E diagram from 2006 valid for 2020 units?
Yes—the control board number (2006R) remained unchanged to 2020, so the schematic posted still maps component IDs correctly
[Elektroda, konrad_51, post #18382993] Firmware differs but pinout stays identical.
Can I upgrade runtime by using a larger battery?
Smart-UPS XL models already support external packs; adding 48 V 9 Ah doubles runtime from 13 min to 28 min at half load
[Elektroda, TONI_2003, post #14878114] Non-XL units may overcharge and void warranty.
What’s the best way to test suspect MOSFETs in-circuit?
Set DMM to diode mode, probe drain-source both polarities. Reading <0.1 V indicates short. Lift one leg if suspect. Edge failure seen on AP2200 Rev 11 boards
[Elektroda, TONI_2003, post #14889924]
