  • #1 4246045
    pustan
    Level 19  
    Posts: 643
    Help: 17
    Rate: 1686
    To my colleague PIEF and others.

    In order not to assume a new similar topic, a few photos and an explanation and a diagram of the power supply.
    Attachments:
    • zasilacz.rar (8.83 MB) You must be logged in to download this attachment.
  • ADVERTISEMENT
  • #2 4246427
    Gienek
    Level 37  
    Posts: 2775
    Help: 393
    Rate: 350
    And who will be watching it?
    Such files cannot be viewed. At least show the diagram to interest someone.
  • ADVERTISEMENT
  • #3 4246462
    pustan
    Level 19  
    Posts: 643
    Help: 17
    Rate: 1686
    Hello

    The power supply I put was directed, among others, to my colleague PIEF, who asked for a diagram. I attached a description and photos additionally. If someone else is interested, it will be good.

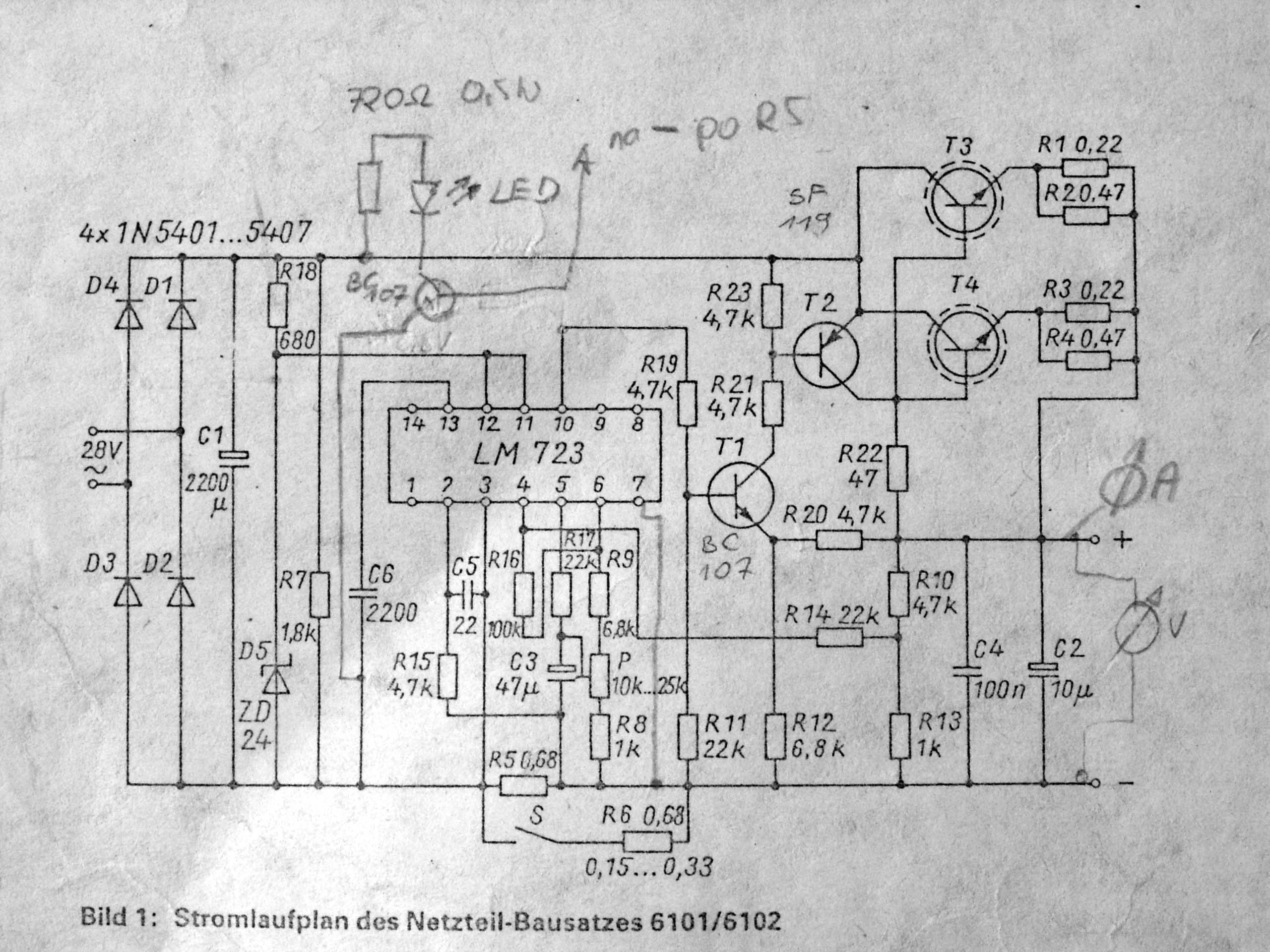

    Additionally, I will attach the diagram again.

    Regards .
    Attachments:
    • 0-30V, 0-3A Power Supply Diagram: Photos, Explanations, and Schematics for Colleague PIEF PICT4574.JPG (508.51 KB) You must be logged in to download this attachment.
  • #4 4249199
    Alpha
    Level 26  
    Posts: 1053
    Help: 63
    Rate: 455
    A tiny note: I don't see a smooth regulation of the output current here, so the description of "0-3A" is misleading.
  • #5 4252294
    pustan
    Level 19  
    Posts: 643
    Help: 17
    Rate: 1686
    Hello Alpha.

    I did not write about smooth current regulation. Current limitation in steps and voltage smoothly, coarse and accurately.

    Regards.
  • ADVERTISEMENT
  • #7 19214535
    fred114
    Level 12  
    Posts: 240
    Rate: 17
    Can you ask for a diagram of this power supply because the website, unfortunately, does not work anymore
  • ADVERTISEMENT
  • #10 19215170
    haderach
    Level 28  
    Posts: 889
    Help: 117
    Rate: 178
    I think it's the same power supply.
