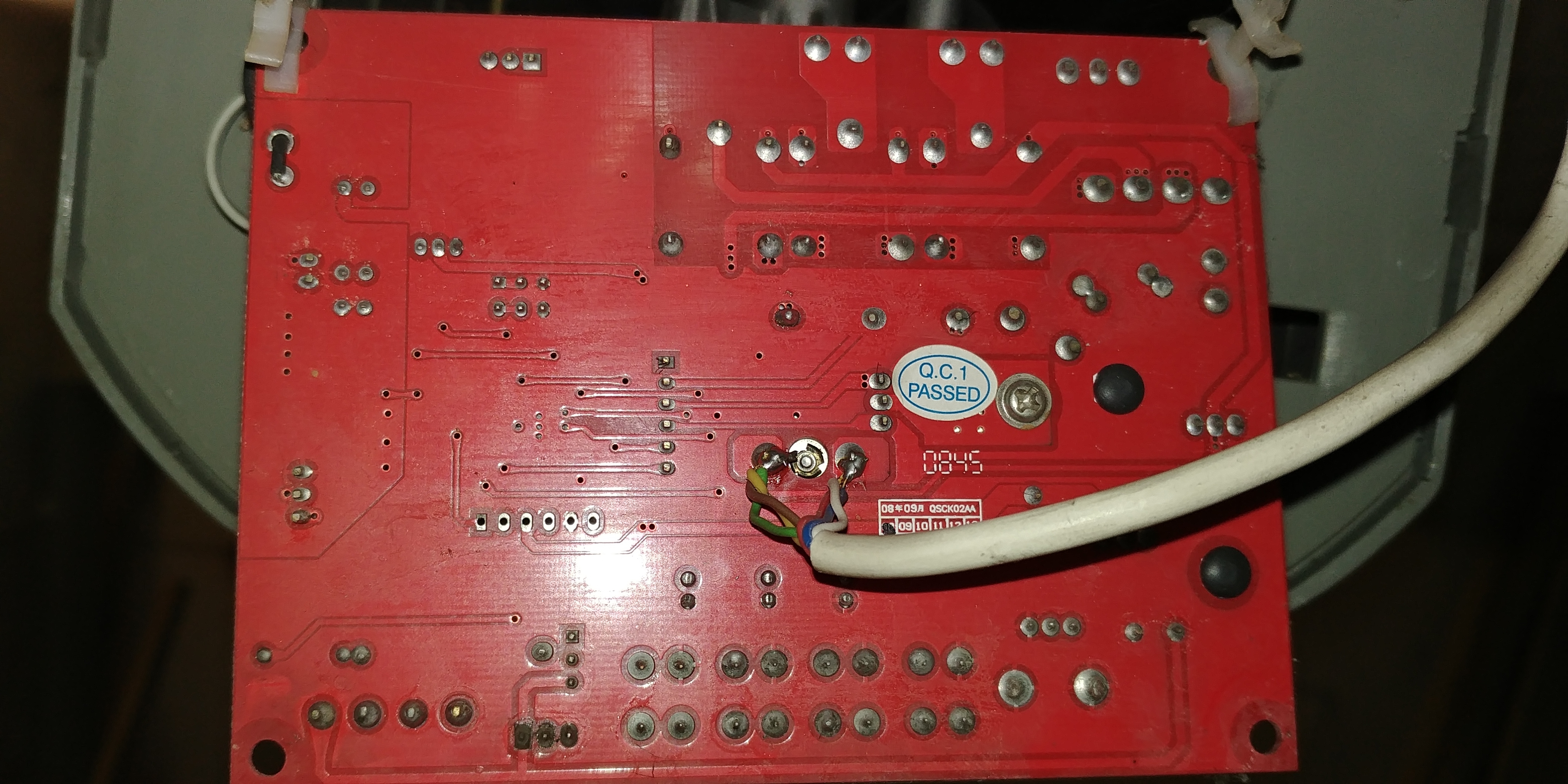

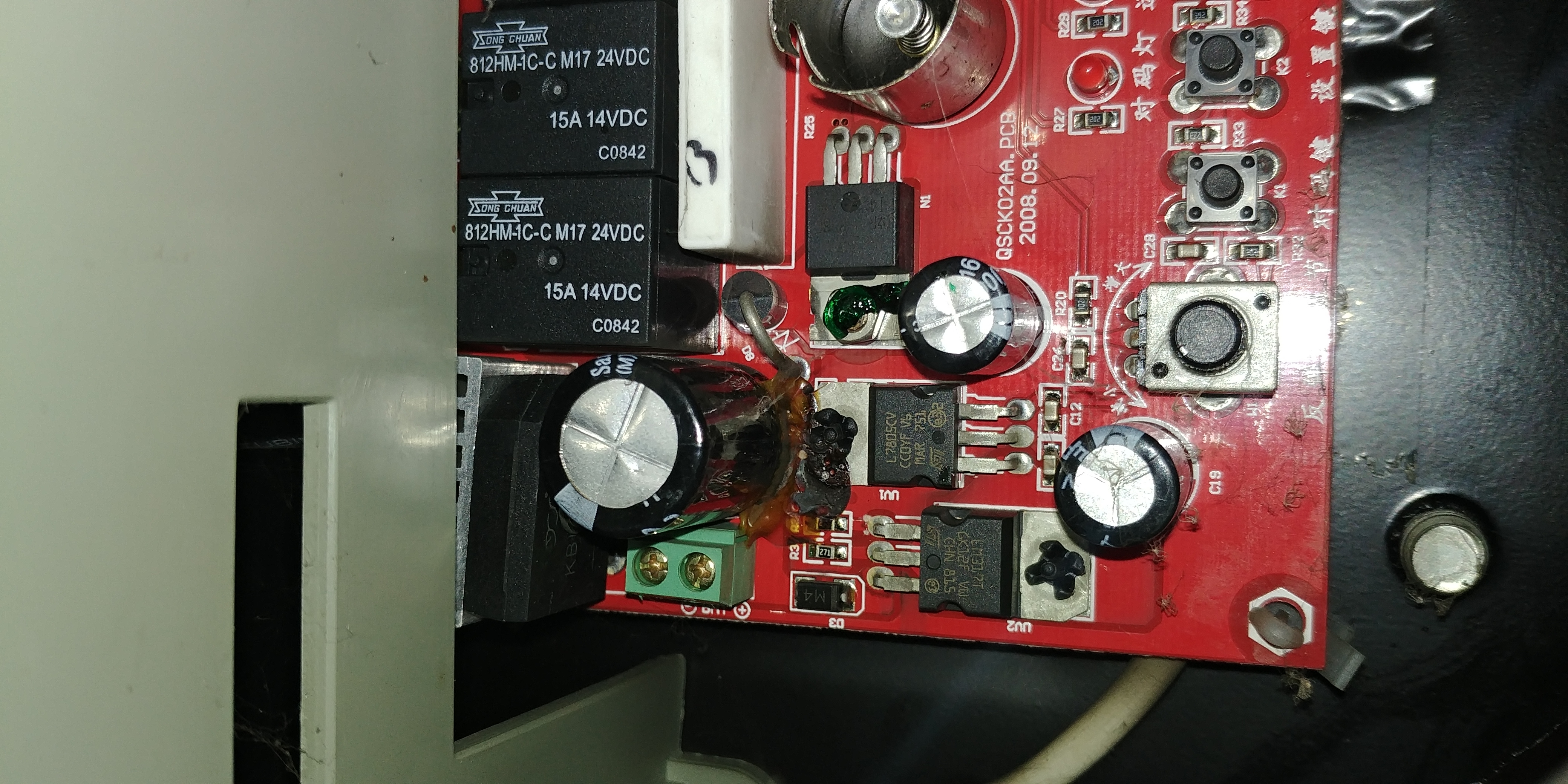

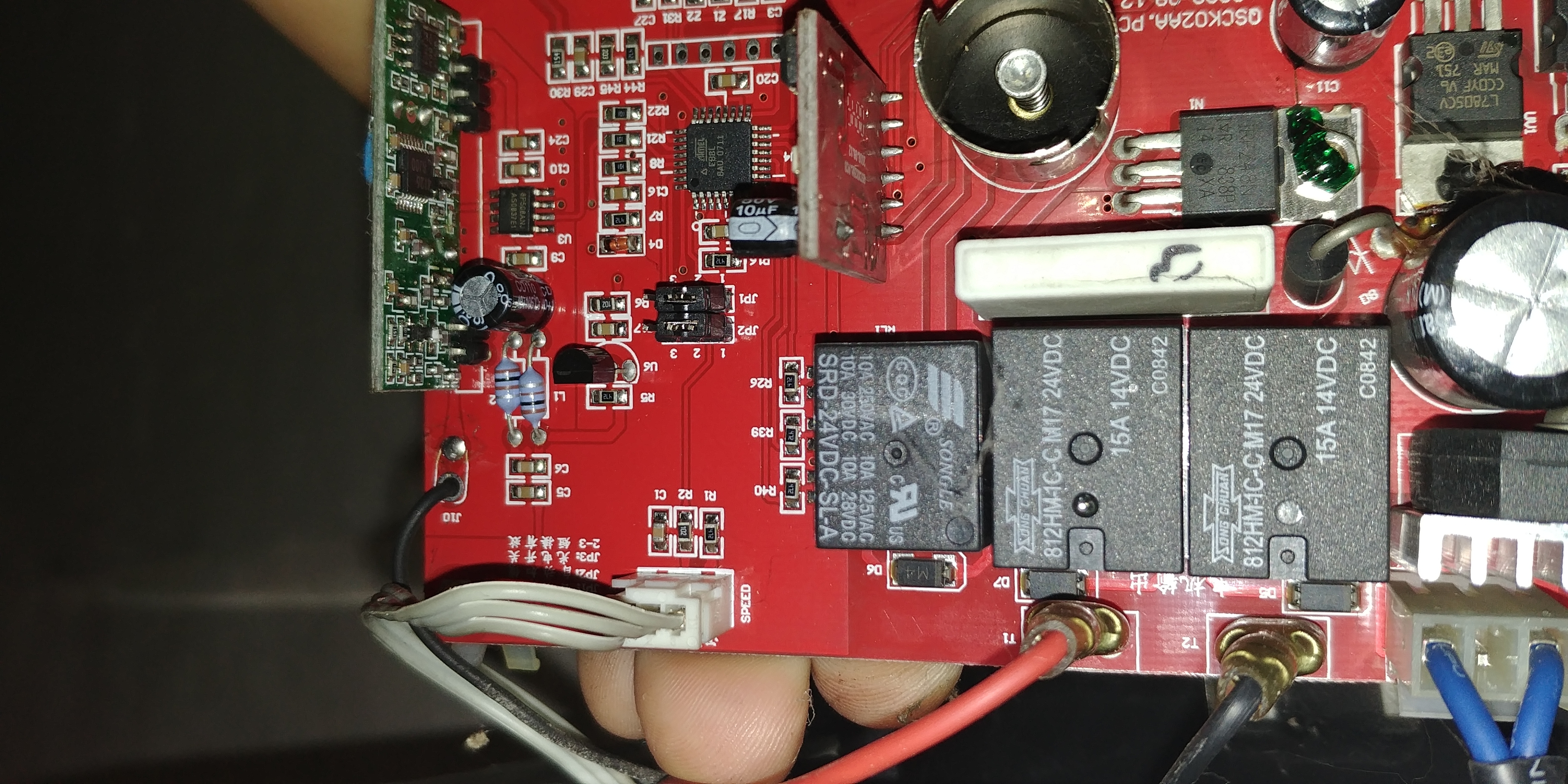

Hello, I need to connect a bell switch to the controller from the photo, I want to be able to open the gate from the inside of the garage. The problem is that I don't have instructions and the disc only has Chinese stamps. Maybe someone has a similar plate and instructions or knows where to...

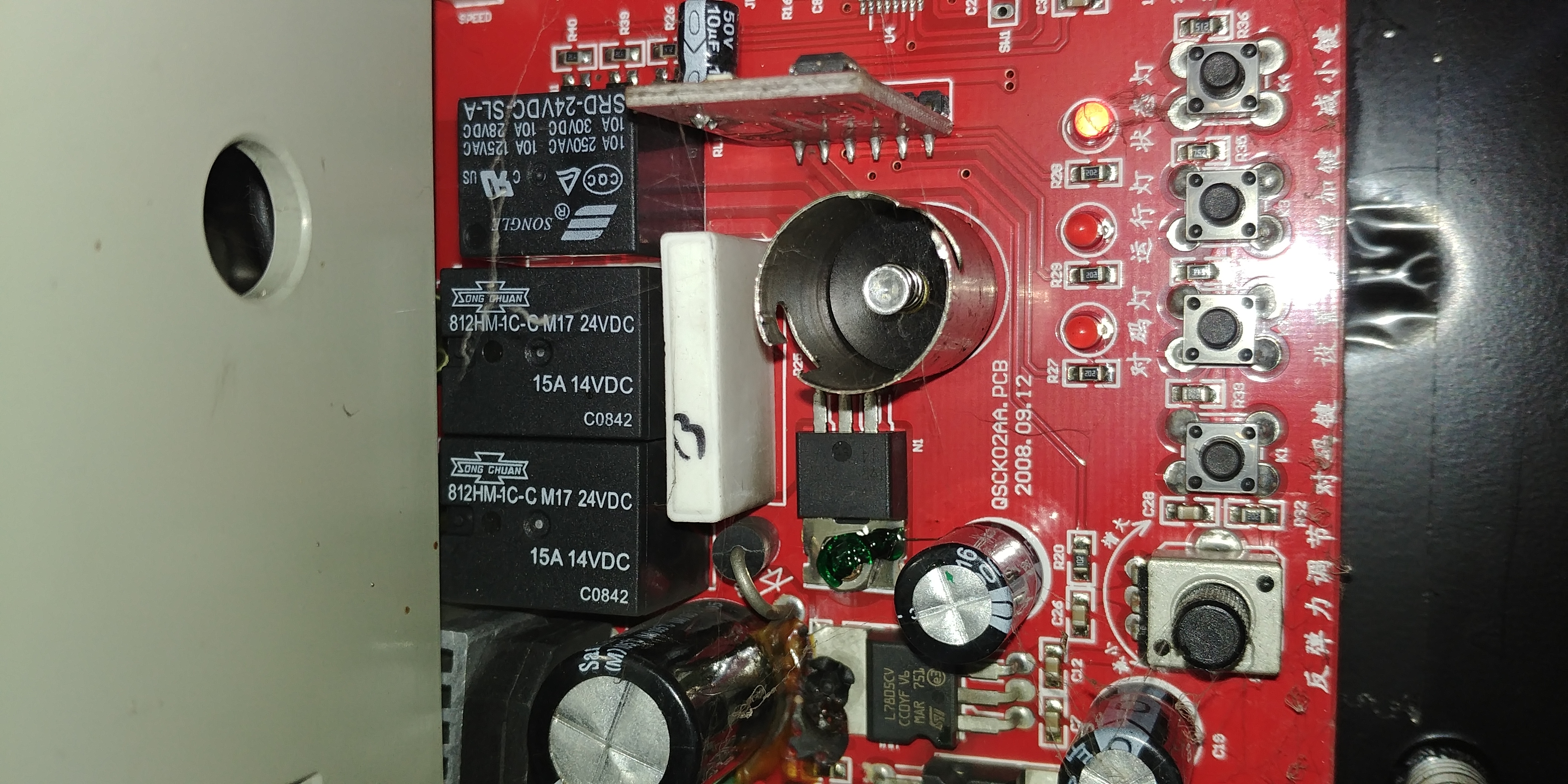

There is no marking on the housing. What are these buttons for?

Do you have it hooked up and it works? Take the meter and after starting the gate, check the status on the terminals during operation.

Unfortunately, no, the buttons are used for programming the remote control and probably programming the gate. This is how everything works, I also came up with this idea, unfortunately after 15 minutes of measurements I gave up - nothing changed, of course, except for the motor.

See, maybe something will help is similar. Noticemote..600.pdf Download (890.37 kB)

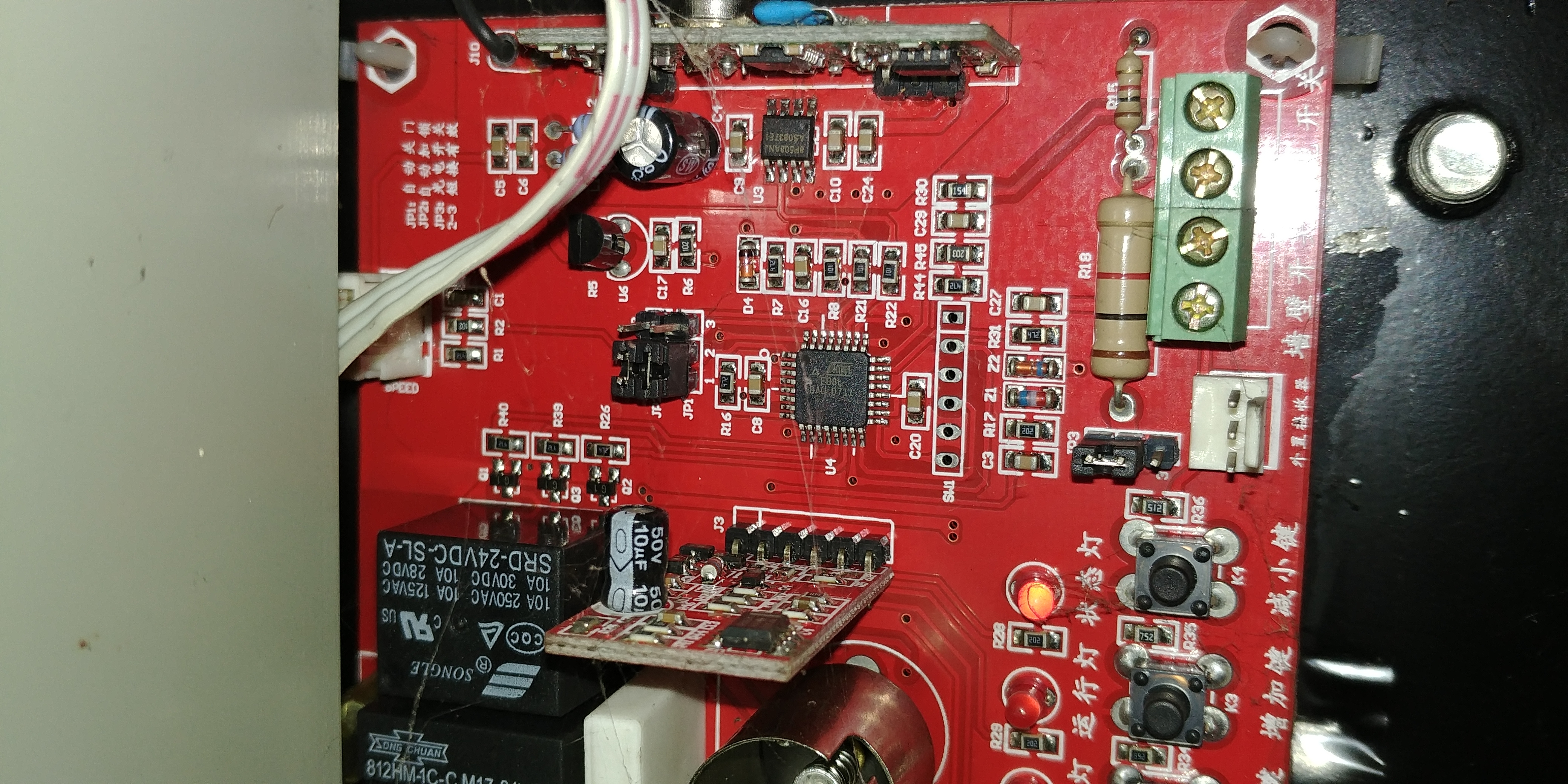

Thanks for the clue, but there is a nice pinout on the terminal to GND and QSW to which you can plug the switch.
