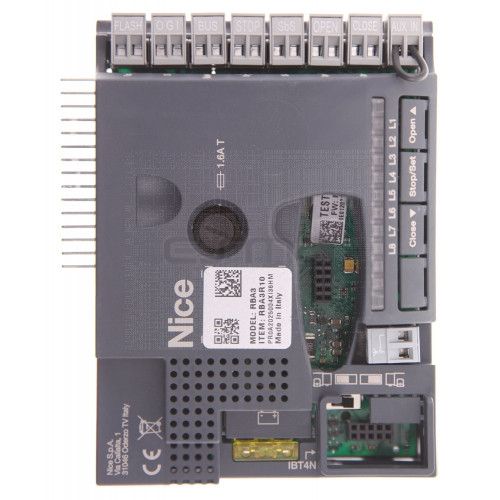

Mark: Nice Model: RBA3R10 More information: I'm looking for schematics or at least high-resolution photos of both sides of the PCB from the control panel for Nice ROBUS/RUN slide gates.

As it seems the schematics for this control unit have never leaked, I reverse engineered it and drew the schematics myself. In case anyone is interested, you can find it here:

Here is the manual for the RUN line of motors. No diagrams from Nice factory, unfortunately.

Looking for schematics for Nice RBA3R10 control panel
