Good afternoon, I am a student and as part of my coursework I have to make a modular CPU with ESP32 PICO D4 processor, using a power module, 5 V input (USB), connecting a battery with charger and a processor module with ISP and JTAG inputs, boot and reset buttons. Currently my project looks like...

Evaluation of the schematic of the modular CPU with ESP32 PICO D4, 5V USB power supply + battery

eee1234 144 1

Treść została przetłumaczona

Zobacz oryginalną wersję tematu

Reply | New topic

#1 21572579 07 Jun 2025 21:12

eee1234 eee1234

Level 1
» |

Post #1
21572579 07 Jun 2025 21:12

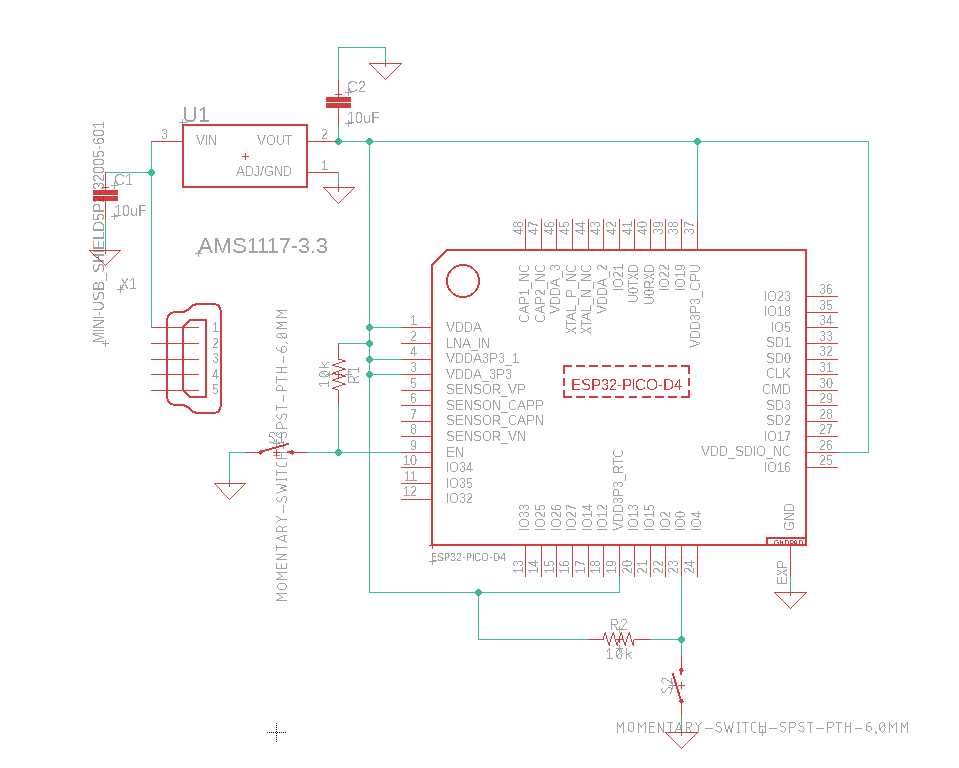

Good afternoon, I am a student and as part of my coursework I have to make a modular CPU with ESP32 PICO D4 processor, using a power module, 5 V input (USB), connecting a battery with charger and a processor module with ISP and JTAG inputs, boot and reset buttons. Currently my project looks like this. I don't have anyone to consult this schematic with, so I'd appreciate your feedback.

Attachments:

Smiw.png Download (25.5 KB)
ADVERTISEMENT
Helpful post

#2 21572610 07 Jun 2025 21:38

inot inot

Level 37

» | Helpful post? (+2)

Helpful post
Post #2
21572610 07 Jun 2025 21:38

Can be analysed: Link .
