#1 21678895 06 Feb 2018 18:58

huddslad huddslad huddslad huddslad

Anonymous
Post #1
21678895 06 Feb 2018 18:58

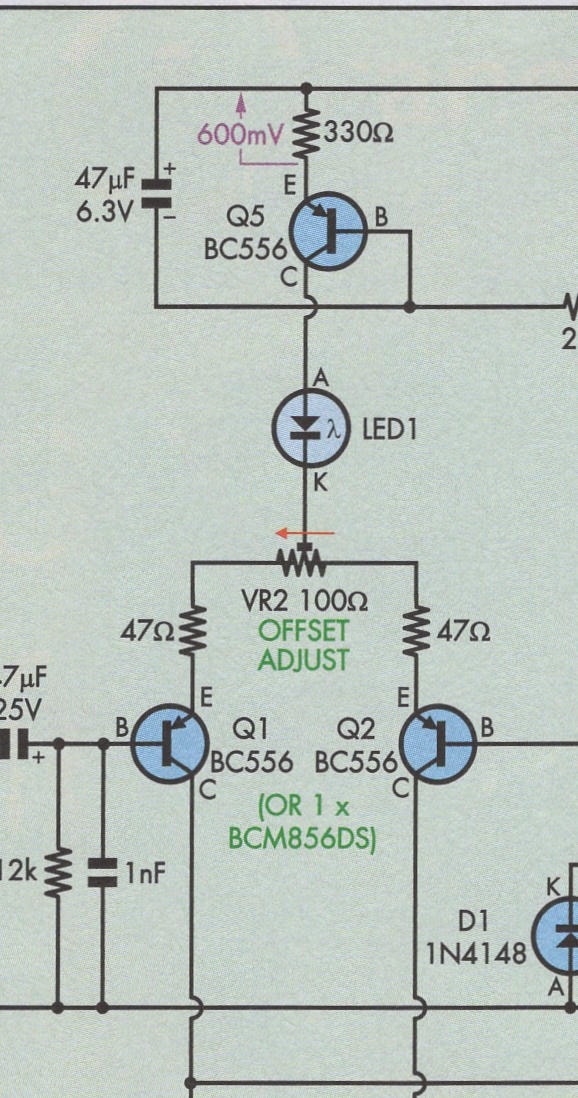

Hi everyone I am building the SC200 power amplifier and I would like to know what exactly is the purpose of LED1 which is on the input stage of the circuit. Can it be replaced with a diode or elIminiated completely??.
I have attached circuit diagram.
Thanks
Heath

Attachments:

forums-sc200-led1.jpg Download (151.3 KB)
ADVERTISEMENT
#2 21678896 06 Feb 2018 21:28

Alan Winstanley Alan Winstanley

Anonymous

Post #2
21678896 06 Feb 2018 21:28

The LED1 is essentially a power on indicator, it's discussed on page 24 January 2018 issue.

Please could you avoid posting entire circuit diagrams as this causes copyright problems, especially with current projects. It's OK to crop and show a small extract of the area you're interested in (classed as Fair Use) , but not project circuitry in its entirety. Many thanks,

-- Alan W / EPE
ADVERTISEMENT
#3 21678897 06 Feb 2018 21:36

Max Maxfield Max Maxfield

Anonymous

Post #3
21678897 06 Feb 2018 21:36

Hi Heath -- as per Alan's comment, could you please remove your attachment since it currently contains the entire circuit -- you could replace it with just the area/components around LED1.
#4 21678898 07 Feb 2018 18:26

huddslad huddslad huddslad huddslad

Anonymous

Post #4
21678898 07 Feb 2018 18:26

OK I will note for future posts. Someone has already changed the circuit picture.
RegardsHeath
