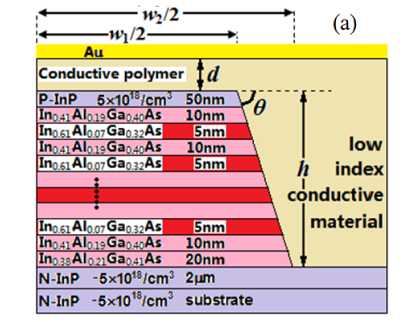

I want to use MQW statement in Atlas by Silvaco for a quantum well in my structure. I define the barrier in the region, but I do not know what to do with the values of x.min , x.max , y.min and y.max. How does the software know if this material is my barrier?
I want to know what the dimensions are for x .min , x .max , y.min and y.max for my structure barrier by the region statement. In fact, I have 9 barrier . Which barrier should I make in the statement?
My program is below. That is correct?
“region number=3 material=InAlGaAs x.comp=0.19 y.comp=0.40 x.min=-0.025 / x.max=+0.025 y.min=+0.100 y.max=+0.110
MQW ww=5 wb=10 nwell=8 material=InAlGaAs xcomp=0.07 ycomp=0.32 xmin=-0.025 / xmax=+0.025 ymin=+0.110 ymax=+0.230“
I want to know what the dimensions are for x .min , x .max , y.min and y.max for my structure barrier by the region statement. In fact, I have 9 barrier . Which barrier should I make in the statement?
My program is below. That is correct?
“region number=3 material=InAlGaAs x.comp=0.19 y.comp=0.40 x.min=-0.025 / x.max=+0.025 y.min=+0.100 y.max=+0.110
MQW ww=5 wb=10 nwell=8 material=InAlGaAs xcomp=0.07 ycomp=0.32 xmin=-0.025 / xmax=+0.025 ymin=+0.110 ymax=+0.230“
Attachments:
-
(96.95 KB)
