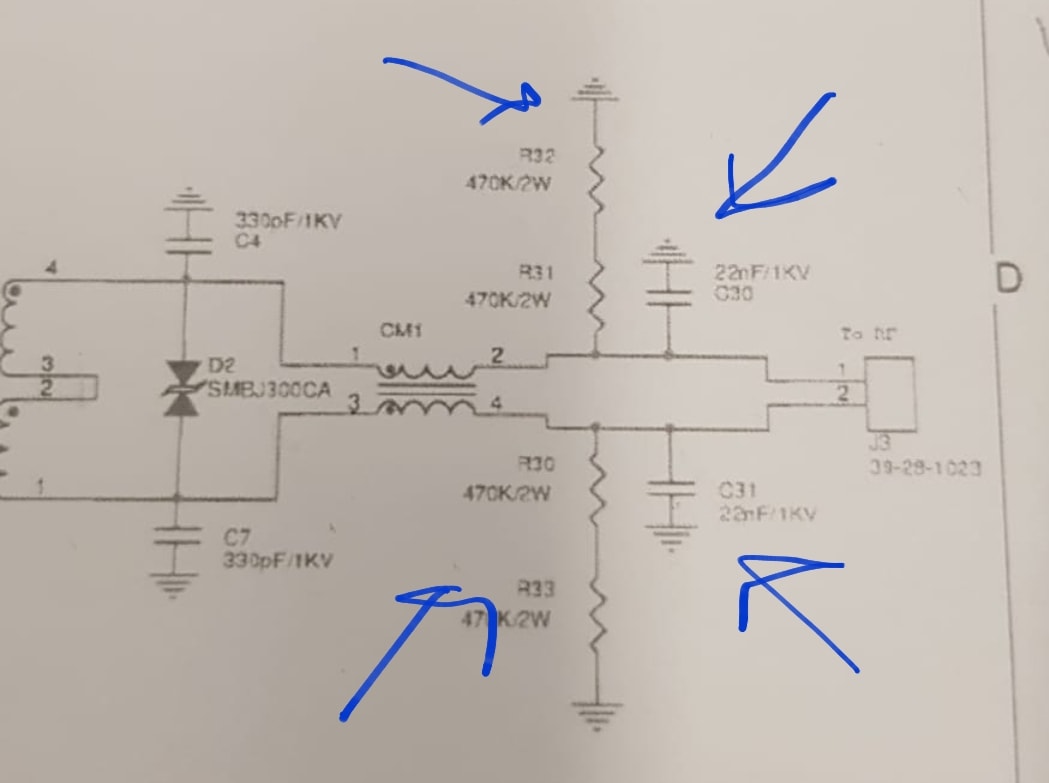

I have a tense circuit which outputs a bi phasic square signal with some leakage current flowing to the gnd which fails the device under external lab tests.i figured this probably happens due to the resistors and capacitors connected to gnd at the output so I removed them.upon doing so, the signal is now having ripple voltages, which explains why the capacitors were there.is there zn alternative way to eliminate this ripple voltage without using capacitors to gnd? Perhaps a common mode choke at the output?
Would appreciate any idea.
