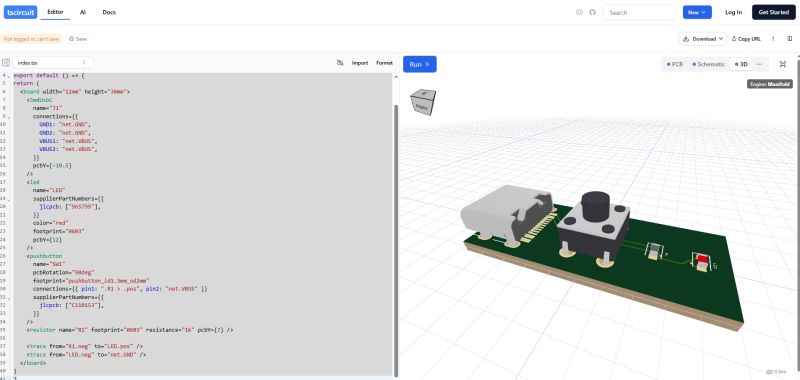

  • tscircuit editor with JSX code on the left and a 3D PCB preview on the right
    An interesting project is gaining popularity on site X tscircuit , which combines frontend web technologies (React + TypeScript) with electronics design. The idea is simple: instead of classic CAD like KiCad or Altium, we write the circuit as JSX code. The electronic components are represented as React elements, such as a resistor or capacitor. The code is processed into a circuit structure (JSON) and then rendered and prepared for further stages. The project has modules for previewing the circuit directly in the browser, also in 3D form. All this is live, with no delays or charges. The current version is fully functional and allows you to create your own tiles, although it does not yet include full systems such as ERC and DRC. Export to Gerber format is supported, however, and the author has already demonstrated the full process of creating a tile including ordering it from JLC. For a simple project, you can fit in just 40 lines of code.

    The project is available under the MIT licence and is 100% open source.


    tscircuit can be tried for free online:
    https://tscircuit.com/editor
    Just paste in an example of tile code and you can then edit it live along with a 2D/3D preview:
    Spoiler:

    Code: Javascript
    Log in, to see the code

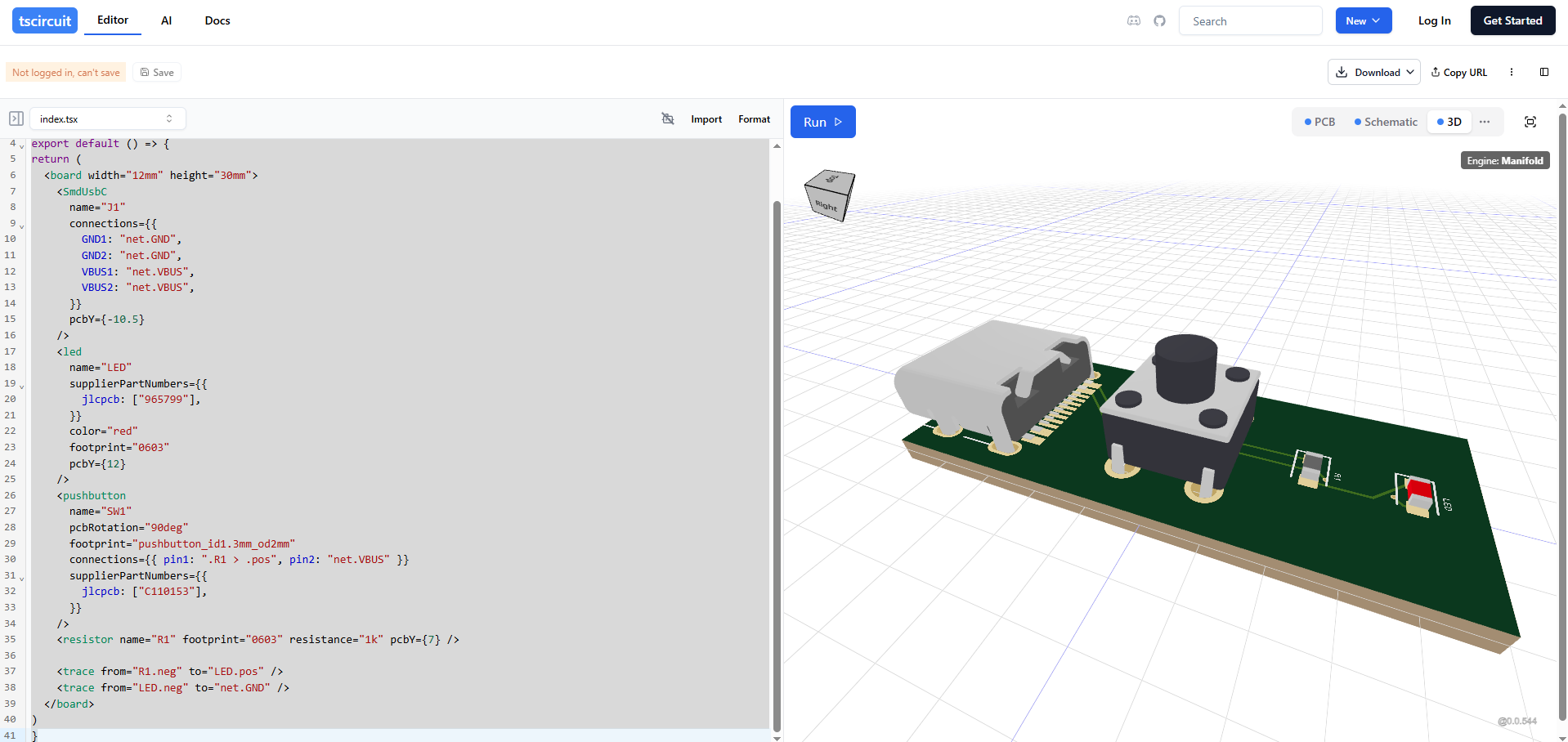

    A gallery of screenshots showing the results for the code posted above:

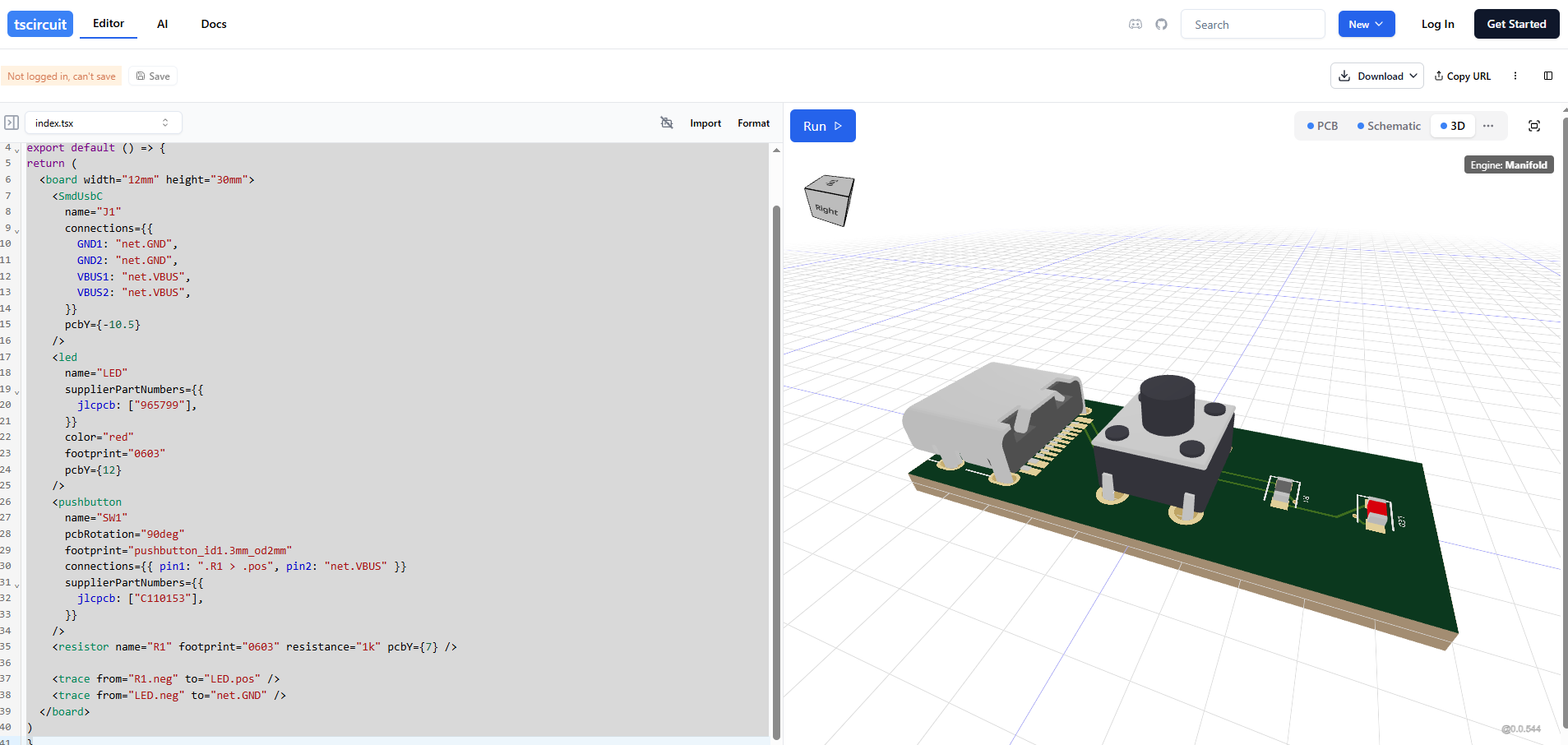

    Screenshot of the tscircuit editor with JSX code on the left and a 3D PCB preview on the right.

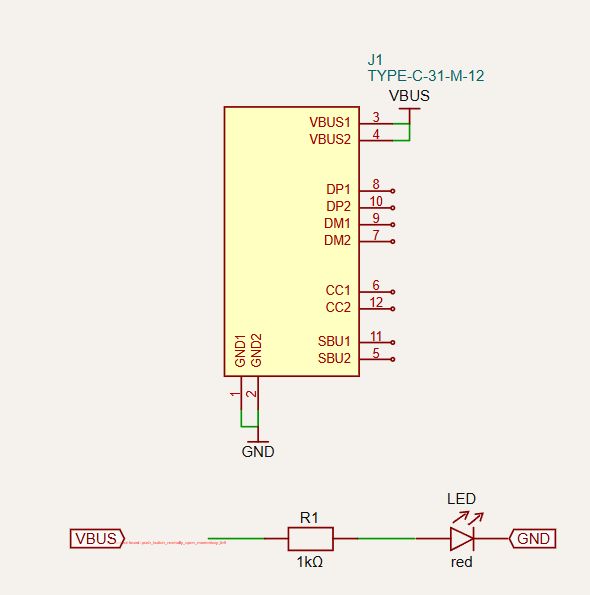

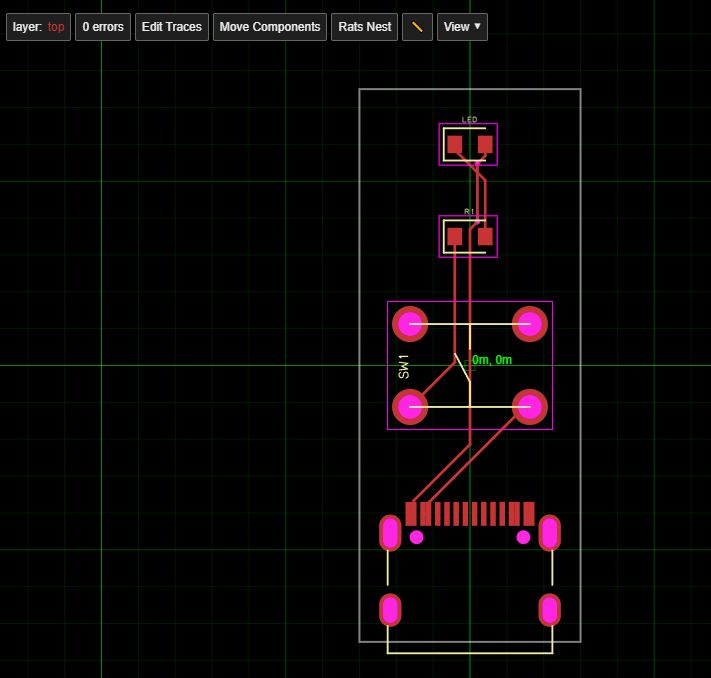

    Schematic of USB‑C connector J1 with VBUS, DP/DM, CC, SBU pins and an LED circuit with 1 kΩ to GND Browser-based PCB editor view with traces and components on a grid, top layer

    Sources:

    Project repository:
    https://github.com/tscircuit/tscircuit

    Do you see the potential of this approach to project development? Or has anyone already tested, tried to design a PCB this way?

    Cool? Ranking DIY
    Helpful post? Buy me a coffee.
    About Author
    p.kaczmarek2
    Moderator Smart Home  
    Offline
    p.kaczmarek2 wrote 14316 posts with rating 12202, helped 648 times. Been with us since 2014 year.
  • ADVERTISEMENT
  • #2 21870150
    p.kaczmarek2
    Moderator Smart Home  
    You're a bit right, but not entirely either - I remember, for example, that the formats from the old Eagle were pure XML, I even made a simple parser of its files myself at one time and it pretty much worked, displayed elements, etc. in my own program without external libraries. XML is a text format, it is easy to parse, it would be worse for LLM if it was a binary format. I'll have to try one day out of curiosity to generate .sch and .brd files for Eagle in the biggest LLMs and see if they can create correct ones.
    Helpful post? Buy me a coffee.
  • ADVERTISEMENT
  • #3 21870226
    gulson
    System Administrator  
    The project is seemingly old, 2 years old, but is only now gaining popularity and visibility thanks to better language models.
    Given how many variables, datasheets, differences in elements there are, we are still safe for the time being.
  • ADVERTISEMENT
  • #4 21870797
    Obywatel LutZek
    Level 13  
    I like how the person mentioned in the first post starts with "Electrical engineers are going to hate this", then attaches a video of an absurdly simple board :D . I feel like posts like this are electrifying to people who have never worked in hardware design. As are the people who develop such tools. Of course, automation of tasks will creep in at some point. But I suspect that once someone does it in an acceptable way, it will be the aforementioned Altium, which has the know how, the environment and a whole base of commercial projects in its cloud.
  • ADVERTISEMENT
  • #5 21870817
    gulson
    System Administrator  
    Exactly 'Electrical engineers are going to hate this', this is more to create outrage and boost views.
    That's how social media is these days, a battle for likes.
  • #6 21870921
    Citizen75
    Level 30  
    For the moment, it is rather a curiosity to show that it can be done. With extensive projects counting hundreds of paths, defining their parameters (design rules) for groups of paths or individual paths can be cumbersome.

    At the moment, we have a new version 10 of KiCad. There has also been a relatively new, free PCB design program for some time LibrePCB . Available for Windows, Linux, masOS and BSD.
