ESP8266 NodeMCU V3 + WS2812B 5V LED Strip Control via WiFi

BusyBoy 861 3

Treść została przetłumaczona

Zobacz oryginalną wersję tematu

Reply | New topic

#1 20524335 04 Apr 2023 11:13

BusyBoy BusyBoy

Level 8

Post #1

20524335 04 Apr 2023 11:13

Hello,

Some time ago using esp8266 nodemcu v3 plus transmitter id control TV via phone. Now I still wanted to add the ws2812b 5v led strip control.

I added new buttons in the code and added the effect I would like when the button is triggered (code all)


#include <FastLED.h>
#include <i18n.h>
#include <IRac.h>
#include <IRrecv.h>
#include <IRremoteESP8266.h>
#include <IRsend.h>
#include <IRtext.h>
#include <IRtimer.h>
#include <IRutils.h>
#include <ir_NEC.h>

#include <ESP8266WiFi.h>
#include <WiFiClient.h>
#include <ESP8266WebServer.h>
#include <ESP8266mDNS.h>

// Add this library: https://github.com/markszabo/IRremoteESP8266
#include <IRremoteESP8266.h>

#define IR_SEND_PIN D2

#define DELAY_BETWEEN_COMMANDS 1000

#define LED_PIN     D3
#define NUM_LEDS    20

CRGB leds[NUM_LEDS];
IRsend irsend(IR_SEND_PIN);

const char* ssid = "*****";
const char* password = "******";

ESP8266WebServer server(80);

const int led = BUILTIN_LED;

String rowDiv = "    <div class="row" style="padding-bottom:1em">n";
String endDiv = "    </div>n";

// Buttons are using the bootstrap grid for sizing - http://getbootstrap.com/css/#grid
String generateButton(String colSize, String id, String text, String url) {

  return  "<div class="" + colSize + "" style="text-align: center">n" +
          "    <button id="" + id + "" type="button" class="btn btn-default" style="width: 100%" onclick='makeAjaxCall("" + url + "")'>" + text + "</button>n" +
          "</div>n";
}

void handleRoot() {
  digitalWrite(led, 0);
  String website = "<!DOCTYPE html>n";
  website = website + "<html>n";
  website = website + "  <head>n";
  website = website + "    <meta charset="utf-8">n";
  website = website + "    <meta http-equiv="X-UA-Compatible" content="IE=edge">n";
  website = website + "    <meta name="viewport" content="width=device-width, initial-scale=1">n";
  website = website + "    <link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.7/css/bootstrap.min.css">n";
  website = website + "  </head>n";
  website = website + "  <body>n";
  website = website + "    <div class="container-fluid">n";

  website = website + rowDiv;
  website = website + endDiv;
  website = website + rowDiv;
  website = website + endDiv;
  website = website + rowDiv;
  website = website + generateButton("col-xs-6", "tvpower","TV POWER", "tvpower");
  website = website + generateButton("col-xs-6", "tvmute","MUTE", "tvmute");
  website = website + endDiv;
  website = website + rowDiv;
  website = website + endDiv;
  website = website + rowDiv;
  website = website + generateButton("col-xs-6", "pilotinfower","PILOT/INFO", "pilotinfo");
  website = website + generateButton("col-xs-6", "cofnij","COFINIJ", "cofnij");
  website = website + endDiv;
  website = website + rowDiv;
  website = website + rowDiv;
  website = website + endDiv;
  website = website + endDiv;
  website = website + rowDiv;
  website = website + generateButton("col-xs-4", "channel1","1", "channel1");
  website = website + generateButton("col-xs-4", "channel2","2", "channel2");
  website = website + generateButton("col-xs-4", "channel3","3", "channel3");
  website = website + endDiv;
  website = website + rowDiv;
  website = website + endDiv;
  website = website + rowDiv;
  website = website + generateButton("col-xs-4", "channel4","4", "channel4");
  website = website + generateButton("col-xs-4", "channel5","5", "channel5");
  website = website + generateButton("col-xs-4", "channel6","6", "channel6");
  website = website + endDiv;
  website = website + rowDiv;
  website = website + endDiv;
  website = website + rowDiv;
  website = website + generateButton("col-xs-4", "channel7","7", "channel7");
  website = website + generateButton("col-xs-4", "channel8","8", "channel8");
  website = website + generateButton("col-xs-4", "channel9","9", "channel9");
  website = website + endDiv;
  website = website + rowDiv;
  website = website + endDiv;
  website = website + rowDiv;
 website = website + generateButton("col-xs-12", "channel0","0", "channel0");
  website = website + endDiv;
  website = website + rowDiv;
  website = website + endDiv;
  website = website + rowDiv;

  website = website + generateButton("col-xs-6", "volplus","VOL+", "volplus");
  website = website + generateButton("col-xs-6", "volminus","VOL-", "volminus");
  website = website + endDiv;
  website = website + rowDiv;
  website = website + endDiv;
  website = website + rowDiv;
  website = website + generateButton("col-xs-6", "progplus","PROG+", "progplus");
  website = website + generateButton("col-xs-6", "progminus","PROG-", "progminus");


  website = website + endDiv;
[b]  website = website + rowDiv;
  website = website + endDiv;
  website = website + rowDiv;
  website = website + generateButton("col-xs-4", "off","OFF", "off");
  website = website + generateButton("col-xs-4", "czerowny","CZERWONY", "czerowny");
  website = website + generateButton("col-xs-4", "niebieski","NIEBIESKI", "niebieski");
  website = website + endDiv;
  website = website + rowDiv;
  website = website + endDiv;
  website = website + rowDiv;
  website = website + generateButton("col-xs-4", "zielony","ZIELONY", "zielony");
  website = website + generateButton("col-xs-4", "zolty","ŻÓŁTY", "zolty");
  website = website + generateButton("col-xs-4", "bialy","BIAŁY", "bialy");[/b]

  website = website + endDiv;
  website = website + "    <script src="https://ajax.googleapis.com/ajax/libs/jquery/1.12.4/jquery.min.js"></script>n";
  website = website + "    <script src="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.7/js/bootstrap.min.js"></script>n";
  website = website + "    <script> function makeAjaxCall(url){$.ajax({"url": url})}</script>n";
  website = website + "  </body>n";
  website = website + "</html>n";

  server.send(200, "text/html", website);
  digitalWrite(led, 1);
}

void handleNotFound(){
  digitalWrite(led, 1);
  String message = "File Not Foundnn";
  message += "URI: ";
  message += server.uri();
  message += "nMethod: ";
  message += (server.method() == HTTP_GET)?"GET":"POST";
  message += "nArguments: ";
  message += server.args();
  message += "n";
  for (uint8_t i=0; i<server.args(); i++){
    message += " " + server.argName(i) + ": " + server.arg(i) + "n";
  }
  server.send(404, "text/plain", message);
  digitalWrite(led, 1);
}

void setup(void){

  FastLED.addLeds<WS2812, LED_PIN, GRB>(leds, NUM_LEDS);

  irsend.begin();
  pinMode(led, OUTPUT);
  digitalWrite(led, 1);
  Serial.begin(115200);
  WiFi.begin(ssid, password);

// IP

IPAddress local_IP(192, 168, 1, 11);
IPAddress gateway(192, 168, 1, 1);
IPAddress subnet(255, 255, 255, 0);
WiFi.config(local_IP, gateway, subnet);

  Serial.println("");

  // Wait for connection
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println("");
  Serial.print("Connected to ");
  Serial.println(ssid);
  Serial.print("IP address: ");
  Serial.println(WiFi.localIP());

  if (MDNS.begin("esp8266")) {
    Serial.println("MDNS Responder Started");
  }

  server.on("/", handleRoot);

  server.on("/tvpower", [](){
    Serial.println("TV POWER");
  for (int i = 0; i < 3; i++) {
    irsend.sendNEC(0xE17A48B7, 32);
    delay(50);
  }
    server.send(200, "text/plain", "TV POWER");
  });

  server.on("/tvmute", [](){
    Serial.println("MUTE");
  for (int i = 0; i < 3; i++) {
    irsend.sendNEC(0xE17A9C63, 32);
    delay(50);
  }
    server.send(200, "text/plain", "MUTE");
  });

  server.on("/pilotinfo", [](){
    Serial.println("PILOT/INFO");
  for (int i = 0; i < 3; i++) {
    irsend.sendNEC(0xE17ADA25, 32);
    delay(50);
  }
    server.send(200, "text/plain", "PILOT/INFO");
  });

  server.on("/cofnij", [](){
    Serial.println("COFINIJ");
  for (int i = 0; i < 3; i++) {
    irsend.sendNEC(0xE17A3AC5, 32);
    delay(50);
  }
    server.send(200, "text/plain", "COFINIJ");
  });

  server.on("/channel1", [](){
    Serial.println("CH 1");
  for (int i = 0; i < 3; i++) {
    irsend.sendNEC(0xE17A807F, 32);
    delay(50);
  }
    server.send(200, "text/plain", "CH 1");
  });

  server.on("/channel2", [](){
    Serial.println("CH 2");
  for (int i = 0; i < 3; i++) {
    irsend.sendNEC(0xE17A40BF, 32);
    delay(50);
  }
    server.send(200, "text/plain", "CH 2");
  });

  server.on("/channel3", [](){
    Serial.println("CH 3");
  for (int i = 0; i < 3; i++) {
    irsend.sendNEC(0xE17AC03F, 32);
    delay(50);
  }
    server.send(200, "text/plain", "CH 3");
  });

  server.on("/channel4", [](){
    Serial.println("CH 4");
  for (int i = 0; i < 3; i++) {
    irsend.sendNEC(0xE17A20DF, 32);
    delay(50);
  }
    server.send(200, "text/plain", "CH 4");
  });

  server.on("/channel5", [](){
    Serial.println("CH 5");
  for (int i = 0; i < 3; i++) {
    irsend.sendNEC(0xE17AA05F, 32);
    delay(50);
  }
    server.send(200, "text/plain", "CH 5");
  });

  server.on("/channel6", [](){
    Serial.println("CH 6");
  for (int i = 0; i < 3; i++) {
    irsend.sendNEC(0xE17A609F, 32);
    delay(50);
  }
    server.send(200, "text/plain", "CH 6");
  });

  server.on("/channel7", [](){
    Serial.println("CH 7");
  for (int i = 0; i < 3; i++) {
    irsend.sendNEC(0xE17AE01F, 32);
    delay(50);
  }
    server.send(200, "text/plain", "CH 7");
  });


  server.on("/channel8", [](){
    Serial.println("CH 8");
  for (int i = 0; i < 3; i++) {
    irsend.sendNEC(0xE17A10EF, 32);
    delay(50);
  }
    server.send(200, "text/plain", "CH 8");
  });

  server.on("/channel9", [](){
    Serial.println("CH 9");
  for (int i = 0; i < 3; i++) {
    irsend.sendNEC(0xE17A906F, 32);
    delay(50);
  }
    server.send(200, "text/plain", "CH 9");
  });

  server.on("/channel0", [](){
    Serial.println("CH 0");
  for (int i = 0; i < 3; i++) {
    irsend.sendNEC(0xE17A00FF, 32);
    delay(50);
  }
    server.send(200, "text/plain", "CH 0");
  });

  server.on("/volplus", [](){
    Serial.println("VOL+");
  for (int i = 0; i < 3; i++) {
    irsend.sendNEC(0xE17A4CB3, 32);
    delay(50);
  }
    server.send(200, "text/plain", "VOL+");
  });

  server.on("/volminus", [](){
    Serial.println("VOL-");
  for (int i = 0; i < 3; i++) {
    irsend.sendNEC(0xE17ACC33, 32);
    delay(50);
  }
    server.send(200, "text/plain", "VOL-");
  });

  server.on("/progplus", [](){
    Serial.println("PROG+");
  for (int i = 0; i < 3; i++) {
    irsend.sendNEC(0xE17A0CF3, 32);
    delay(50);
  }
    server.send(200, "text/plain", "PROG+");
  });

  server.on("/progminus", [](){
    Serial.println("PROG-");
  for (int i = 0; i < 3; i++) {
    irsend.sendNEC(0xE17A8C73, 32);
    delay(50);
  }
    server.send(200, "text/plain", "PROG-");
  });

[b]
    server.on("/zielony", [](){
    for (int i = 0; i < 3; i++) {
  for (int j = 0; j <= 19; j++) {
    leds[i] = CRGB ( 255, 0, 0);
    FastLED.show();
    delay(50);
  }
  }
  });


  server.on("/czerowny", [](){
    for (int i = 0; i < 3; i++) {
  for (int j = 0; j <= 19; j++) {
    leds[j] = CRGB ( 0, 0, 255);
    FastLED.show();
    delay(50);
  }
  }
  });

    server.on("/niebieski", [](){
    for (int i = 0; i < 3; i++) {
  for (int j = 0; j <= 19; j++) {
    leds[i] = CRGB ( 0, 255, 0);
    FastLED.show();
    delay(50);
  }
  }
  });



    server.on("/off", [](){
    for (int i = 0; i < 3; i++) {
  FastLED.clear();  // clear all pixel data
  FastLED.show();
  }
  }
  );[/b]



  server.onNotFound(handleNotFound);

  server.begin();
  Serial.println("HTTP Server Started");
}

void loop(void){
  server.handleClient();
}

Fragment which I have added

  website = website + endDiv;
  website = website + rowDiv;
  website = website + endDiv;
  website = website + rowDiv;
  website = website + generateButton("col-xs-4", "off","OFF", "off");
  website = website + generateButton("col-xs-4", "czerowny","CZERWONY", "czerowny");
  website = website + generateButton("col-xs-4", "niebieski","NIEBIESKI", "niebieski");
  website = website + endDiv;
  website = website + rowDiv;
  website = website + endDiv;
  website = website + rowDiv;
  website = website + generateButton("col-xs-4", "zielony","ZIELONY", "zielony");
  website = website + generateButton("col-xs-4", "zolty","ŻÓŁTY", "zolty");
  website = website + generateButton("col-xs-4", "bialy","BIAŁY", "bialy");

and

    server.on("/zielony", [](){
    for (int i = 0; i < 3; i++) {
  for (int j = 0; j <= 19; j++) {
    leds[i] = CRGB ( 255, 0, 0);
    FastLED.show();
    delay(50);
  }
  }
  });


  server.on("/czerowny", [](){
    for (int i = 0; i < 3; i++) {
  for (int j = 0; j <= 19; j++) {
    leds[j] = CRGB ( 0, 0, 255);
    FastLED.show();
    delay(50);
  }
  }
  });

    server.on("/niebieski", [](){
    for (int i = 0; i < 3; i++) {
  for (int j = 0; j <= 19; j++) {
    leds[i] = CRGB ( 0, 255, 0);
    FastLED.show();
    delay(50);
  }
  }
  });



    server.on("/off", [](){
    for (int i = 0; i < 3; i++) {
  FastLED.clear();  // clear all pixel data
  FastLED.show();
  }
  }
  );

And here the problem arises. Because, for example, when I press the green button, the led bar works correctly, but when I press e.g. the next red button, the led bar "goes stupid" and starts green, red, blue so not the green colour itself. The buttons work with a delay. Unfortunately I do not know what this is caused by ☹

Maybe someone can help me with this topic....

ADVERTISEMENT
#2 20525681 05 Apr 2023 07:52

p.kaczmarek2 p.kaczmarek2

Moderator Smart Home

» | Helpful post? (0)

Post #2
20525681 05 Apr 2023 07:52

Why do you use i and j once?

By the way, I don't know why you have these extra loops so strangely done. Aren't they by any chance just copied without further analysis from:
Code: C / C++
Log in, to see the code
?

By the way.... if you have a constant in the code, why do you rigidly type 19...?
Code: C / C++
Log in, to see the code

I am creating multiplatform open source firmware (Tasmota replacement), right now supporting BK7231T, BK7231N, XR809, BL602, W800, W600, LN882H and soon supporting RTL and W701:
https://github.com/openshwprojects/OpenBK7231T
If you like my work, support me at: https://paypal.me/openshwprojects

Helpful post? Buy me a coffee.
ADVERTISEMENT
#3 20526325 05 Apr 2023 15:37

BusyBoy BusyBoy

Level 8

» | Topic author Helpful post? (0)

Post #3
20526325 05 Apr 2023 15:37

By the way, I don't know why you have these extra loops done so strangely. Aren't they by any chance just copied without further analysis from:

Yes you're right - I'm trying by trial and error somehow to solve this teamt - that's why I copied the part responsible for infrared transmission (ira) and converted it to led bar.

Why are there two variables ? hmm as I mentioned - I copied the code - and since there was also a loop there, I used it plus a loop for the led bar.
#4 20526333 05 Apr 2023 15:42

p.kaczmarek2 p.kaczmarek2

Moderator Smart Home

» | Helpful post? (0)

Post #4
20526333 05 Apr 2023 15:42

It seems to me that it would be better if you analysed what these loops were doing, rather than copying. I don't know the libraries by heart, but that loop up to 3 is a leftover from copying the loop that sent the IR codes three times. In addition, in one of the loops you use j and in another you use only i, with the result that you only change the first 3 colours, the others are unchanged.

Remove the unnecessary loop counting up to 3 and change the colours only with one loop, for the stop condition use NUM_LEDS.

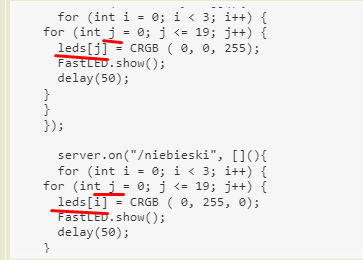

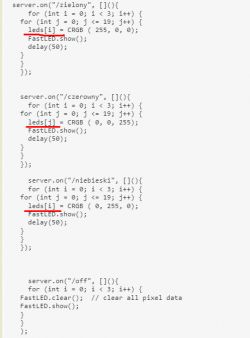

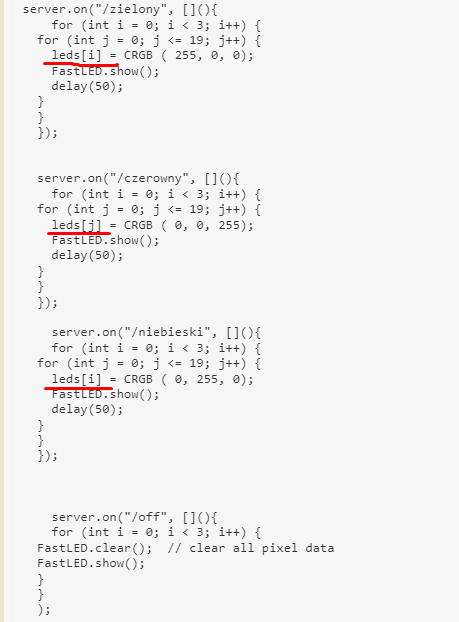

You have underlined here what causes the problem:

Also these delays are superfluous - they also confuse you and make it hard to keep track of what is happening. For this reason the bar can seemingly run with a delay.

Another thing is that in the loop you have to set the colours - and the show is enough once outside the loop. You at this point in the loop do these 20 times delay and show....

I am creating multiplatform open source firmware (Tasmota replacement), right now supporting BK7231T, BK7231N, XR809, BL602, W800, W600, LN882H and soon supporting RTL and W701:
https://github.com/openshwprojects/OpenBK7231T
If you like my work, support me at: https://paypal.me/openshwprojects

Helpful post? Buy me a coffee.
Create an account, log in and become active in a forum and ads will not appear. You will receive points by participating in discussions.
Join this discussion.

Install the application

Didn't find an answer? Ask Artificial Intelligence

*I agree to send the question to OpenAI, Anthropic PBC, Perplexity AI, Inc., Kagi Inc., Google LLC - owners of language models in order to prepare the best response. The companies may monitor and log information entered into the form.

*I agree to publicly display my question and answer. The question and answer will be publicly available to everyone. The process may take a few minutes. Upon completion, you will be redirected to the page with the answer.

Wait...(2min)

Reply | New topic

Report a violation of the law

Home page
/
Forum
/
Smart Home
/
Smart Home IoT
/
ESP8266 i ESP32
/
ESP8266 NodeMCU V3 + WS2812B 5V LED Strip Control via WiFi

ESP8266 NodeMCU V3 + WS2812B 5V LED Strip Control via WiFi

Didn't find an answer? Ask Artificial Intelligence
