[BK7231N] Feit Electric - 100W (18W) A21/E26 RGBCW Bulb (OM100/RGBW/CA/AG)

mattj  0 1644 Cool? (+3)
📢 Listen (AI voice):

TL;DR

  • Feit Electric’s 100W-equivalent A21/E26 RGBCW bulb, model OM100/RGBW/CA/AG, is examined in a partial teardown.
  • Inside, it uses a CB2L BK7231N controller with 5 PWM channels for color control.
  • The bulb is rated at 18W actual, 1600 lumen, and 90+ CRI.
  • It was flashed successfully with Tuya CloudCutter on firmware version 1.2.16, with Flag 8 required.
AI summary based on the discussion. May contain errors.

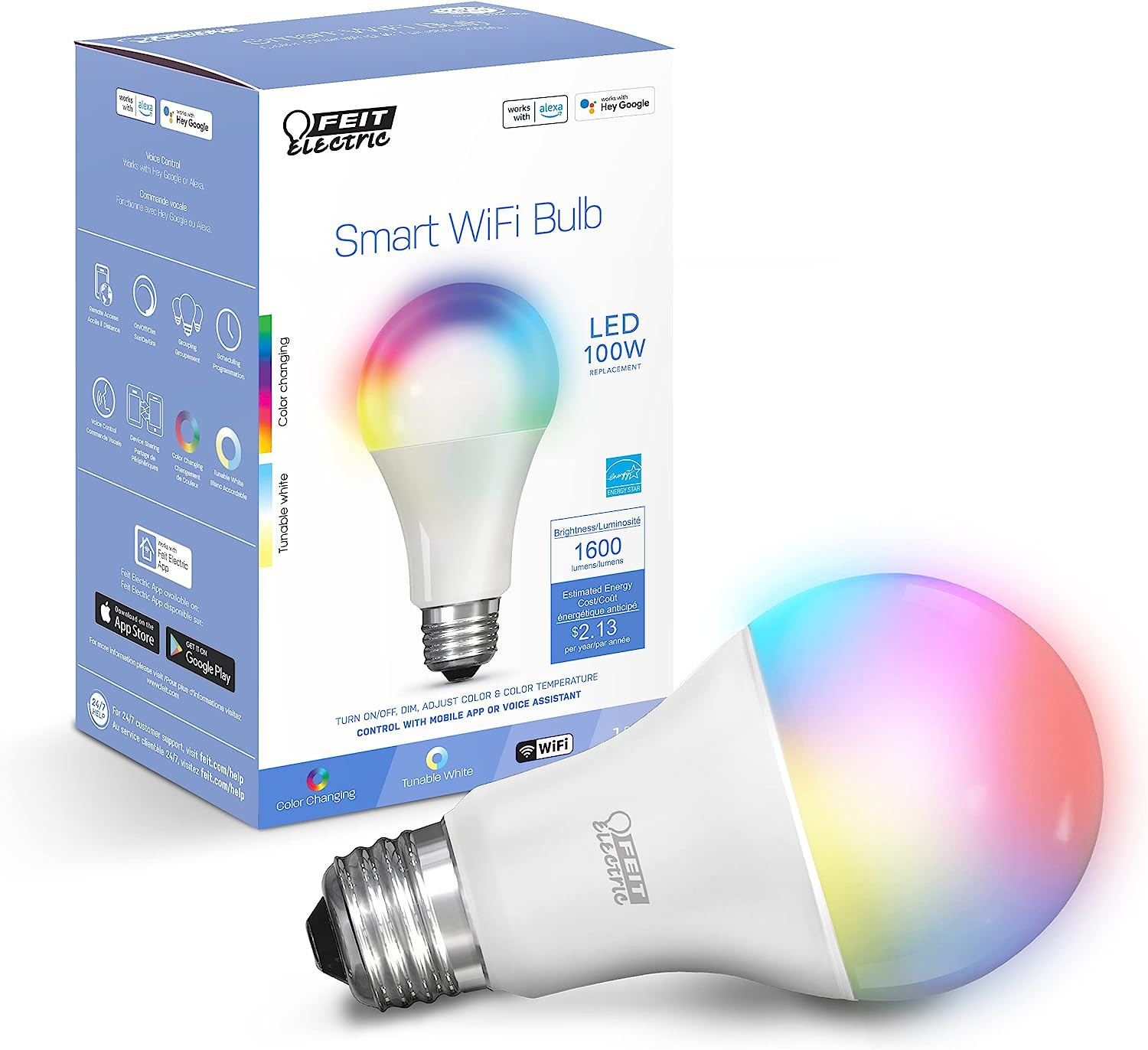

Another RGBCW bulb from Feit Electric... this one has a different configuration than those which have already been discussed here.



Amazon Listing: https://www.amazon.com/dp/B07X8QXR9L?psc=1&ref=ppx_yo2ov_dt_b_product_details

Specs:
* 100W Equivalent
* 18W actual
* 1600 lumen
* 90+ CRI

Teardown (Partial):


Config:
* Equipped with a CB2L (BK7231N)
* 5 PWM control
* Need to set Flag 8
* Flashed with Tuya CloudCutter (FW Version: 1.2.16)



Code: text Expand Select all Copy to clipboard

{
  "vendor": "Feit Electric",
  "bDetailed": "0",
  "name": "Feit Electric - 100W (18W) A21/E26 RGBCW Bulb (OM100/RGBW/CA/AG)",
  "model": "OM100/RGBW/CA/AG)",
  "chip": "BK7231N",
  "board": "TODO",
  "flags": "1280",
  "keywords": [
    "TODO",
    "TODO",
    "TODO"
  ],
  "pins": {
    "6": "PWM;2",
    "7": "PWM;3",
    "8": "PWM_n;4",
    "24": "PWM;5",
    "26": "PWM;1"
  },
  "command": "",
  "image": "https://obrazki.elektroda.pl/8403676000_1687643661.jpg",
  "wiki": "https://www.elektroda.com/rtvforum/viewtopic.php?p=20629993#20629993"
}
