    p.kaczmarek2 wrote:
    Wait @Pete0815, so what exactly helped?


    Mmmh, need some more testing. For a quick answer, I just changed the state query back to a one-shot from repeating every 5 sec and expecting this is it.
    BUT, the energy counter is still working fine after this.

    So very strange because of no function before. Will test more carefully to find out.

    Edit: Tested again and again but no result why.

    The autoexec.bat is now:
    Code: text Expand Select all Copy to clipboard
    // This script provides extra REST page for hosting in LittleFS
// Please see: https://www.elektroda.com/rtvforum/topic4040354.html
// Script taken from: https://www.elektroda.com/rtvforum/viewtopic.php?p=20990058#20990058
// Download HTML there.

// Clear all previous definitions
clearIO

// clear flags
// flags 0

// set flag 46
SetFlag 46 1

// start TuyaMCU driver
startDriver TuyaMCU
tuyaMcu_setBaudRate 9600

// This one is better than tuyaMcu_defWiFiState 4;  MQTTState 1 = WiFiState 4
// issuing of tuyaMcu_defWiFiState 4 continues the script,
// but doesnt report to MQTT since there is still no connection.
// if you didn't setup MQTT connection then issue tuyaMcu_defWiFiState 4
// and comment waitFor MQTTState 1

waitFor MQTTState 1
//tuyaMcu_defWiFiState 4

// Total energy - Dpid 1 "total_forward_energy" -> channel 4
linkTuyaMCUOutputToChannel 1 val 4
setChannelType 4 EnergyTotal_kWh_div100
setChannelLabel 4 "Total Energy"

// Measurements - Dpid 6 "phase_a" - channel RAW_TAC2121C_VCP -> 5,6,7
// TAC2121C VoltageCurrentPower Packet
// This will automatically set voltage, power and current
linkTuyaMCUOutputToChannel 6 RAW_TAC2121C_VCP
setChannelType 5 Voltage_div10
setChannelLabel 5 "Voltage"
setChannelType 6 Power
setChannelLabel 6 "Power"
setChannelType 7 Current_div1000
setChannelLabel 7 "Current"


// Fault - Dpid 9 "fault" -> channel 9
linkTuyaMCUOutputToChannel 9 raw 9
setChannelType 9 ReadOnly
setChannelLabel 9 "Fault"

// Prepayment on-off - Dpid 11 "switch_prepayment" -> channel 2
linkTuyaMCUOutputToChannel 11 bool 2
setChannelType 2 toggle
setChannelLabel 2 "Prepayment"

// Clear Energy Counters - Dpid 12 "clear_energy" -> channel 3
linkTuyaMCUOutputToChannel 12 bool 3
setChannelType 3 toggle
setChannelLabel 3 "Clear Energy Counters"

// Prepaid energy - Dpid 13 "balance_energy" -> channel 11
linkTuyaMCUOutputToChannel 13 val 11
setChannelType 11 EnergyTotal_kWh_div100
setChannelLabel 11 "Total Prepaid Energy"

// Charge Prepayment - Dpid 14 "charge_energy" - channel 12
linkTuyaMCUOutputToChannel 14 val 12
setChannelType 12 TextField
setChannelLabel 12 "Purchased Energy [kWh*100], i.e. 1kWh = 100"

// Settings 1 - Dpid 17 "alarm_set_1" - channel 13
linkTuyaMCUOutputToChannel 17 val 13
setChannelType 13 TextField
setChannelLabel 13 "Leakage Current Protection Settings"

// Settings 2 - Dpid 18 "alarm_set_2" -> channel 10
linkTuyaMCUOutputToChannel 18 raw 10
setChannelType 10 ReadOnly
setChannelLabel 10 "UV, OV, Max. Current Protections Settings"

// Breaker Id - Dpid 19 "breaker_id" -> channel 0
linkTuyaMCUOutputToChannel 19 str 0
setChannelType 0 ReadOnly
setChannelLabel 0 "Breaker ID"

// The above are read only channels. Except Settings 2 (mapped on channel 10), but since we cannot set it due to wrong parse of TuyaMCU driver - for now read only


// NOTE: addRepeatingEvent [RepeatTime] [RepeatCount]
// code below will forever Send query state command every 5 seconds
//addRepeatingEvent 5 -1 tuyaMcu_sendQueryState

// AngelOfDeath - We don't need it forever, since TuyaMCU sends everything when necessary
// we need it just first time to obtain initial status. Some dpIDs not reported without asking
 tuyaMcu_sendQueryState


    So beside Alarm Set 1 & 2 and Leakage Protection everything seems to be ok.
    Because OV, UV and Max current protection are read only I´m not sure how to set this alarm values.


    Edit2:
    Still a guess what has happened but identified a new problem/reason.

    Maybe during I struggeld getting some data my MQTT connecting was not connected/configured.
    So the autoexec.bat entry:
    Code: text Expand Select all Copy to clipboard
    waitFor MQTTState 1

    will be a problem.

    So for now, I deleted the MQTT configuration for testing and the current, power and energy counter values are missing/not send anymore.

    Then I activated
    Code: text Expand Select all Copy to clipboard
    tuyaMcu_defWiFiState 4
    in the autoexec.bat and the energy counter started to send a value but current and power still missing.

    After changing back the
    Code: text Expand Select all Copy to clipboard
    waitFor MQTTState 1
    in the autoexec.bat and configured a mqtt connection everything is fine again.

    So to achieve this status I need a working MQTT connection.
  • ADVERTISEMENT
  • #32 21100203
    p.kaczmarek2
    Moderator Smart Home  
    Posts: 14505
    Help: 651
    Rate: 12505
    do you have enabled TuyaMCU queue in device flags?
    Helpful post? Buy me a coffee.
  • ADVERTISEMENT
  • #33 21100333
    Pete0815
    Level 7  
    Posts: 34
    Help: 1
    Rate: 3

    p.kaczmarek2 wrote:
    do you have enabled TuyaMCU queue in device flags?


    No it was disabled and now enabled and tested again .... very illogical results....

    After enabling TuyaMCU queue I disabled the MQTT configuration and switch from waitFor MQTTState 1 to tuyaMcu_defWiFiState 4

    Result: No reported values anymore

    Then switch from tuyaMcu_sendQueryState to addRepeatingEvent 5 -1 tuyaMcu_sendQueryState

    Result: everything fine again

    Then switch back from addRepeatingEvent 5 -1 tuyaMcu_sendQueryState to tuyaMcu_sendQueryState

    Result: everything still ok. This I do not understand.

    Edit:

    Ok, figured out that there is a difference in using the Button "Save, Reset SVM and rund file as script thread" + Restart instead of disconnecting the device from power.

    After the last test scenario, where everything seems to work (active: tuyaMcu_defWiFiState 4 & tuyaMcu_sendQueryState) I disconnected the device from power.

    Now after repowering the situation is faulty again and values like dpIx 6 (voltage, current, power) are missing / not received from MCU.

    Guess I really have to repower fully for every test scenario to get true results.
  • #34 21126038
    Pete0815
    Level 7  
    Posts: 34
    Help: 1
    Rate: 3
    Ok, took some time for some new motivation to test.

    I figured out 2 working configurations:

    A) Mqtt Connection + One shot query send by autoexec
    Code: text Expand Select all Copy to clipboard

waitFor MQTTState 1
tuyaMcu_sendQueryState


    B) Wifi state + repeating query send by autoexec
    Code: text Expand Select all Copy to clipboard

tuyaMcu_defWiFiState 4
addRepeatingEvent 5 -1 tuyaMcu_sendQueryState


    Because maybe I'm not using Mqtt in every configuration, I'm preferring configuration B at the moment because it should always work.

    Still have not found a way to set alarm1 and alarm2 and therefore of course also not how to activate or check if it's working.
  • ADVERTISEMENT
  • #35 21126060
    p.kaczmarek2
    Moderator Smart Home  
    Posts: 14505
    Help: 651
    Rate: 12505
    It seems you've found one of the causes - doing OBK reset does not reset the TuyaMCU. If you want to have a fresh start, you need to power off the whole setup, wait a moment, and power it again.

    It's not possible to reset TuyaMCU from software.
    Helpful post? Buy me a coffee.
  • #36 21126492
    vincenzoernst1
    Level 9  
    Posts: 94
    Help: 3
    Rate: 7
    what i do is: remove vcc jumper cable, start flashing and reconnect vcc. needs some timing but works in general.
  • ADVERTISEMENT
  • #38 21877235
    Pete0815
    Level 7  
    Posts: 34
    Help: 1
    Rate: 3
    I previously put this project on hold due to a lack of progress. While the basic metering in OpenBeken worked fine, I couldn't figure out how to modify the reading cycle.
    I’m not an experienced programmer, but after experimenting with Claude AI in a sandbox environment yesterday, I’ve decided to reopen the project. I'm excited to see if using AI can help me bridge the gap and finally get it working.
  • #39 21877299
    p.kaczmarek2
    Moderator Smart Home  
    Posts: 14505
    Help: 651
    Rate: 12505
    I don't think that AI can help here much. The device described in topic is TuyaMCU. If you want faster readings, then remove MCU and connect to BL0942 directly.

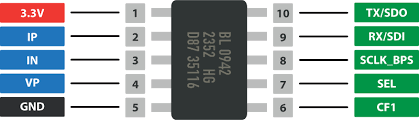

    Pinout diagram of BL0942 IC showing pins such as 3.3V, GND, TX/RX, SEL, and CF1
    You will need to route UART, probably you will need to use BPS to select baud, and you will need to disconnect SEL. SEL is:
    Code: text Expand Select all Copy to clipboard

 UART/SPI mode selection (0: UART 1: SPI), internal pull-down resistance,
connected to GND is 0 level (UART), connected directly to VDD is high level (SPI

    SEL has internall pull-down, so it's 0 (UART) by default unless connected externally.
    Helpful post? Buy me a coffee.
