RE22-121000 Temperature Controller – Made in Poland – internal view

p.kaczmarek2 1140 17

TL;DR

  • Opens the RE22-121000 temperature controller, a tiny Polish-made module with a four-digit display, four indicators and three buttons for industrial temperature stabilization.
  • Inside, four laminate boards fit together with pin headers or soldered joints, and the design uses mostly SMD parts plus some through-hole components.
  • An Atmega32 handles control, alongside a TEZ 2.5/D BREVE-FUFVASSONS Art 16009-9984 transformer, a 78M05 regulator, and individual LSD3155-20 display digits.
  • The measurement section includes an LM358, HCF4051, TL431 and an unrecognized 2252A chip, while a programming port suggests the board could support a DIY project.
  • Solder joints still carry flux residue, and one capacitor looks slightly swollen, though the module itself might still be workable.
Generated by the language model.
ADVERTISEMENT
This content has been translated flag-pl » flag-en View the original version here
Report a violation of the law
Reply Cool? Ranking DIY | New topic
Notify about new articles
📢 Listen (AI):
  • RE22-121000 Temperature Controller – Made in Poland – internal view

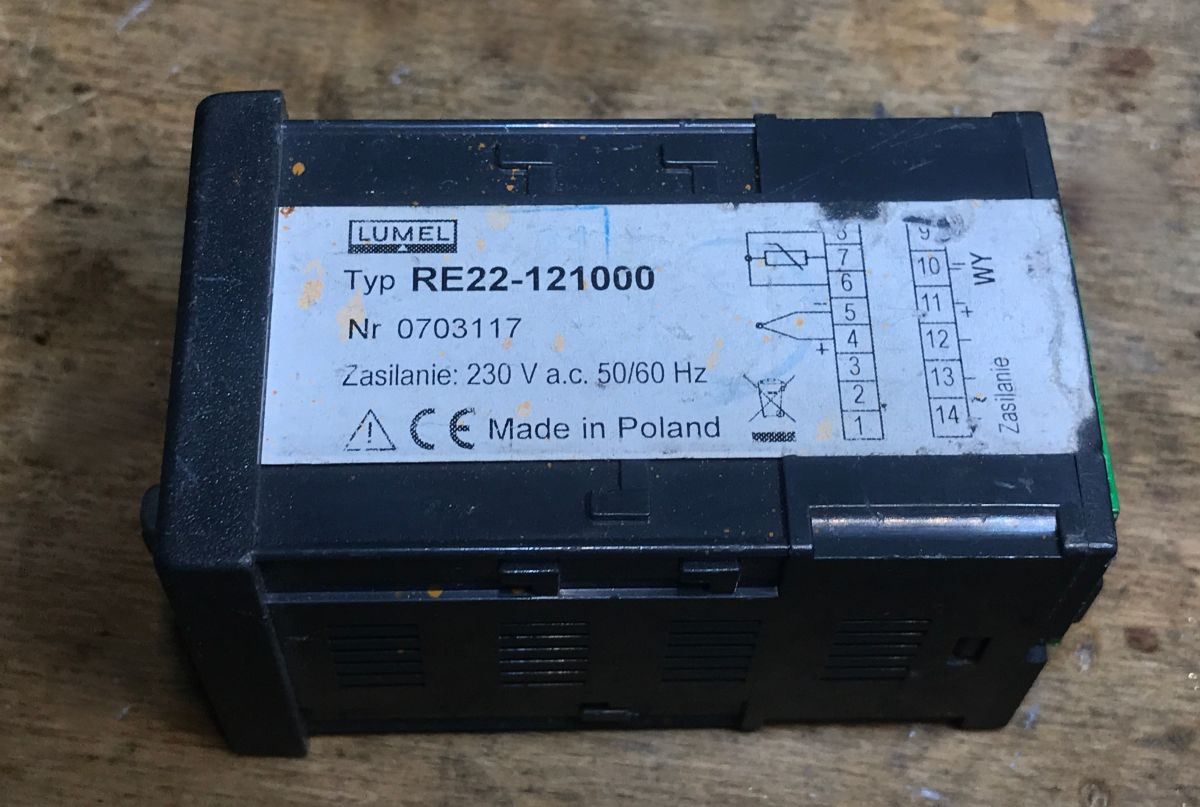

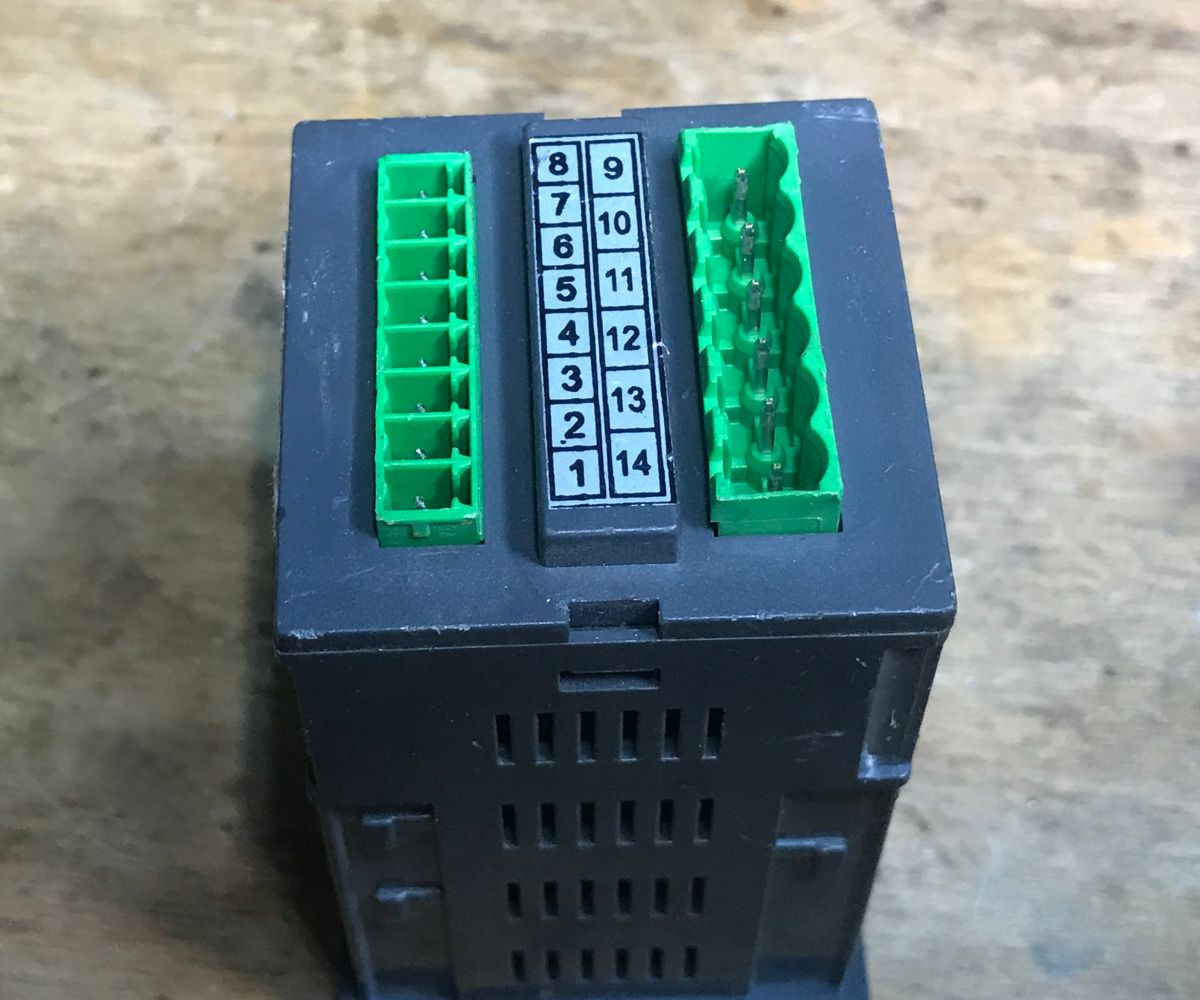

    I always look with curiosity at devices signed as Made in Poland, and this was also the case here. This tiny module with a four-digit display, four lights and three buttons is a temperature controller. According to the manufacturer, it is designed for use in the plastics industry, food industry, drying industry and anywhere else where temperature stabilisation is required.
    RE22-121000 Temperature Controller – Made in Poland – internal view RE22-121000 Temperature Controller – Made in Poland – internal view RE22-121000 Temperature Controller – Made in Poland – internal view

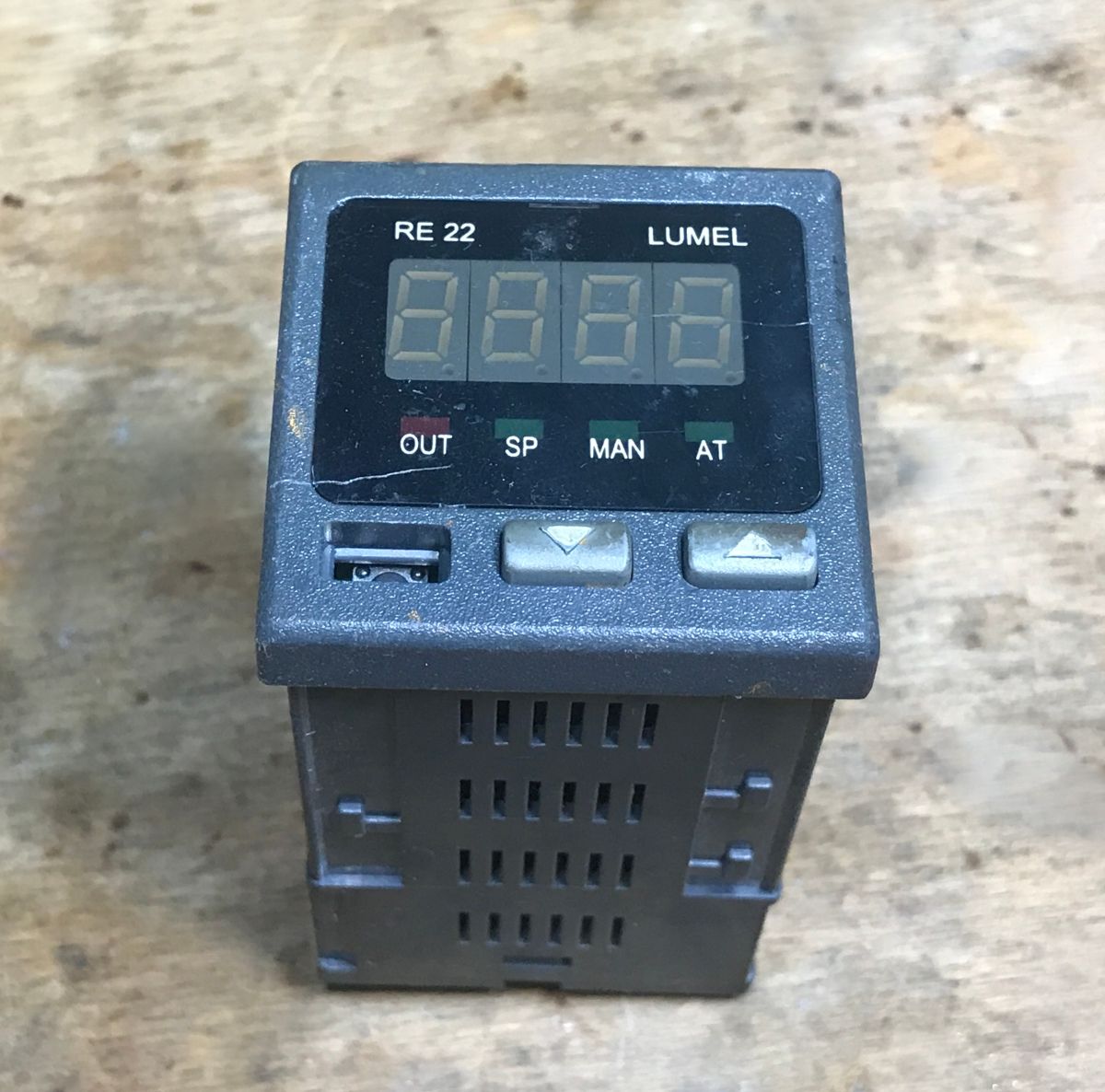

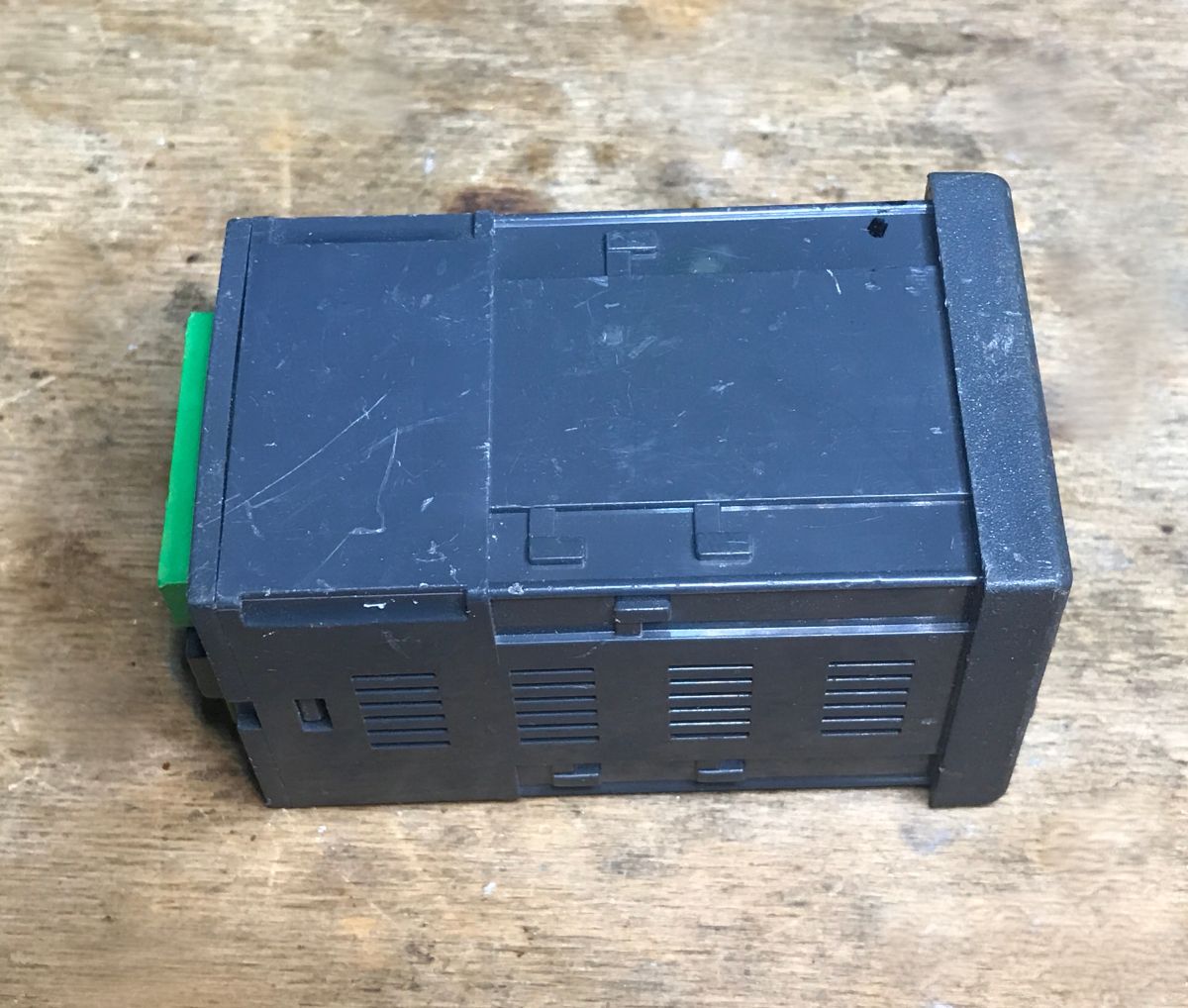

    The device works with resistance temperature sensors, thermocouples and standard analogue signals. Control can be performed in simple on/off mode with hysteresis or using a PID algorithm, the parameters of which can be set manually or selected automatically thanks to the auto-adaptation function. The relay output allows the direct control of small consumers and the settings can be password-protected. The entire unit is enclosed in an IP65-rated enclosure, supplied from typical mains voltages.
    RE22-121000 Temperature Controller – Made in Poland – internal view RE22-121000 Temperature Controller – Made in Poland – internal view RE22-121000 Temperature Controller – Made in Poland – internal view

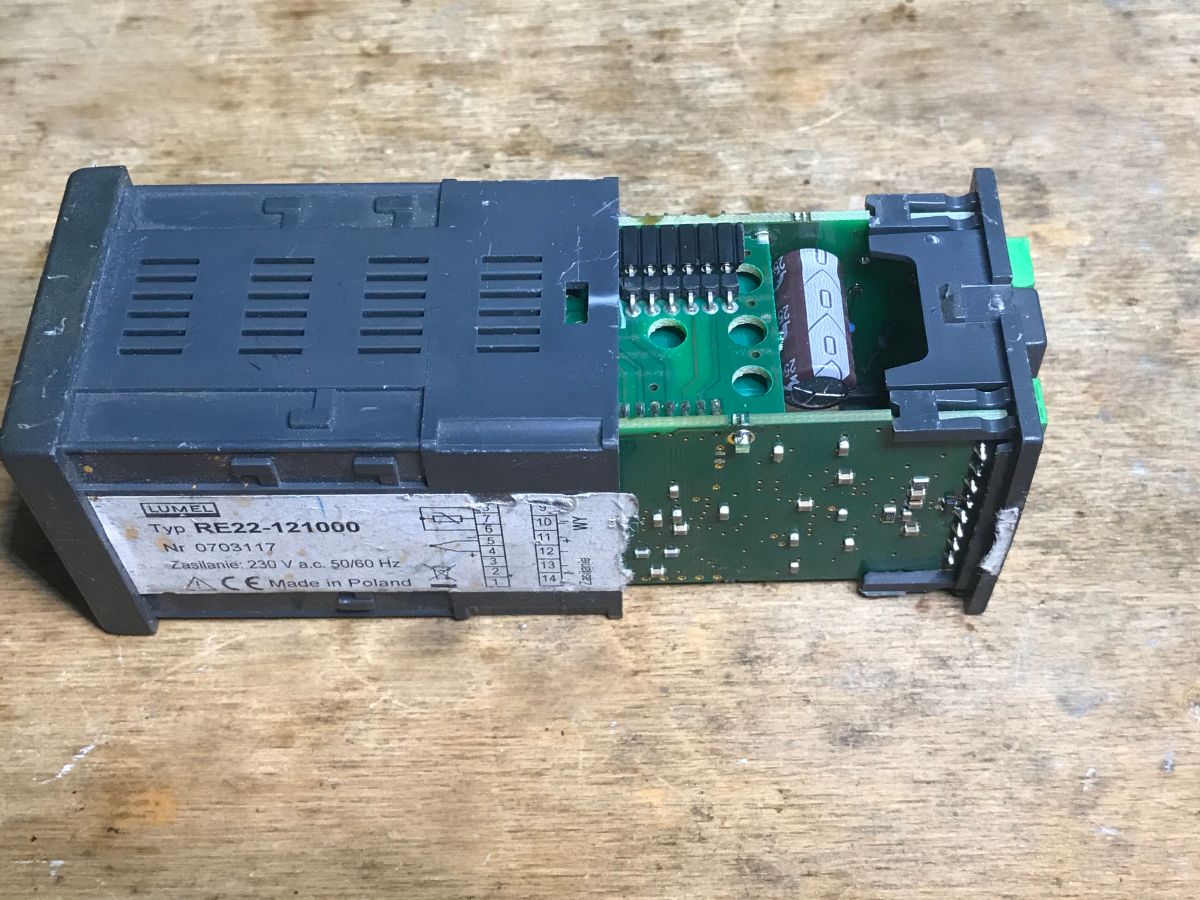

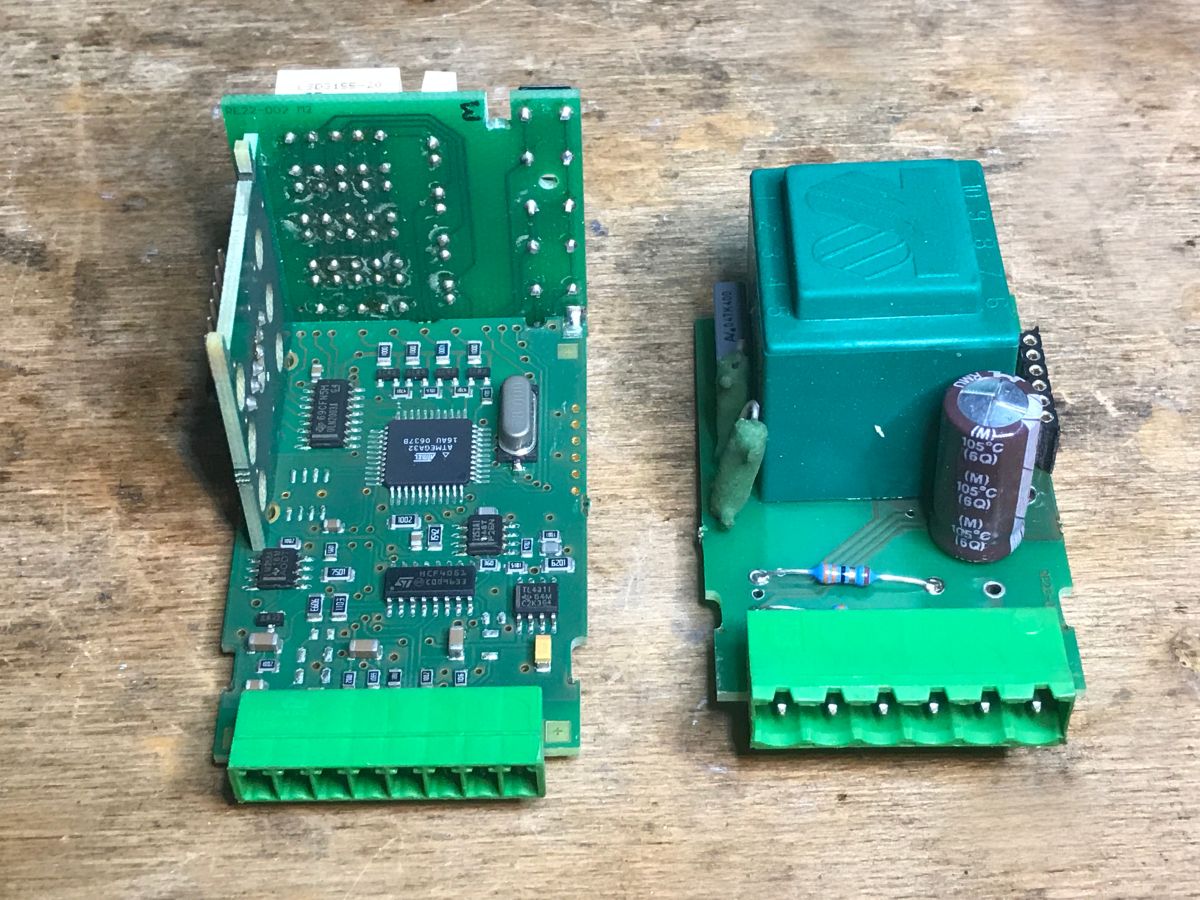

    We take a look inside to find out the secret of the compact design. The whole thing is made up of not one, but four laminate boards, cleverly fitted together on pin joints or simply soldered together (front panel with base). Primarily surface mount is used, although through-hole components are also available.
    RE22-121000 Temperature Controller – Made in Poland – internal view RE22-121000 Temperature Controller – Made in Poland – internal view RE22-121000 Temperature Controller – Made in Poland – internal view

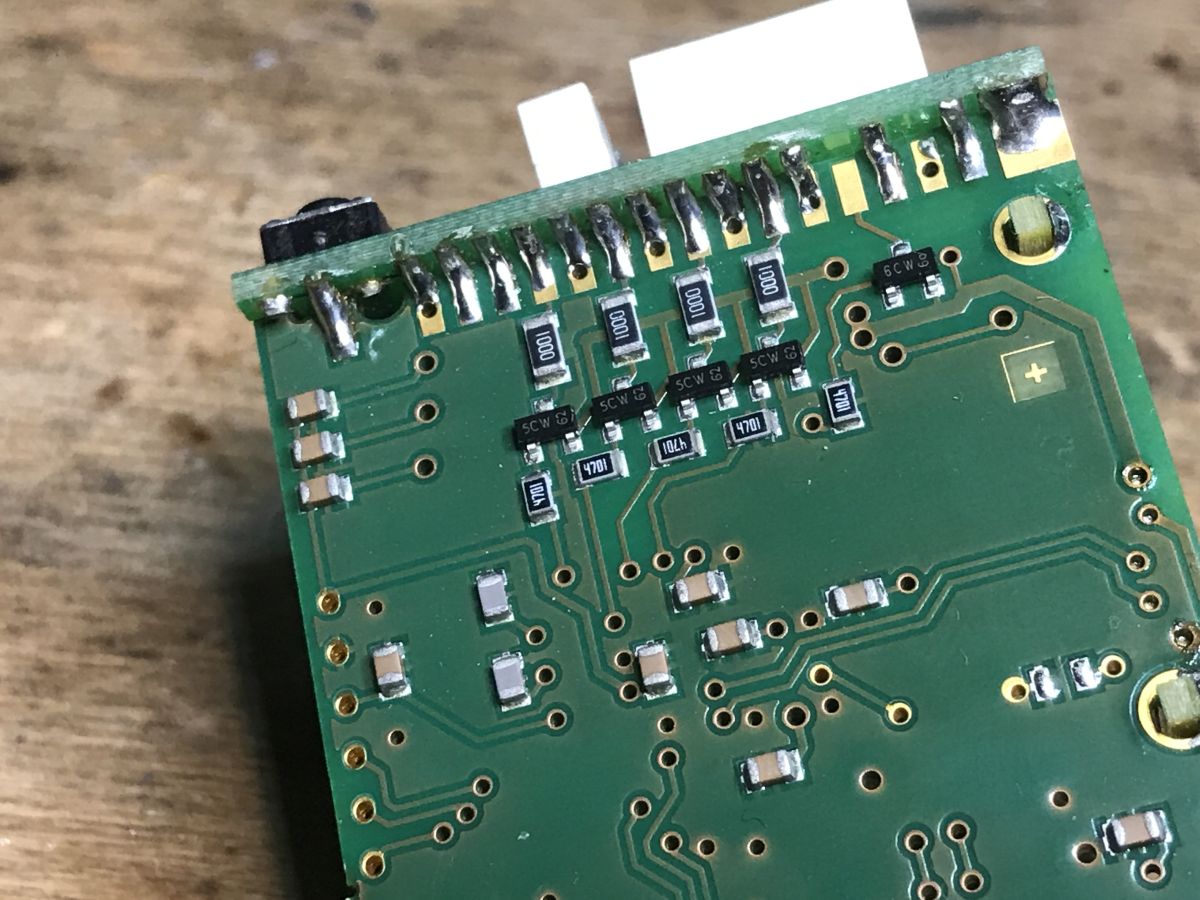

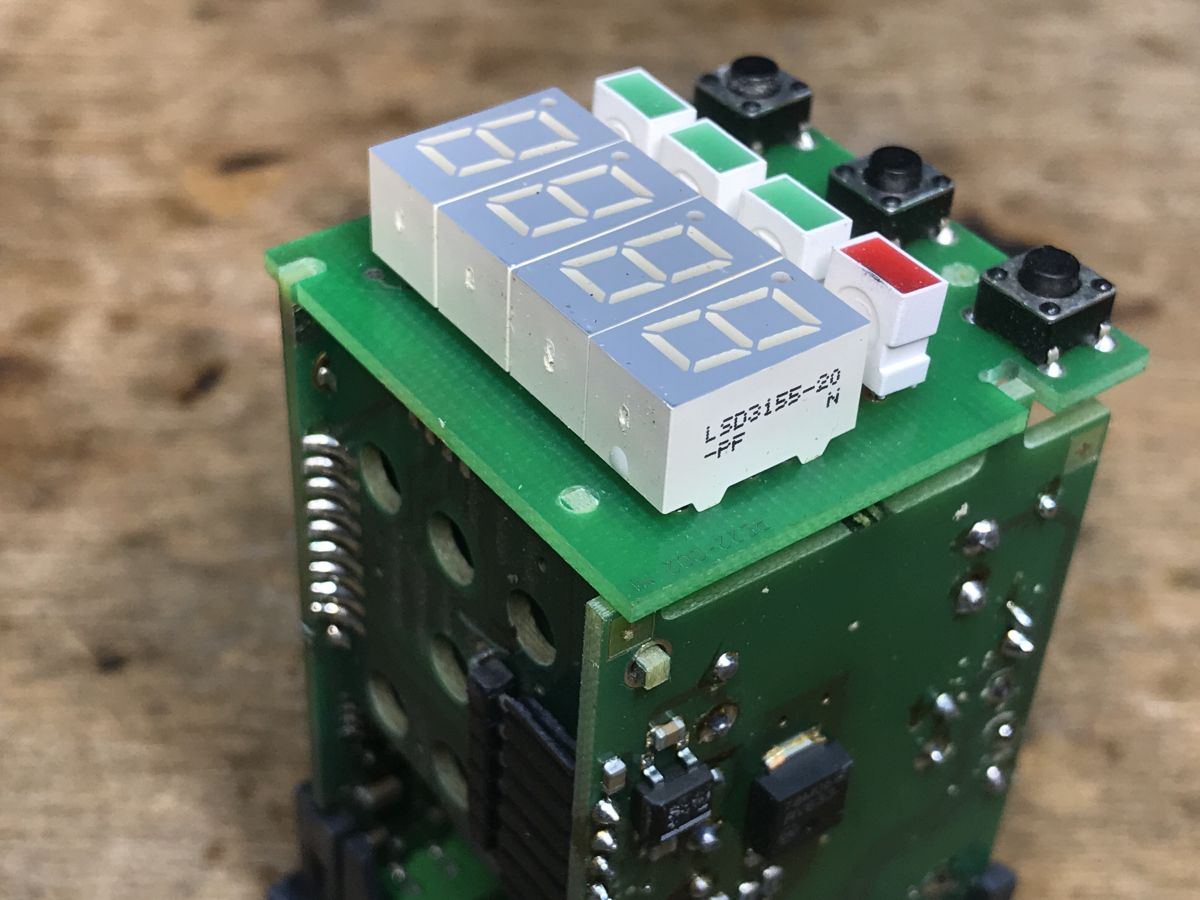

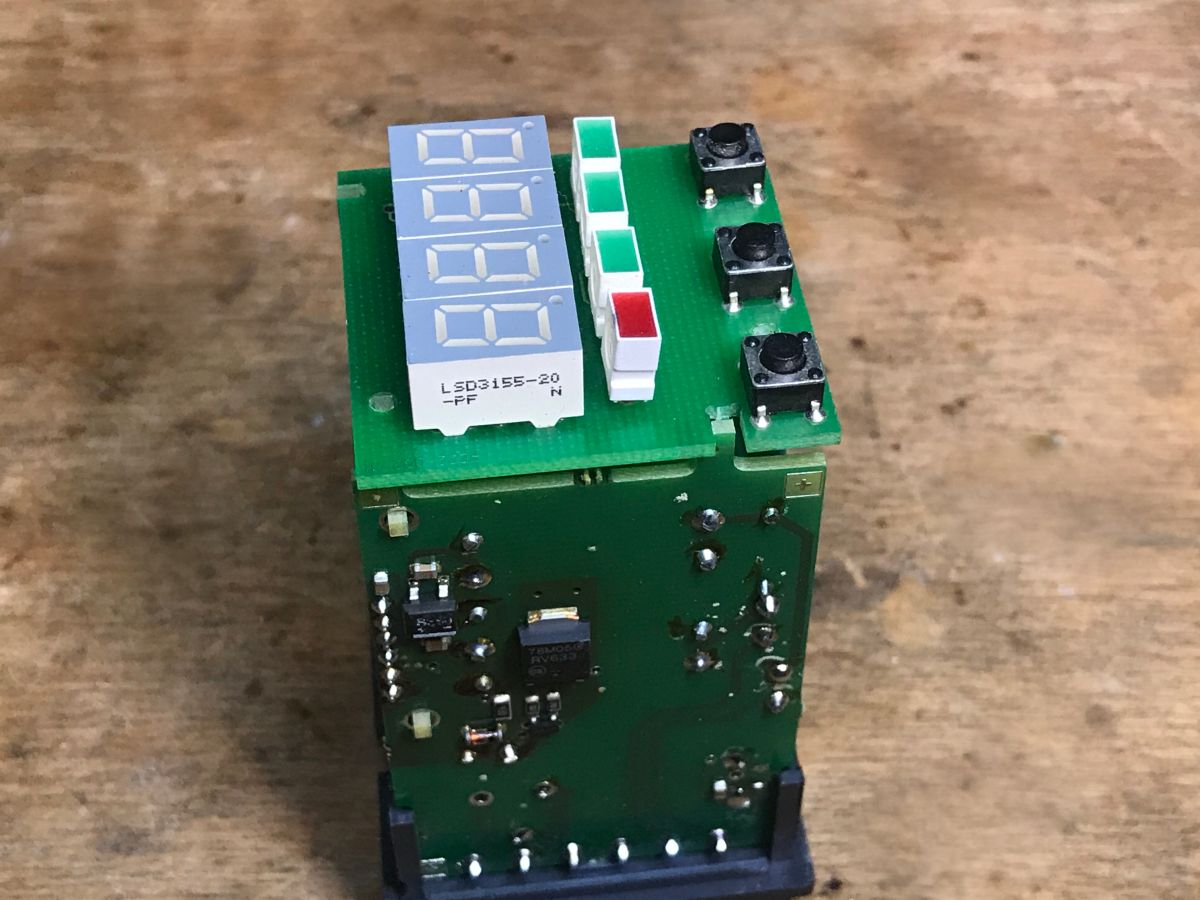

    The display is made up of separate digits - the LSD3155-20. The construction of the whole appears to be fairly simple and does not include unusual components such as a dedicated display driver with an I2C style interface.
    RE22-121000 Temperature Controller – Made in Poland – internal view RE22-121000 Temperature Controller – Made in Poland – internal view RE22-121000 Temperature Controller – Made in Poland – internal view

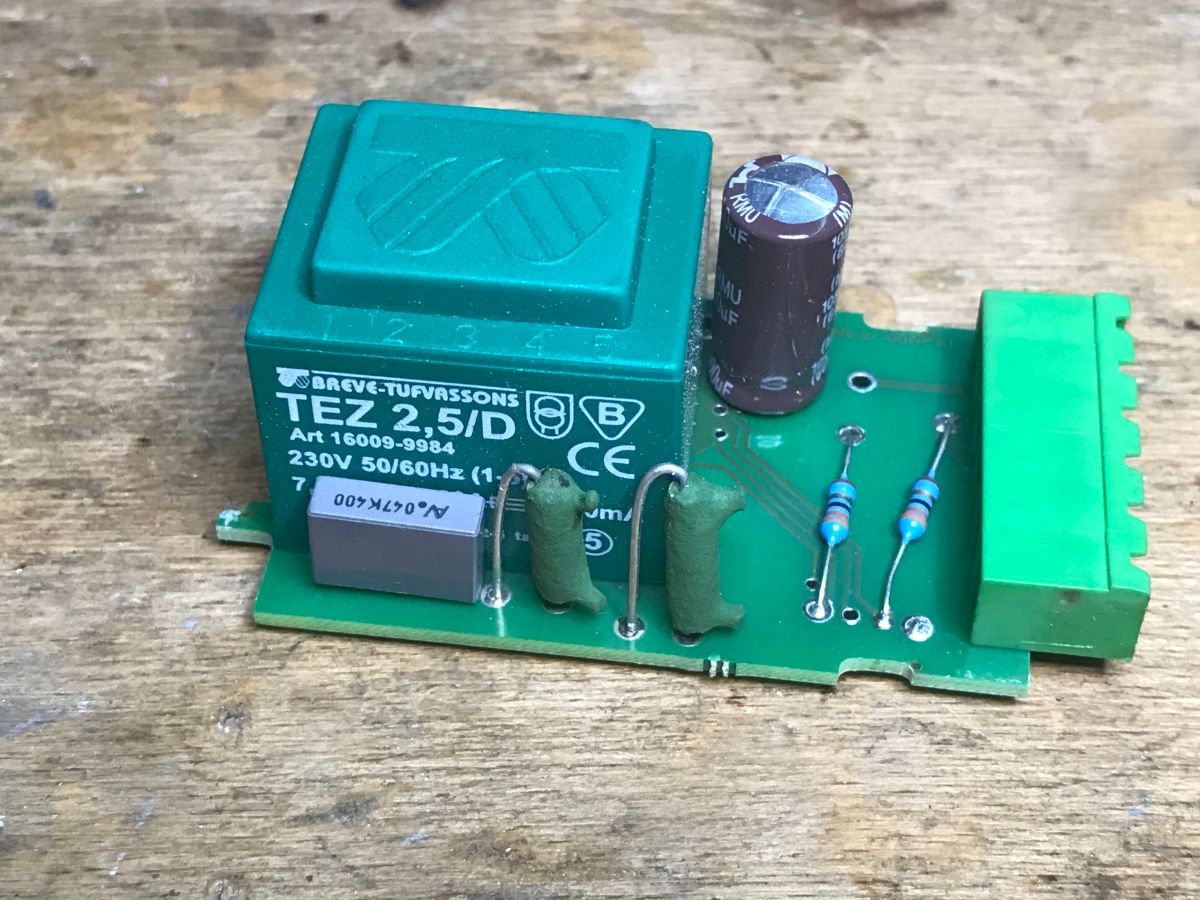

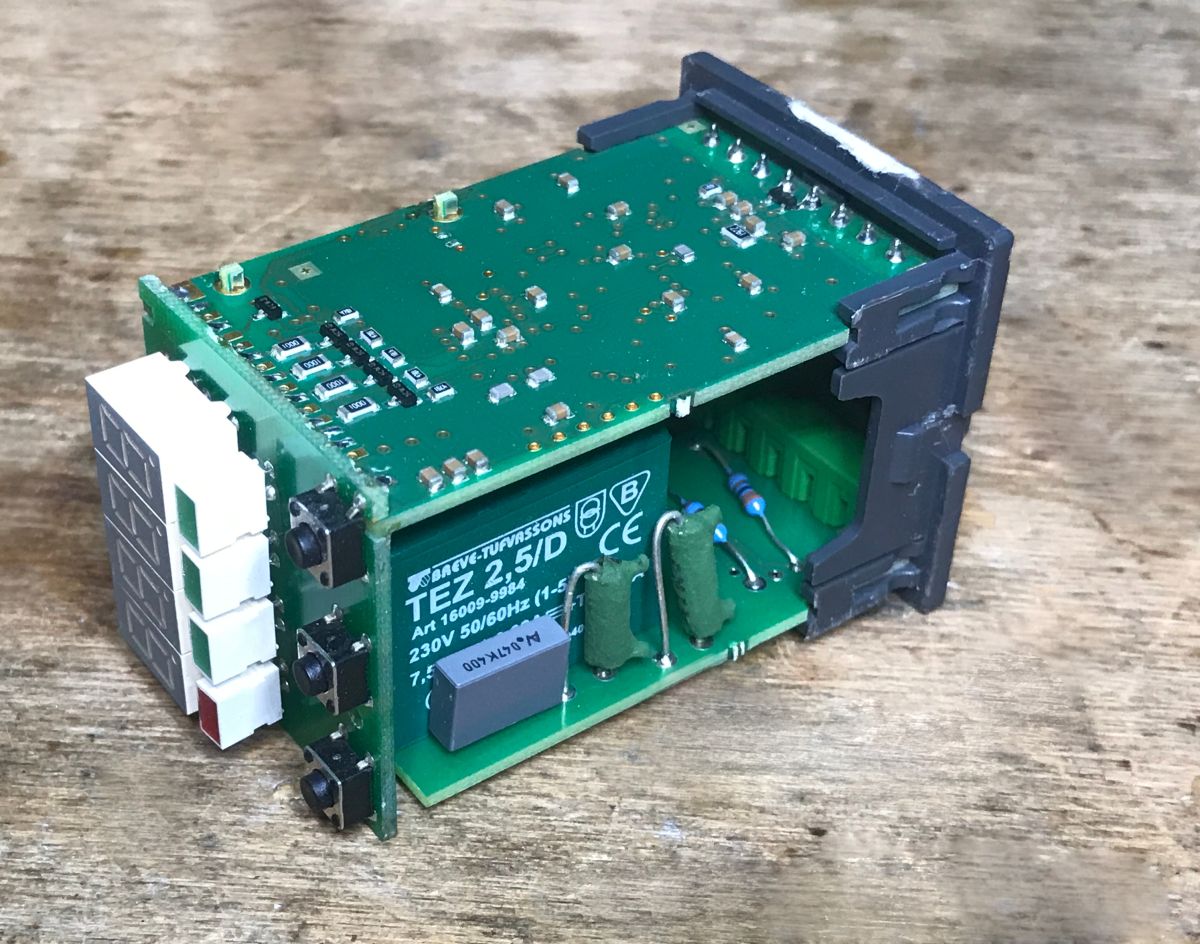

    The whole thing is powered by a TEZ 2.5/D BREVE-FUFVASSONS Art 16009-9984 mains transformer. As far as I can see, the power of this transformer is 2.0 VA and the voltage on the secondary side is 7.5 V.
    RE22-121000 Temperature Controller – Made in Poland – internal view RE22-121000 Temperature Controller – Made in Poland – internal view RE22-121000 Temperature Controller – Made in Poland – internal view

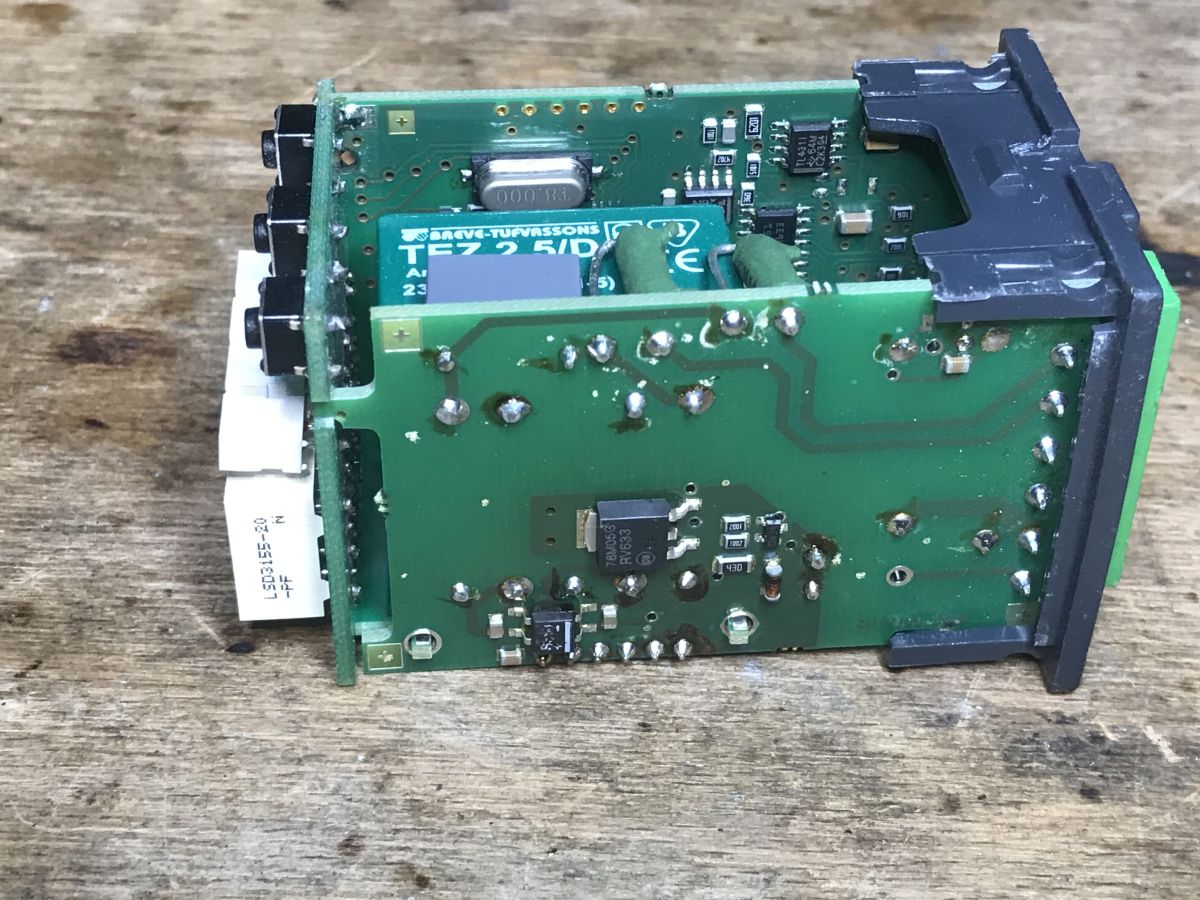

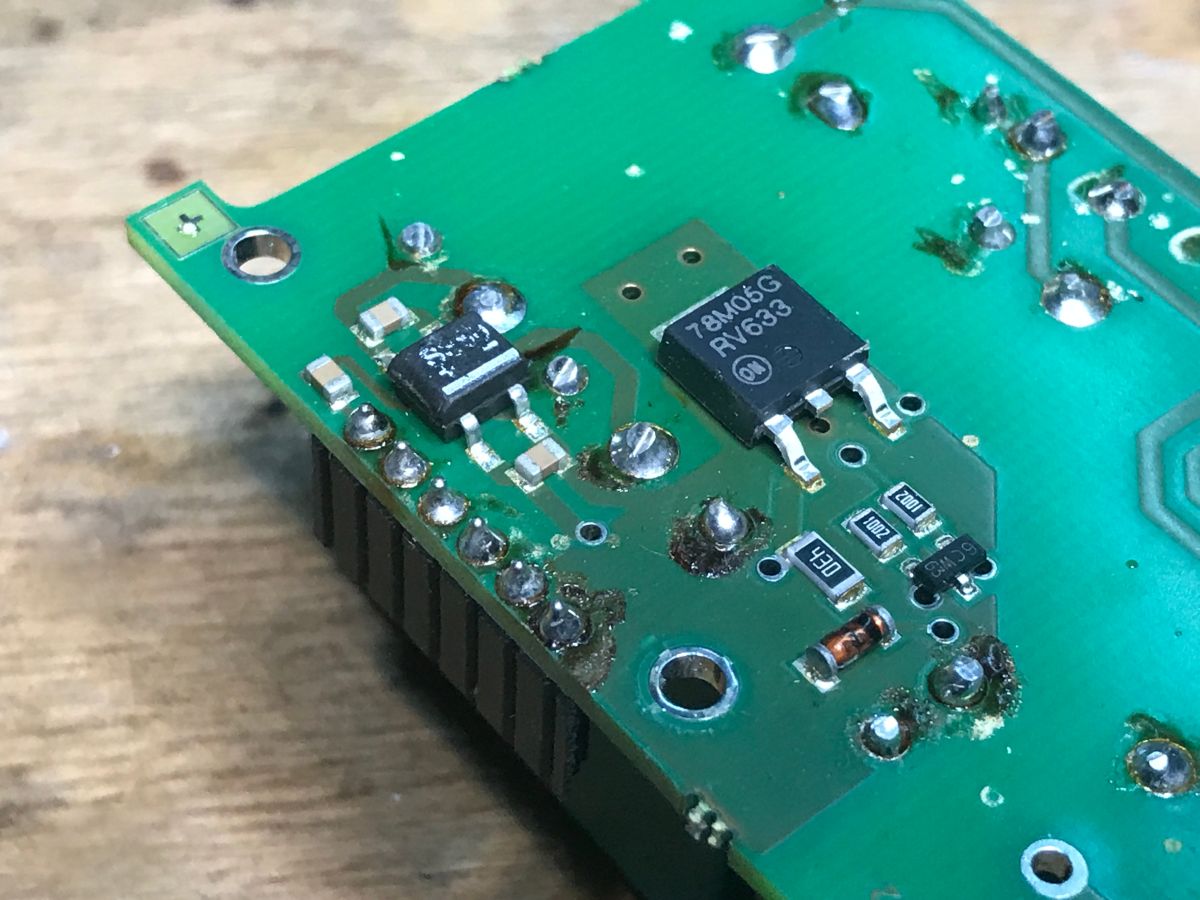

    In the power supply section is the immortal 78M05 stabiliser. The solder is a bit conspicuous because someone didn't clean up the rosin. It is by every point, suggesting that this is a leftover from the factory.
    RE22-121000 Temperature Controller – Made in Poland – internal view RE22-121000 Temperature Controller – Made in Poland – internal view RE22-121000 Temperature Controller – Made in Poland – internal view

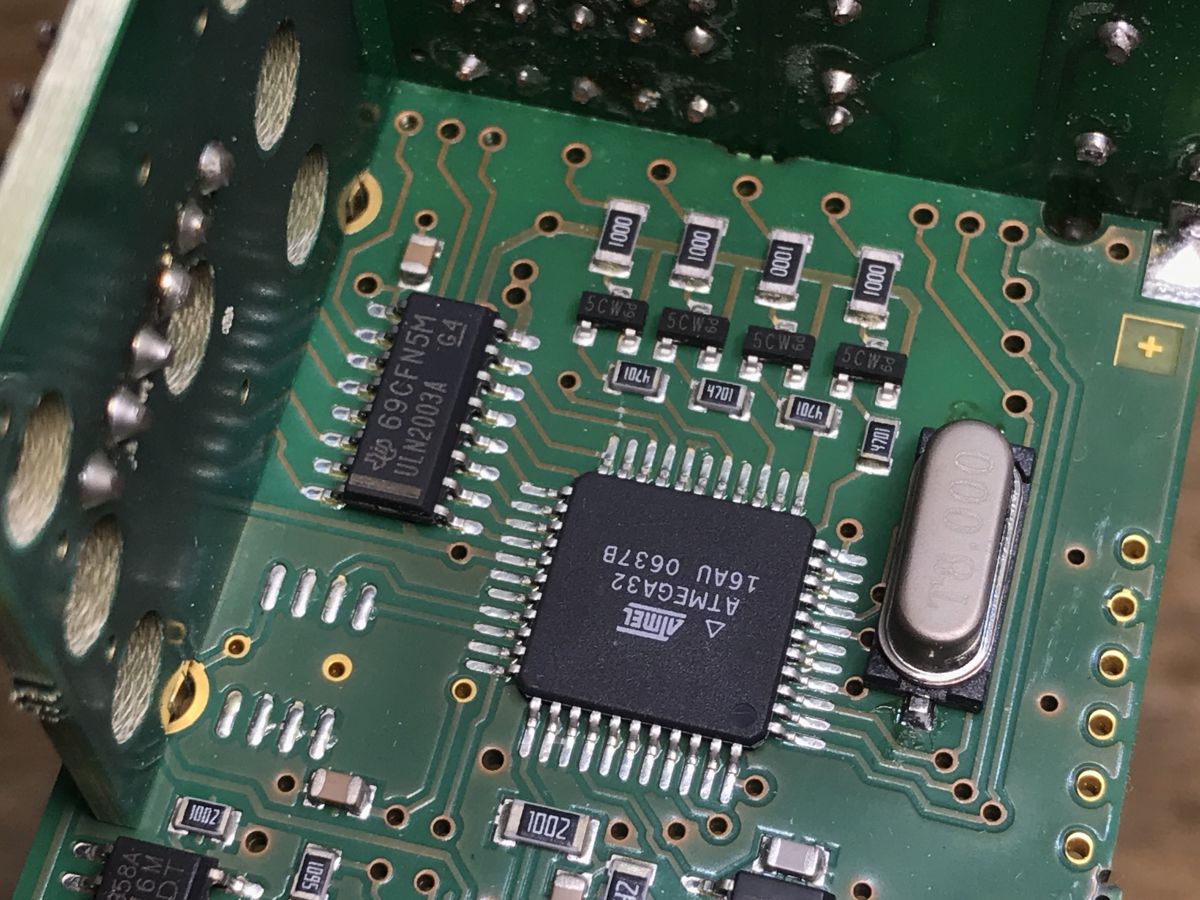

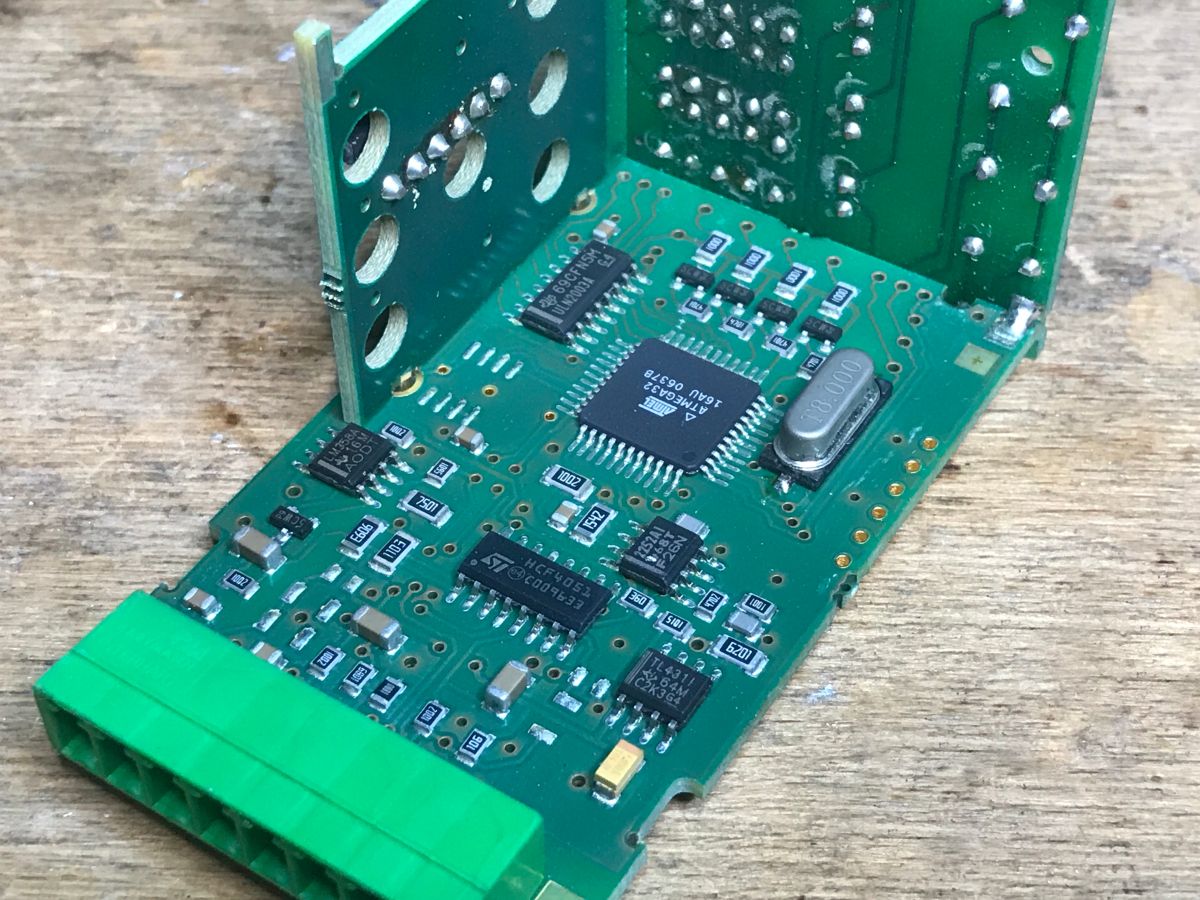

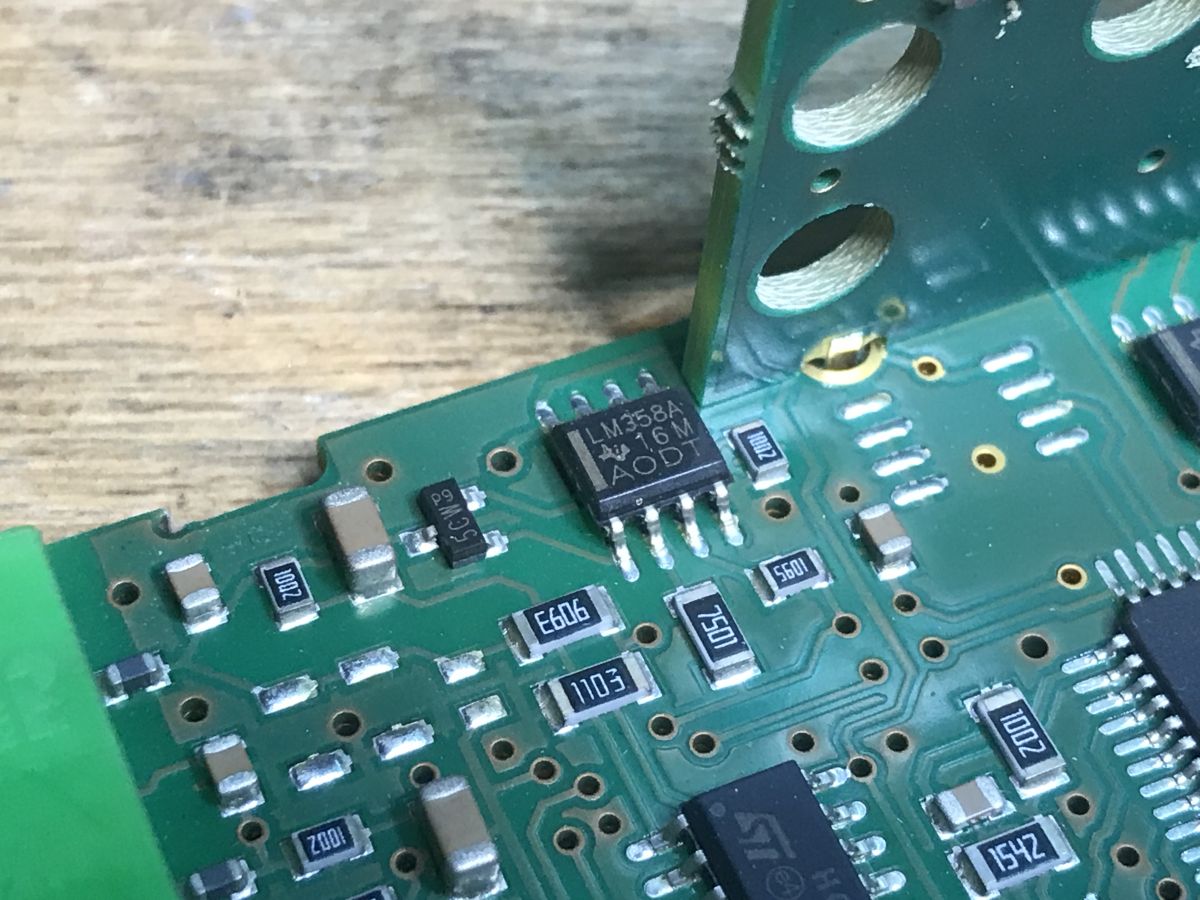

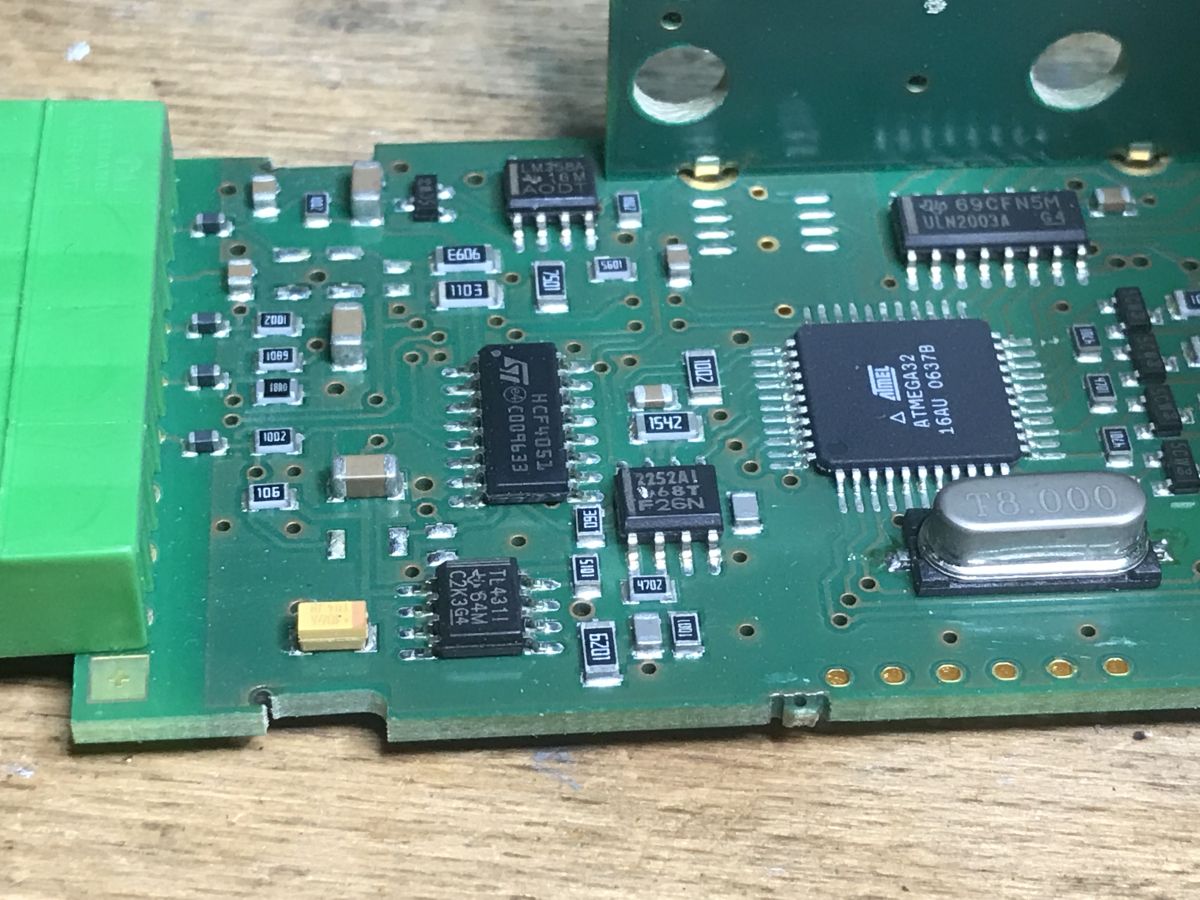

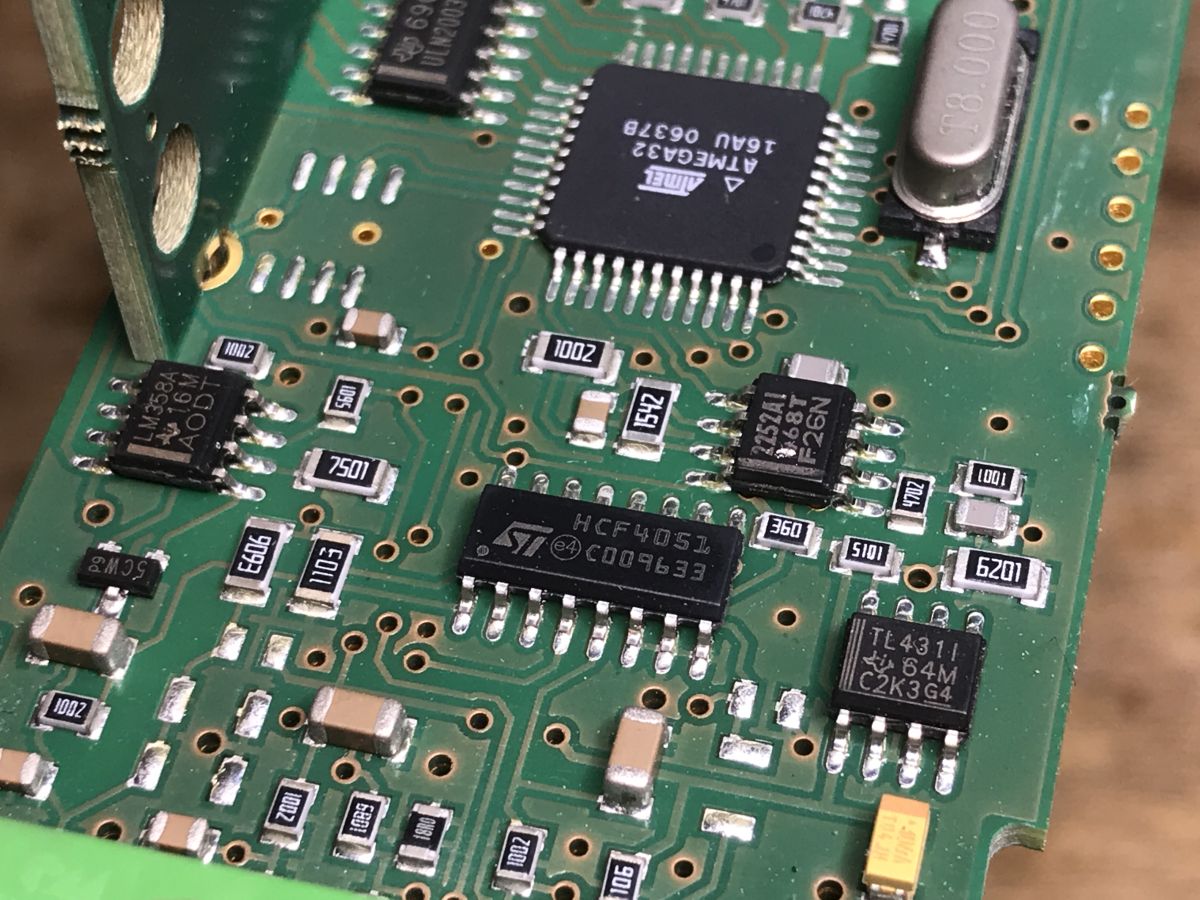

    At the heart of the module is the Atmega32. This is no surprise, it's probably one of the more popular microcontroller families with us. I was a bit expecting a PIC there, but looking at our forum they are less known though. Next to the Atmega you can see four transistors to control the separate digits of the display. Next to it is also a ULN2003 - probably also to control the displays, or more precisely the segments. In the measurement section I see an LM358 (operational amplifier), HCF4051 (multiplexer), TL431 (reference voltage) and a 2252A circuit that I don't recognise. Suggestions? I'm also surprised by the extra four transistors - there are eight in total.
    RE22-121000 Temperature Controller – Made in Poland – internal view RE22-121000 Temperature Controller – Made in Poland – internal view RE22-121000 Temperature Controller – Made in Poland – internal view

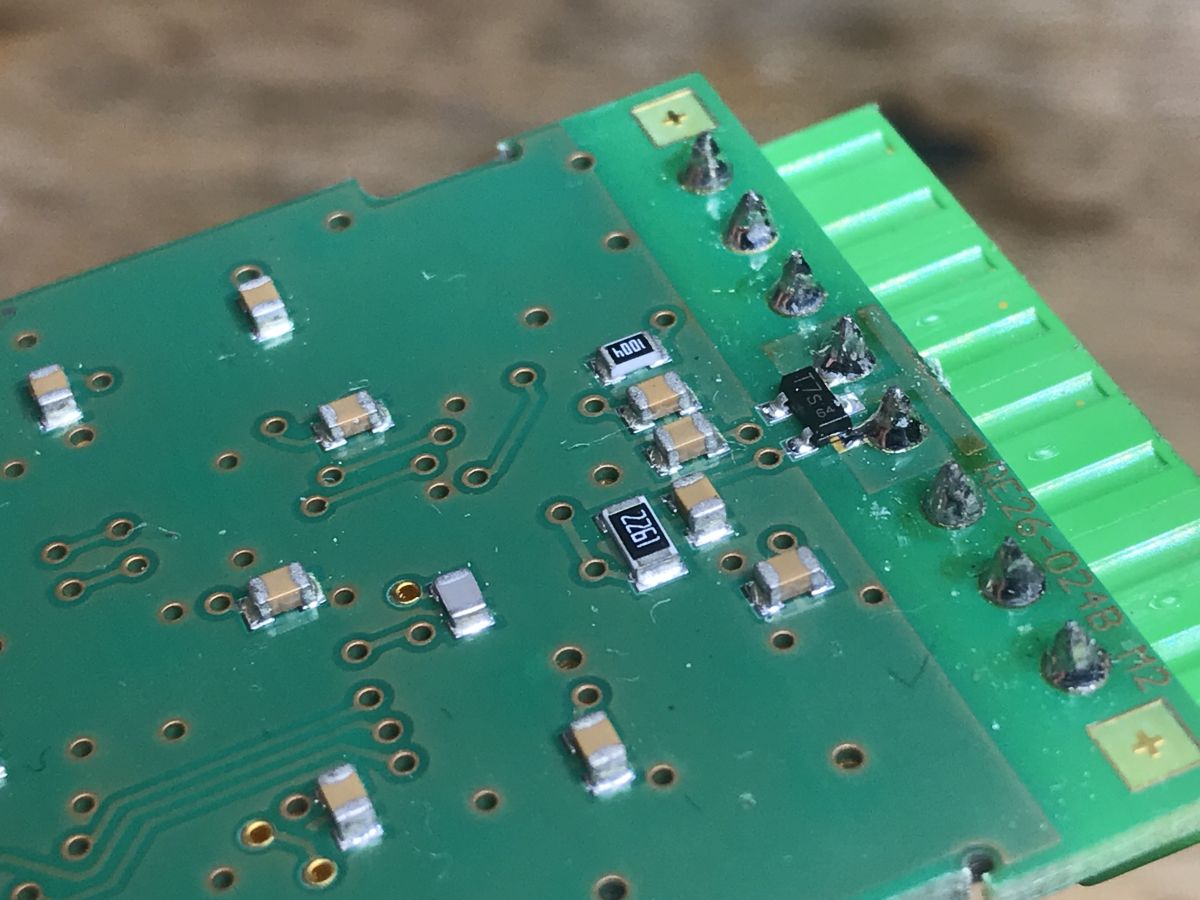

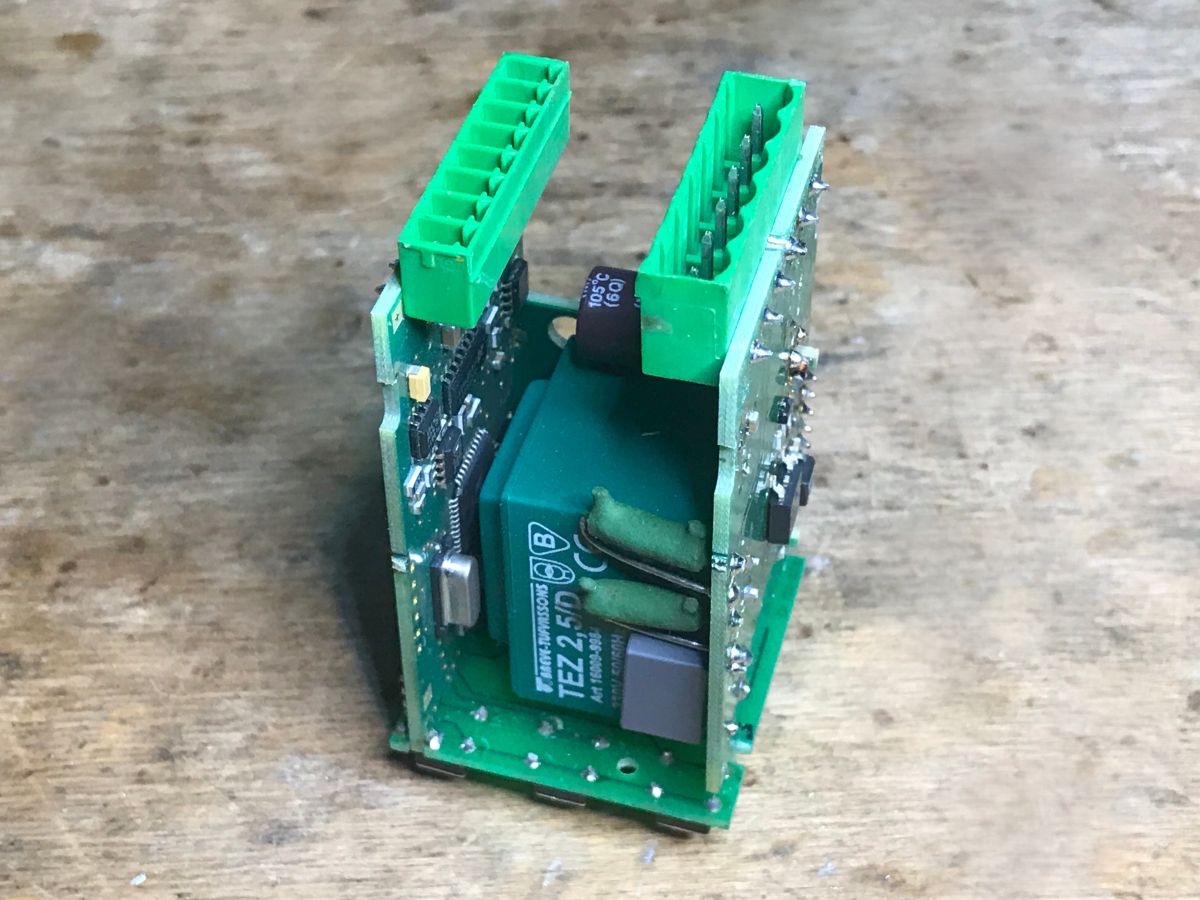

    All in all, that will be about it. Apart from the solder, another capacitor caught my eye, it looks slightly faded, although the module itself doesn't have a switching power supply, so I'm a little more surprised than usual.
    The whole thing could probably be made to work, I can also see a programming port on the board, so you could make your own DIY based on this module.
    The device manual is available online, so there is nothing to discuss here.
    Have you used this type of controller?

    Cool? Ranking DIY
    Helpful post? Buy me a coffee.
    About Author
    p.kaczmarek2
    Moderator Smart Home  
    Offline
    p.kaczmarek2 wrote 14332 posts with rating 12234, helped 648 times. Been with us since 2014 year.
  • ADVERTISEMENT
  • #2 21879705
    Wawrzyniec
    Level 38  
    pawlik118 wrote:
    The transformer fuse is missing (although it is drawn on the sticker that it should be).

    And it probably is. In the transformer housing. Because it's a transformer sticker. German.
    pawlik118 wrote:
    on the sticker it is drawn that it should be

    I would read it like this: "on the sticker it is drawn, that it is ".
  • #3 21879754
    pawlik118
    Level 33  
    Just Breve is a mould from Lodz, so Poland. The transformer does not have a built-in fuse, this marking suggests that it should be protected with a fuse of the value given next to this symbol.
  • #4 21879783
    zgierzman
    Level 31  
    p.kaczmarek2 wrote:
    Everything is enclosed in an IP65-rated enclosure, powered by typical mains voltages.


    Where does this information come from? IP65 is a dust- and waterproof enclosure, and you can see from the photos that it has large ventilation slots, the buttons are not sealed, similar to the connectors on the back.
  • #5 21879792
    p.kaczmarek2
    Moderator Smart Home  

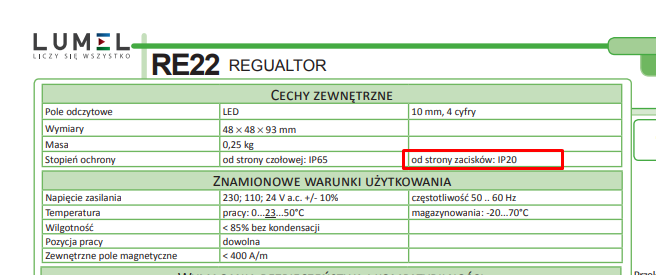

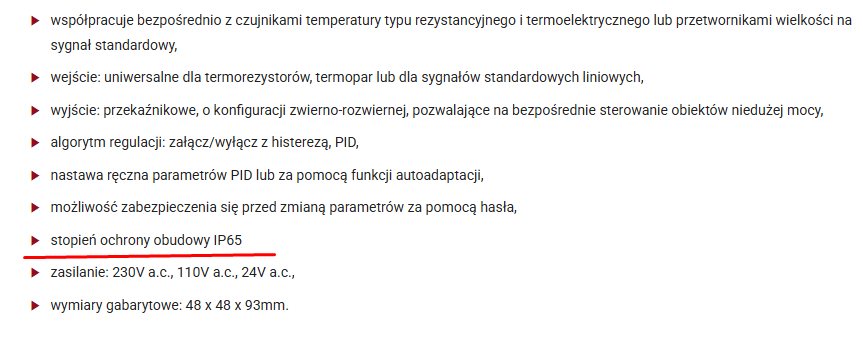

    The specifications (including IP65) are from the manufacturer's RE22 website. I can also give you the current price of the product by the way - £349.
