Tasmota uses rc-switch, not IRLibrary
#31 20533323 10 Apr 2023 16:30

p.kaczmarek2 p.kaczmarek2

Moderator Smart Home

Posts: 14767

Help: 659

Rate: 12906
Helpful post? (0)

Tasmota uses rc-switch, not IRLibrary
Post #31 20533323 10 Apr 2023 16:30

I've did a little research and it seems that Tasmota is using this library:
https://github.com/sui77/rc-switch
So it's not IRLibrary, RC codes are different. They are similar, but different. But for that purpose I would need to get RF receiver... hmm.... maybe I will buy one and help you get that remote running.

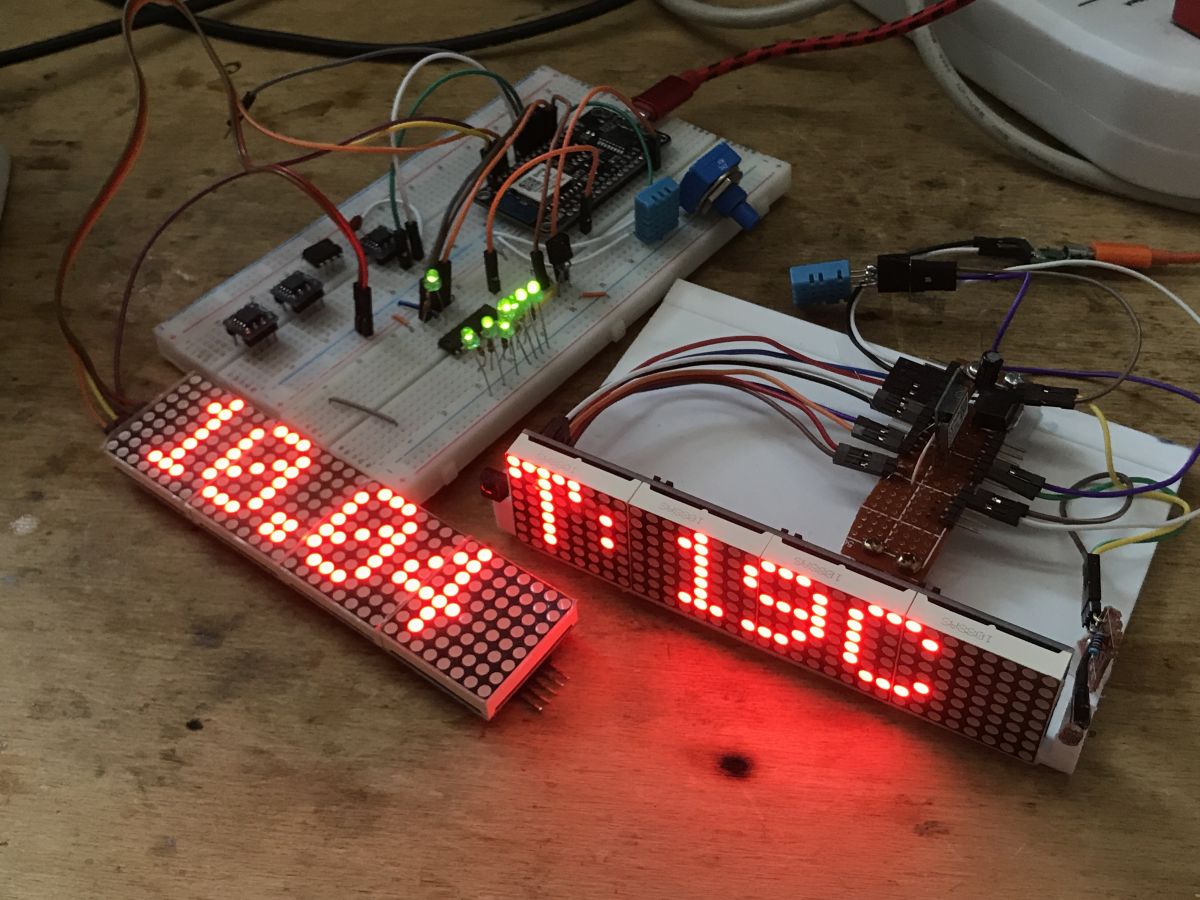

Right now, I am finalizing the clock:

I am creating multiplatform open source firmware (Tasmota replacement), right now supporting BK7231T, BK7231N, XR809, BL602, W800, W600, LN882H and soon supporting RTL and W701:
https://github.com/openshwprojects/OpenBK7231T
If you like my work, support me at: https://paypal.me/openshwprojects

Helpful post? Buy me a coffee.
ADVERTISEMENT
#32 20533340 10 Apr 2023 16:39

smkassist smkassist

Level 4

Posts: 33
Topic author Helpful post? (0)

Post #32
20533340 10 Apr 2023 16:39

I will look for some IR receiver in my shop tomorrow... Maybe I have one in my offscourings
ADVERTISEMENT
ShiftRegister autoexec.bat example and channel mapping
#33 20533505 10 Apr 2023 18:54

p.kaczmarek2 p.kaczmarek2

Moderator Smart Home

Posts: 14767

Help: 659

Rate: 12906
Helpful post? (0)

ShiftRegister autoexec.bat example and channel mapping
Post #33 20533505 10 Apr 2023 18:54

Hmm you are right, we are far from initial topic. Please start a new thread about simulator and I will reply there.

That one can be closed, the basic functionality of ShiftRegister seems to be working.

To sum it up, here's example autoexec.bat for Shift Register:
Code: text Expand Select all Copy to clipboard
// startDriver ShiftRegister [DataPin] [LatchPin] [ClkPin] [FirstChannel] [Order] [TotalRegisters] [Invert] startDriver ShiftRegister 24 6 7 10 1 1 0 // If given argument is not present, default value is used // First channel is a first channel that is mapped to first output of shift register. // The total number of channels mapped is equal to TotalRegisters * 8, because every register has 8 pins. // Order can be 0 or 1, MSBFirst or LSBFirst // To make channel appear with Toggle on HTTP panel, please also set the type: setChannelType 10 Toggle setChannelType 11 Toggle setChannelType 12 Toggle setChannelType 13 Toggle setChannelType 14 Toggle setChannelType 15 Toggle setChannelType 16 Toggle setChannelType 17 Toggle

Connections should be obvious.. according to datasheet.

I am creating multiplatform open source firmware (Tasmota replacement), right now supporting BK7231T, BK7231N, XR809, BL602, W800, W600, LN882H and soon supporting RTL and W701:
https://github.com/openshwprojects/OpenBK7231T
If you like my work, support me at: https://paypal.me/openshwprojects

Helpful post? Buy me a coffee.
#34 20533517 10 Apr 2023 19:08

smkassist smkassist

Level 4

Posts: 33
Topic author Helpful post? (0)

Post #34
20533517 10 Apr 2023 19:08

Closing as solved.
