    My XR806 AWOL dev board arrived.

    Boot:
    Code: Text
    Log in, to see the code

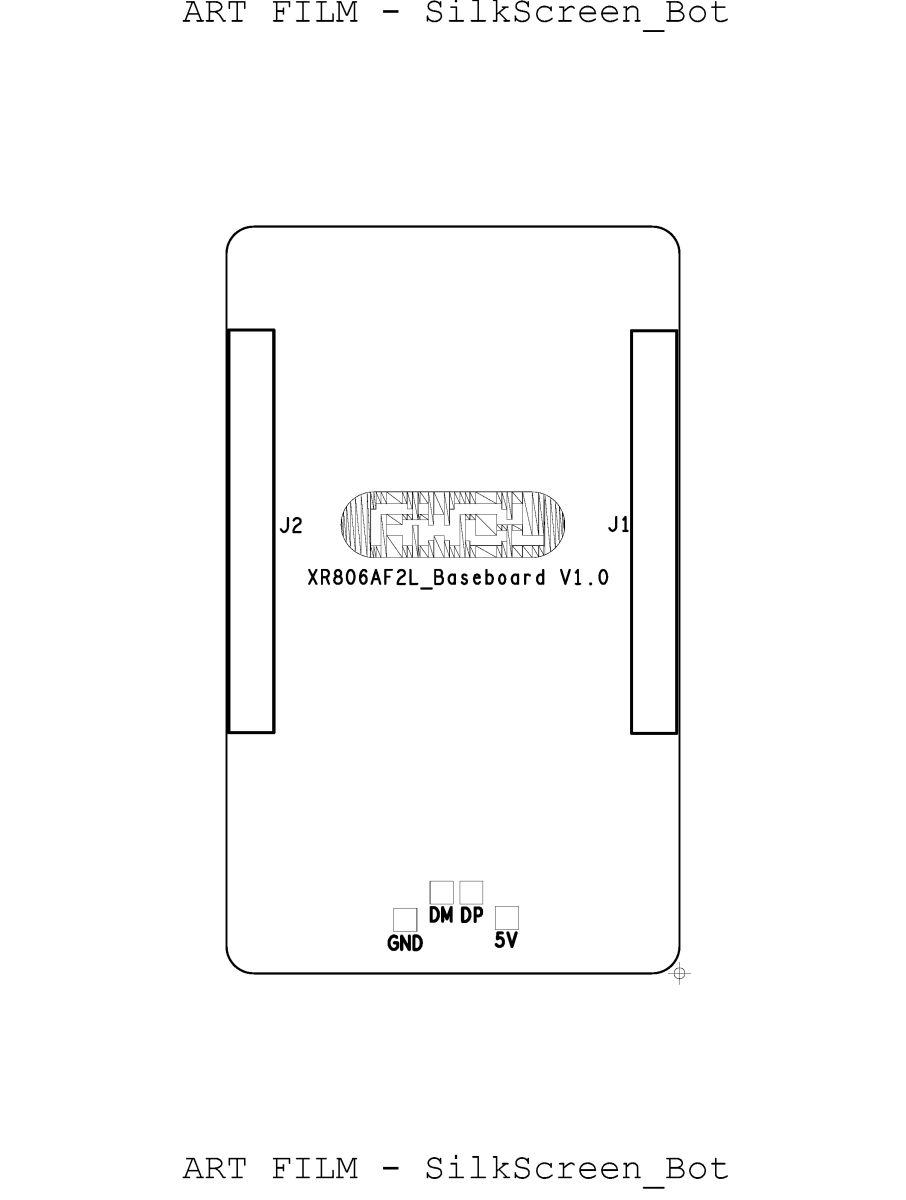

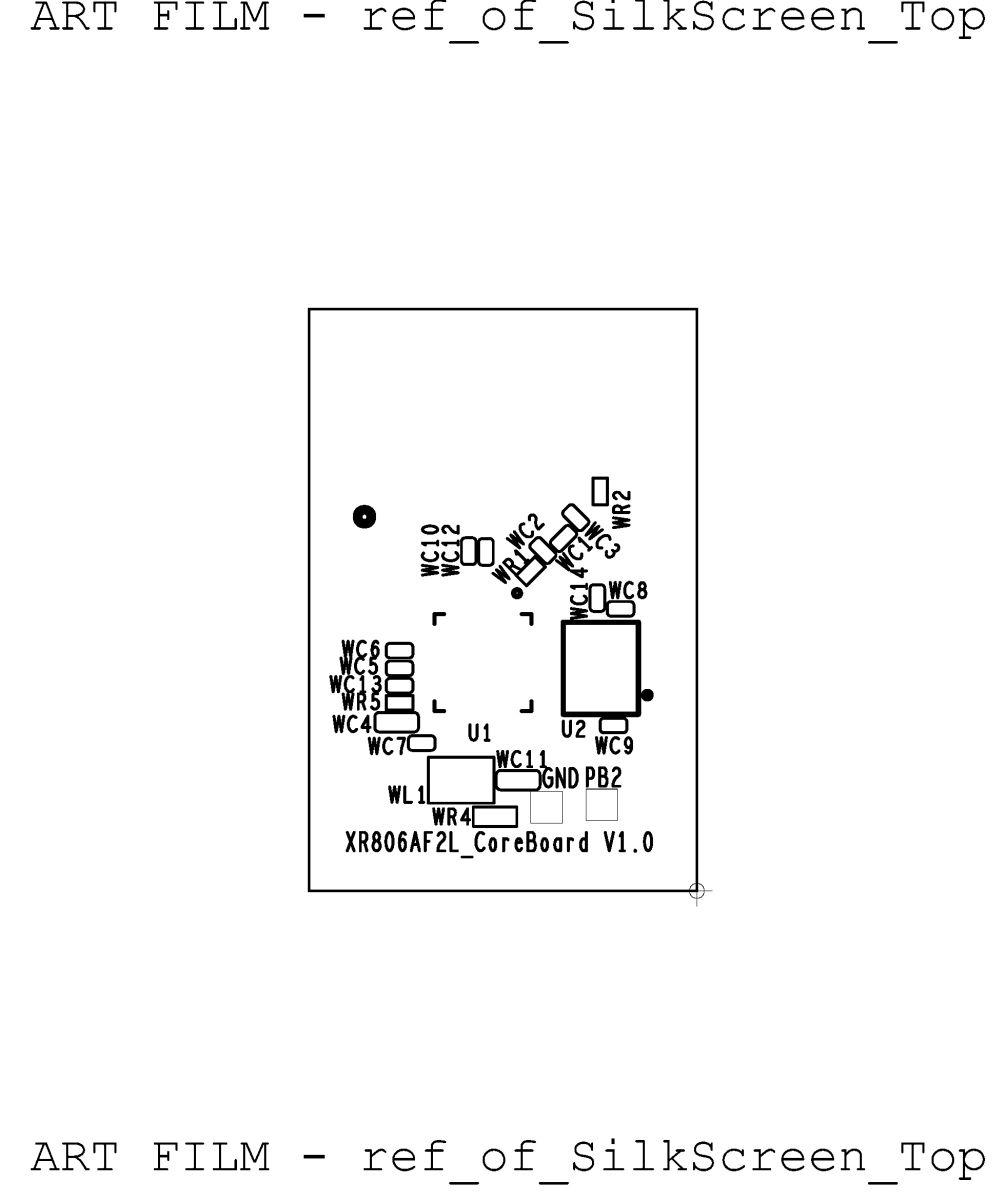

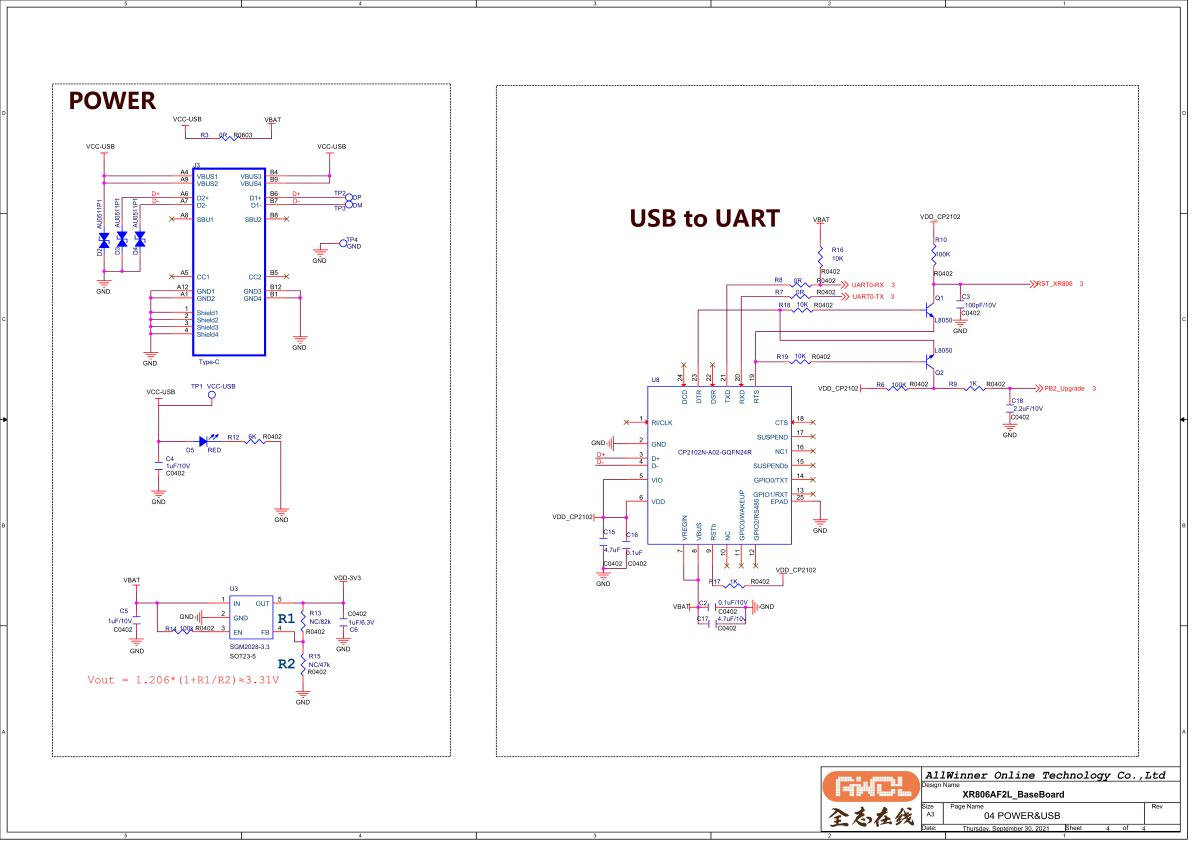

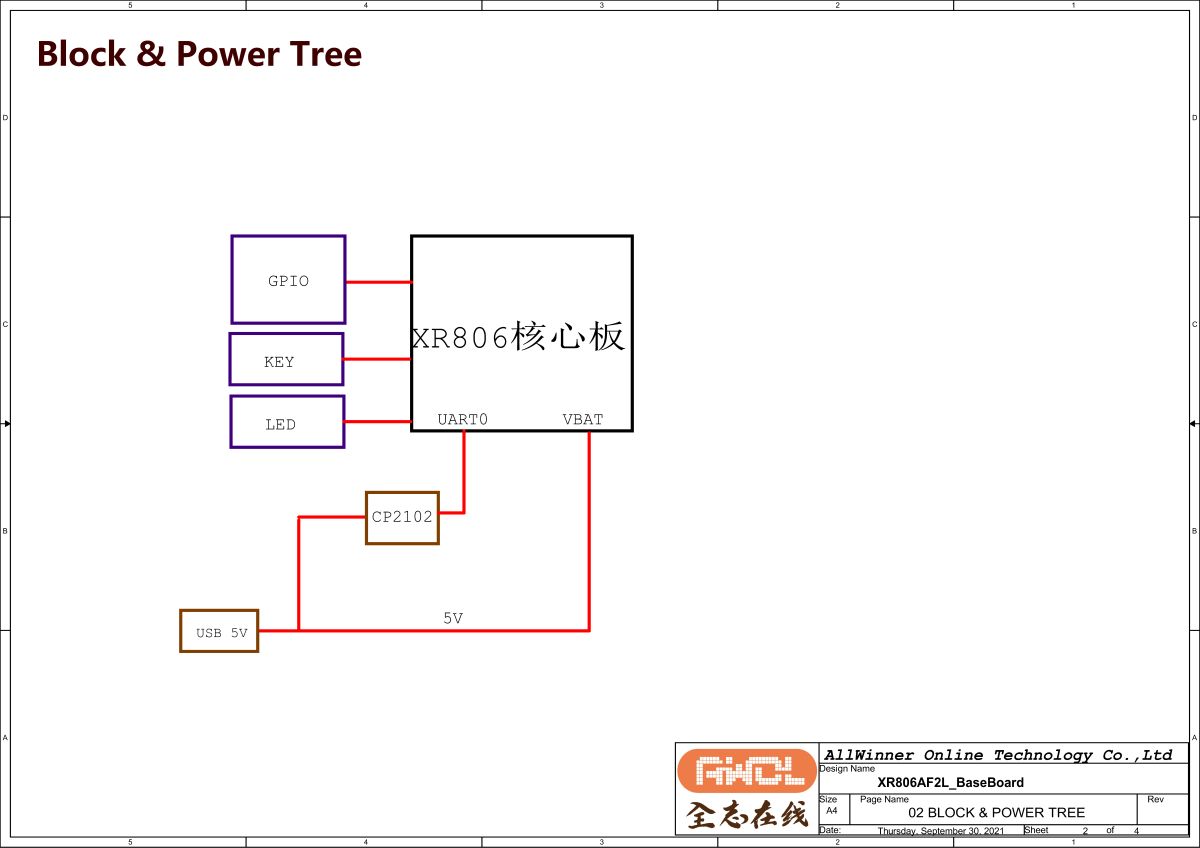

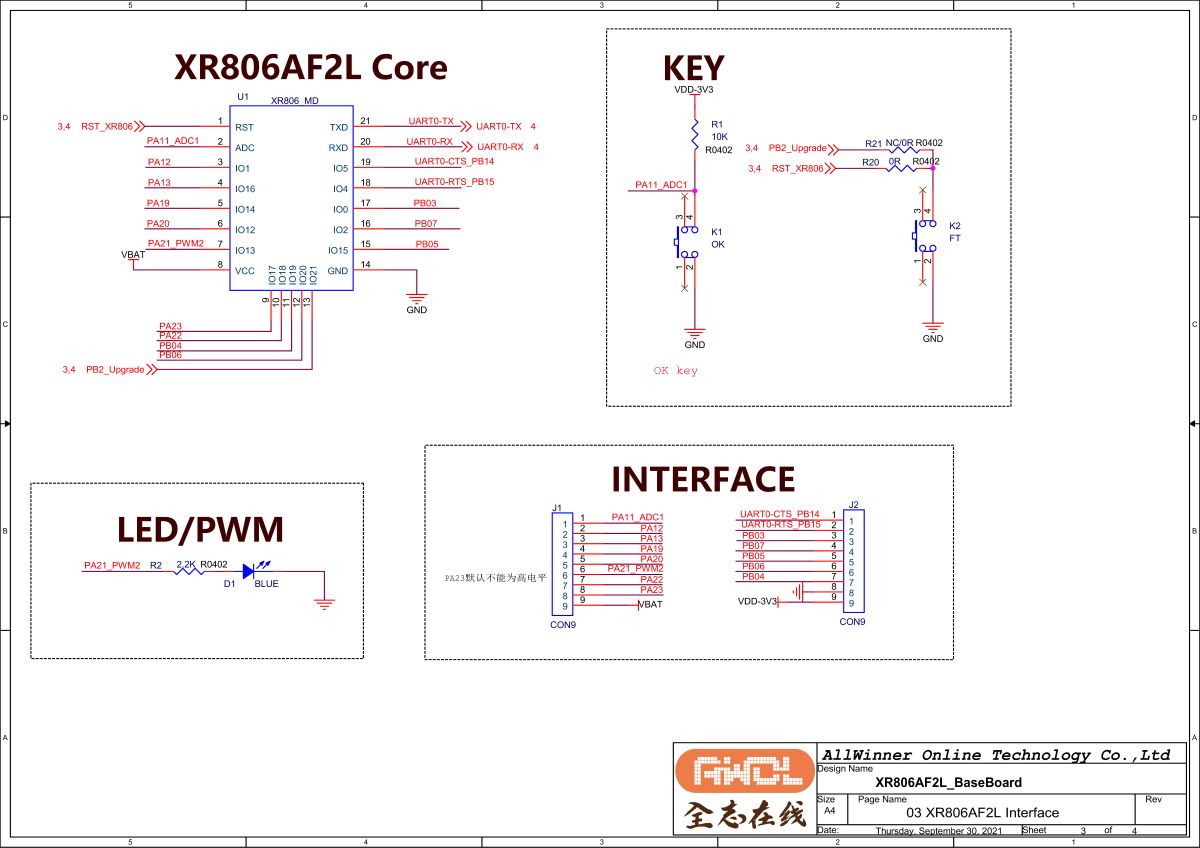

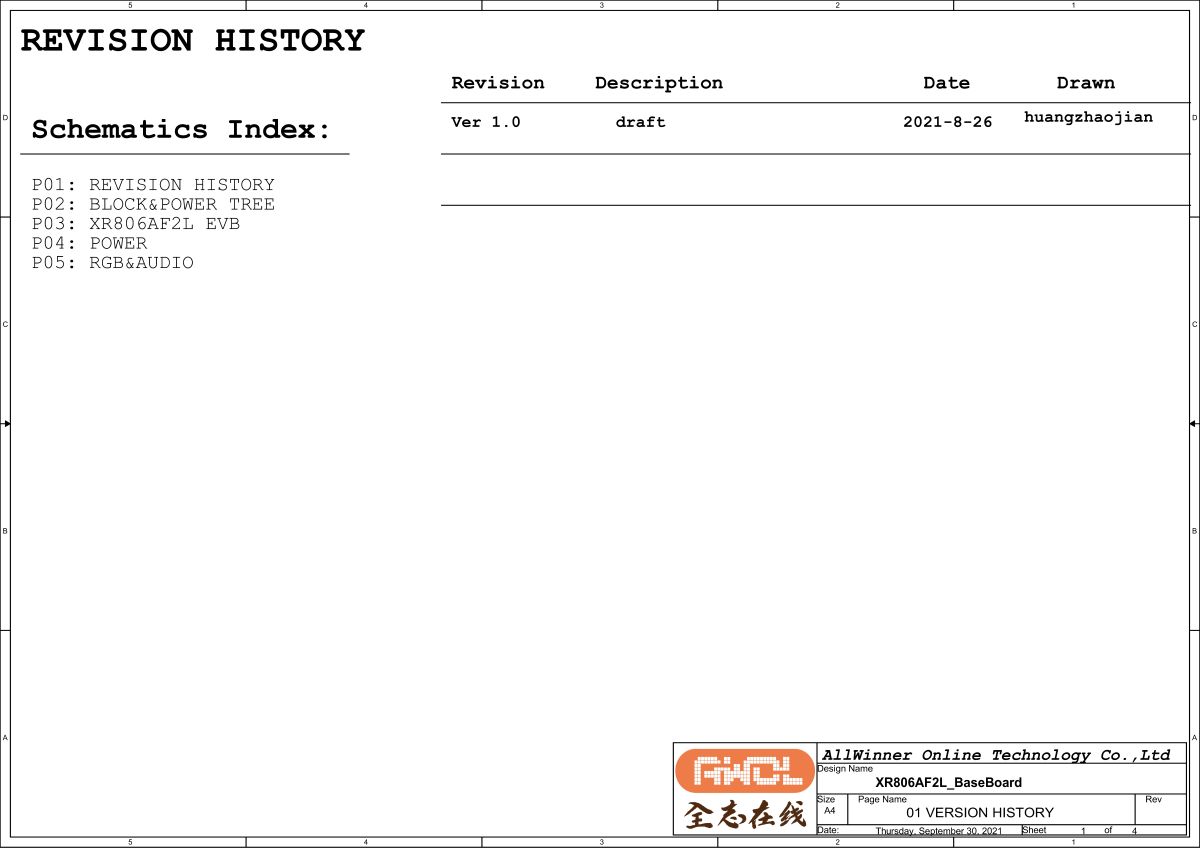

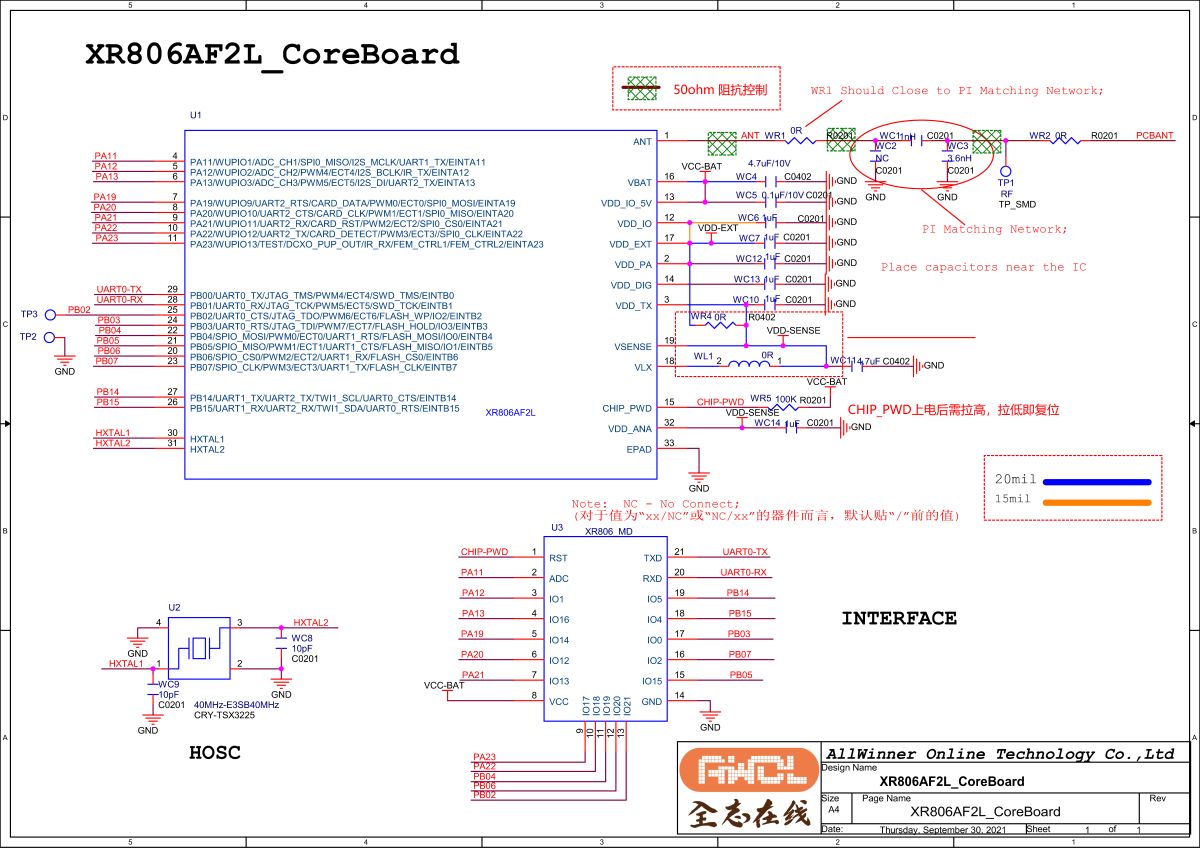

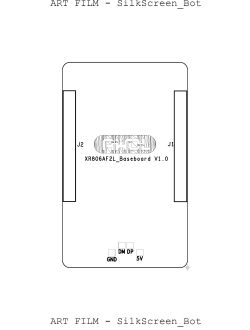

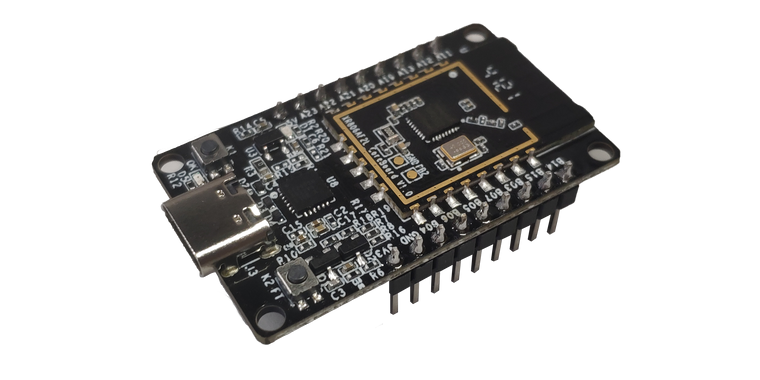

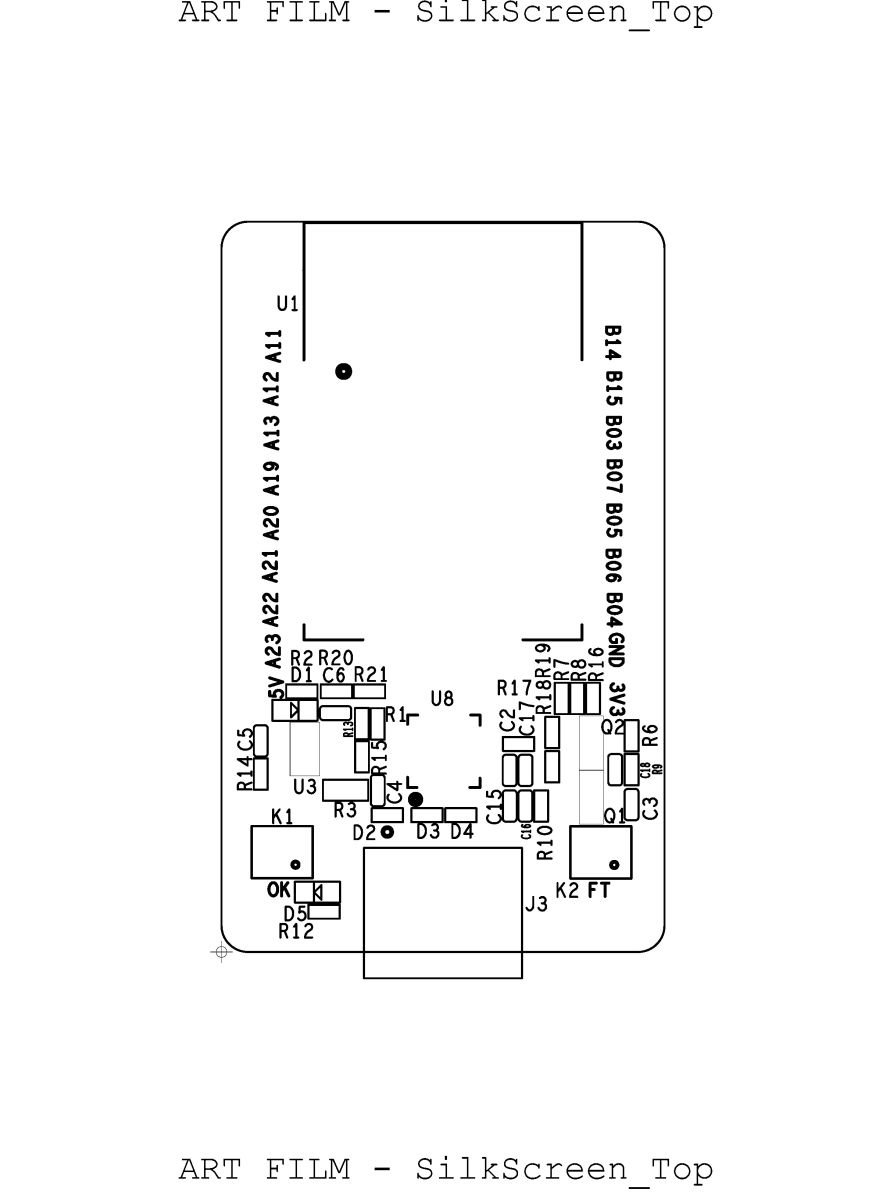

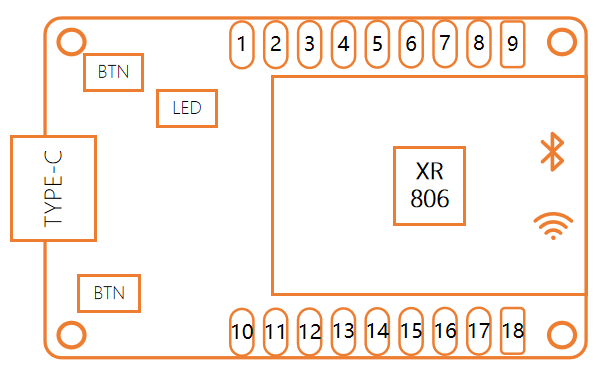

    Diagram of an electronic board with a USB-C port, button slots, an LED, and an XR806 module. Microcontroller module with a USB-C port.

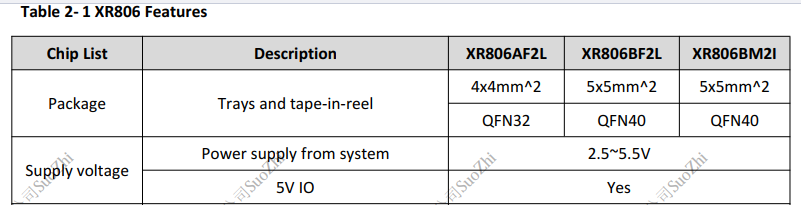

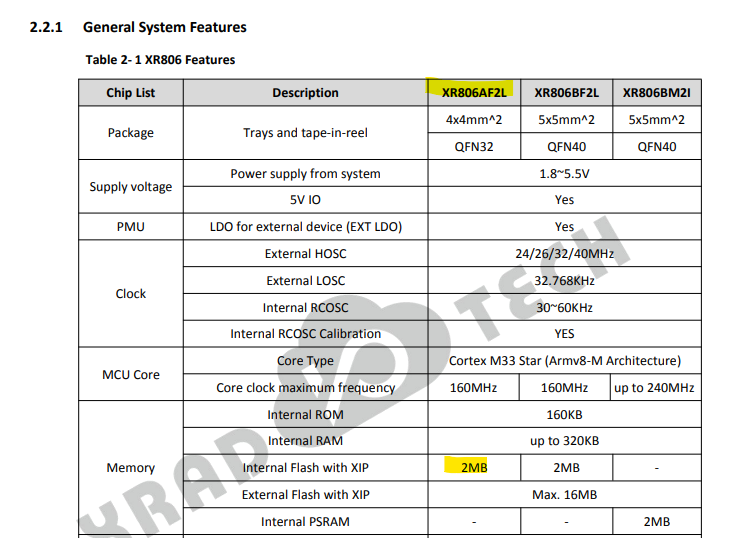

    Comparison table of XR806, XR806AF2L, XR806BF2L, and XR806BM2I chip features.

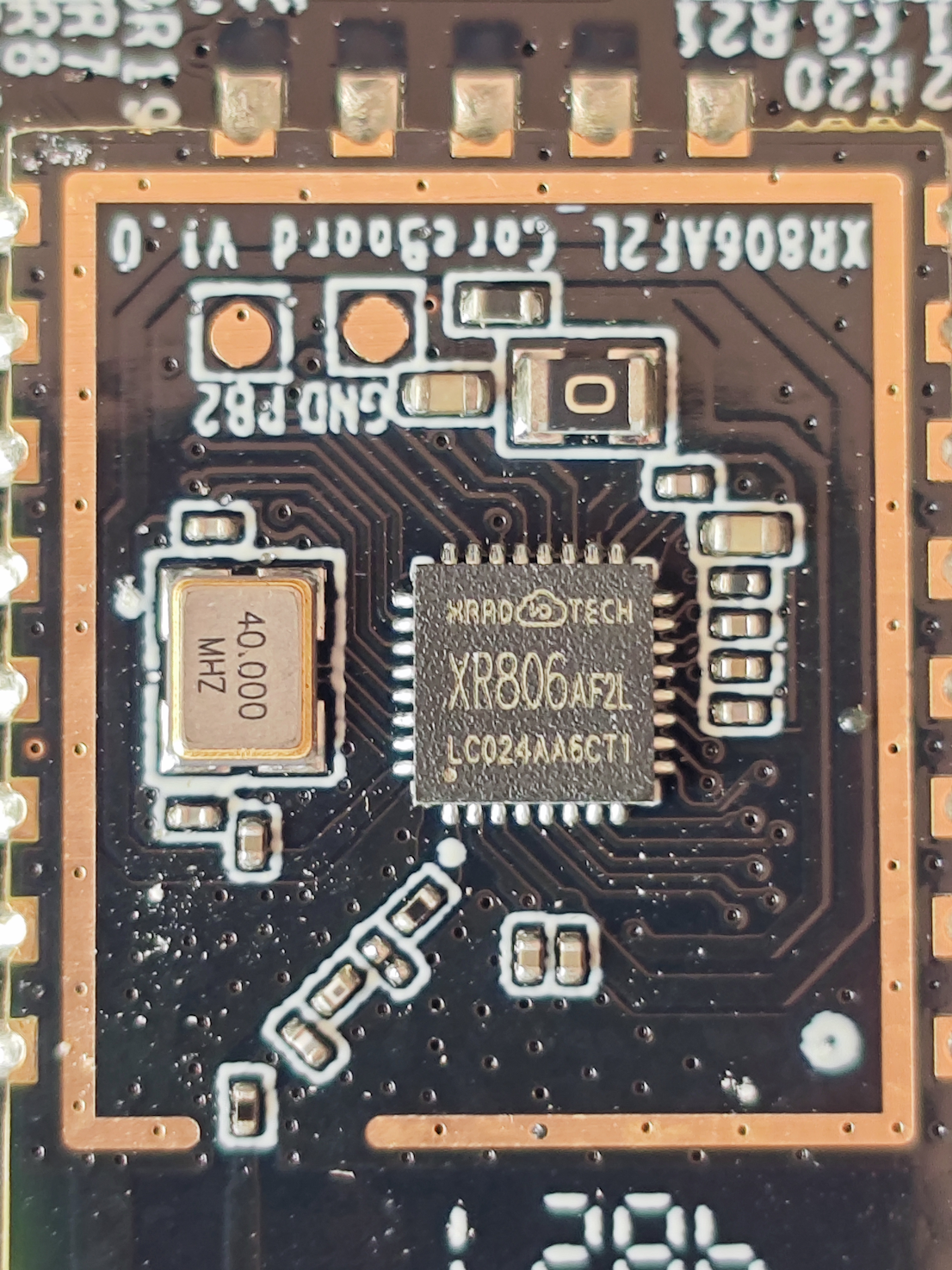

    Close-up of a circuit board with XR806AF2L chip and 40 MHz quartz resonator.

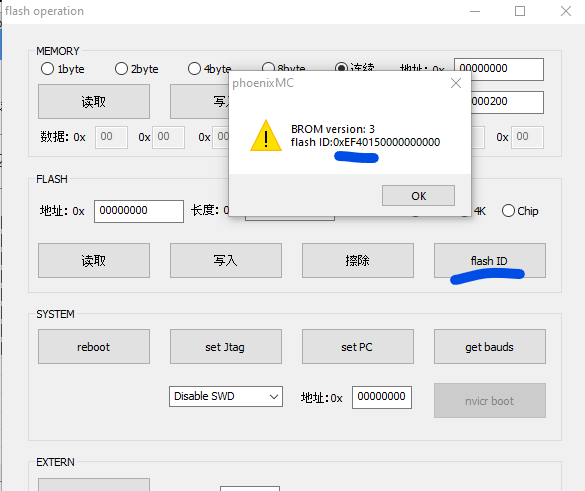

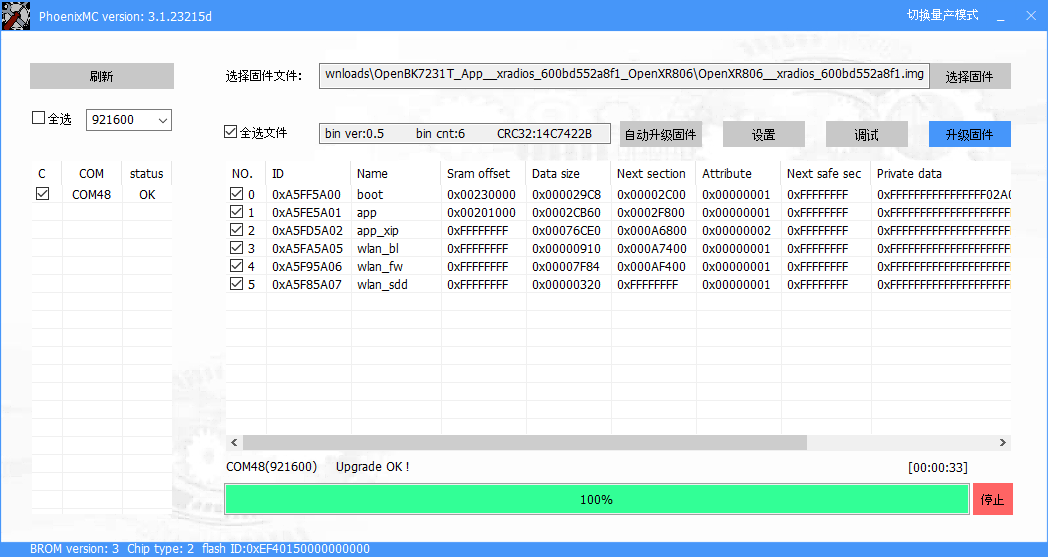

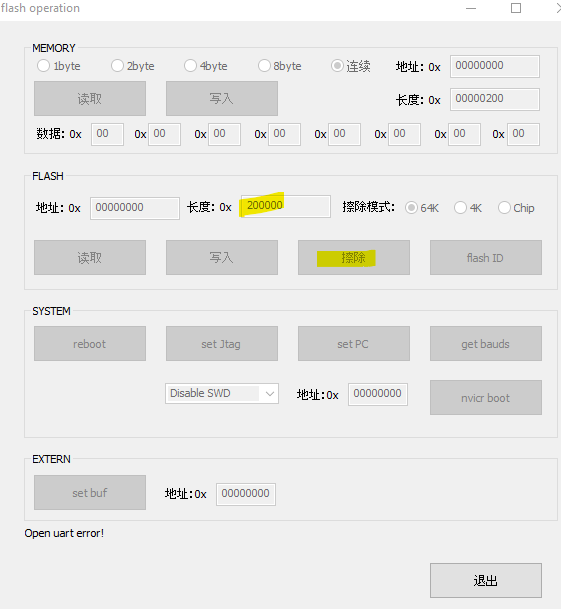

    Screenshot of flash operation software with a message about BROM version.

    https://www.winbond.com/hq/product/code-stora...al-nor-flash/?__locale=en&partNo=W25Q16JV
    Code: Text
    Log in, to see the code



    AWOL_XR806AF2L_BaseboardV1.0_Dev_Board.bin
    https://github.com/openshwprojects/FlashDumps/tree/main/IoT/XR806

    Added after 22 [minutes]:

    🤣/😭 - magic smoke just from normal 5V USB-C. 3 weeks from China - 🤣/😭

    easy come, easy go
  • ADVERTISEMENT
  • #2 21466364
    p.kaczmarek2
    Moderator Smart Home  
    That's an interesting finding... but...
    The board is now broken? What was burned, exactly? XR806 module or just the USB to UART converter or LDO?
    Helpful post? Buy me a coffee.
  • ADVERTISEMENT
  • #3 21466370
    divadiow
    Level 34  
    XR806 chip. Will buy a couple more, but.. wtf

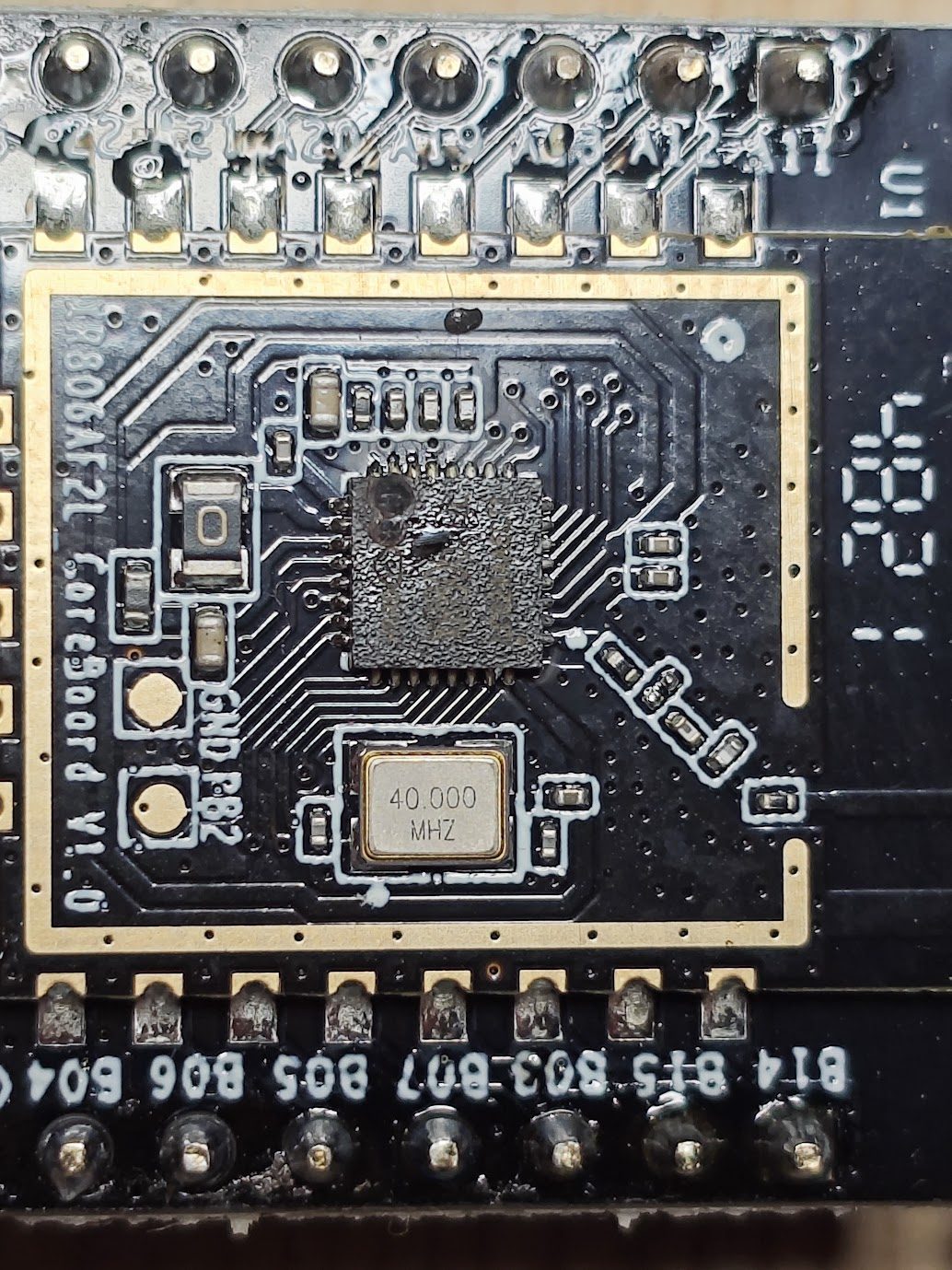

    Close-up of an integrated circuit on a printed circuit board with a quartz resonator marked 40.000 MHZ.
  • #4 21466570
    p.kaczmarek2
    Moderator Smart Home  
    So how long did you manage to use it?

    Maybe you have a short between 5V+ and D+ or D- on USB C?

    Or maybe there is a stray solder ball on the PCB...
    Helpful post? Buy me a coffee.
  • #5 21466664
    divadiow
    Level 34  
    p.kaczmarek2 wrote:
    So how long did you manage to use it?

    10 mins maybe. enough to make 2 dumps
  • #6 21482902
    divadiow
    Level 34  
    Tuya kits
    Code: Text
    Log in, to see the code


    List of ZIP files in WinRAR archive format.
  • ADVERTISEMENT
  • #7 21535746
    divadiow
    Level 34  
    removed module. VCC to module is 5V, but that should have been OK it seems
    A section of a technical table with XR806 chip data, showing packaging types and supply voltage ranges.

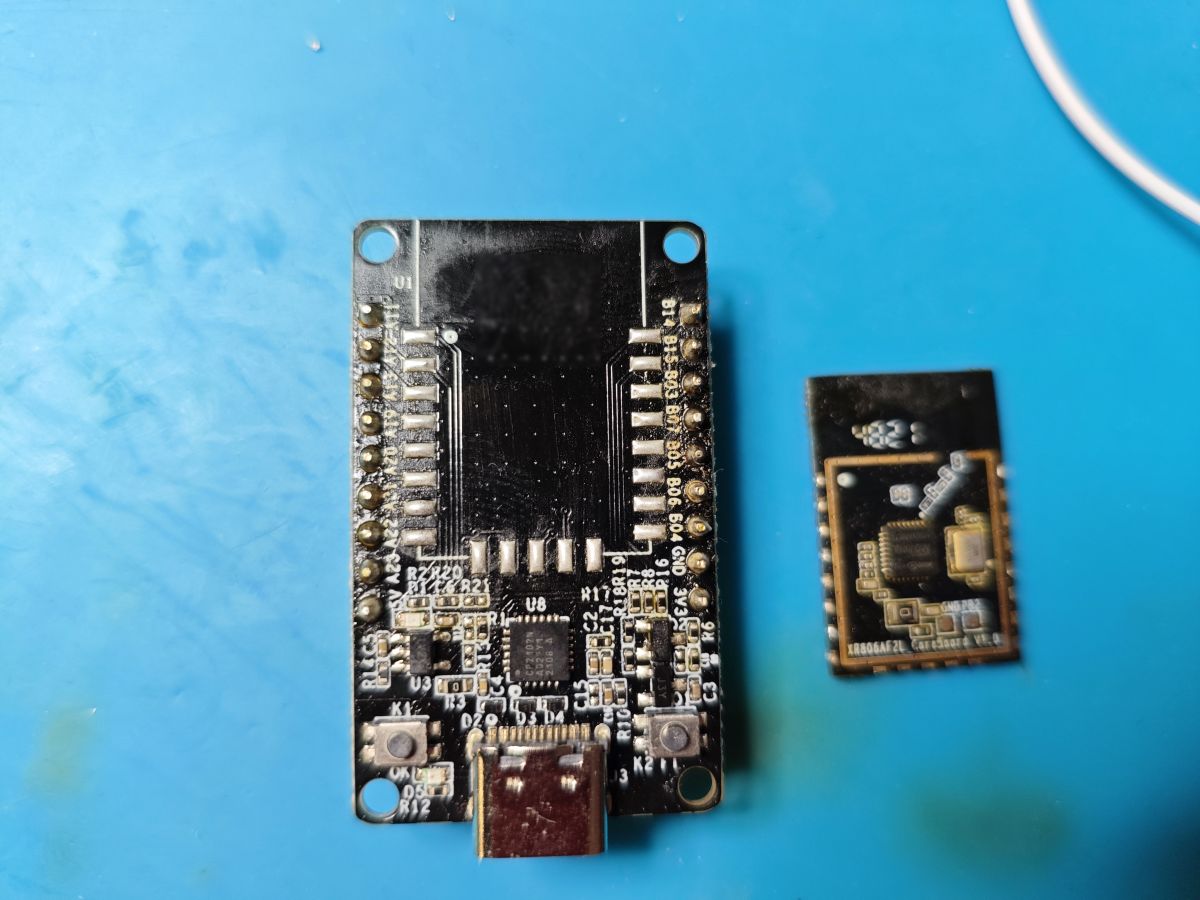

    A PCB with a removed electronic module next to it, lying on a blue surface.
  • ADVERTISEMENT
  • Helpful post
    #9 21536814
    divadiow
    Level 34  
    -official guides https://xr806.docs.aw-ol.com/
    -other https://zhuanlan.zhihu.com/p/694447378
    -xr806 repo links are mostly broken apart from this https://gitee.com/moldy-potato-chips/devboard_device_allwinner_xr806 which I have cloned to https://github.com/divadiow/devboard_device_allwinner_xr806 - should anyone want the original (xr806_sdk-v1.2.0 (20210607))
    -newer SDK (xr806_sdk-v1.2.2 (20230110) - https://github.com/divadiow/xr806_sdk and https://bbs.aw-ol.com/assets/uploads/files/1693988430633-xr806_sdk.tar.gz
  • Helpful post
    #10 21558377
    divadiow
    Level 34  
    second board. 5v to module still. same fw. hasn't blown-up yet

    Code: Text
    Log in, to see the code

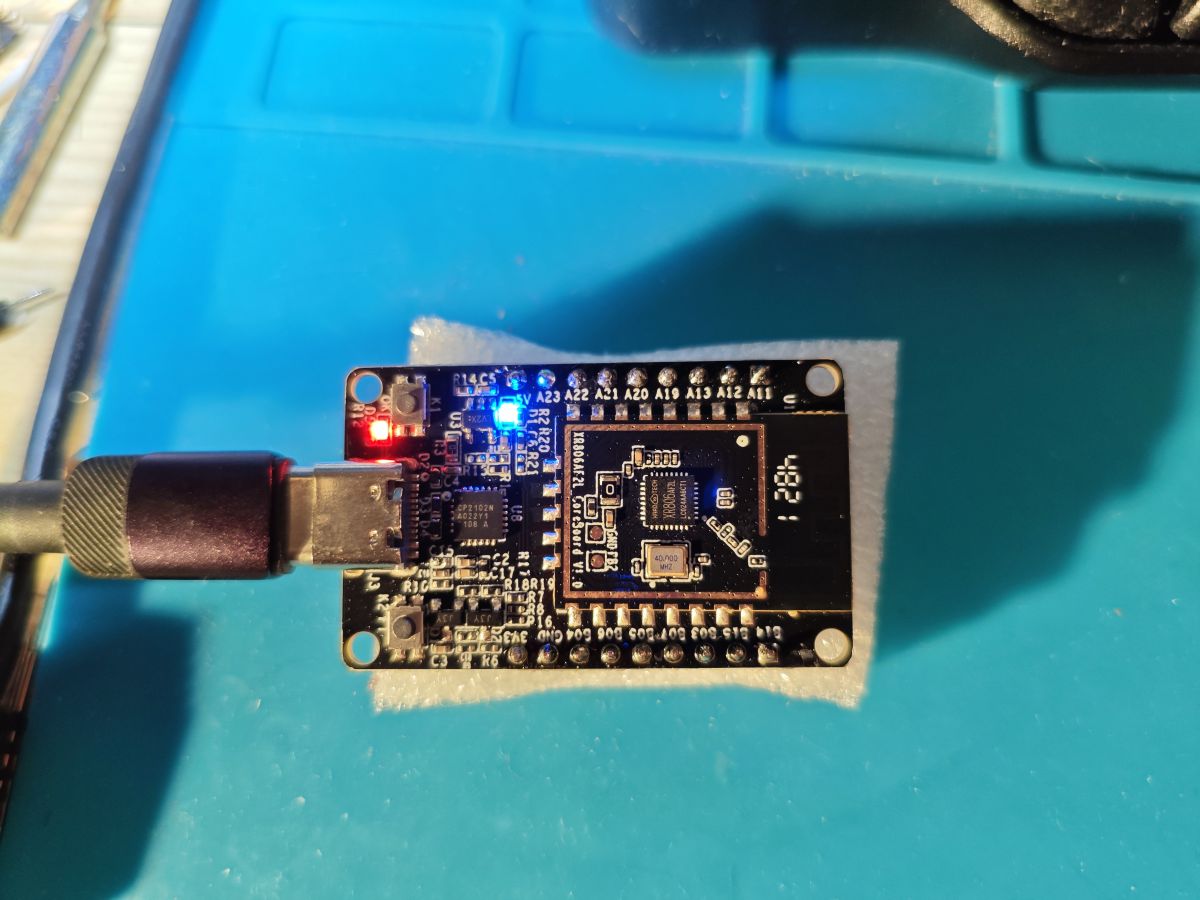

    An electronic module with a connected USB cable, featuring illuminated LEDs.

    Added after 21 [minutes]:

    little blue LED is PA21

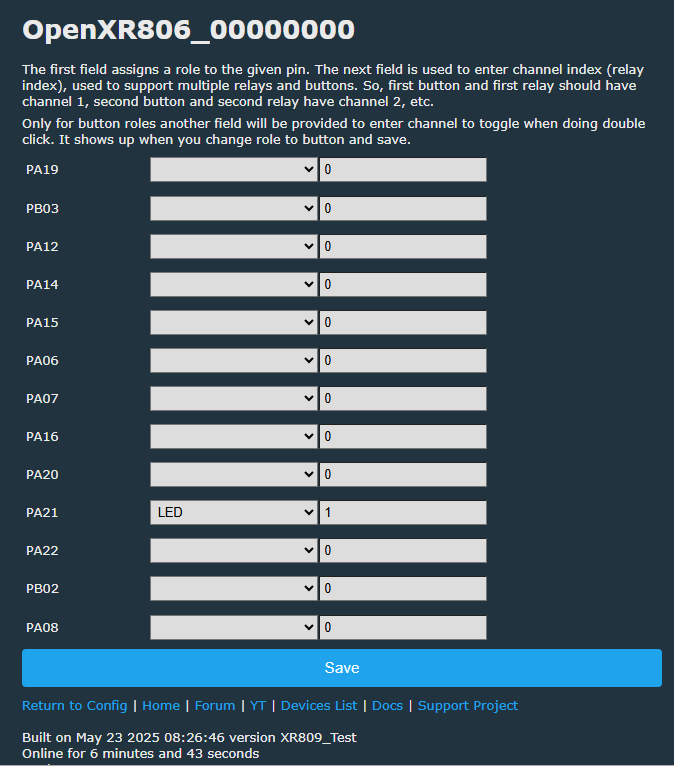

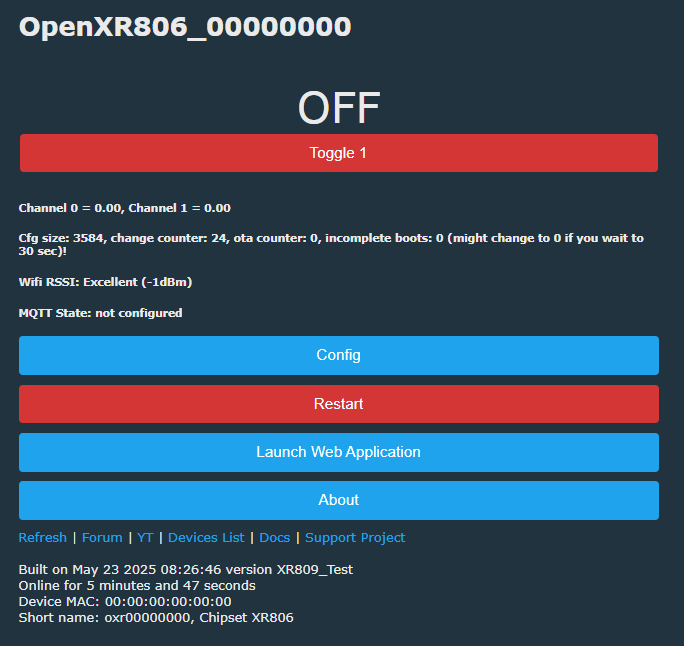

    OpenXR806 device control panel showing an OFF state and several buttons for configuration, restart, and launching a web application. Screenshot of OpenXR806 configuration panel with dropdowns and fields for pin roles and channels.
