Teardown Action LSC Smart Power Strip 3202887 AL E24748 CB3S - 4 independent switchable sockets

mtb1007 24 Dec 2024 13:29 9 3177 Cool? (+9)

📢 Listen (AI):

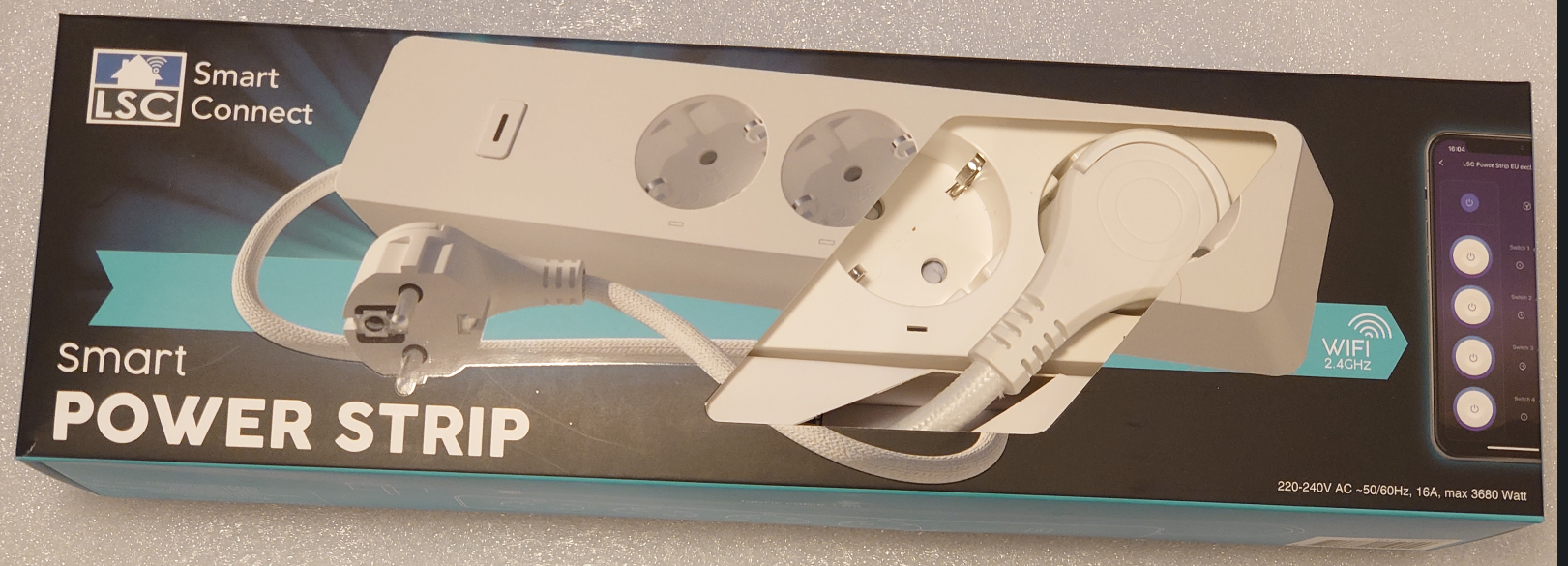

As sold in the Action stores (NL, Dec 2024). First some images:

The device can be successfully used with OpenBeken, but requires some DIY skills to open the housing without damage.

BIG FAT WARNING: the electronics inside the power strip are directly connected to the 230V mains lines, without any isolation!
Keep the mains plug disconnected during the whole operation!

First, remove the 8 rubber feet (they pull out very easily):

Next, you'll find screws with a completely flat head surface. For the rest, they are normal self-tapping plastic screws:

So, how to get them out? As first attempt, I tried to drill them out. This ruined the plastic housing around the screws so badly, that it was almost impossible to reassemble the power strip again.

The second plan worked better: get an (old) metal drill bit (ca 4 mm diameter) and an electric grinding stone. Grind down the head of the drill bit, and create an 'opposite' cutting surface. In other words, let's create a left-turning drill.

Stick some tape around the drill, so it won't damage the 'shaft' of the screw hole with its sides (we only need the tip of the drill).
Carefully place the drill in the center of the screw head, so it doesn't touch the side walls. Start drilling (counterclockwise of course) and keep the drill centered, away from the sides.
At first, the drill will start eating some of the screw head, that's fine. At some point it will get enough grip, so that it starts turning the screw. Once the screw gets halfway out, the drill is more likely to hit the side walls, so keep it centered!

Once the screws are out, the inside shows some wiring strips, a mains-powered PCB with 4 miniature relays and a CB3S module, and a separate PCB strip along the sockets, which holds the 4 LEDs:

Note the grooves in the ball joint at the end of the cable. When reassembling the housing, this groove must point straight up and down, so they align with two notches in the housing halves.

Make some temporary solder connections to the 1st, 2nd and last pin of the top row, and the last pin of the bottom row:

And connect them to a 3.3V TTL serial interface:

Colors don't matter, but in these pictures:
- black: Gnd
- red: +3.3V
- purple: Tx (smart plug) to Rx (PC)
- yellow: Tx (PC) to Rx (smart plug)

Some hints for flashing OBK:
- When the flashing software asks for a device reset, you can shortly pull and re-plug the red wire.
- This didn't work reliably for me. Instead, you can also momentarily connect pin 1 of the CB3S module (its reset input) to Gnd:

Device configuration:

As JSON:

Finally: when reassembling, use normal screws :-)

I used 'tapping screws 2.9x16mm', but 2.9x13mm will probably also fit fine.

About Author

mtb1007 wrote 3 posts with rating 10 . Been with us since 2024 year.

Comments

Add a comment

p.kaczmarek2 24 Dec 2024 15:01

It's certainly an interesting device, I don't remember seeing an Action-branded power strip yet. By the way, you can also script the button to control each of the socket on given single click, dbl click,... [Read more]

gulson 24 Dec 2024 21:16

I will post here an interesting comment from Facebook under the article: "A hint perhaps obvious, but explaining why the circuit may "not reset" when Vcc is unplugged. Namely, the high state on the Tx... [Read more]

p.kaczmarek2 24 Dec 2024 22:23

Good point, I even discussed this in a separate topic: Microcontroller works without power supply connected? We are running on GND and UART alone, a conundrum. . Also a good point, many Tuya... [Read more]

divadiow 25 Dec 2024 07:20

cool. it seems this device is also here https://www.elektroda.com/rtvforum/viewtopic.php?p=21264621#21264621 [Read more]

p.kaczmarek2 25 Dec 2024 09:09

I like the fact that this strip uses the CB3S module rather than the CB2S. There are more free pins. You could consider adding something in there, at least a sensor from the DHT series, such as the DHT11.... [Read more]

austin007 25 Dec 2024 11:17

Interesting description. I used to drill such flat screws but the drill was on a tripod. With success. I don't know , why do they do this? EU regulations, does this give something to the manufacturer?... [Read more]

mtb1007 25 Dec 2024 13:46

Thanks for all feedback! This is indeed the same device as https://www.elektroda.com/rtvforum/topic4080696.html#21264621. That post also mentions a nice way of opening the anti-tamper screws! The... [Read more]

erikwouterson 01 Jan 2025 16:11

Hi All, Not sure if I need to post this as a new device ? Just finished modifying the LEDVANCE AC32646 and thought to post it in the Teardown section. To my surprise someone else did it to what... [Read more]

d0np3p3 19 Feb 2026 14:00

@erikwouterson Hello did you make a dump of firmware? Could you post your config? I will try cloudcutter for this device. [Read more]
