Disassembly and Review: RTL8710CF Meross Wi-Fi Smart Plug & Energy Monitor

TurkeyMan 4737 9
ADVERTISEMENT
  • #1 20283708
    TurkeyMan
    Level 3  
    Teardown of the Meross Wi-Fi Smart Plug & energy monitor.

    Disassembly and Review: RTL8710CF Meross Wi-Fi Smart Plug & Energy Monitor
    Disassembly and Review: RTL8710CF Meross Wi-Fi Smart Plug & Energy Monitor

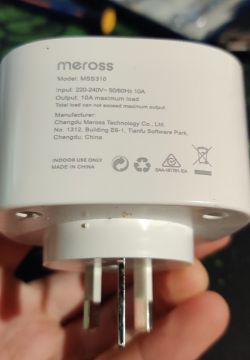

    This is Australian version, but I've seen this product in several markets.
    The device runs custom Meross software, requires different app and integration.
    It seems solid, works fine, advertising up to 10A switching, and has an integrated energy monitor, which I always like. It's nice to have fine resolution stats on energy consumption throughout the home!
    I might complain that it's unnecessarily bulky (like all devices in this category!)

    It disassembles very easily by 4 screws, no clips or anything:
    Disassembly and Review: RTL8710CF Meross Wi-Fi Smart Plug & Energy Monitor

    Trying to remove the board, it feels like the board is soldered or fixed in place to the electrical pins sticking out the back:
    Disassembly and Review: RTL8710CF Meross Wi-Fi Smart Plug & Energy Monitor

    I wasn't able to remove the board, making it difficult to access the processor:
    Disassembly and Review: RTL8710CF Meross Wi-Fi Smart Plug & Energy Monitor

    Which happens to be an RTL8710CF, which seems that it's not yet supported, so I guess the journey ends here.

    What can be done to support these Realtek chips? I have many of these devices...

    The larger challenge might be breaking out the terminals; it's very cramped! But they did appear to helpfully label TX/RX pads.
    Disassembly and Review: RTL8710CF Meross Wi-Fi Smart Plug & Energy Monitor

    I guess I'll just leave this here until we have some way to test on Realtek chips. I have several of these which I can experiment with.
  • ADVERTISEMENT
  • #2 20283922
    p.kaczmarek2
    Moderator Smart Home
    That's a very interesting device, I might have somewhere some WR3's to play with (I must check, I am not sure I remember correctly) so I might get you a build very soon.

    To be honest, there is already a 99% ready RTL port for several months already:
    https://github.com/openshwprojects/OpenRTL8710BN
    I just have to find time to do some final polishing.

    But wait, is that a RTL8710BN on this board or a slightly different one?


    By the way, is Meross App really not compatible with Tuya? So one can't pair that device with original Tuya app?
    Helpful post? Buy me a coffee.
  • #3 20284015
    TurkeyMan
    Level 3  
    The chip clearly appears to have RTL8710CF written on it... I think it's a new chip? I noted another "CF" chip with a different number somewhere else while googling around.

    This device is NOT compatible with Tuya directly; you don't pair the device with Tuya or SmartLife app, you use the Meross app, and the advertising material makes a big point of this saying it supports direct/local commands, so they respond faster and when the internet is out.
  • ADVERTISEMENT
  • #4 20286805
    nkuehnel86
    Level 4  
    Hi p.kaczmarek2

    p.kaczmarek2 wrote:

    To be honest, there is already a 99% ready RTL port for several months already:
    https://github.com/openshwprojects/OpenRTL8710BN
    I just have to find time to do some final polishing.


    how is your polishing :D? Anything I could help or contribute?
    I got two power switches from a German distributor which is known to sell cheap stuff, so as this good pieces.
    A WR2E module from Tuya with the RTL8710BN MCU.
    Do you have already a *.bin file I could test with this?

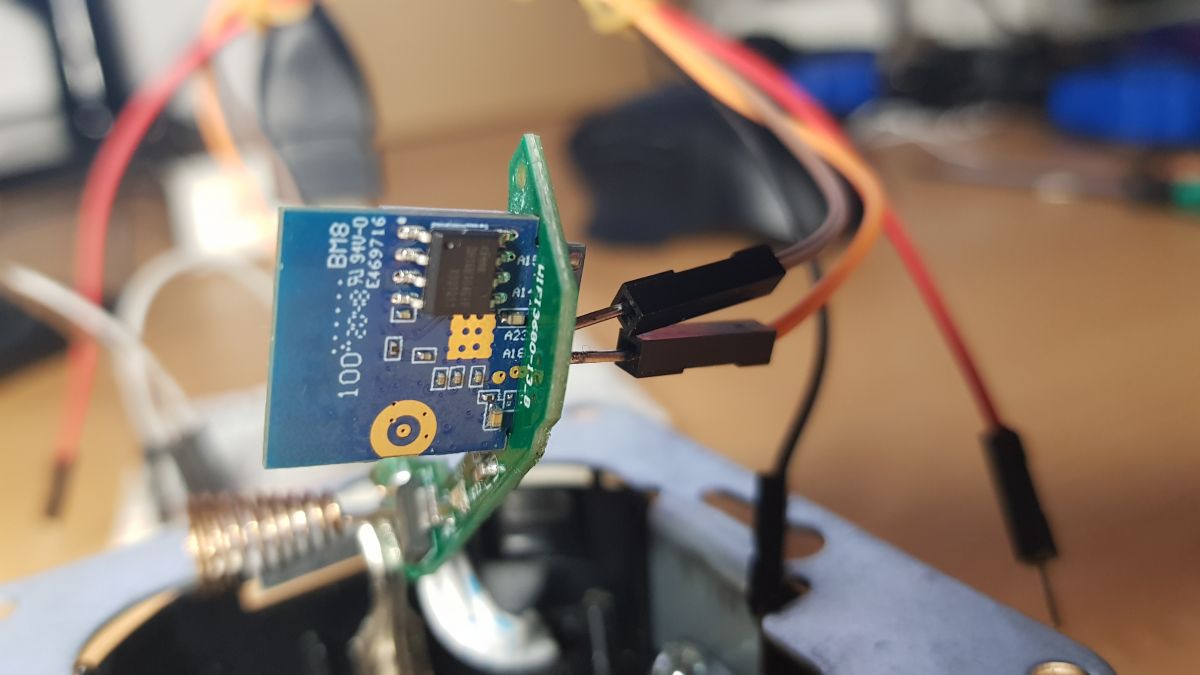

    Here are some pictures of one device.

    Disassembly and Review: RTL8710CF Meross Wi-Fi Smart Plug & Energy Monitor Disassembly and Review: RTL8710CF Meross Wi-Fi Smart Plug & Energy Monitor Disassembly and Review: RTL8710CF Meross Wi-Fi Smart Plug & Energy Monitor Disassembly and Review: RTL8710CF Meross Wi-Fi Smart Plug & Energy Monitor Disassembly and Review: RTL8710CF Meross Wi-Fi Smart Plug & Energy Monitor Disassembly and Review: RTL8710CF Meross Wi-Fi Smart Plug & Energy Monitor Disassembly and Review: RTL8710CF Meross Wi-Fi Smart Plug & Energy Monitor Disassembly and Review: RTL8710CF Meross Wi-Fi Smart Plug & Energy Monitor

    Thanks for replying
  • #5 20286821
    p.kaczmarek2
    Moderator Smart Home
    I can make it a higher priority for you, just wait until I finish Windows port (for testing) and self-test/one could say "unit test" systems for OBK
    Helpful post? Buy me a coffee.
  • #6 20288093
    nkuehnel86
    Level 4  
    p.kaczmarek2 wrote:
    I can make it a higher priority for you, just wait until I finish Windows port (for testing) and self-test/one could say "unit test" systems for OBK


    Oh, thank you very much. It was not intended to push or to put you under pressure. So when you've got something, I'm willing to test on my device here. So take your time, no hurry.
  • ADVERTISEMENT
  • #7 20293685
    p.kaczmarek2
    Moderator Smart Home
    I've also got a RTL8710CF module, so both platforms will be supported, sooner or later.
    Helpful post? Buy me a coffee.
  • #8 20686670
    bgardner46
    Level 3  

    Anything new on this? I recently purchased a KP200 in-wall outlet from Amazon hoping that it would have one of the BK chips that I could flash with this software. Unfortunately, it has an RTL8710CF chip. Here's a picture of the purchased package:

    KP200 Kasa Smart Wi-Fi Outlet package with compatibility logos.

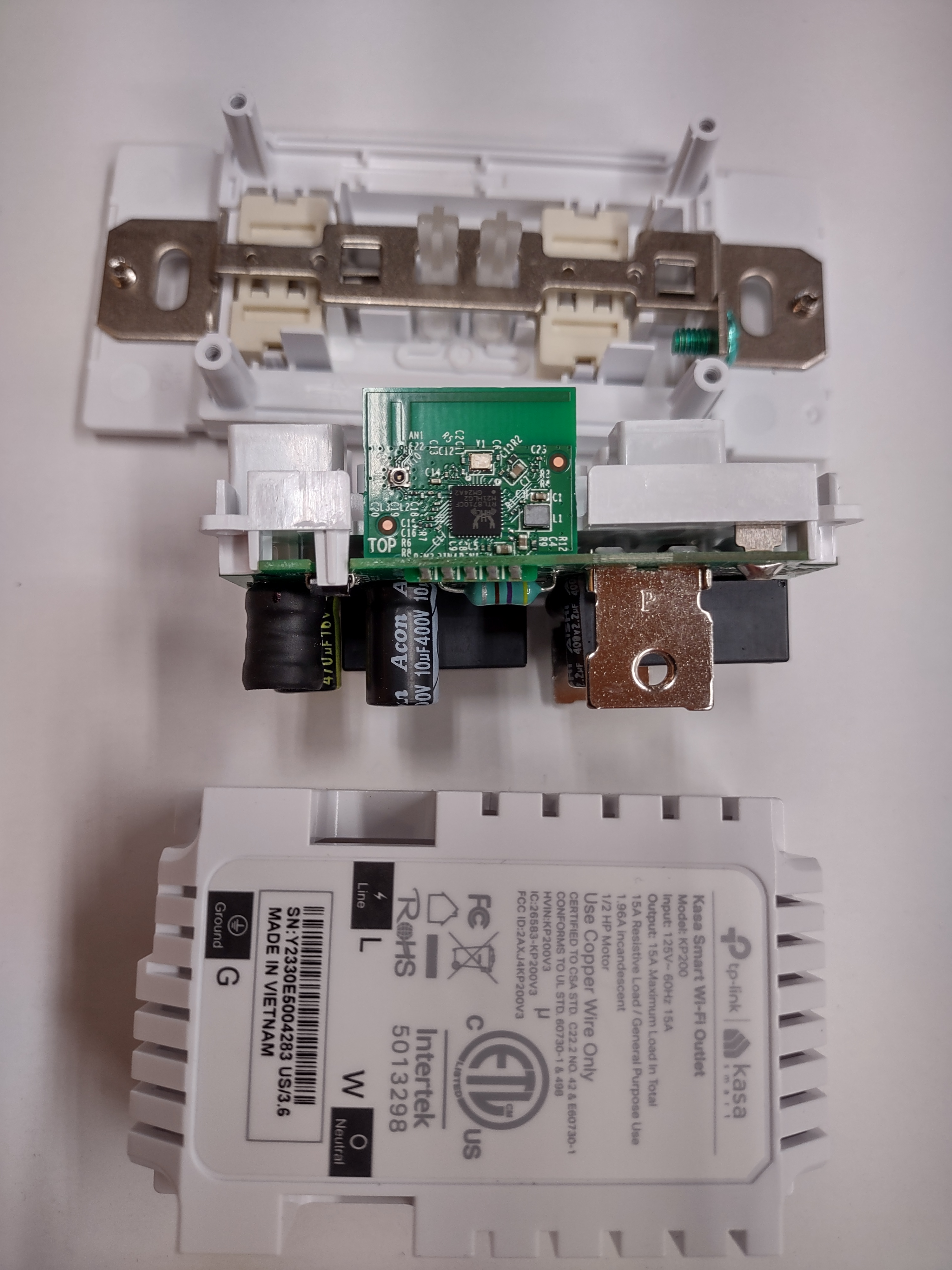

    There don't appear to be any dedicated pads like some of the chips, but there is pretty good access to the chip and, assuming I can get a pinout, I should be able to track down the correct points to solder to. The device was very easy to disassemble, and here's a picture of the chip:

    Dismantled TP-Link Kasa Smart Wi-Fi outlet showing the integrated circuit and PCB.

    Thanks,

    Bob
  • #9 20686685
    p.kaczmarek2
    Moderator Smart Home
    Thank you for your patience. I'll let you know once there is a progress. This platform is not too popular. It's almost like you have, I don't know, 1% chance to get RTL instead of ESP/BK.
    Helpful post? Buy me a coffee.
  • ADVERTISEMENT
  • #10 21379242
    p.kaczmarek2
    Moderator Smart Home
    Helpful post? Buy me a coffee.
