[AXY2S] [ECR6600] Teardown LSC Connect Smart Wall Dimmer (3207304)

jasperro 8628 73
ADVERTISEMENT
Report a violation of the law
Reply | New topic
  • #61 21522942
    Maximilian0017
    Level 7  
    It looked like it was mid-development and the wifi was really bad.
    Also, the config needed for this unit would be nice.

    I have a couple of these, but my lab is all boxed up due to a move.....
  • ADVERTISEMENT
  • #62 21522945
    divadiow
    Level 38  
    Maximilian0017 wrote:
    and the wifi was really bad

    we think that's just limited to the experience on WG236A modules used in testing. There are several people with ECR6600/BL0937 EU plugs now using OpenECR6600 seemingly without issue.
  • ADVERTISEMENT
  • #63 21523865
    miegapele
    Level 16  
    Seem to be fine with wifi, for example comparison against BK7231T, two concrete walls away from router.
    I have not tested long term stability though.

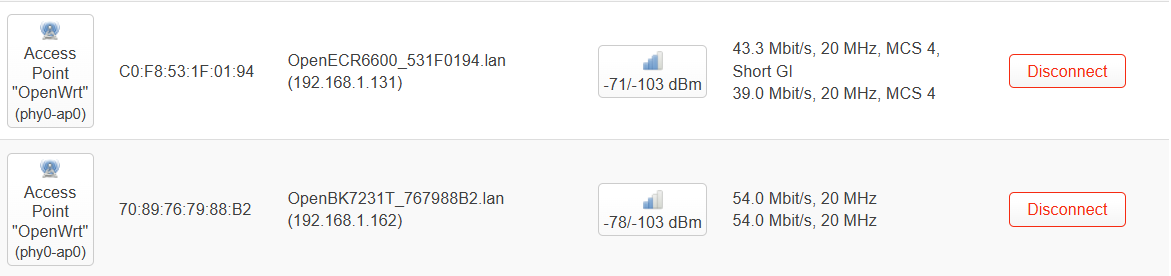

    A list of two OpenWrt access points showing connection info, MAC addresses, signal strengths, and link speeds.
  • #64 21523878
    insmod
    Level 31  
    >>21523865
    Transmission power / dbm was more or less ok even on WG236.
    It's the reception that is the problem. I had once seen -75dbm on router, but -90 on device (in log, because http stopped working already)
  • #65 21524001
    miegapele
    Level 16  
    Reception also looks fine. ECR6600 reports -61dBm while BK7231T reports -65dBm. Trying ping for some time gets similar averages too.
  • #66 21525546
    Maximilian0017
    Level 7  
    That sounds great, do we have a config for this device?
  • ADVERTISEMENT
  • #67 21620419
    divadiow
    Level 38  
    >>21474686

    newer ECR6600 goodies 😎

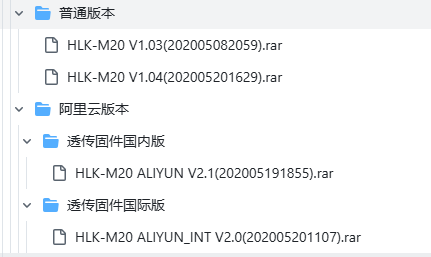

    Code: Text
    Log in, to see the code
    Attachments:
    • ECR6600_AT命令开发指南V2.9_汇总.docx (357.49 KB) You must be logged in to download this attachment.
    • ecr6600f_v2.1.23.16_xiaocao.tar (197.53 MB) You must be logged in to download this attachment.
    • ecr6600f_v2.1.24.11-AT.tar (270.47 MB) You must be logged in to download this attachment.
  • #69 21622802
    divadiow
    Level 38  
    Quote:
    ECR6600 with v2.1.23.16 firmware size increased from 850kb to 920kb. (When i tried v2.1.24.11, it was 1222kb. Perhaps some optimization flags were missing?)

    Added ECR6600 and BL602 deepsleep (ECR6600 - unknown if it works with new sdk, it didn't in the old one).
    BL602 pindeepsleep (GPIO7/8 only)
    ESP-IDF sdk from v5.5-beta1 to v5.5
    Powersave for ECR6600
    ESP deepsleep argument from ms to s
    ECR6600 reset reason

    https://github.com/openshwprojects/OpenBK7231T_App/pull/1743

    OpenECR6600_1743_merge_d3a54bd71550 initial boot

    https://github.com/openshwprojects/OpenBK7231T_App/actions/runs/16644090336
    Code: Text
    Log in, to see the code

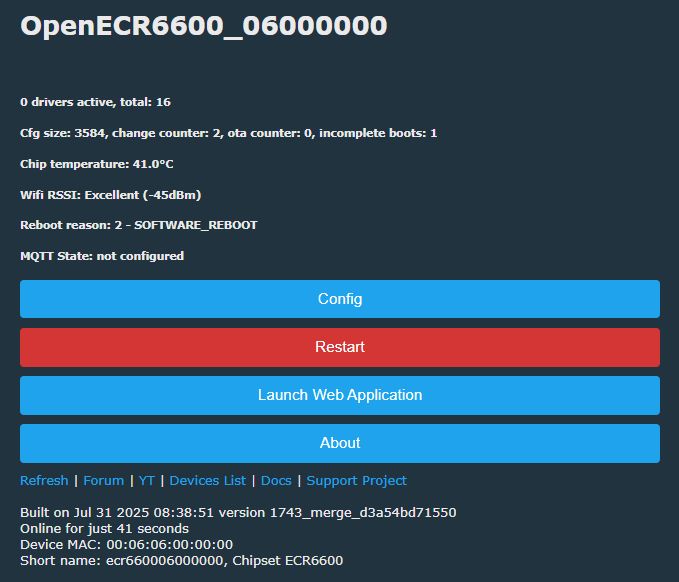

    OpenECR6600 device interface showing system status, chip info, MAC, and control buttons

    reboot reason ✅
    Excellent RSSI only because I have MHF4 + aerial now ✅

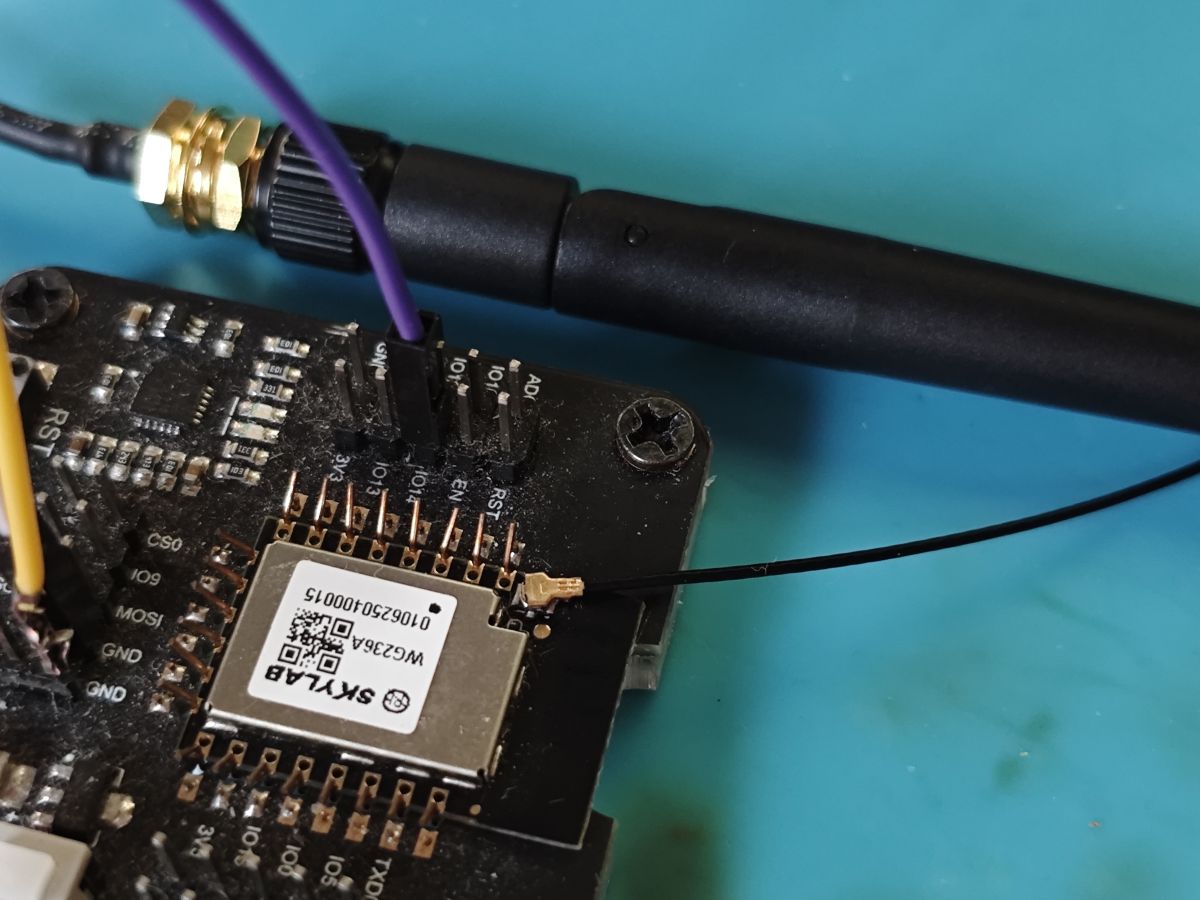

    SKYLAb Wi-Fi module on PCB with connected wires and external antenna

    powersave 1 doesn't crash but don't know if it's effective
    Code: Text
    Log in, to see the code


    deepsleep 30

    Code: Text
    Log in, to see the code


    wakes at 30s but is weird. won't join wifi again until hard power off/on
    Code: Text
    Log in, to see the code


    Added after 7 [minutes]:

    yes weird. I get Windows device disconnect sound when it wakes too and no wifi join. but then a minute later it'll device-disconnect sound again, reboot and join wifi, then:

    Screenshot showing message “Reboot reason: 9 - UNKNOWN”

    I'll try non-PC USB port

    Added after 4 [minutes]:

    on mains-powered USB 2A port it did join wifi 9s after wake and:

    Chip temperature: 9649.0°C, WiFi RSSI: Excellent (-49dBm), Reboot reason: 9 - UNKNOWN

    Added after 12 [minutes]:
    divadiow wrote:
    powersave 1 doesn't crash but don't know if it's effective

    forgot i just bought this

    powersave 0

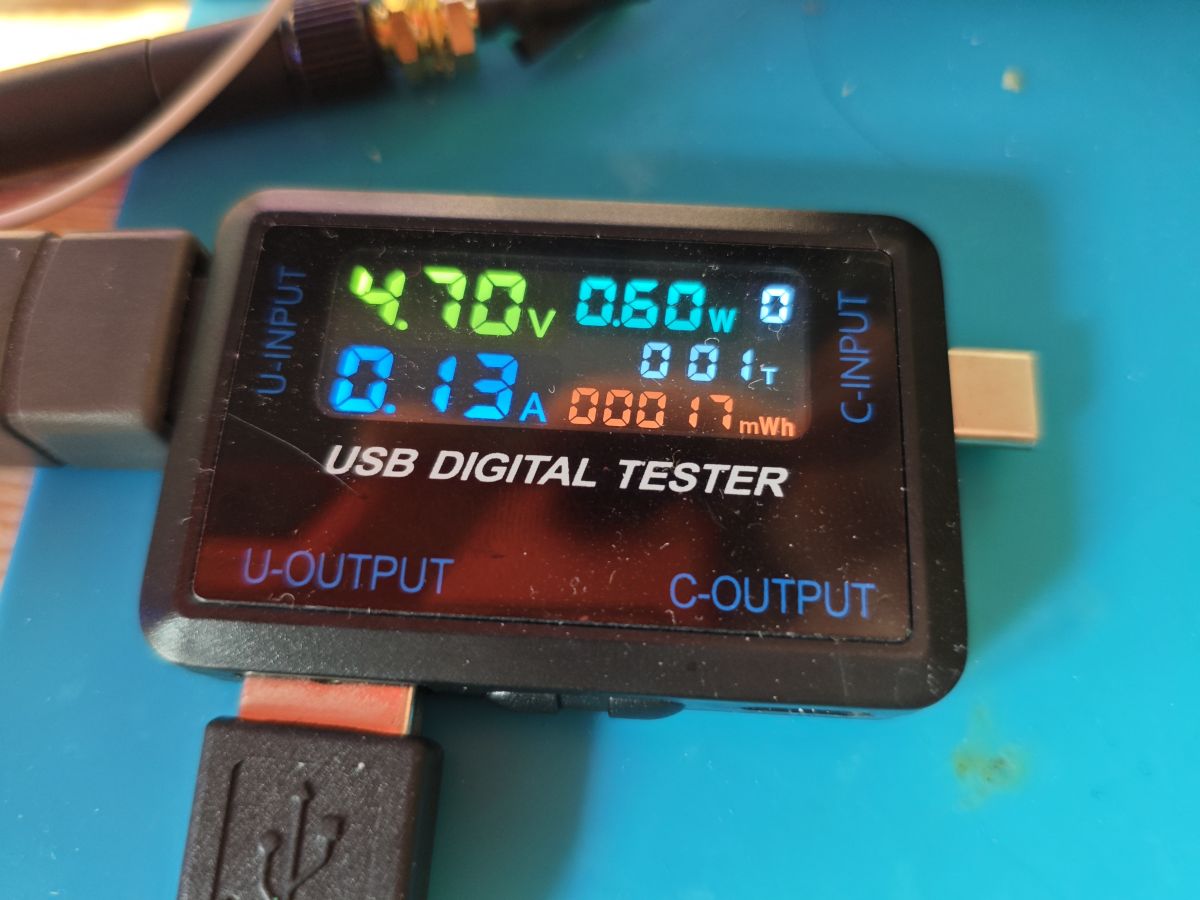

    USB digital tester showing 4.70V, 0.13A and 0.60W on the display
    powersave 1

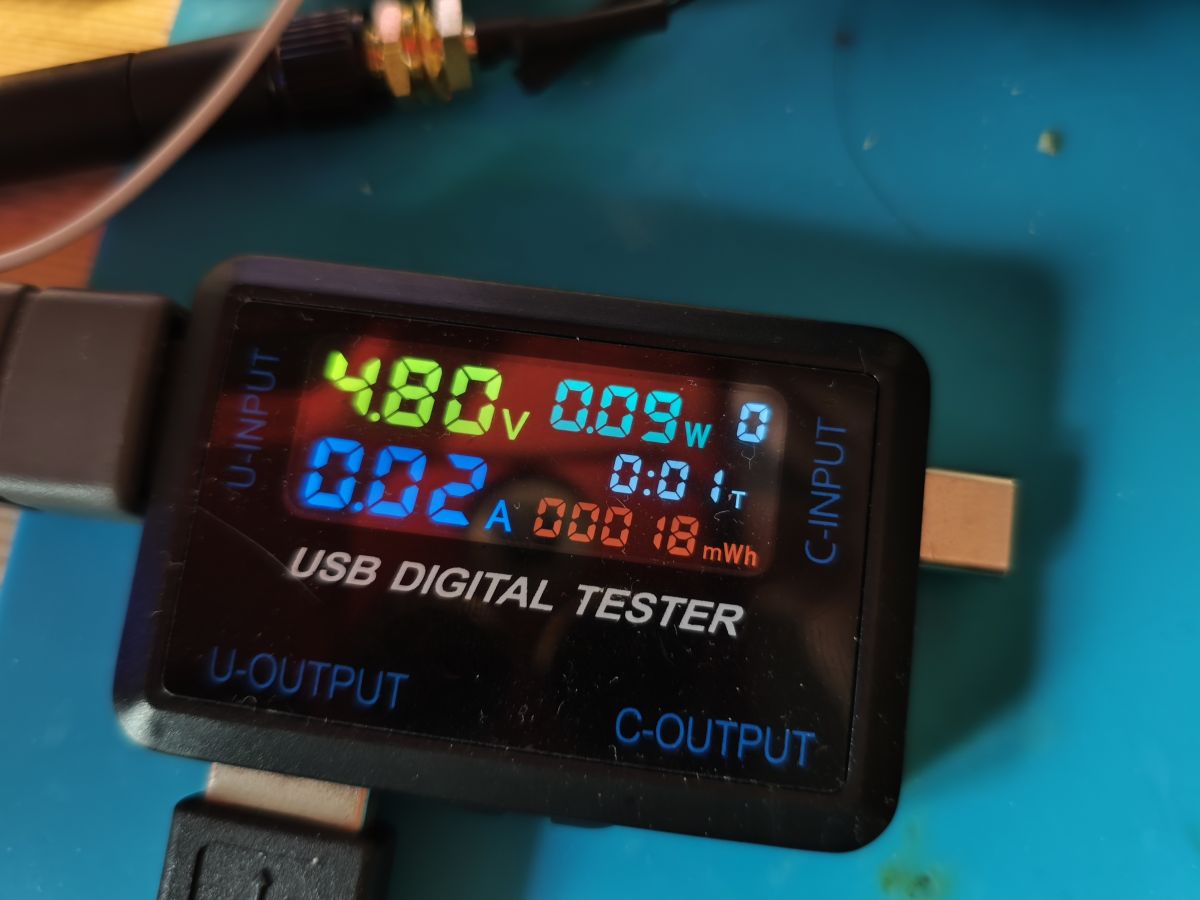

    USB tester showing 4.80 V and 0.02 A on digital display

    Added after 16 [minutes]:

    not really sure what's happening with deepsleep. this is it on mains USB, no powersave, then deepsleep 10 which you can see kicking in and dropping to 0, but then it draws too quickly again, drops and rises. hmm



  • ADVERTISEMENT
  • #70 21622859
    insmod
    Level 31  
    So it can connect after deep sleep? Even if not, this is still better, that what i've had with older sdk. It failed to even find AP, stuck at scanning.
    There is also powersave 2.
  • #71 21622863
    divadiow
    Level 38  
    insmod wrote:
    So it can connect after deep sleep?

    it seems to vary. inconsistent. powersave 2 is available in build now for use? I can check later today..

    re deepsleep it probably needs a sample of 10 rounds to gauge consistency

    Added after 45 [minutes]:

    divadiow wrote:
    I can check later today..

    or now.

    powersave 2 = 0.02/0.03A - seems comparable to powersave 1

    device remains responsive. switching to powersave 1 I see no change in reading. powersave 0 = back to 0.12A
  • #72 21626131
    divadiow
    Level 38  
    1743_merge_d3a54bd71550


    pindeepsleep does nothing. this in log:
    Code: Text
    Log in, to see the code
  • Helpful post
    #74 21809988
    divadiow
    Level 38  
    @jasperro did you ever finish conversion of LSC dimmer to OpenECR6600? I notice we only have one ECR6600 device in the device list and went hunting for the others we've seen.

    Added after 47 [minutes]:

    dpIDs for your device if needed

    Code: JSON
    Log in, to see the code


    placeholder add to device list https://github.com/OpenBekenIOT/webapp/pull/2...mits/d629a4d28d0376111d1d3a07c7dc43e24ecaae61
