OpenBeken Charts Driver - configurable and flexible measurement history on your device

p.kaczmarek2 6375 66

TL;DR

  • OpenBeken adds a scriptable charts driver for plotting arbitrary variables and multiple axes directly on the device, without Home Assistant.
  • The workflow uses chart_create, chart_setVar, chart_setAxis, and chart_add/chart_addNow in autoexec.bat, with NTP time or repeating events for live history.
  • Sample configs show 16-sample charts, including temperature-only, temperature plus humidity on two axes, and even VCP voltage/current/power on three axes.
  • A DHT11 demo uses chart_create 48 2 2, starts NTP, and logs temperature and humidity every 60 seconds with addRepeatingEvent.
  • Early builds may need IndexRefreshInterval 100000, and planned features include per-variable RGB colors, alternative chart.js paths, and persistent storage.
Generated by the language model.
ADVERTISEMENT
Report a violation of the law
Reply Cool? Ranking DIY | New topic
Notify about new articles
📢 Listen (AI):
  • #61 21261598
    max4elektroda
    Level 24  
    Posts: 746
    Help: 48
    Rate: 184
    jkwim wrote:
    One issue that I found when the chart is working is that the bottom part of the screen cannot be kept without scrolling back to chart window.

    Yes, I see what you mean.
    We will need to change the "redrawing". Actually the chart is destroyed and a new instance is created.
    I think I already have a solution, will open an PR soon and post it here.
    In my test I could change this to "update" the chart, which doesn't seem to refocus to the chart.

    Added after 1 [hours] 29 [minutes]:

    Please try the builds from PR #1389.
    For this does redrawing w/o setting the focus on the chart ...

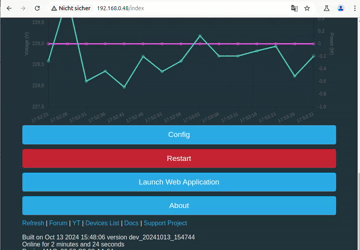

    Web page with line chart and navigation buttons.
  • ADVERTISEMENT
  • #62 21261957
    jkwim
    Level 13  
    Posts: 186
    Help: 4
    Rate: 25
    Will give it a try
    Thanks

    Added after 11 [hours] 32 [minutes]:

    Upgraded to OpenBK7231T_App_1389_merge_b1e0d8dd960f.

    It works fine now.

    Thanks for your quick update.
  • ADVERTISEMENT
  • #63 21262367
    max4elektroda
    Level 24  
    Posts: 746
    Help: 48
    Rate: 184
    Thanks for your feedback!

    @p.kaczmarek2: Just found a nasty little "bug" with charts: When setting things, we don't care for the indexes, so the device might crash on wrong input.

    Windows emulator e.g. will crash if you define a single value graph
    chart_create 96 1 1 and later do
    chart_addNow 10 20. Same will happen, if you later call
    chart_setVar 1 "XX" "YY"

    We should check for "<=numVars" or "<=numAxes" before setting them.

    I would propose to do this in the "calling commands" (CMD_Chart_SetAxis/CMD_Chart_SetVar/CMD_Chart_AddNow/CMD_Chart_Add) and mayby, just to be sure, also in the code actually doing the settings (Chart_SetAxis/Chart_SetVar/Chart_SetSample).

    Open is the question, what to do in this case when adding samples?
    Only taking as much samples as defined or reject the whole command?
  • #64 21262676
    p.kaczmarek2
    Moderator Smart Home  
    Posts: 14451
    Help: 650
    Rate: 12432
    Nice find, I'd just return out of command with INVALID_ARG return code (or how was this enumeration called in Obk)...
    Helpful post? Buy me a coffee.
  • ADVERTISEMENT
  • #65 21263018
    max4elektroda
    Level 24  
    Posts: 746
    Help: 48
    Rate: 184
    I extend PR #1389 to take care of this, too.

    I took this one because I would also merge the change to use update() for the charts.

    It was not so evident to me when I focussed on the charts, that every refresh used to set the focus on the chart, which is annoying if you scrolled down to the buttons and the browser switches back all the time.

    Some tests would be great, now the update should not move the view of the page and all input should be checked against the charts properties.
    So if you could try if it's intercepting all kinds of "false" input that would be great.

    Add names for non-existent axes or vars, setting more samples than defined ...

    I hope it's stable regarding this now.
  • ADVERTISEMENT
  • #66 21440659
    Zogdan
    Level 10  
    Posts: 25
    Help: 6
    Rate: 13
    Checked on ESP32C3 and works fine.

    Just a suggestion : Could it be an idea to include a DIFF option?
    I would like to see the difference with the last added value in the chart (eg for energy consumption)

    Thinking loud : It could work a bit like this.

    mydiffvar = chart_getVar 0 -1
    would mean : mydiffvar is always the previous value of chart var 0
    this would allow to add that to the chart, publish it to mqtt or whatever.

    mydiffvar = chart_getVar 0 -2 would be 2 hops back in time

    So suppose the chart series is this :

    t | 500
    t-1 | 450
    t-2 | 300

    then


    | Var0 | chart_getVar 0 -1 | chart_getVar 0 -2
    t | 500 | 50 | 200
    t-1 | 450 | 150 | null
    t-2 | 300 | null | null
  • #67 21758887
    p.kaczmarek2
    Moderator Smart Home  
    Posts: 14451
    Help: 650
    Rate: 12432
    @Zogdan interesting idea, if anyone is willing to give it a go I can accept PR.

    I've tested charts with ESP8266 and DHT11, works fine.

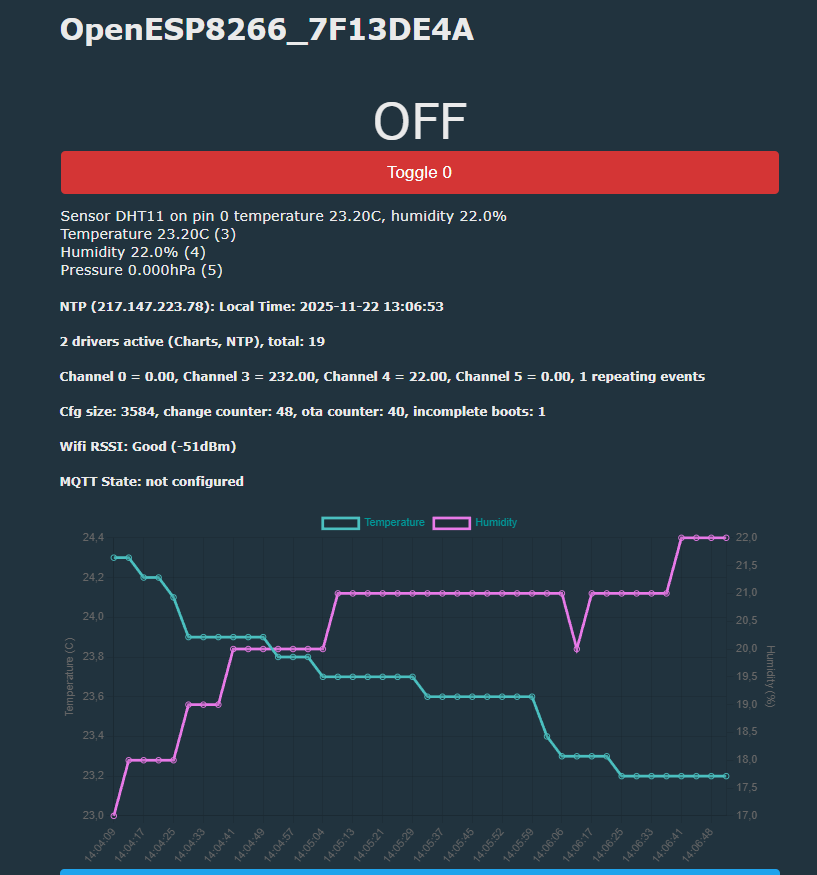

    OpenESP8266 dashboard with temperature and humidity charts
    Built on Nov 22 2025 13:00:05

    Added after 5 [minutes]:

    Flashlight test (it heats up the sensor), then flashlight is removed:

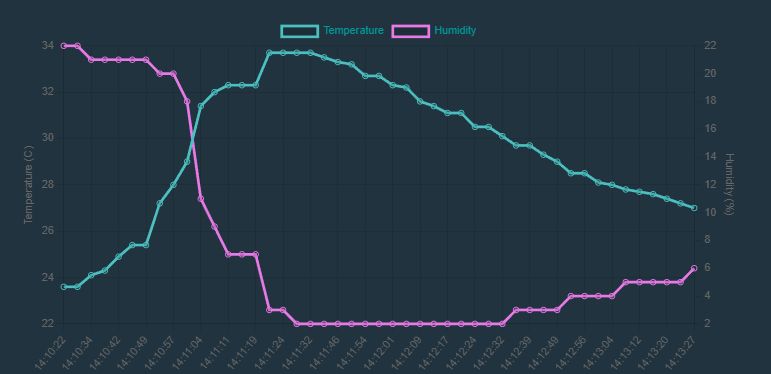

    Line chart showing temperature and humidity changes over time
    Helpful post? Buy me a coffee.
