User Experience: Tuya WiFi Smart IR Remote Controller IRC03 [BK7231N] from Aliexpress

atomphil 9000 35

TL;DR

  • The Tuya WiFi Smart IR Remote Controller IRC03 from Aliexpress is a compact universal IR blaster with USB-C and seven IR LEDs.
  • Inside, it uses a single PCB with the BK7231N SoC soldered directly on board, unlike versions that use a breakout board.
  • Well-labelled test pins on the back expose flashing access, and the pin map lists IRSend on 7, IRRecv on 8, Btn24, and WifiLED.
  • Open Beken flashing worked without problems, and the device connected to Home Assistant and operated like other IR devices.
  • The housing opens easily, but the four latches can break off during disassembly.
Generated by the language model.
ADVERTISEMENT
Report a violation of the law
Reply Cool? Ranking DIY | New topic
Notify about new articles
📢 Listen (AI):
  • #31 21606841
    divadiow
    Level 38  
    Posts: 4859
    Help: 424
    Rate: 860
    hmm. maybe whole thing is dead now. Safer to use USB-C and just GND/RX/TX to USB-TTL
  • ADVERTISEMENT
  • #32 21610293
    ghost320000
    Level 4  
    Posts: 6
    >>21606836 Everything is fine - I replaced the CH340 with the CH341 and flashed the device.
  • ADVERTISEMENT
  • #33 21733392
    mhawk
    Level 1  
    Posts: 1
    Hi, I've bought an IR blaster which was supposed to be the "IRC03" one, from here https://aliexpress.com/item/1005006989554373.html

    but it has a totally different chip, which I can't find any information about on the internet, in place of the BK7231N. It reads T1-AHL AU5068XA or AUS068XA. Is it possible to flash esphome to it? When connected to tuya app, it shows firmware v1.0.0(1.0.2)

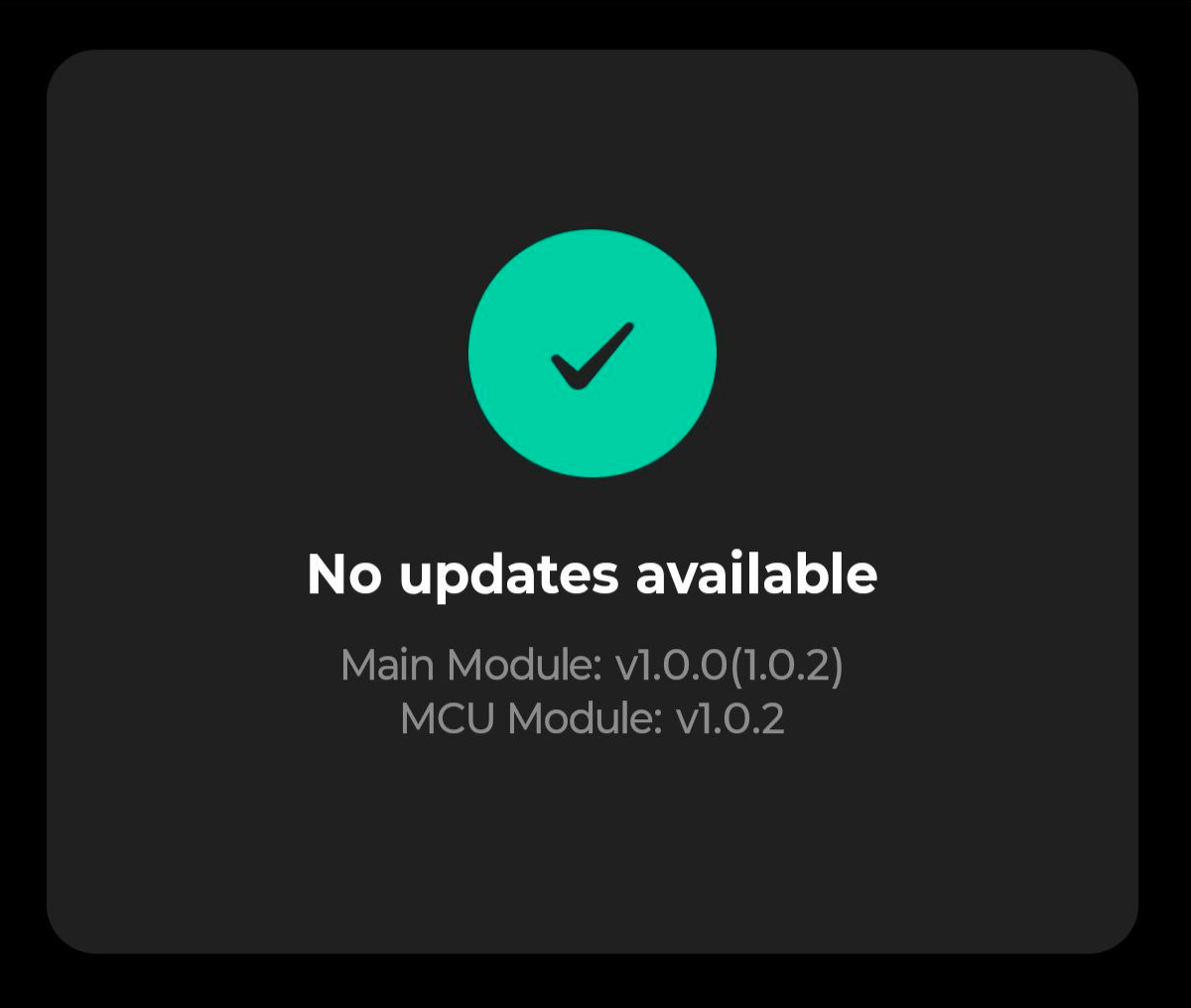

    Tuya app message: no updates available, module version 1.0.0 (1.0.2)

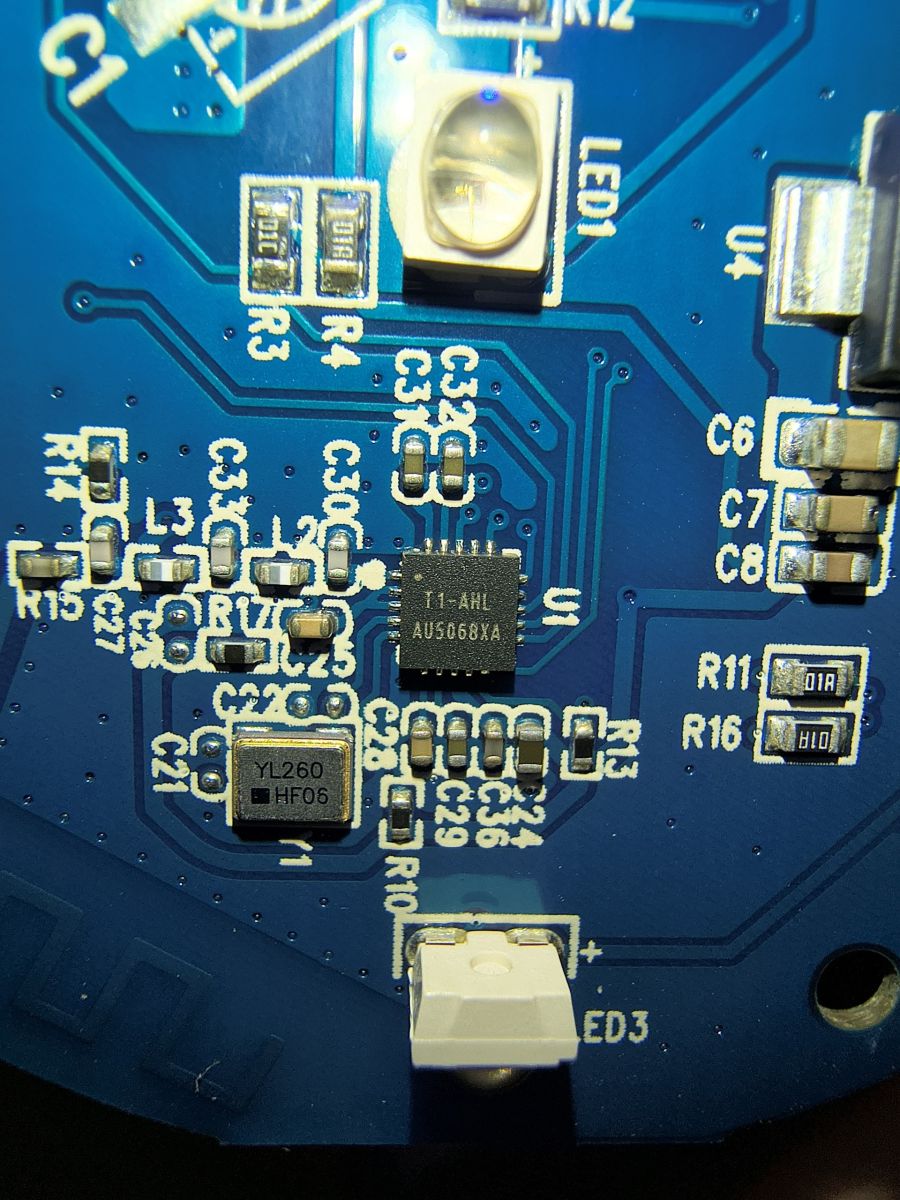

    Close-up of PCB with T1-AHL AUS068XA chip and electronic components
    Close-up of PCB with T1-AHL AU5068XA chip and surface-mount components
  • ADVERTISEMENT
  • ADVERTISEMENT
  • #36 21783931
    AleqCZ
    Level 1  
    Posts: 1
    I have also received 2025.08.13

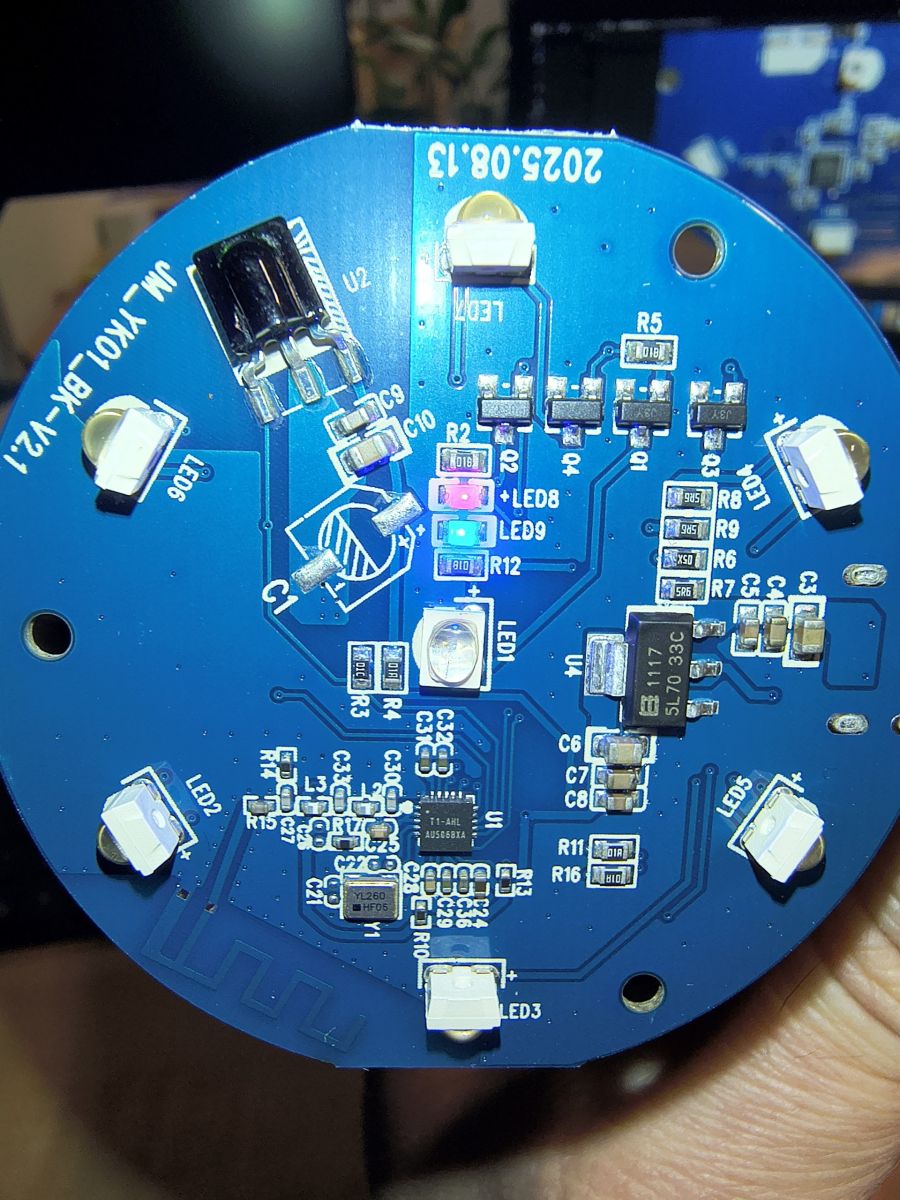

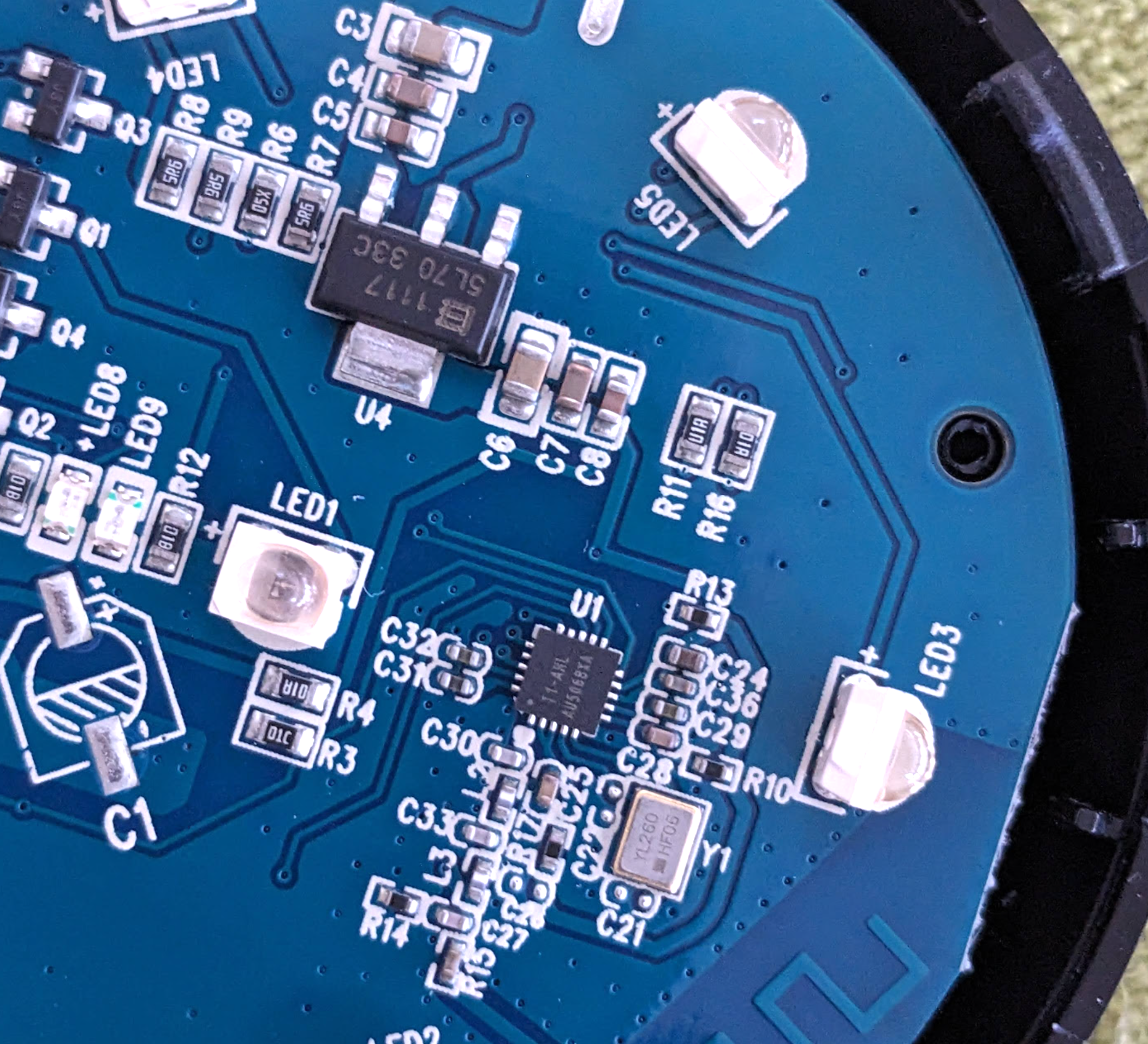

    Close-up of blue PCB with LEDs and various small electronic components

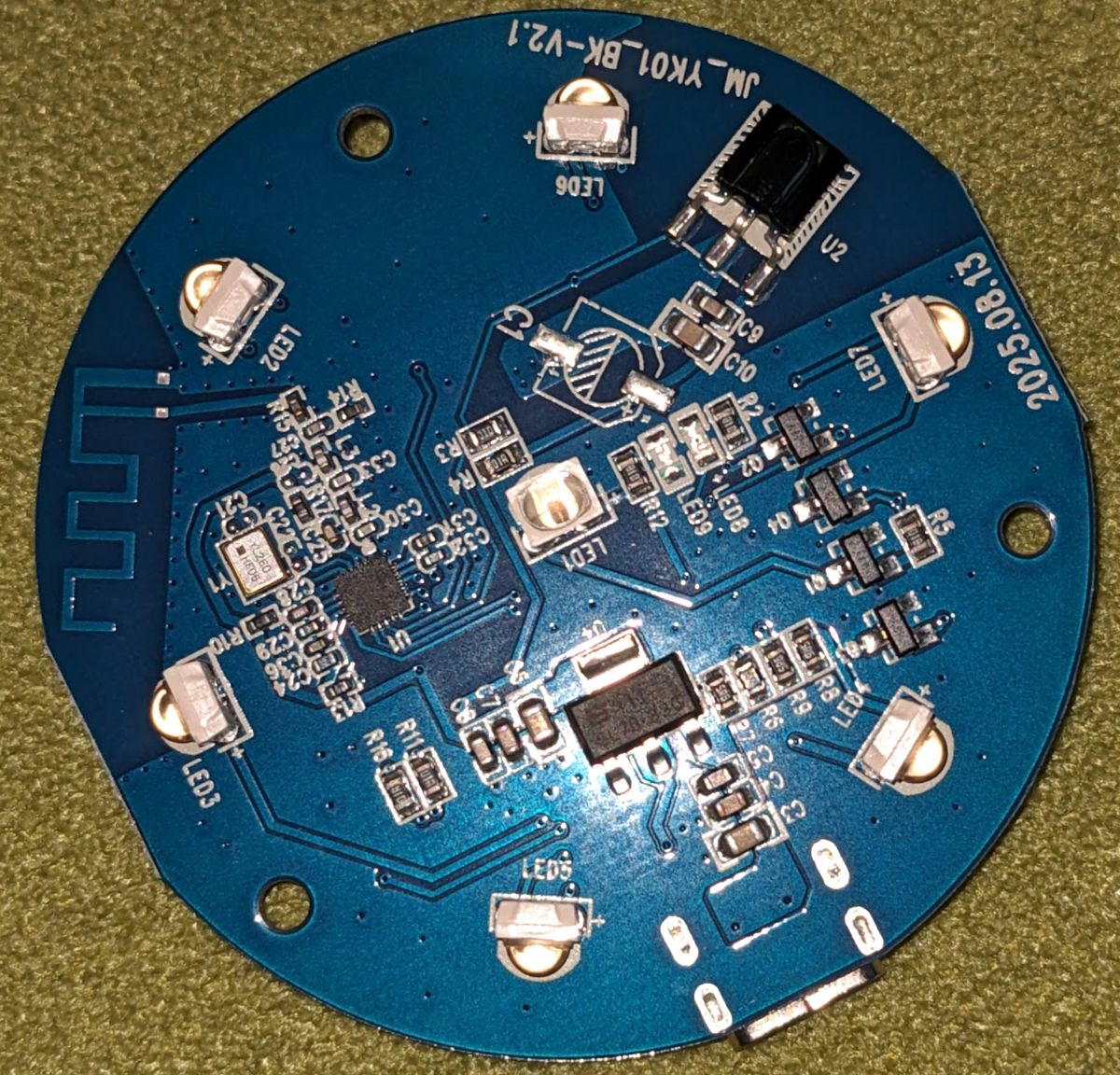

    Round blue PCB with LEDs, ICs, SMD components, and visible circuit traces.

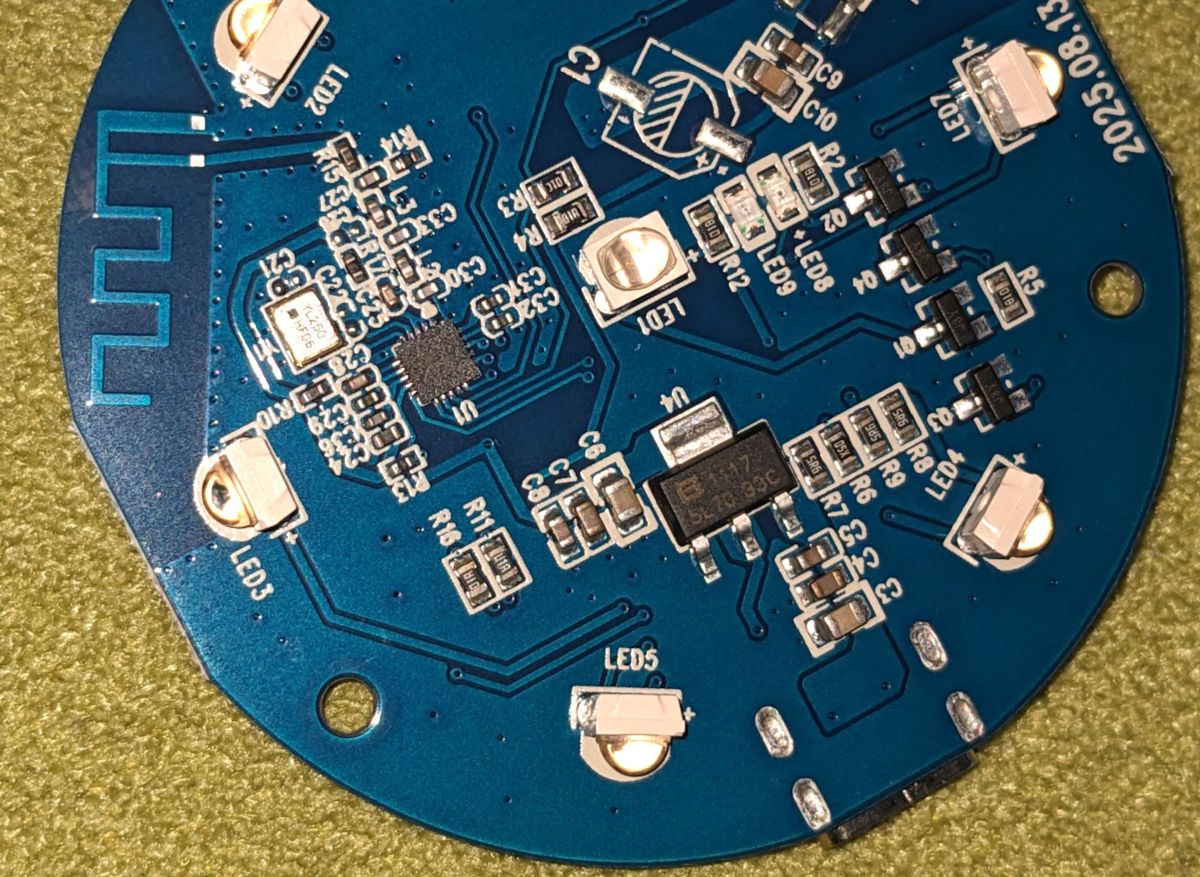

    Round blue PCB with LEDs, ICs, and a serpentine wireless antenna on green surface
