Ya that may confuse users. BL09XX would be good enough since i doubt anyone will use both together .
For the project , i think it would be useful to add
1. Home assistant auto discovery mqtt
2. Hue EMulation -> would allow users to control locally through alexa for those not using home assistant -> since we have many devices supported now
3. IR send / receive -> since we have RGB wifi controller supported and also fan modules which come with IR receiver too.
Not this .what i meant was emulation ... Our devices can emulate as a Philips hue light . Which can be locally controlled through Alexa .
Eg. https://tasmota.github.io/docs/Alexa/

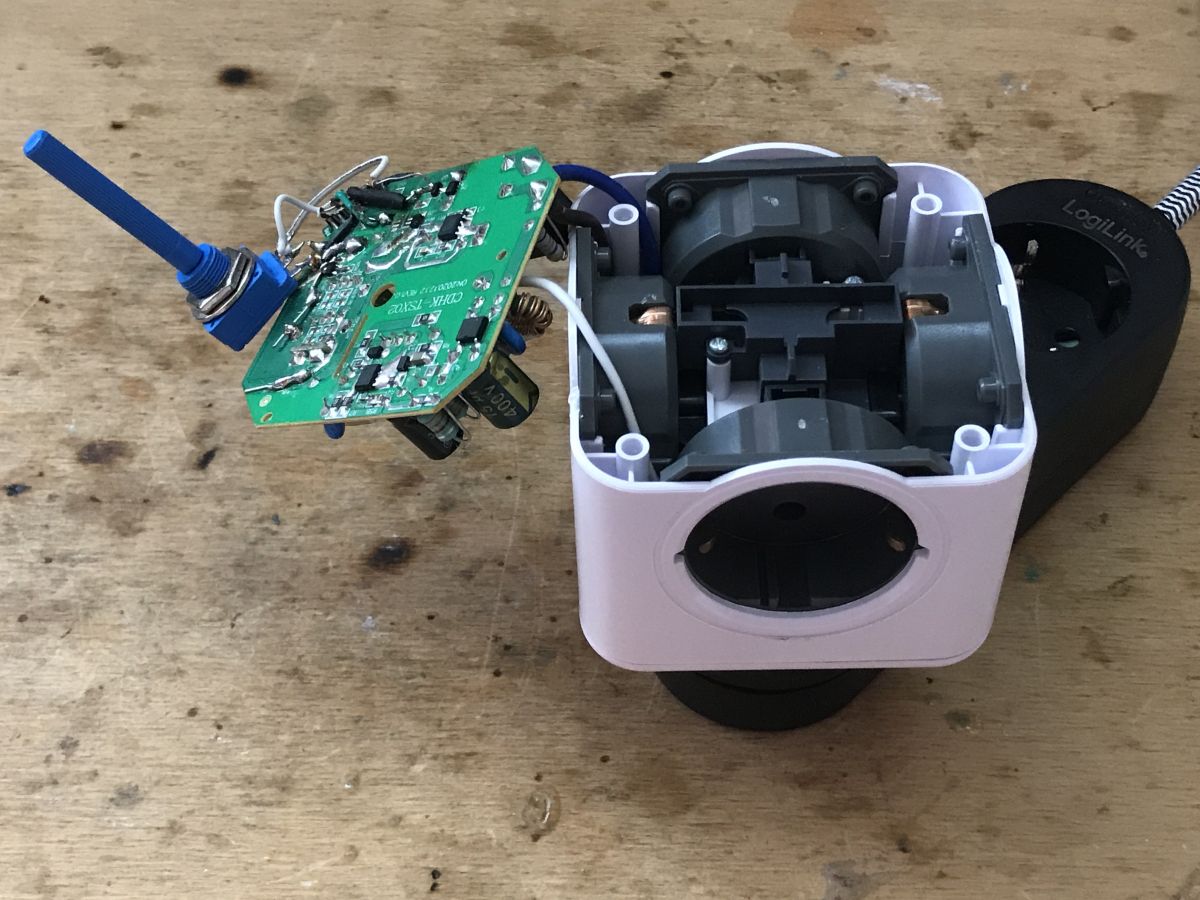

@TommyNZ your photo has a very bad quality, I am having slight problems with tracking the traces, but take a look:
I aligned both images for you. You can see which traces go to oscillator (XI and X0) and then you can see where RX1 and TX1 traces goes. You need them to flash the firmware with bkWriter 1.60
Can you go on from here? If not, please provide at least a bit better photo so I can track the traces....
Maytbe it's like this, but please double check:
Did you read my flashing guides here in Teardowns section?
@sharathbk1912 oh well you are 100% correct, I just glanced at schematic, saw it cropped and assumed that the J2 was not there because I tought that otherwise the user wouldn't ask for help.
I'd like to tag along with this work if you all don't mind.
I'm just getting my feet wet in my first time working with IoT device firmware and chose some Merkury smart bulbs and plugs purchased from Wal-Mart for my test subjects. I've only been working on this project for about 3 weeks, but in that time while finding information about the chipset (turned out to be the BK7231T) I found the threads for this project and it has been extremely helpful. I can try to post pictures and as much info about my setup if it would be of interest and helpful.
What I am working on:
Using a RPi to compile, flash, read firmware from the BK7231T
What I have so far working:
- I have a pi 3b+ with arm64 Raspbian and two FT232RL that I use to communicate via the two UART connections on the BK7231T similar to the original thread. I soldered connection to CEN with a lead so I can just reset by touching it to the GND for reset.
- I can read the firmware from the device using @btsimonh uartprogram.
- I have been able to cross-compile the ARM32 firmware (with obk_hello_world as my test) on the ARM64 install of Raspbian using arm-none-eabi-gcc (system installed, not copy bundled in the platform/tools).
- package firmware (ota, encrypt, beken_packager) on x86 system
- flash firmware using uartprogram from pi
- boot functioning device (obk_hello_world)
I can compile apps other than obk_hello_world on the x86 system, modify, compile, flash, etc just fine. What I would like to do would be to do the encrypt/packaging process on the RPi instead of switching to an x86 system for that part of the build script.
Has anyone made a toolset to replace the Beken packaging tools (platforms/bk7231t/bk7231t_os/tools/generate/package_tool), or am I missing the post somewhere? All I've been able to find digging around are the precompiled windows/x86-64 executables.
Again, first go-round here with this stuff, but I'll be glad to provide any info/photos/whatever I can to help the project grow. My personal project doesn't involve the home connect stuff much though and I have no experience that, but I am very interested in the firmware side of it all. I was able to backup the original 'virgin' firmware from the plug and one bulb over UART if those would be of interest and usable for anyone.
I'm sure I'm doing some things that would make the more seasoned vets shake their head, but I'm learning. Just lemme know where I can help and what I can do.
Wow, it seems you have a very nice setup!
You're welcome to describe it here:
https://www.elektroda.com/rtvforum/forum41.html post it as separate article, as we are trying to make a big smart devices knowledge base here on Elektroda, just to help the community.
I was able to backup the original 'virgin' firmware from the plug and one bulb over UART if those would be of interest and usable for anyone.
Please submit it here so we can create an OTA hack to program those devices without opening the case and soldering:
https://github.com/tuya-cloudcutter/tuya-cloudcutter/issues you can also put device photos/module information etc in our Teardowns section of Elektroda
Hello.
I have this drone which seems to be using BK7231U for WiFi controls and camera.
I bought it second-hand, i could not find any branding or model markings on it.
It appears to be a clone of Eachine E58 Pro, but with fake FHD resolution.
You can see the insides here: imgur.com/a/GtyHgX7
This page has links for the controlling app: qr02.cn/FrW2Ym
Do you think it would be easy to make a backup of the firmware and modify it somehow?
I don't want to risk bricking it. but i would like to try make it use the original camera resolution instead of the fake 1920x1080.
I tried to modify the android app, but no success so far. I believe the SSID is somehow related. My drone creates an AP named WIFI_4K__8EEFDC
There are SDKs for U version:
https://github.com/search?q=bk7231u Connecting the UART programmer and doing the flash read will not break the chip, but you'd have to solder the RX and TX to correct traces on the board.
I can't see any programmer pads on the board, tough.
Still, are you willing to try? do a bkWriter firmware dump?
I could also buy such a drone myself and dissect it piece by piece, but I'd need more information where to get a Beken one, and you're saying there are no markings whatsoever.... so maybe try searching by app or by photo?
How much such a drone costs?
I haven't looked into drones yet, but you definetly got me interested.
Eachine E58 Pro on aliexpress seems to be for about 200 zł, so 50$ or so, I could buy one.
Of course 'hacking' the drone would be a separate project from OpenBK for IoT devices, but still, i would like to try.
Wow, it seems you have a very nice setup!
You're welcome to describe it here:
https://www.elektroda.com/rtvforum/forum41.html post it as separate article, as we are trying to make a big smart devices knowledge base here on Elektroda, just to help the community.
Ok, I will see if I can find some time soon to make some write-ups.
I was able to backup the original 'virgin' firmware from the plug and one bulb over UART if those would be of interest and usable for anyone.
Please submit it here so we can create an OTA hack to program those devices without opening the case and soldering:
https://github.com/tuya-cloudcutter/tuya-cloudcutter/issues you can also put device photos/module information etc in our Teardowns section of Elektroda
Done. Just made an issue for each including link to device as well as zip with firmware and boot log.
Here is the link to the github repo I made containing what firmware dumps I have collected so far.
Connecting the UART programmer and doing the flash read will not break the chip, but you'd have to solder the RX and TX to correct traces on the board.
I can't see any programmer pads on the board, tough.
Still, are you willing to try? do a bkWriter firmware dump?
Thanks, i will try it when i have some time to disassemble the thing and hook up everything.
Those pictures were taken when i was cleaning the drone after it being lost for about a month, collecting mud and rain in some bushes. Luckily a neighbour found it and called me I didn't think of shooting the other side of the board, because it didn't have any parts there.
I have a few USB-TTL adapters here (PL2303, CP2102, a CH341A programmer), but none of them seem to have a 3.3V jumper for the data lines. The CH341A has some setting jumper, but it's marked in chinese, so not sure.
I also have a cheap level shifter made from what looks like 4 transistors. Maybe i will use that just in case.
p.kaczmarek2 wrote:
I could also buy such a drone myself and dissect it piece by piece, but I'd need more information where to get a Beken one, and you're saying there are no markings whatsoever.... so maybe try searching by app or by photo?
How much such a drone costs?
I haven't looked into drones yet, but you definetly got me interested.
Eachine E58 Pro on aliexpress seems to be for about 200 zł, so 50$ or so, I could buy one.
Don't rush to buy anything blindly, please! Unless you have money to waste, lol.
As i said, mine doesn't have any branding. Nothing on the drone itself, neither on the remote, or in the included leaflets.
I just added a few more images to the album so you can see for yourself.
I got it for cheap (20 bulgarian leva = about 11 USD) from a coworker, who had it gifted to him recently and wanted to sell it anyways. He said the previous owner had it for maybe a year, so this model (whichever it is) must be at least two years old.
The original price must have been much higher.
I only found out about the Eachine models by visually searching for a replacement battery. The plain E58 is supposed to have a microSD card slot, while the E58 Pro don't have one. Mine don't have a slot too. Also, the E58 remote has a sliding power switch, and the E58 Pro has a push-button.
And the official Eachine android app doesn't work here.
Another possibility is DroneX Pro.
I found a few other similar models, but can't remember them now.
There are also different shapes for the blue LED light on the top of the drone.
Looking at the WiFi_CAM app in jadx-gui, i found these:
public static final String WIFI_PREFIX = "HD-720P-|HD-FPV-|HD720-|FHD-";
public static final String WIFI_PREFIX_1080 = "FHD-";
public static final String WIFI_PREFIX_720 = "HD720-";
public static final String WIFI_PREFIX_720P = "HD-720P-";
public static final String WIFI_PREFIX_CO = "CORBY-CX012-";
public static final String WIFI_PREFIX_CT = "CT-";
public static final String WIFI_PREFIX_CT1080 = "CT1080-";
public static final String WIFI_PREFIX_CT4K = "CT4K-";
public static final String WIFI_PREFIX_CT720 = "CT720-";
public static final String WIFI_PREFIX_CT720P = "CT720P-";
public static final String WIFI_PREFIX_CTWIFI = "CTWIFI-";
public static final String WIFI_PREFIX_DU = "Du-";
public static final String WIFI_PREFIX_DU4K = "Du-HD4K-";
public static final String WIFI_PREFIX_DU720 = "Du-HD720-";
public static final String WIFI_PREFIX_DUAL = "Dual_";
public static final String WIFI_PREFIX_DUAL1080 = "Dual_1080-";
public static final String WIFI_PREFIX_DUAL4K = "Dual_4K-";
public static final String WIFI_PREFIX_DUAL720 = "Dual_720-";
public static final String WIFI_PREFIX_DUAL720P = "Dual_720P-";
public static final String WIFI_PREFIX_DUALHD = "Dual_HD-";
public static final String WIFI_PREFIX_Du1080 = "Du-HD1080-";
public static final String WIFI_PREFIX_FHD = "wifi_camera_";
public static final String WIFI_PREFIX_FPV = "HDFPV-";
public static final String WIFI_PREFIX_FPV1080 = "FPV-1080-";
public static final String WIFI_PREFIX_FPV4K = "FPV-4K-";
public static final String WIFI_PREFIX_FPV720 = "FPV-720-";
public static final String WIFI_PREFIX_FPV720P = "FPV-720P-";
public static final String WIFI_PREFIX_FPVHD = "FPVHD-";
public static final String WIFI_PREFIX_FPVVGA = "FPV-";
public static final String WIFI_PREFIX_HD = "HD-";
public static final String WIFI_PREFIX_HD1080 = "HD1080-";
public static final String WIFI_PREFIX_HD4K = "HD4K-";
public static final String WIFI_PREFIX_HD720 = "HD720P-";
public static final String WIFI_PREFIX_HDFPV_1080 = "HDFPV-1080-";
public static final String WIFI_PREFIX_HDS = "HDS-";
public static final String WIFI_PREFIX_HDWIFI = "HDWIFI-";
public static final String WIFI_PREFIX_HD_720 = "HD-720-";
public static final String WIFI_PREFIX_HJH = "HJH_FPV-";
public static final String WIFI_PREFIX_HJH4K = "HJH_4K-";
public static final String WIFI_PREFIX_HJHUFO = "HJH_UFO-";
public static final String WIFI_PREFIX_KY = "KY-";
public static final String WIFI_PREFIX_KY1080 = "KY1080-";
public static final String WIFI_PREFIX_KY4K = "KY4K-";
public static final String WIFI_PREFIX_KY720 = "KY720-";
public static final String WIFI_PREFIX_KY720P = "KY720P-";
public static final String WIFI_PREFIX_KYFPV = "KYFPV-";
public static final String WIFI_PREFIX_KYS = "KYS-";
public static final String WIFI_PREFIX_KYUFO = "KYUFO-";
public static final String WIFI_PREFIX_KYWIFI = "KYWIFI-";
public static final String WIFI_PREFIX_NO_GESTURE = "HD|SMAO";
public static final String WIFI_PREFIX_OLD_HD = "HD";
public static final String WIFI_PREFIX_SMAOS = "SMAO-S-720P-";
public static final String WIFI_PREFIX_SMAOS4K = "SMAO-S-4K-";
public static final String WIFI_PREFIX_UFO = "HDUFO-";
public static final String WIFI_PREFIX_VGA = "HD-FPV-";
I could not find my prefix "WIFI_4K_" anywhere, yet the app works.
I also searched for some online database of cheap toy drones with part lists, firmwares, etc., but couldn't find anything alike.
Everyone is mostly focused on STM32 based flight controllers and DIY kits.
Of course 'hacking' the drone would be a separate project from OpenBK for IoT devices, but still, i would like to try.
Hi there, just been following along the progress of OpenBK.... It doesn't really have to be a separate project. What about voice with Alexa controlling the drone! I'm kidding.
This would be worse than "Alexa turn on the kitchen light."
EDIT gave it some more thought
"Alexa, tell drone to follow my 6-year-old riding his bicycle on the street"
"Alexa, tell drone to record my neighbor's dog barking non-stop" (Do drones record audio???)
I'm liking the idea of a drone being part of the IoT
@echojjj Since these cheap drones are pretty dumb, it would be more like "Alexa, take the controls and follow my 6-year-old with the drone".
Some models record audio, mine doesn't have a microphone though. I should check if there are pads broken out for one to connect...
@rawilson, it's so hot here in Poland so I had to take a few days off. I2C LED is still pending.
Still, today I've did the ADC:
Here is my test setup, I temporarily had no access to any other test devices so I used my power cube modified to work with WB2S and added a potentiometer:
ADC readings seems to be correct.
Is there still the user who needed ADC for light sensor?
@p.kaczmarek2 I've been reading along some more but not done anything yet... I am too used to Tasmota where I can just download a bin file and upload it my device using their flashing tool.
Do you have plans for making this easier for us? I've already got a couple of light switches I'm interested to get flashed as they have a BK7231N chip inside...
@p.kaczmarek2 I've been reading along some more but not done anything yet... I am too used to Tasmota where I can just download a bin file and upload it my device using their flashing tool.
Do you have plans for making this easier for us? I've already got a couple of light switches I'm interested to get flashed as they have a BK7231N chip inside...
Check here if your device/bk7321n chip is listed, should be able to just ota it.
Assuming you haven't updated to latest firmware yet since tuya might have patched it
Added after 11 [minutes]:
@kuba2k2 Hi, has there been any developments for porting esphome to bk7321t/n since?
@p.kaczmarek2 could we decouple button from relays? I'm trying to do something like this where I could have relays always on for wifi bulbs with different button press for custom actions.
@ferbulous why do you want to decouple them? There are already event handlers in openbeken and soon I will add simple scripts. You can just set target button channel to different channel than a relay, and then relay will stay on and button will still fire events.

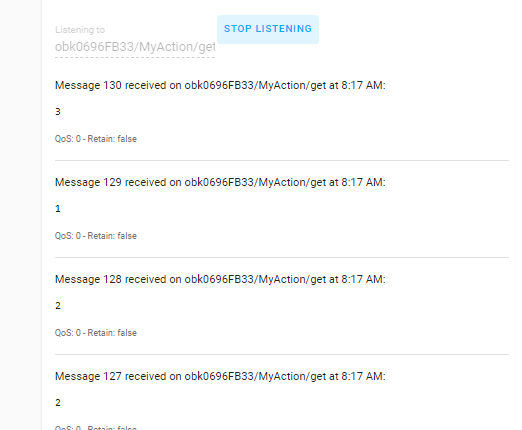

Do you need a MQTT publish command for scripting custom events?
There are already event handlers in openbeken and soon I will add simple scripts. You can just set target button channel to different channel than a relay, and then relay will stay on and button will still fire events.
Do you need a MQTT publish command for scripting custom events?
That's probably what I'm looking for, although i don't quite understand how to use that feature yet
On tasmota, i would set the relays to OUTPUT HIGH for the wall switch, so the wifi bulb wifi stays on and
I decoupled the button (SetOption73 1), that gives me different button state (state=10 for single/11=double and so forth) from the mqtt command which i would then use in nodered
Oh ok, I should be able to add this for you right away, but first let me check...
also, aren't you trying to use Tasmota groups? Tasmota groups are also already halfway implemented and the basics are functional, I am using their for LED strips (single color).
but don't worry, I'll try to help you solve whatever you're doing
Oh ok, I should be able to add this for you right away, but first let me check...
also, aren't you trying to use Tasmota groups? Tasmota groups are also already halfway implemented and the basics are functional, I am using their for LED strips (single color).
but don't worry, I'll try to help you solve whatever you're doing
Thanks!
From the button state i would either create tasmota rules (something like triple press to toggle relay) or just use the mqtt payload in nodered
Is there an instruction on using Tasmota group on openbkt or is that coming soon?
Tasmota groups should be self-explanatory, they are configurable through UI, just enter group name and check checkboxes... altough I must admit that I could really use some testers help, as I don't have any Tasmota RGB bulbs yet. But, for a led strip and relay, they receive data correctly.
Short explanation: after "onDblClick" you give PIN index for button. The "setChannel" takes CHANNEL number and channel value (100 for PWM 100%, etc). The addChannel also takes max and min value for channel to clamp it.
@p.kaczmarek2 Awesome! I'll try that out with some tasmota bulbs that i have
Just to clarify, I could add/control other openbkt rgb bulbs into the tasmota group?
For example, could i use openbkt wall switch to toggle on/off a mix of tasmota & openbkt bulb that's added into the same group?
I will look into enabling it today, in a meantime, can you test the remaining features?
When it's done, I will also ask you to test the Tasmota Device Groups sending stuff.
EDIT: and to answer the question, obviously any mix of Tasmota/OpenBK should be possible. If something is wrong, just report it to me and I will fix it for you.
I flashed the openBK7231N onto a Tuya compatable relay. All worked fine. There might be a bug in the output yaml the home assistant config generates. Here is what I get:
In Home Assistant, the above yaml code shows the switch off when it is actually on. No problem, I just swap the 1 and 0 on the payload lines & that works. By the way, HA seems to have deprecated this format for configuration yaml, but for the moment the old code works.
The problem I have is that when Home Assisatant starts or when I reload the config, the switch state comes up as unknown & I have to operate the switch for the state to show in Home Assistant. This means the switch status can be changed inadvertently. Is there a way to interrogate the switch in Home Assistant to get its state without potentially changing the switch on/off status? I'm a new Home assistant user, so I'm either expecting it to do something it can't or am not understanding exactly what can be done. I posted on the Home Assistant forum (topic is switch-unknown-state-on-ha-start-or-yaml-reloading-within-ha), but seeing as the firmware is 'custom', I thought I'd ask here in case anyone using the same firmware has already solved this. The switch is a simple wifi relay with a physical toggle button & LED.
I am already aware about the slight YAML syntax change, I just had no time to integrate this.
Can you verify is state topic change published when you change the device state with physical buttom (not from HA)?
state_topic: "obk8xxxx/1/get" use this tool:
altough this not be the thing you're asking for, if you're asking specifically for HA to get current device state when it boots, without sending a state change to the device, then the device would need to publish periodically it's own state, for example once per minute....
The device does not broadcast its state right now if the state is not changed, but I can add an option/flag for that.
if you're asking specifically for HA to get current device state when it boots, without sending a state change to the device, then the device would need to publish periodically it's own state, for example once per minute....
The device does not broadcast its state right now if the state is not changed, but I can add an option/flag for that.
Thanks for the fast reply! Yes, thats exactly what I want, get current state without changing it. Is it a standard Tasmota thing but just not implemented in this firmware?
I honestly have no idea if it's already in Tasmota. I was not a big smart home user before I started OpenBeken project. I just accidentally stumbled upon smart device with Beken and decided that such a project would be a useful thing to make for people so I made it.
PS: Next detailed teardown released! WB2L_M1 - new Tuya module! See how to flash next two RGBCW eBay bulbs: https://www.elektroda.pl/rtvforum/topic3903356.htmlYea, so far only in polish, but translation is coming soon
PS2: @ferbulous there will be also a Tasmota groups send command for custom control (not automatic)
![[BK7231T] My HTTP server, configurator, MQTT support from Home Assistant](https://obrazki.elektroda.pl/8873559200_1654722843.png "[BK7231T] My HTTP server, configurator, MQTT support from Home Assistant")
![[BK7231T] My HTTP server, configurator, MQTT support from Home Assistant](https://obrazki.elektroda.pl/3104539100_1654722889.png "[BK7231T] My HTTP server, configurator, MQTT support from Home Assistant")
![[BK7231T] My HTTP server, configurator, MQTT support from Home Assistant](https://obrazki.elektroda.pl/2806974400_1654836725.png "[BK7231T] My HTTP server, configurator, MQTT support from Home Assistant")
![[BK7231T] My HTTP server, configurator, MQTT support from Home Assistant](https://obrazki.elektroda.pl/4188047300_1654836858.png "[BK7231T] My HTTP server, configurator, MQTT support from Home Assistant")
![[BK7231T] My HTTP server, configurator, MQTT support from Home Assistant](https://obrazki.elektroda.pl/2078699500_1655478832.png "[BK7231T] My HTTP server, configurator, MQTT support from Home Assistant")
I didn't think of shooting the other side of the board, because it didn't have any parts there.
![[BK7231T] My HTTP server, configurator, MQTT support from Home Assistant](https://obrazki.elektroda.pl/8091984900_1656487131.png "[BK7231T] My HTTP server, configurator, MQTT support from Home Assistant")
![[BK7231T] My HTTP server, configurator, MQTT support from Home Assistant](https://obrazki.elektroda.pl/3738203600_1656487149.png "[BK7231T] My HTTP server, configurator, MQTT support from Home Assistant")
![[BK7231T] My HTTP server, configurator, MQTT support from Home Assistant](https://obrazki.elektroda.pl/9692769800_1656491915.jpg "[BK7231T] My HTTP server, configurator, MQTT support from Home Assistant")
![[BK7231T] My HTTP server, configurator, MQTT support from Home Assistant](https://obrazki.elektroda.pl/5075299100_1656656306.png "[BK7231T] My HTTP server, configurator, MQTT support from Home Assistant")
![[BK7231T] My HTTP server, configurator, MQTT support from Home Assistant](https://obrazki.elektroda.pl/8613952200_1656655980.png "[BK7231T] My HTTP server, configurator, MQTT support from Home Assistant")
![[BK7231T] My HTTP server, configurator, MQTT support from Home Assistant](https://obrazki.elektroda.pl/6575785800_1656655959.png "[BK7231T] My HTTP server, configurator, MQTT support from Home Assistant")
![[BK7231T] My HTTP server, configurator, MQTT support from Home Assistant](https://obrazki.elektroda.pl/7121396600_1656656244.png "[BK7231T] My HTTP server, configurator, MQTT support from Home Assistant")
![[BK7231T] My HTTP server, configurator, MQTT support from Home Assistant](https://obrazki.elektroda.pl/9390418000_1656656489.png "[BK7231T] My HTTP server, configurator, MQTT support from Home Assistant")
![[BK7231T] My HTTP server, configurator, MQTT support from Home Assistant](https://obrazki.elektroda.pl/7936742900_1656665841.png "[BK7231T] My HTTP server, configurator, MQTT support from Home Assistant")
