BK7231GUIFlashTool v98+ adds CH341-based SPI flashing and recovery for Beken BK7231/BK7252 chips, including bricked devices with overwritten bootloaders.
The tool uses CH341 DLL C# bindings to toggle CEN via D2, reset the chip, send 0xD2, then flash Beken chips like generic SPI memory.
Connections use P20, P21, P22, and P23 for SCK, CSN, SI, and SO, with CEN wired to D2 and the CH341 jumper set to I2C mode.
A sample read identifies JEDEC ID FF-EF-40-16 and a 4096 KB flash, and the same tool can Read, Write, Verify, and Erase firmware.
If CH341 is not detected or CEN toggle fails, check driver configuration, jumper position, SPI wiring, and power before trying Beken SPI mode again.
Wait, so.. the way you access DTR pins matter? C# api does not work on hub but winapi does? I was sure it goes through the same API...
perhaps more testing required on my part to be sure, if it's even necessary to consider going further. I did try to replicate esptool as close as possible with tweaked code.
I believe so. It's had extensive testing, revising and checks, but I appreciate there are a lot of changes. If there's anything you want me to check again, I can.
It did work, I don't recall the speed, but it almost(?) always needs a second try for the first didn't get the serial port. I didn't care, might also be a Linux/mono issue...
Ok guys @divadiow@insmod@max4elektroda Is there anything more that we can add to Easy Flasher now?
I am asking because... have you seen this topic?
https://www.elektroda.com/rtvforum/topic4163834.html I am planning to attempt flasher reimplementation in Flutter, so it would be good to have a "complete" version of flasher done first in C#.
Which features are still missing from Easy Flasher and could be added relatively easily?
So my plan for my next days (depending on free time) is a Flutter port, depending on how well it goes, probably starting with Beken. Any general hints or insights on that? Probably I will use a separate repo for that.
Do we have any crucial design mistakes or problems that we can avoid on the rewrite, etc?
But don't worry too much about it - it's just an experiment, I am not going to kill old flasher.
The only aspect I would bring in atm is maybe to rethink the tuya config parser.
I'm still in a testing mode, but I would think your(!) idea to have common base for analyzing the config would be great.
"mappings": [
{ "search": "/^rl_on(\\d+)_pin$/", "role": "BridgeFWD", "desc": "- Bridge Relay On (channel {number}) on P{value}" },
{ "search": "/^rl_off(\\d+)_pin$/", "role": "BridgeREV", "desc": "- Bridge Relay Off (channel {number}) on P{value}" },
{ "search": "/^rl(\\d+)_pin$/", "role": "Rel", "desc": "- Relay (channel {number}) on P{value}" },
{ "search": "/^led(\\d+)_pin$/", "role": "LED", "desc": "- LED (channel {number}) on P{value}" },
{ "search": "/^door(\\d+)_magt_pin$/", "role": "dInput", "desc": "- Door Sensor (channel {number}) on P{value}" },
{ "search": "/^bt(\\d+)_pin$/", "role": "Btn", "desc": "- Button (channel {number}) on P{value}" },
{ "search": "/^k(\\d+)pin_pin$/", "role": "Btn", "desc": "- Button (channel {number}) on P{value}" },
{ "search": "/^onoff(\\d+)$/", "role": "TglChanOnTgl", "desc": "- TglChannelToggle (channel {number}) on P{value}" },
{ "search": "/^netled(\\d*)_pin$/", "role": "WifiLED_n", "desc": "- WiFi LED on P{value}", "nochan": true },
{ "search": "gate_sensor_pin_pin", "role": "dInput", "desc": "- Door/Gate Sensor on P{value}", "nochan": true },
{ "search": "basic_pin_pin", "role": "dInput", "desc": "- PIR sensor on P{value}", "nochan": true },
{ "search": "ele_pin", "role": "BL0937CF", "desc": "- BL0937 ELE on P{value}", "nochan": true },
{ "search": "epin", "role": "BL0937CF", "desc": "- EPIN (alias for ele_pin) on P{value}", "nochan": true },
{ "search": "vi_pin", "role": "BL0937CF1", "desc": "- BL0937 VI on P{value}", "nochan": true },
{ "search": "ivpin", "role": "BL0937CF1", "desc": "- BL0937 VI (ivpin) on P{value}", "nochan": true },
{ "search": "sel_pin_pin", "role": "BL0937SEL", "desc": "- BL0937 SEL on P{value}", "nochan": true },
{ "search": "ivcpin", "role": "BL0937SEL", "desc": "- BL0937 SEL (ivcpin) on P{value}", "nochan": true },
It should also be possible to include to TuyaConfig.cs, but I didn't get that far (yet).
At least copilot made a first version I don't know how to test it ...
But I don't think this is first priority if this part is in your goal of a flasher rewrite at all?!?
And I must admit, I somehow missed that "Multi-platform support for USB to UART" thread.

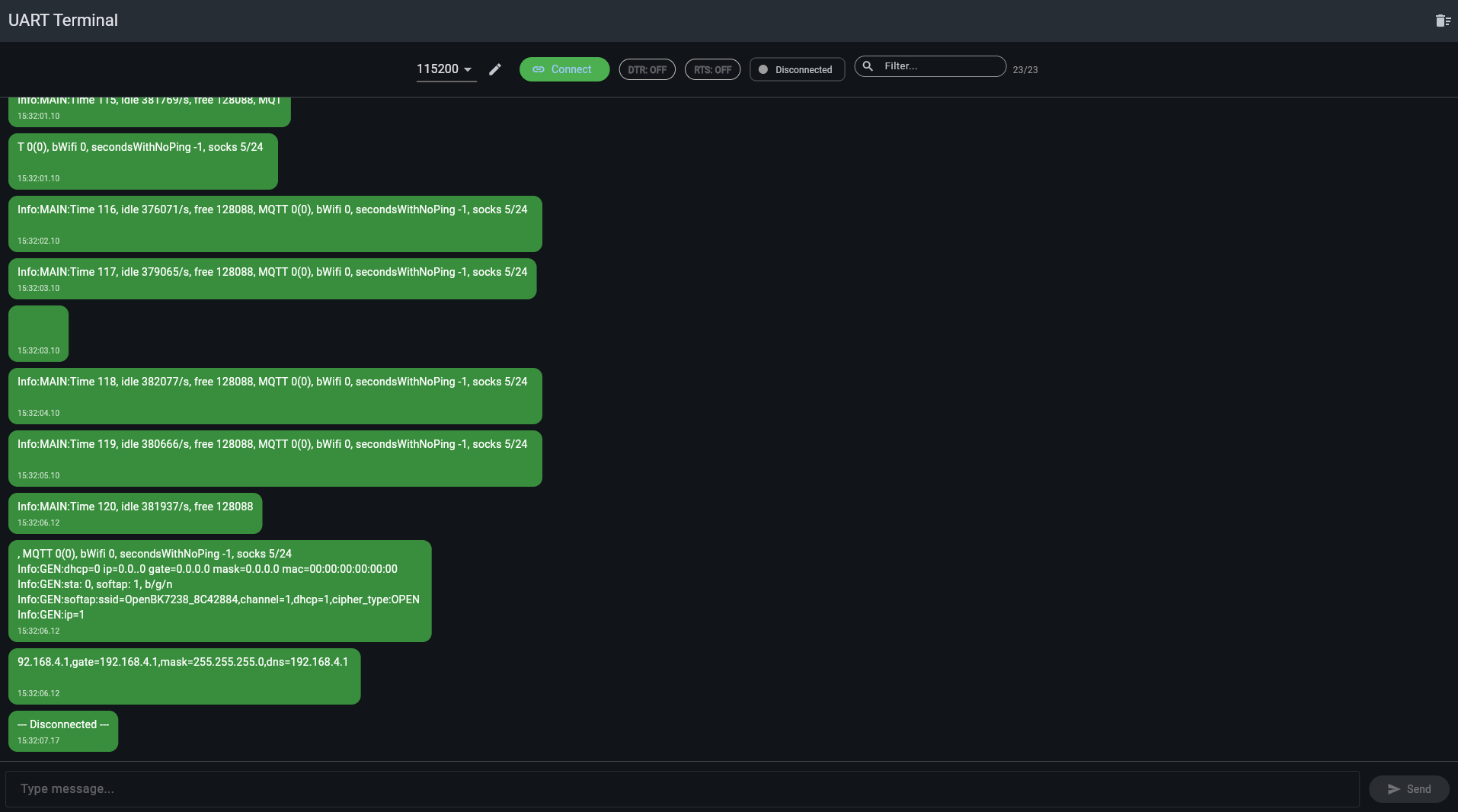

I can't think of a feature I'd really like to see in EF. I did wonder about a terminal, but there are other tools for that, and EF main window is too small perhaps.
My thoughts are mostly with refining existing features. Eg, it's not immediately obvious which platforms support erase all function and if that's a full erase or partial.
Added after 2 [minutes]:
max4elektroda wrote:
The only aspect I would bring in atm is maybe to rethink the tuya config parser.
yes. this would be cool still.
Would make adding new mappings easier. Thinking of this for the future:https://www.elektroda.com/rtvforum/topic4065311.html#21834399
Added after 1 [hours] 8 [minutes]:
max4elektroda wrote:
At least copilot made a first version I don't know how to test it
If you mean testing how I think you mean, I was using some node thing to replace .vue files called by web app with a stash of local copies I was making changes to, then I remembered we can just change the web app URL!
so now I just run this in the webapp root and browse to test device as normal
At least copilot made a first version I don't know how to test it
If you mean testing how I think you mean, I was using some node thing to replace .vue files called by web app with a stash of local copies I was making changes to, then I remembered we can just change the web app URL!
I meant the C# code (TuyaConfig.cs) as part of the flashers "Extract Config from Tuya binary" tool.
So, flasher will have main pins tables for Tuya Config and will export JS?
Almost. I was thinking of one common json file with all the matching information which is used both in TemplateParser and in TuyaConfig.
JS can include json, that already works, and C# should also be able to use this (at least in theory) with
using System.Text.Json;
using System.Text.Json.Serialization;
I already have a changed TuyaConfig.cs but I'm not sure how I can test it, how to "build" my own BK7231Flasher.exe.

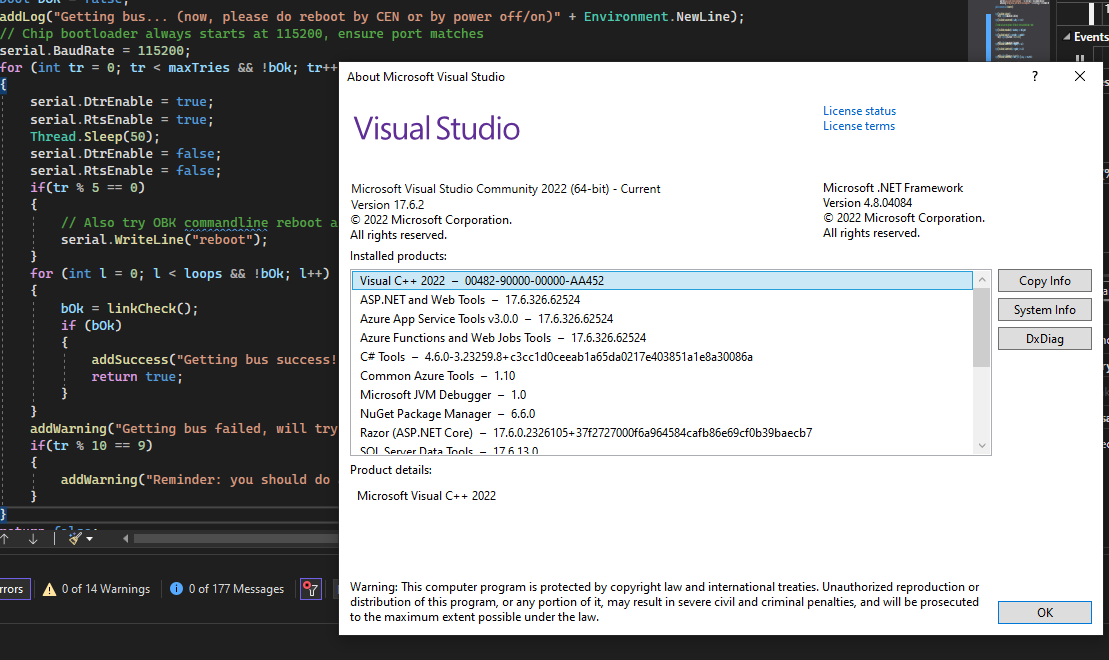

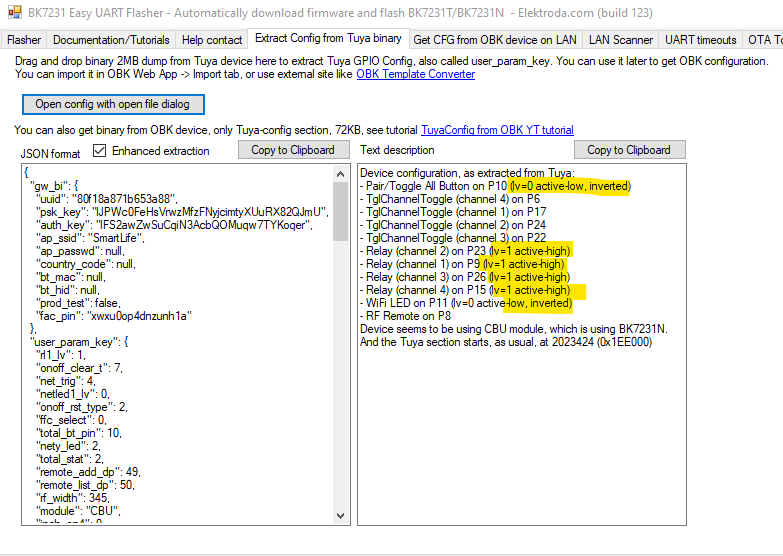

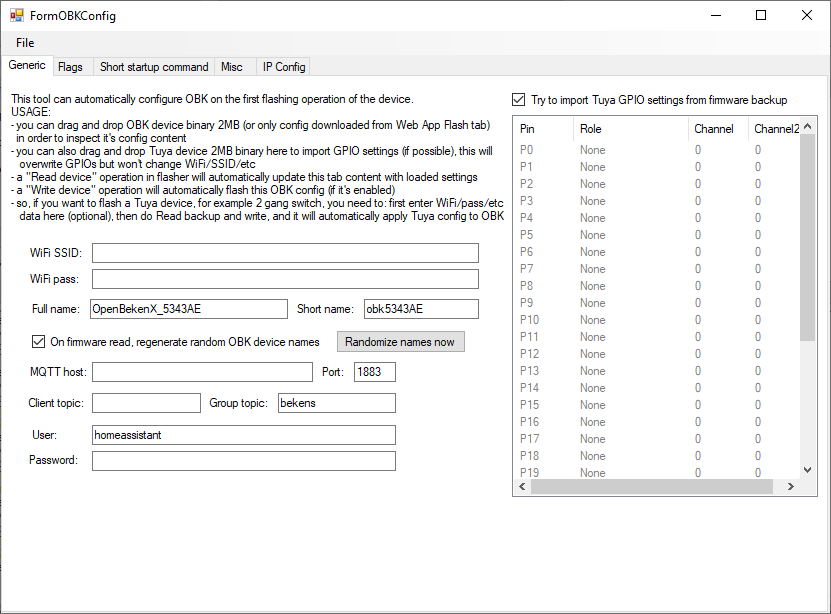

just playing with _lv values and their potential inclusion in Easy Flasher config of OBK on extraction after original firmware backup (plus plain-text indicator), eg:
but I notice only after a REAL backup/extraction from device do we see the extractions show under the configuration form in main flasher tab
so no visibility of OBK roles that will be assigned until you do it for real. is this correct? am I missing something obvious?
Yes, you can copy json to one of the importer forms in web app or cloudcutter page, but then you're not using EF's logic.

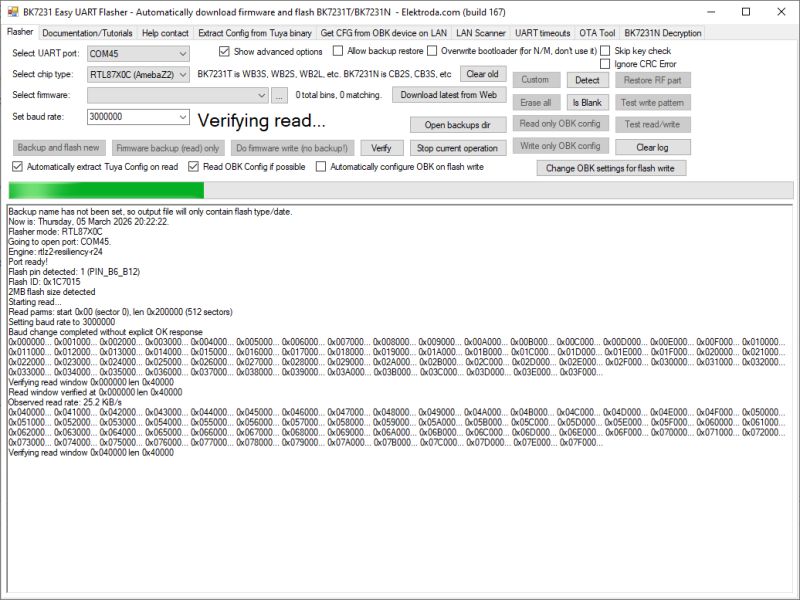

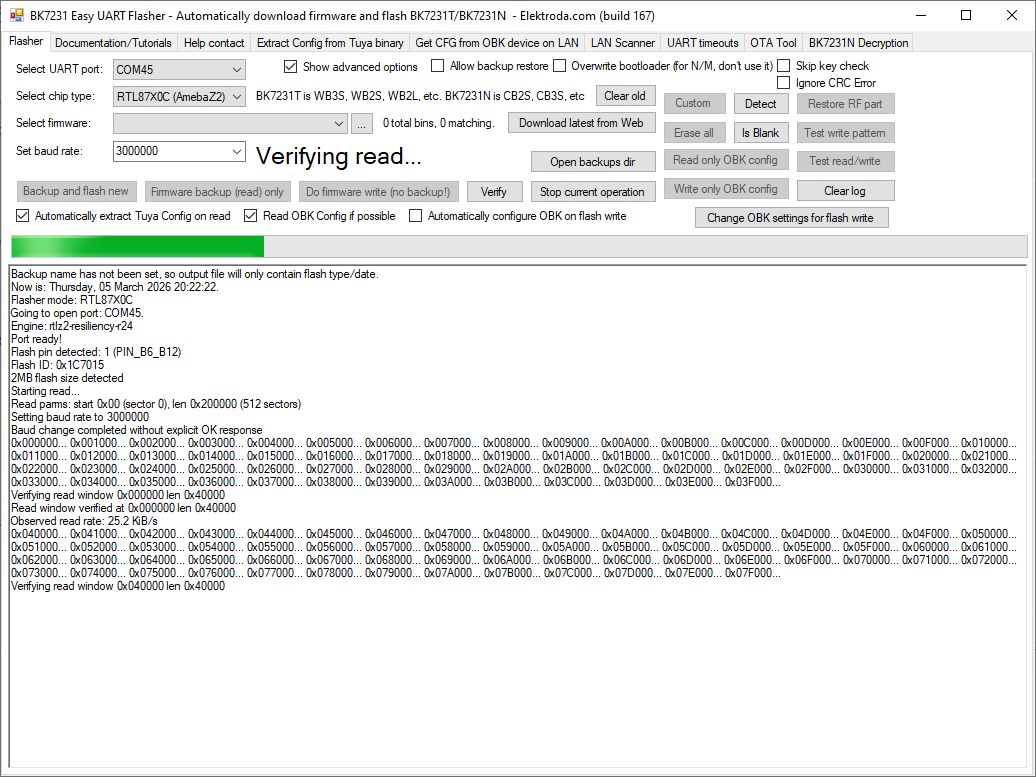

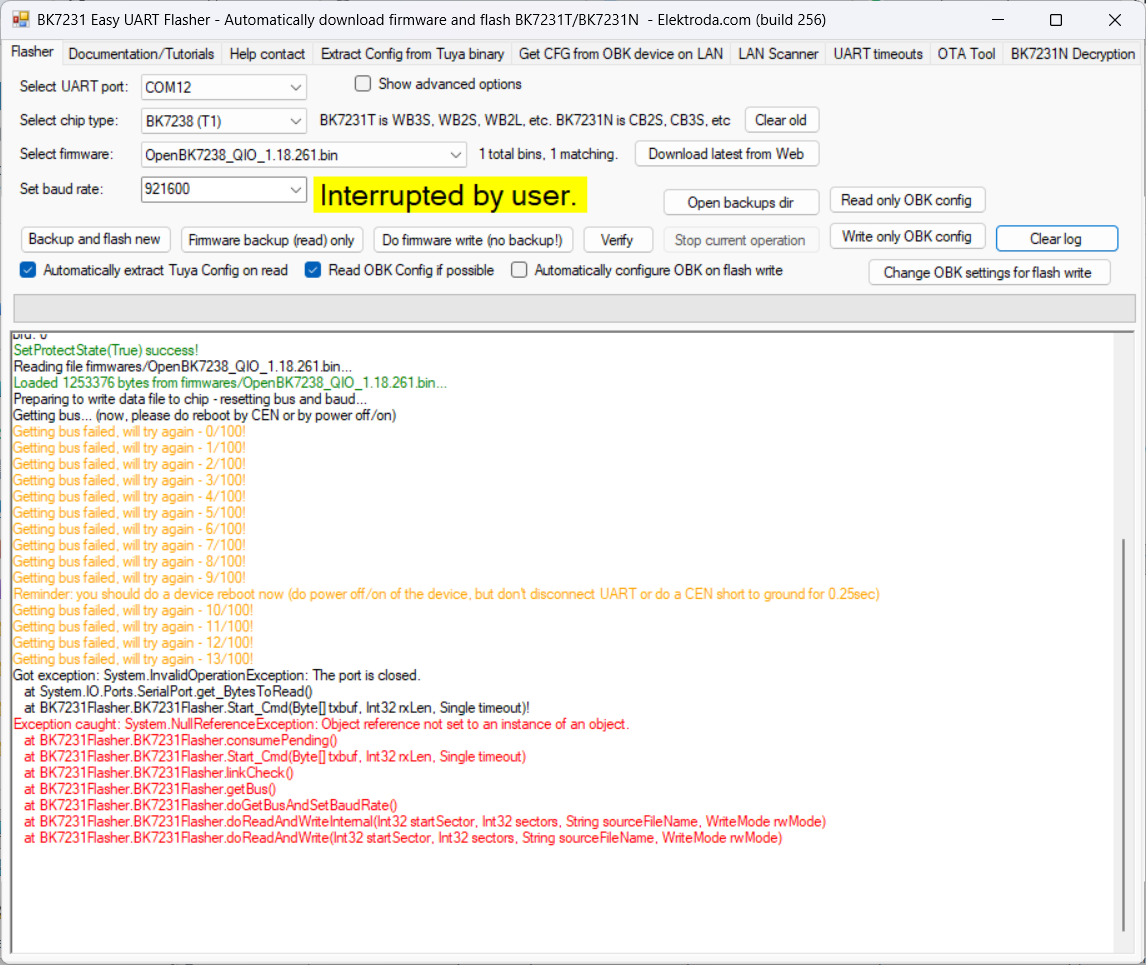

read retries: - Per-chunk retry (3 attempts per 4KB DumpBytes chunk) — if a single chunk read fails, it retries before giving up on the window
- Per-window retry (3 attempts per 256KB window) — if the SHA256 of the whole window doesn't match after all chunks read, the entire window is re-read from scratch, with a re-link attempt between tries
(two independent retry layers — a window can survive up to 3 chunk-level failures per chunk AND up to 3 full window re-reads if verification keeps failing)
write retries: - Per-window retry (3 attempts per 256KB window) — if XMODEM transfer or post-write hash verify fails, the window is re-sent, with baud fallback to 115200 and re-link between attempts
-Final full-image hash cross-check on completion
-Baud fallback to 115200 on baud change failure
-Hash polling uses 200ms slices so Stop button remains responsive
-ChangeBaud rewritten with two-attempt handshake and verified OK response
-Should cleanup com port/release buttons on all exit paths
-Port open/close lifecycle made safe and idempotent
-TryPingLink added with configurable retry count
-RunWithRecovery / RunWithRecoveryBytes wrappers added — all major operations (hash read, flash transmit) retry with re-link on failure rather than giving up immediately
-ReadTimeout stack introduced so nested operations can push/pop timeouts safely without leaving the port in an inconsistent state
-MemoryBoot command table scan: null return from DumpBytes no longer throws silently — skips the entry and continues scanning
-ReadFlashId: null return from DumpBytes now throws a clear exception rather than causing a NullReferenceException on the next line; calling code in doRead catches it cleanly with port close and error message
-ChangeBaud failure in read and write: now closes the port before returning, preventing GUI lockup

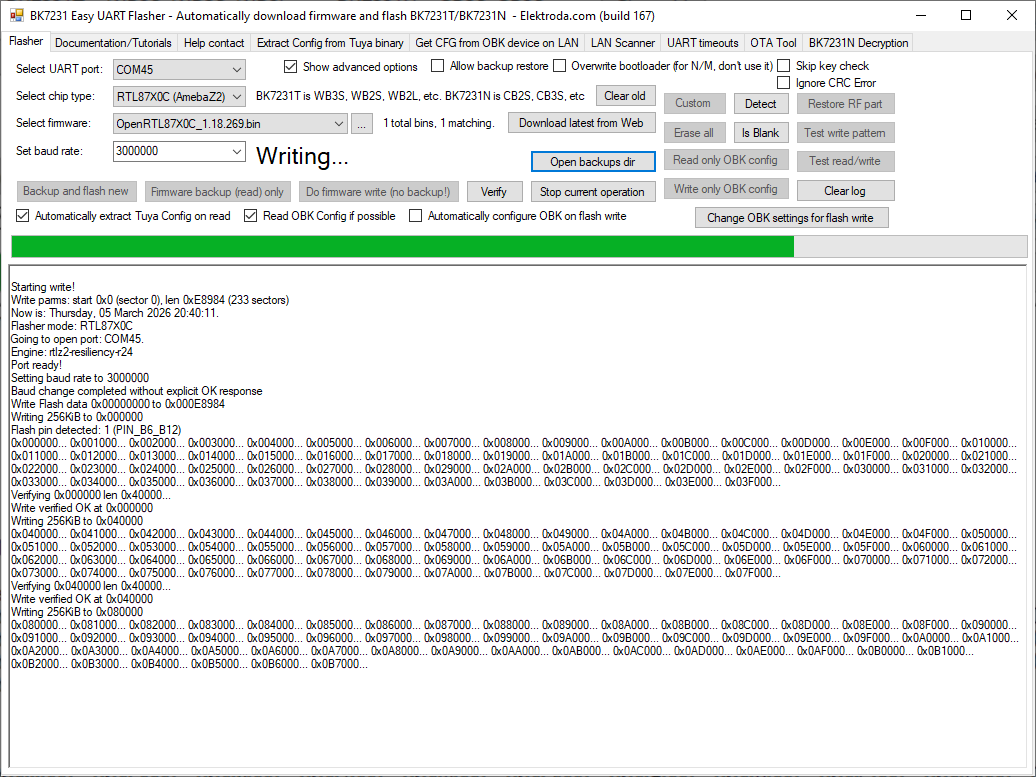

-flash pin detection (A7_A12 or B6_B12)

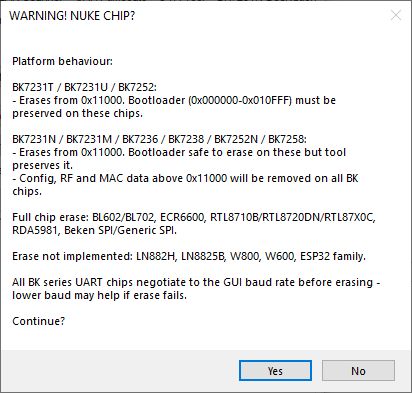

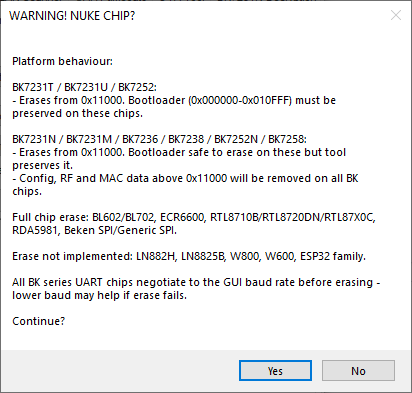

-update erase all confirmation box text to make clear erase support on each platform

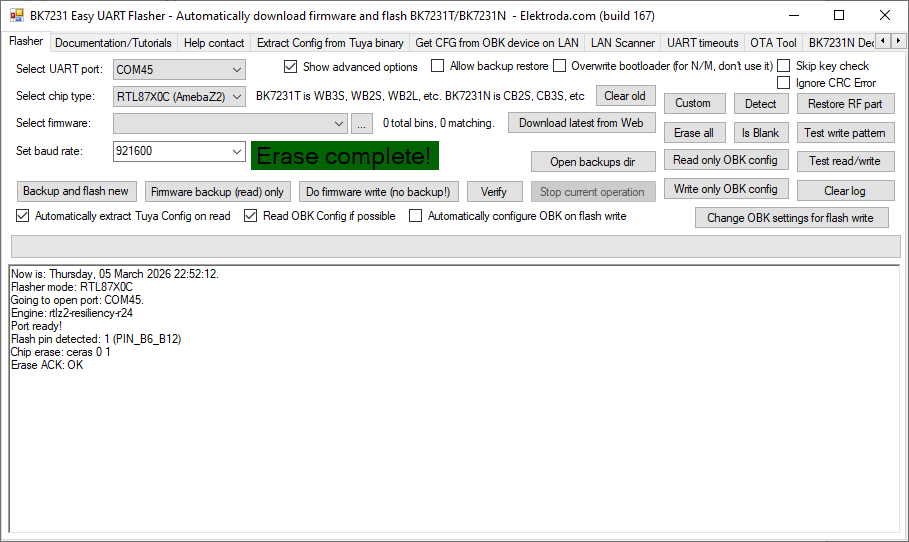

-make erase all button and com port release after completion for all platforms
